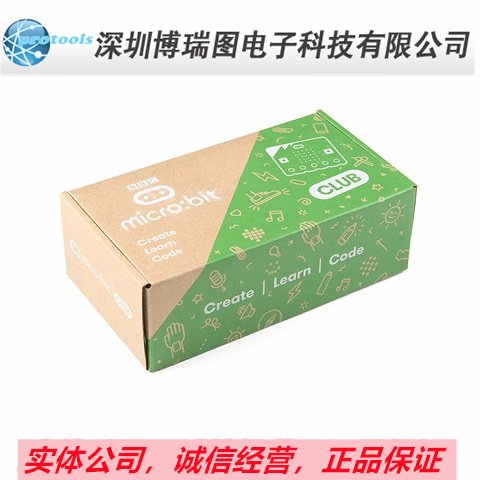

KIT-17290 SparkFun micro:bit v2 Club Kit - Go Bundle 10-Pack

　　Product Overview

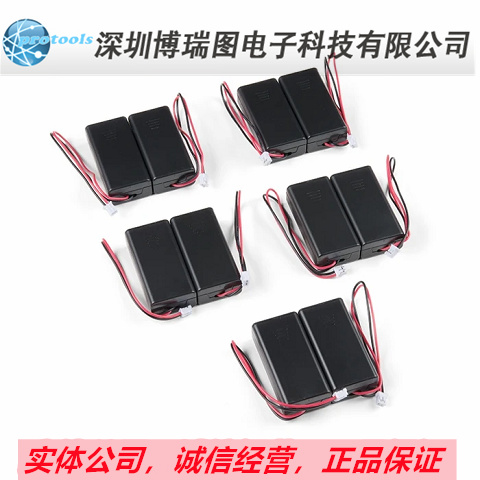

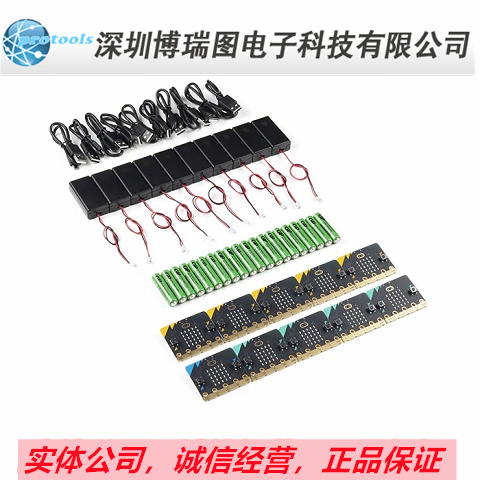

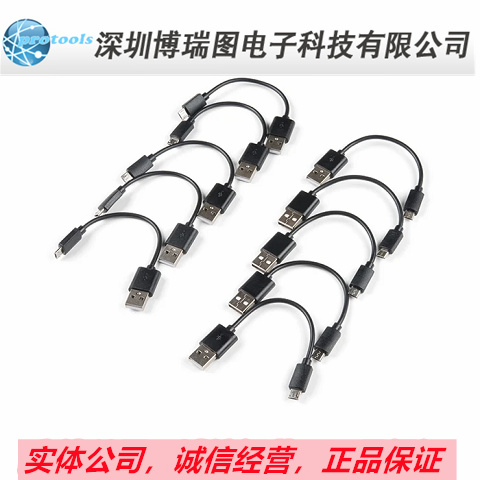

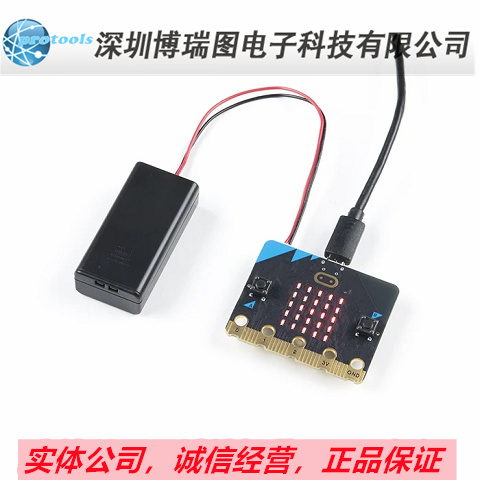

　　This micro:bit v2 Club Kit contains ten, count em', ten micro:bit v2 Go Bundles that provides you with everything you need to get hooked up and powered. This kit includes the micro:bit v2, a short USB cable, a AAA battery holder and AAA batteries. Also inside the Go Bundle you will find a Quick Start Guide with four unique ideas to get you started with micro:bit! The Go Bundle is a quick and economical way to get started with the micro:bit. So gather up your crew, give your club a cool name & get programming!

　　The micro:bit v2 is a pocket-sized computer that lets you get creative with digital technology. Each order contains just the micro:bit v2 board. You can code, customize and control your micro:bit from anywhere! You can use your micro:bit for all sorts of unique creations, from robots to musical instruments and more. At half the size of a credit card, you will be surprised at the amount of hardware each board is equipped with, including 25 red LED lights that can flash messages. There are two programmable tactile buttons, and a touch sensative logo that can be used to control games or pause and skip songs on a playlist. The micro:bit can even detect motion and tell you which direction you’re heading. It can also use Bluetooth Low Energy (BLE 5.0) to interact with other devices and the Internet.

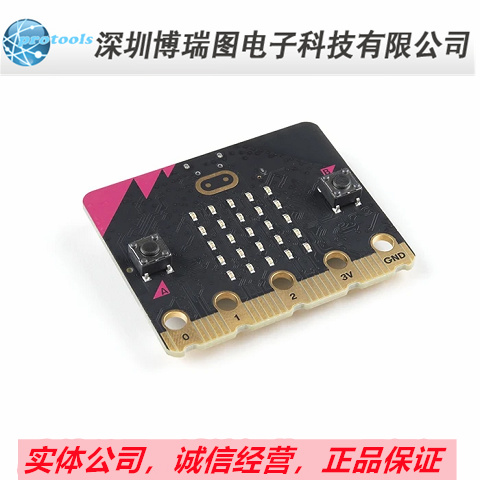

　　On the front of the board you will find the 5x5 LED array that you can use as a light sensor, a tiny screen to draw on, display words, numbers and other information, microphone input & LED indicator, two programmable tactile buttons, and the touch sensitive logo! On the back of the board you will find the brains of the micro:bit, a 64 MHz, ARM Cortex-M4 microcontroller with FPU, 512KB Flash, 128KB RAM and a built-in temperature sensor. Additionally, the back of the micro:bit is populated by an accelerometer, compass, MEMS microphone, speaker, and Bluetooth Smart antenna, as well as a microUSB and two-pin JST connector for different power options. Finally, at the bottom of the board you will find 25 gold-tabbed edge pins and five ring connectors (three for digital/analog I/O, two for power and ground) for hooking up external components. The tabs with larger holes can be easily used with alligator clips are now notched fore easier connection to prototype added components quickly.

　　The micro:bit v2 has even supplied an intuitive mobile app that lets you send your code to your micro:bit over Bluetooth (without using a USB cable). With this app you will be able to interact with your micro:bit on a higher level of accessibility.

　　The micro:bit is a pocket-sized computer that lets you get creative with digital technology. Between the micro:bit and our shield-like bit boards you can do almost anything while coding, customizing and controlling your micro:bit from almost anywhere! You can use your micro:bit for all sorts of unique creations, from robots to musical instruments and more. At half the size of a credit card, this versatile board has vast potential!

　　Features & Specs

　　64 MHz Arm Cortex-M4 with FPU

　　512KB Flash

　　128KB RAM

　　5x5 Red LED Array

　　Two Programmable Buttons, one touch sensitive logo

　　MEMS microphone and LED indicator

　　Onboard Light, Compass, Accelerometer, Temp Sensors and Speaker

　　2.4 Ghz Micro:bit Radio/BLE 5.0 Smart Antenna

　　25-pin Edge Connector

　　4 dedicated GPIO, PWM, i2c, SPI, and ext. power

　　Three Digital/Analog Input/Output Rings

　　Two Power Rings --- 3V and GND

　　Dedcated I2C bus for peripherals

　　MicroUSB Connector (5V)

　　JST-PH Battery Connector (Not JST-XH) (3V)

　　Power/reset Button with Status LED

　　200 mA available for accessories

　　Program with C++, MakeCode, Python, Scratch
