虹膜式光圈安装座
可安装多种直径的虹膜式光圈
阳极氧化铝结构，坚固耐用
带固定螺丝
虹膜式光圈安装座可以适配常见尺寸的虹膜式光圈，采用黑色阳极氧化铝结构，坚固耐用。可选择多种不同的英制支架，每种都包含固定螺丝以确保安装稳定。
产品信息
安装螺纹 ? |
外径 (mm) ? |
兼容的虹膜直径 (mm) ? |
产品编码 |
| 8-32 | 30.8 | 19.8 | #53-918 |
| 8-32 | 32.0 | 21.0 | #54-862 |
| ?-20 | 50.8 | 37.0 | #53-919 |
| ?-20 | 52.0 | 38.0 | #54-863 |
| ?-20 | 66.0 | 53.0 | #53-920 |
| ?-20 | 67.0 | 54.0 | #54-864 |
| ?-20 | 86.0 | 70.0 | #53-921 |
| ?-20 | 88.0 | 72.0 | #54-865 |

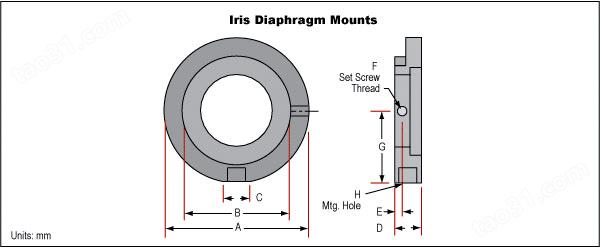

技术信息 |
|||||||||
| Iris Diameter | A | B | C | D | E | F | G | H | Stock N。o. |
| 19.8 | 30.8 | 19.8 | 6.1 | 6.35 | 2.5 | 4-40 | 15.1 | 8-32 | #53-918 |
| 37.0 | 50.8 | 37.0 | 9.0 | 9.5 | 2.8 | 6-32 | 25.0 | ?-20 | #53-919 |
| 53.0 | 66.0 | 53.0 | 9.9 | 9.5 | 3.0 | 6-32 | 32.7 | ?-20 | #53-920 |
| 70.0 | 86.0 | 70.0 | 10.1 | 9.5 | 3.8 | 6-32 | 42.7 | ?-20 | #53-921 |
| 21.0 | 32.0 | 21.0 | 6.2 | 9.5 | 3.2 | 4-40 | 15.7 | 8-32 | #54-862 |
| 38.0 | 52.0 | 38.0 | 9.1 | 9.5 | 3.2 | 6-32 | 25.6 | ?-20 | #54-863 |
| 54.0 | 67.0 | 54.0 | 8.9 | 9.5 | 3.8 | 6-32 | 33.2 | ?-20 | #54-864 |
| 72.0 | 88.0 | 72.0 | 10.3 | 11.5 | 3.8 | 6-32 | 43.7 | ?-20 | #54-865 |
