Newport1.2 to 10 GHz

Newport1.2 to 10 GHz? Biased AC Coupled Optical Receivers

These free space photoreceivers consist of high speed Si, GaAs or InGaAs photodetectors with a built-in amplifier with up to 26 dB of gain. They are excellent for viewing rapid modulation of low-power CW lasers or other light sources in the μW regime. The detectors are AC coupled and feature a bandwidth ranging from 1.2 GHz up to 10 GHz.

对比	型号
	818-BB-21A放大偏压光电探测器，交流耦合，300-1100 nm，硅，1.2 GHz
	818-BB-30A放大偏压光电探测器，交流耦合，1000-1600 nm，InGaAs，1.5 GHz
	818-BB-3放大偏压光电探测器，交流耦合，1000-1650nm，InGaAs，9 GHz
	818-BB-4放大偏压光电探测器，交流耦合，400-900nm，GaAs，9 GHz
	818-BB-51A放大偏压光电探测器，交流耦合，1475–2100 nm，InGaAs，9 GHz

Newport1.2 to 10 GHz产品规格

型号	818-BB-21A	818-BB-30A	818-BB-3	818-BB-4	818-BB-51A
带宽	30 kHz to 1.2 GHz	30 kHz to 1.5 GHz	20 kHz to 10 GHz	20 kHz to 10 GHz	20 kHz to 10 GHz
探测器直径	0.4 mm	0.1 mm	0.032 mm	0.060 mm	0.040 mm
探测器材料	Silicon	InGaAs	InGaAs	GaAs	Extended InGaAs
探测器类型	PIN	PIN	PIN	PIN	PIN
波长范围	300-1100 nm	1000-1600 nm	1000-1650 nm	400-900 nm	1475-2100 nm
接收角	10°	20°	20°	20°	20°
偏置电压/偏压	24 V	24 V	5 V	5 V	5 V
大转换增益	450 V/W at?830 nm	900 V/W at?1300 nm	2250 V/W?at 1310 nm	1340 V/W?at 850 nm	3250 V/W?at 2000 nm
上升时间	500 ps	400 ps	35 ps	35 ps	35 ps
NEP	60 pW/√Hz	30 pW/√Hz	25 pW/√Hz at 1310 nm	35 pW/√Hz at 850 nm	20 pW/√Hz at 2000nm
输出接头	BNC	BNC	SMA	SMA	SMA
输出阻抗	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
电源要求	Includes AC adapter	Includes AC adapter	Includes AC adapter	Includes AC adapter	Includes AC adapter
螺纹类型	8-32 and M4	8-32 and M4	8-32 and M4	8-32 and M4	8-32 and M4

特征

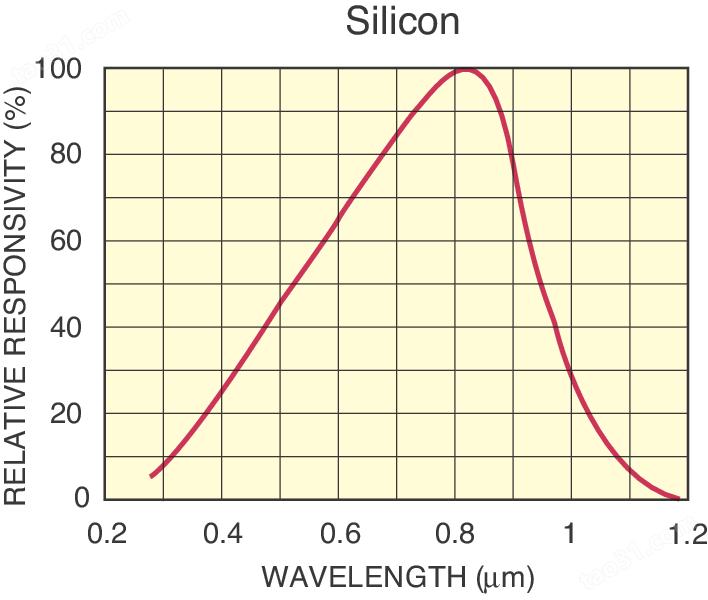

Silicon Optical Receiver

The 818-BB-21A features a 0.4 mm diameter silicon photodetector with a wavelength range of 300 to 1100 nm.?
This 24 V biased free space receiver has an acceptance angle of
10°.
The
Amplified PIN Photodetector
utilizes the photovoltaic effect to convert optical power into an electrical current.

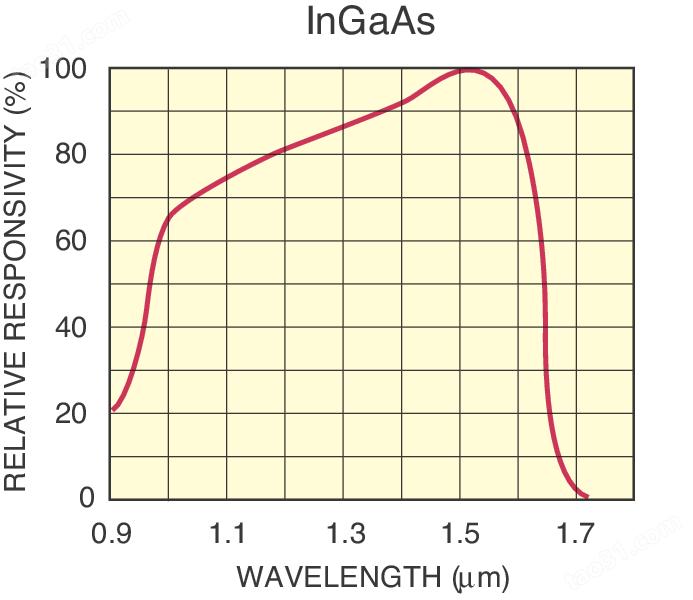

InGaAs Optical Receiver

The 818-BB-30A features a 0.1
mm diameter InGaAs
photodetector with a wavelength range of 1000 to 1600 nm.?
This 24 V biased free space receiver has an acceptance angle of 20°.
The
Amplified PIN Photodetector
utilizes the photovoltaic effect to convert optical power into an electrical current.

Measure Pulsewidth or Frequency Response

These high speed detectors make a great free space
front end for?an?scope or spectrum analyzer.
When terminated into 50??into an oscilloscope, the pulsewidth?of a laser can be measured. When terminated into a spectrum analyzer, the frequency response of a laser can be measured.

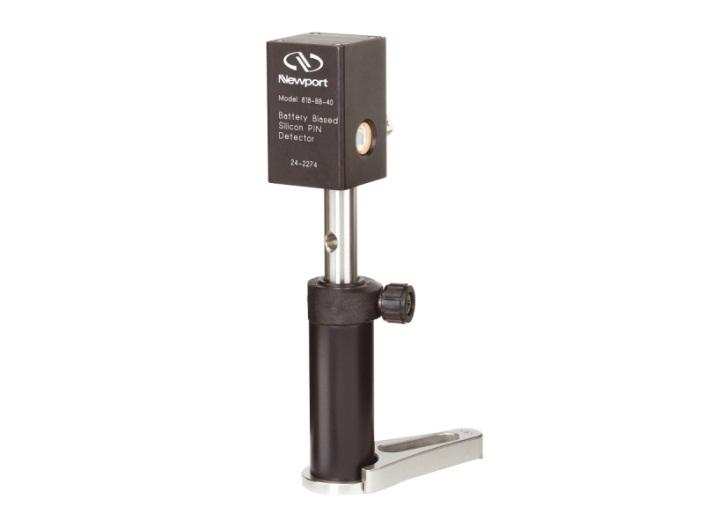

Optical Post Mounting

An 8-32 threaded hole at the bottom of 818-BB biased photoreceivers allows for optical post mounting.

Handle With ESD Care

These detectors are very susceptible to damage by electrostatic discharge (ESD). Please use ESD protective measures, like the FK-STRAP ,?when unpacking and handling these devices.
