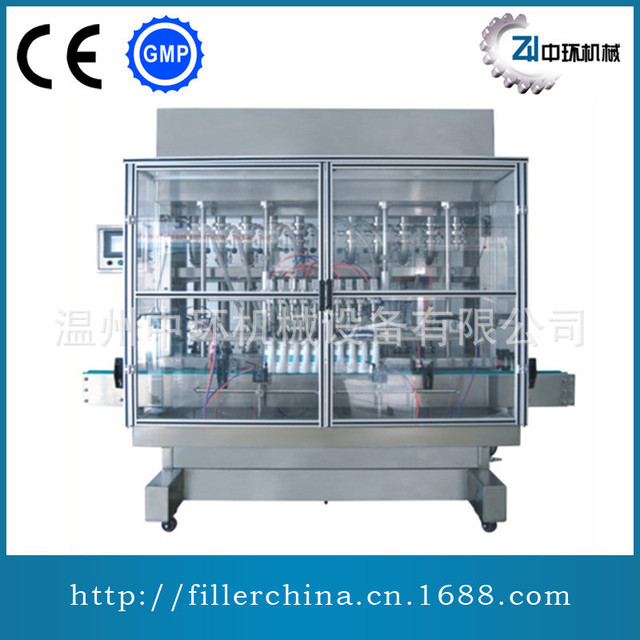

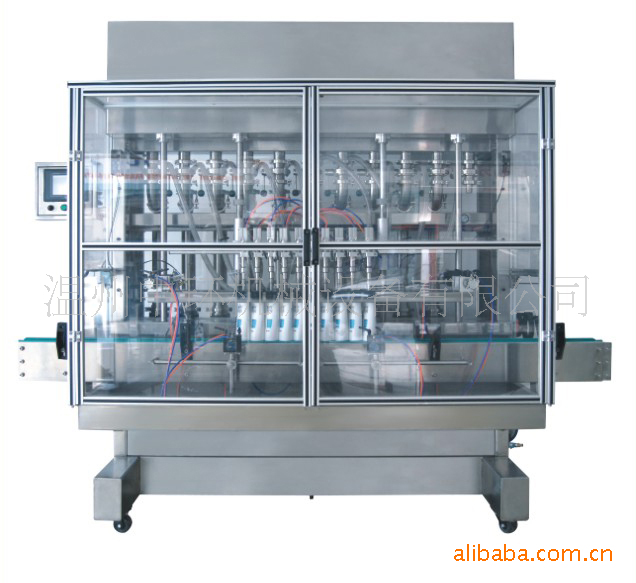

　　ZH-HS 全自动直线式活塞灌装机

　　本系列注射式/常压重力式两用灌装机是我公司研制的一种高技术产品。它可适用于不同粘度的水剂、半流体、膏体类产品，广泛应用于食品、化妆品、医药、油脂、日化、洗涤剂、农药、化工等各个行业产品灌装。采用直线灌装方式，可用于不同类型的溶液灌装。无需增添任何备件。

　　特点:

　　◆该系列机型设计紧凑合理，外型美观大方；

　　◆选取用国际电器元件配制。主动力气缸选用德国费斯托(FESTO)双作用气缸和磁性开关。日本三菱公司PLC电脑、欧姆龙光电、台湾产触摸屏，确保了其出色的质量与持久稳定的性能；

　　◆该机维护便利，无需任何工具，便可轻易拆卸清洗安装，调节方便。调整计量，可先大范围调整到接近计量，再进行微调。能做到无瓶、缺瓶不灌装，计量；

　　◆本机灌装系统均采用卡箍式快装卫生接头。整个缸体从上到下无须工具即可轻易拆卸清洗安装。结构设计简单、操作维护方便。

　　主要技术参数:

　　型号: ZH-HS(6head ,8head ,10head )

　　灌装速度: 80-100b/min(250ML/10head )

　　灌装精度: ±1%

　　缸体规格: 25-250ML. 50-500ML.100-1000ML.250-2500ML

　　工作气压: 5-7KG/㎡

　　机器净重: 950KG

　　外形尺寸: 2000*810*2200MM

　　ZH-HS Full-automatic straight line type piston filling machine

　　The series injection type/normal pressure gravity type dual-use filling machine is a high-tech product researched and developed by our company. It is suitable for products of various viscosity such as water injection, semi-fluid and ointment etc. It is widely applied for filling of products in such industries as food, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry etc. By adopting straight line filling mode, it can be used to fill solutions of different types without the need of adding any spare parts.

　　Feature:

　　◆The series machine is compact and reasonable in design and beautiful and decent in appearance.

　　◆It is made of electrical components of internationally famous brands. The main actuating cylinder adopts Germany FESTO dual actuating cylinder and magnetic switch. Japan Mitsubishi PLC computer, Omron phototube and touch screen made in Taiwan, all of which have guaranteed the excellent quality and consistently stable performance of the machine.

　　◆The machine can be maintained conveniently. It can be easily assembled, disassembled and cleaned without any tools. The adjustment is convenient. For the measurement adjustment, firstly adjust at large scale to be close to the measurement and then carry out fine adjustment. It can be realized that no filling in case of no bottle or insufficient bottle and accurate measurement.

　　◆The filling system of the machine adopts ferrule type rapid installation sanitary connector. The whole cylinder can be easily assembled, disassembled and cleaned from top to bottom without any tools. The structure is simple in design and convenient in operation and maintenance.

　　Technical parameter:

　　Model: ZH-HS(6head ,8head ,10head )

　　Filling speed: 80-100b/min(250ML/10head )

　　Filling precision: ±1%

　　Cylinder specification: 25-250ML. 50-500ML.100-1000ML.250-2500ML

　　Working pressure: 5-7KG/㎡

　　N.W: 950KG

　　Dimension: 2000*810*2200MM
