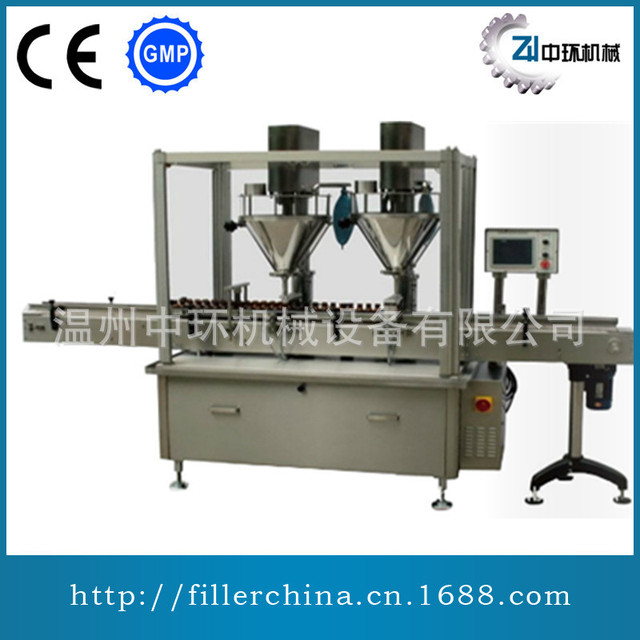

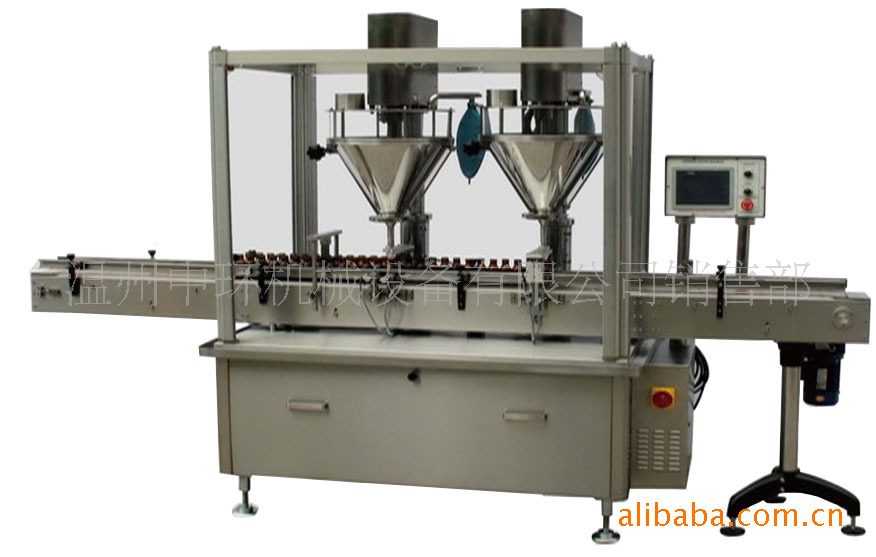

ZH-GZF500全自动粉剂灌装机 双头粉末洗衣粉充填机

　　ZH-GZF500 全自动粉剂灌装机

　　主要特点

　　该自动充填包装机适用包装粉粒状物料。如奶粉、米粉、白糖、咖啡、味精、固体饮料、葡萄糖、固体医药等。

　　◆中/英文触摸屏人机界面，PLC控制系统，伺服电机驱动螺旋。

　　◆使用或瓶状容器包装，配置自动喂罐系统，可实现无瓶、缺瓶不灌装。

　　◆开门料箱，人性化易洗框式机架，整机结构、布局合理，更换包装品种，清理卫生及为方便。

　　◆称重反馈比重跟踪，重量超差报警、故障报警提示和排废功能，确保产品合格率。

　　◆工作数据可储存，备后使用，多可储存10个工作参数。

　　有托罐、振动、吸尘功能。

　　主要技术参数

　　填充重量: 50-250g

　　包装精度: ≤±0.3-1%（视被充填物的特性和重量的变化而定）

　　包装速度: 单头25-30瓶/分 双头40-50瓶/分

　　电源/功率: 220V 50-60HZ 2kw

　　整机重量: 600kg

　　ZH-GZF500 Automatic Can Feeding Filling and Packing Machine

　　Feature

　　The machine is suitable for packing powdery &grainy product, for instance, milk powder, monosodium glutamate, solid beverage, icing sugar, dextrose, feed, coffee, solid medicament, powdery & grainy additive, dye, etc.

　　◆Chinese /English touch screen and HMI, PLC control system, auger is drived by servo motor.

　　◆Equipped with automatic can/bottle feeding system, implement to the functions of no-can-no-filling.

　　◆Open-door hopper, a frame type machine be designed the humanization to easily wash. Reasonable mechanical structre, easy to change size parts and clean up.

　　◆The functions of over-weight warning, error message display and failed packs detecting & deleting, which never let any reject to pass through, ensure the packing quality.

　　◆Max. 10 recipes can be saved for later using.

　　◆Have the functions of can support, vibration and dust extraction.

　　Technical Parameter

　　Filling Weight: 50-250g

　　Packing Accuracy: ≤±0.3-1%（According to packing weight and product specs）

　　Packing Speed: 25-30 can/min（one head）, 40-50 can/min（two heads）

　　Power Supply/Total Power: 220V 2kw

　　Use Tolerance/Air Pressure: 0.2m3/min 6-8kg/m2

　　Total Weight: 600kg
