厂家供应热销ZH-FF-2双排直线防腐灌装机 洁厕灵灌装机

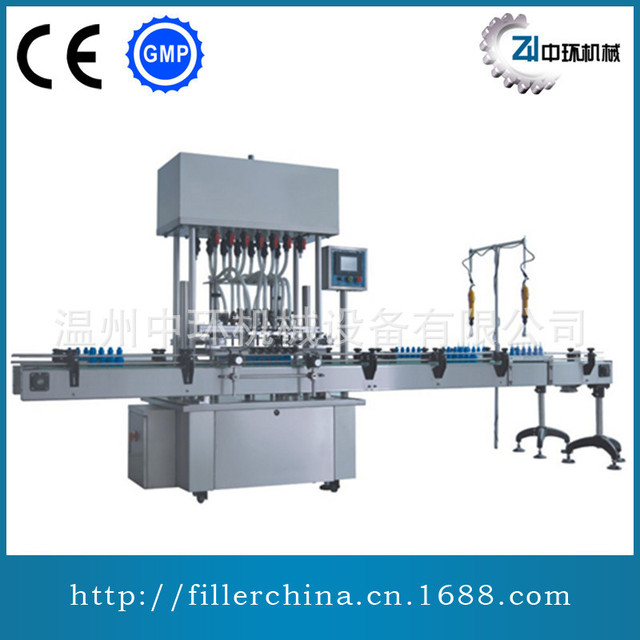

　　ZH-FF-2 型双排直线防腐灌装机 ：

　　本机采用PLC可编程控制，W.6英寸触摸屏人机界面系统，集光电传感、自动补偿、气动执行于一体的高科技灌装设备。两排灌装系统可同时进行灌装不同的液体，并设有下潜防高泡提升灌装之功能，计量，是广泛用于烫发水等2合1高泡、防腐液体的理想灌装设备。

　　功能特点：

　　◆双排灌装系统可提高灌装速度，并避免同瓶型不同溶液的混乱交叉；

　　◆可根据不同瓶型在数分钟内完成切换，调整方便；

　　◆用户可根据产量要求选择灌装头数，无需备件；

　　◆每个灌装头设有卡瓶装置，确保灌装定位。

　　☆可选配以夹瓶下压式拧盖机或自动旋盖机进行旋盖；

　　☆用美国防腐气动隔膜泵，自动补料。

　　主要技术参数:

　　适用瓶径: 40-100mm

　　计量精度: ±1%

　　灌装容量: 40-300ml

　　生产能力: ≤2500b/h （one side 6head）can add to 10.16.20 head

　　气压: 5kg

　　功率: 0.5kw

　　重量: 300kg

　　外型尺寸: 2000*1000*2300mm(L*W*H)

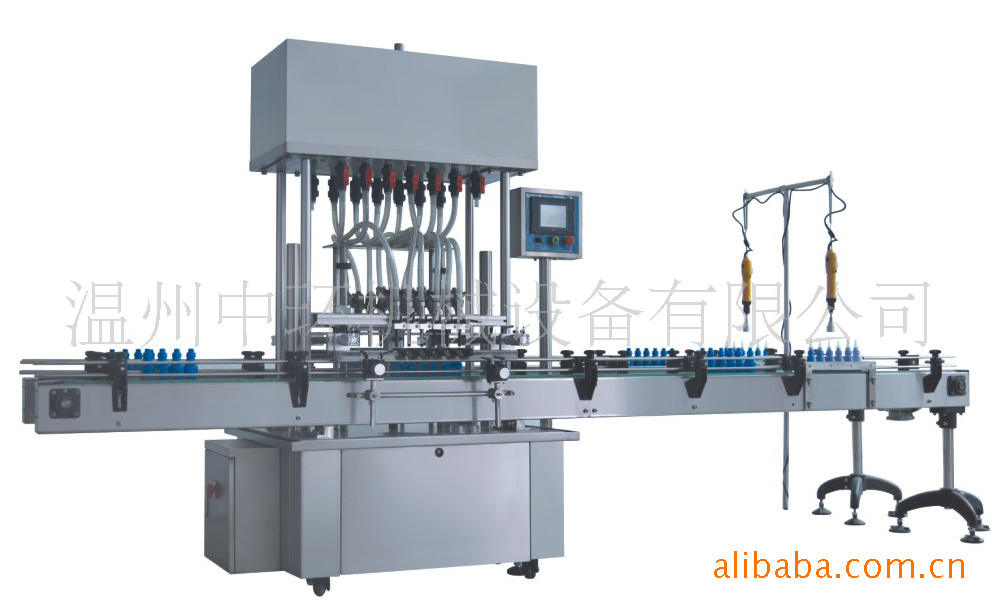

　　ZH-FF-2 Model double-row straight line anticorrosive filling machine

　　The machine is a kind of high-tech filling device adopting PLC programmable logic control, W.6 inch touch screen human machine interface system, and integrating photoelectric sensing, automatic compensating and pneumatic actuating. The two-row filling system can fill different liquids simultaneously. It is also provided with the function of submersible filling without foaming during the filling with accurate measurement. It is an ideal device widely used for hair perm lotion etc. two-in-one high foam anticorrosive liquids.

　　Feature:

　　◆ The double-row filling system can enhance the filling speed and avoid mixture of different solutions in same types of bottles.

　　◆ Switching can be completed within several minutes according to different types of bottles with convenient adjustment.

　　◆ User can choose filling head number according to output requirements without the need of any spare parts.

　　◆ Every filling head is provided with bottle clamping device to ensure an accurate filling position.Bottle clamping and down pressing type screw capping machine or automatic capping machine is optional for capping operation.American anticorrosive pneumatic diaphragm pump is adopted for automatic material adding.

　　Technique Parameter:

　　Applicable bottle drive: 40-100mm

　　Measurement accuracy: ±1%

　　Filling capacity: 40-300ml

　　Production capacity: ≤2500b/h （one side 6head）can add to 10.16.20 head

　　Pressure: 5kg

　　Power: 0.5kw

　　Weight: 300kg

　　Machine Size: 2000*1000*2300mm(L*W*H)
