自动香水灌装机 香水灌装机 等液位灌装机 半自动香水灌装机

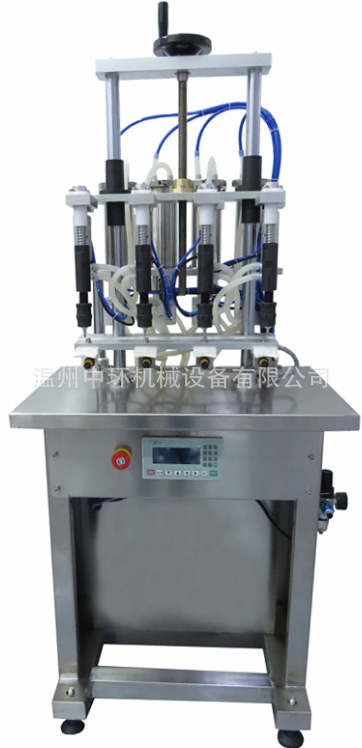

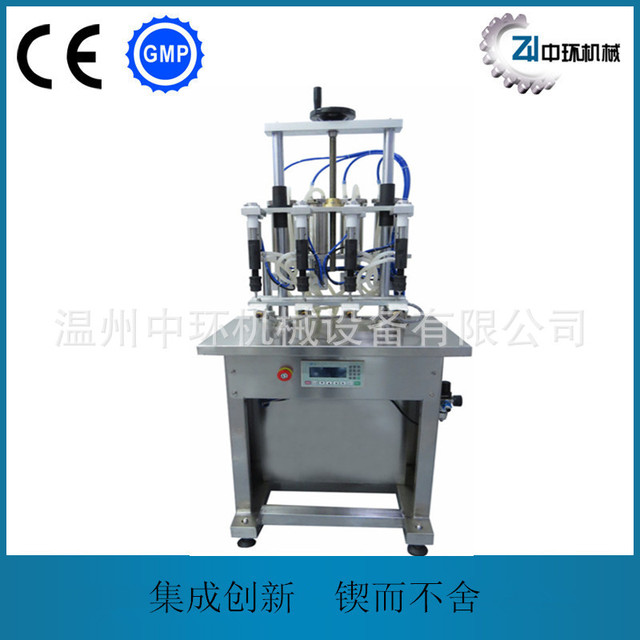

　　ZH-F4 香水灌装机

　　ZH-F4型香水灌装机，用于花露水、香水和其它水性物料的灌装。本机采用负压、定液面方式灌装，有四头和六头两种规格。根据用户需要，可提供防爆型。

　　特点:

　　◆负压吸液灌装，产品灌装量以液面高度为计量方式。

　　◆装有脚轮，移动方便。

　　◆与物料接触零件及台面均用304不锈钢材质。

　　◆适用于玻璃瓶，或抽真空后瓶体不易变形的塑料瓶。

　　◆调整、操作、维修方便。

　　技术参数:

　　生产能力: 10-40 瓶/分

　　灌装量: 5-1000ml

　　使用瓶高度: 250mm

　　适用瓶直径: 90mm

　　使用瓶口直径: 5mm

　　电源电压: 3/N AC380V/220V

　　耗电功率: 0.55KW0.75KW 防爆型

　　噪音: 70bB(A)

　　ZH-F4 Perfume filling machine

　　ZH-F4 model perfume filling machine is used for filling floral water, perfume and other water-based materials. The machine adopts negative pressure and fixed liquid surface type filling. It includes two kinds of specifications such as four-head and six-head. Explosion-proof type products can be provided according to user requirements.

　　Features:

　　◆ Negative pressure liquid sucking filling. The filling volume is measured according to liquid level.

　　◆ Caster wheels are installed for convenient movement.

　　◆ The parts and table surface that contact the materials are all made of 304 stainless steel.

　　◆ Suitable for glass bottles, or plastic bottles whose body will not be easily deformed after vacuum

　　extracting.

　　◆ Convenient adjustment, operation and maintenance.

　　Technical Parameter:

　　Productivity: 10-40

　　Filling volume: 5-1000ml

　　Height of using bottle body: ≤250mm

　　Applicable bottle diameter: ≤90mm

　　Diameter of bottle mouth: ≥5mm

　　Supply power: 3/N AC380V/220V

　　Power consumption: 0.55KW0.75KW (explosion-proof type)

　　Noise: 70bB(A)
