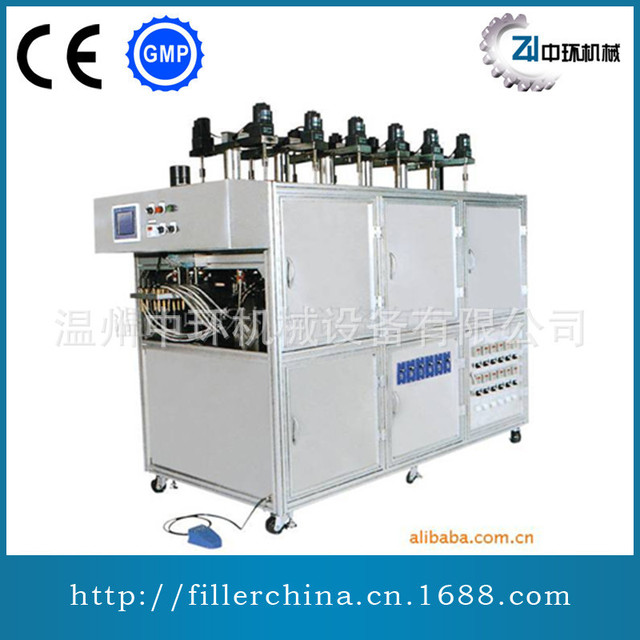

热销ZH-BF 12化妆品孔盘状口紅彩妆灌装机 日用品灌装机

　　ZH-BF系列12孔盘状充填机：

　　本产品针对液体化妆品而设计,例如：口红、眼霜等.

　　独立的料桶搅拌及温控设计,满足原料多样化的需求.

　　采用先进的自动化技术设计（人机界面、PLC程序控制网络技术）,整机需要设定的参数（时间、温控设定、开关及输送带速度）均由人机界面设定,简化系统操作程序,整机性能更稳定.

　　◆本机为铝挤型结构,平台均为不锈钢平面易清洗.

　　◆系统操作程序简单,不需花费长时间教育训练.

　　◆各单元（料桶、泵浦、料管、喷嘴及加热板）均采用PLC温度模组独立控制,控温精度更高,使设备更容易使用.

　　◆自动计数,定时功能.

　　◆附多孔模组,可将喷嘴做不同排列,以配合多样式的盘状或瓶状充填.

　　◆可连接输送带或工作桌（选配）.

　　主要技术参数

　　外观尺寸：2375×990×1600mm

　　电功率：25kw

　　电源：AC 380V/3ψ/50HZ

　　使用气压：6kg/cm2

　　料桶温度：高120℃

　　料桶容积：8L×12,双层料桶隔加热

　　充填量：1-14ml

　　产能：3-5秒/PC（依充填量4C.C.为基础）

　　重量：600kg

　　ZH-BF Series 12-Color Disk Type Filling Machine

　　This machine applies to cosmetics, such as lipstick, eye cream etc.

　　Stirring speed and temperature of each tank are controlled independently.

　　Adopted advanced automatic control (interface control, PLC, network technology). Parameter (time, temperature, switch and speed of conveyor) is set by interface control. Easy control and stable performance.

　　◆Framework made of hardened Aluminum is easy to maintain.

　　◆It doesn’t need much time to train operator.

　　◆Individual temperature control by PLC for separate unit (tank, filling pump, filling hose, filling nozzle and heating plate) to achieve precise temperature.

　　Automatic timer and counter.

　　◆Different position of tray’s cavities can meet different filling need.

　　◆Optional in conveyor or working table.

　　Technical Parameter

　　Dimension: 2375×990×1600mm

　　Power consumption: 25kw

　　Power: AC 380V/3ψ/50HZ

　　Working air pressure: 6kg/cm2

　　Tank temperature: Max. 120℃

　　Tank capacity: 8L×12,double-layer tank heated by oil

　　Filling volume: 1-14ml

　　Capacity: 3-5 s/PC (based on filling quantity 4C.C.)

　　Weight: 600kg
