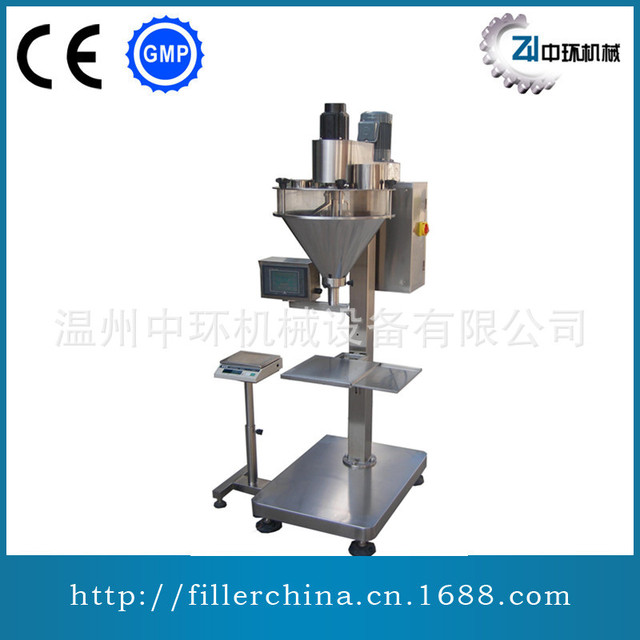

ZH-1A小剂量半自动粉末灌装机 粉末灌装机

　　ZH-1A小剂量半自动填充包装机

　　该半自动充填包装机按照国家GMP标准而设计。该机自动完成计量、充填、重量超差报警等工作，适用包装粉粒状物料，如奶粉、饲料、米粉、白糖、咖啡、味精、固体饮料、葡萄糖、固体医疗等。

　　◆数码管显示各种工作状态，操作简便直观，工作方式一目了然

　　◆采用高速反应离合制动器推动螺旋，称重反馈比重跟踪，精度高，稳定性好。

　　◆整机结构、布局合理，更换包装品种、清理卫生极为方便。

　　◆工作参数配方可储存，备后使用，多可储存10种工作参数。

　　◆更换附件，能够适应超细粉粒到大颗粒等多种物料，多粉尘物料，附吸尘装置，净化环境。

　　主要技术参数

　　包装重量: 1-500克（变换螺旋附件）

　　称重范围: 0.2-800（分辨率1克）

　　包装精度: ≤1%

　　包装速度: 15-60包/分

　　电 源: 380/220V 50-60Hz

　　整机功率: 800KW

　　整机重量: 150千克

　　整机体积: 650×750×1800MM

　　料箱容机: 18升（加大型26升）

　　ZH-1A Small Dose Semi-AutoFill Packing Machine

　　Top end product, of the same machine type, is designed according to the National GMP Standards. This type can do measuring and filling work. it fits to the fluidic or lowfluidity materials, like milk powder, gourmet powder ,solid drink, white sugar, dextrose, coffee, fodder , solid medicine, granularity additive, dyestuff, and so on.

　　◆Flexible, movable. Infrared or pedal control laying-off. No limit to container style. Fit for the purpose of material style, net weight and specification needing to change regularly.

　　◆High-speed response on-off controller screw. Exact repeating precision, high speed, big torsional moment, long life to use.

　　◆Weight feedback to run after the specific weight, overcome the shortcoming of the net weight change with the material specific-weight.

　　◆LED display or in Chinese, simply visual supervisory. Stepless adjust the net weight in working status and change it at any time, easy to control.

　　◆Save the parameter of technique data and magistral formula for later use. 10 sets of working parameter are saved at the most.

　　◆Fit for lots of material ranges from fine-powder to coarse-granule, if change the screw attachment. Dust- collector set on dust material.

　　Technical Parameter

　　Package Weight: 1-500g(The screw attachment is can be changed.)

　　Weighing Range: 0.2-800（with a resolution of 1g）

　　Packaging Accuracy: ≤1%

　　Packaging Rate: 15-60 bags/min

　　Power Supply: 380/220V 50-60Hz

　　Total Power: 800KW

　　Total Weight: 150 kg

　　Overall Dimensions: 650×750×1800MM

　　Hopper Volume: 18L（26 liter for oversized hopper）
