| 品牌 |
温州中环机械 |
型号 |
ZHY4T-4G |
| 加工定制 |
是 |
计量方式 |
容积 |
| 包装膜宽 |
45-180 |
充填重量 |
0.5-60 |
| 功率 |
3 |
电源电压 |
220V/380V |
| 气压 |
0.6-0.8 |
用气量 |
0.3 |
| 包装速度 |
40-80 |
适用范围 |
液体 |
| 重量 |
500 |
产地 |
浙江温州 |

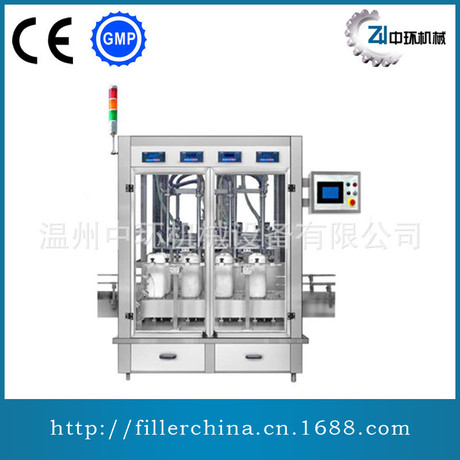

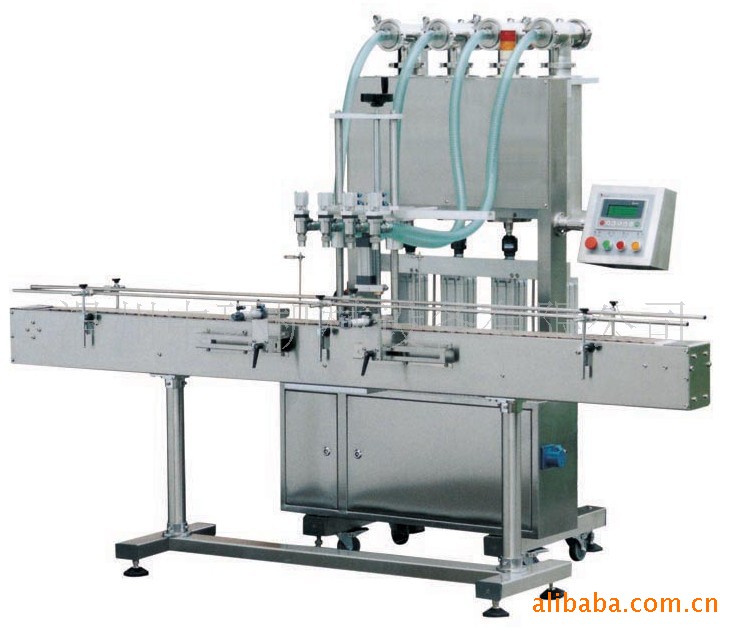

| ZHY4T-4G直线液体灌装机 ZHY4T-4G 在参考国外同类产品的基础上进行改良设计，并增加了部分附加功能。使产品在使用操作、精度误差、装机调整、设备清洗、维护保养等方面更加简单方便。广泛适用于日化、油脂等各行业，可灌装不同液体类产品。该机设计紧凑合理、外形简洁美观，灌装量调节方便。 ◆该机有六个灌装头，由六个气缸驱动、灌装物料更加快速。 ◆采用德国FESTO、台湾AirTac的气动组件和台湾台达的电控部件，性能稳定。 ◆物料接触部分均采用316L不锈钢材料制成。 ◆采用韩国光眼装置，台湾PLC、触摸屏、变频器及法国电器元件。 ◆调节便利、无瓶不灌装、灌装量准确并具有计数功能。 ◆采用防滴漏与拉丝的灌装闷头、防高泡产品的灌装升降系统、确保瓶口定位的定位系统和液位控制系统。 技术参数 灌装速度：20-30瓶/分 灌装精度：≤±1﹪ 电 源：220/110V 50/60Hz 气 压：0.5－0.7MPa 电 流：3A 功 率：500W 可选机型：25-60ml 50-125ml 100-250ml 200-500ml 400-1000ml 900-2500ml 2200-5000ml ZHY4T-4G Automatic Filling Machine ZHY4T4G is improved in design at the foundation of consulting the same products abroad, and has increased by some additional functions. Make the products more simple and more convenient in operation, precision and error, installation and adjustment, equipment wash, maintenance etc.. ◆Widely suitable for the industries, such as daily chemical, grease, etc., can fill different liquid products. This machine is compact and rational in design, succinct and beautiful I appearance, adjustment of filling volume is convenient. ◆This machine has four filling heads, which are droved by four cylinders, it is faster and more accurate to filling materials. ◆Adopt the pneumatic part of Germany FESTO and Taiwan Airtac, and the electric control part of Taiwan. Performance is steady. The part contacting materials is made of 316L stainless steel. ◆Adopt the photoelectric eyes device of Korea S., Taiwan PLC, touch-sensitive screen, frequency converter and French electric apparatus components. ◆Adjustment is convenient, and filling carried out only with bottles fed, filling volume is accurate and with count function. Adopt filling head of anti-leakage and anti-pull, filling lifting system of anti-high blister products, orientation system of guaranteeing bottleneck orientation and liquid location control system. Technical Parameter Filling Speed: 20-40 bottles/min Filling Accuracy: ≤±1% Air Pressure: 0.4-0.6MPa Current: 3A Power: 500W Electricity: 220/110V 50/60Hz Optional Model: 25-60ml 50-125ml 100-250ml 200-500ml 400-1000ml 9000-2500ml 2200-5000ml
|
