| 品牌 |
温州中环机械 |
型号 |
ZH-GZ-2 |
| 加工定制 |
是 |
计量方式 |
容积 |
| 包装膜宽 |
45-180 |
充填重量 |
0.5-60 |
| 功率 |
3 |
电源电压 |
220V/380V |
| 气压 |
0.6-0.8 |
用气量 |
0.3 |
| 包装速度 |
40-80 |
适用范围 |
粉末 |
| 重量 |
300 |
产地 |
浙江温州 |

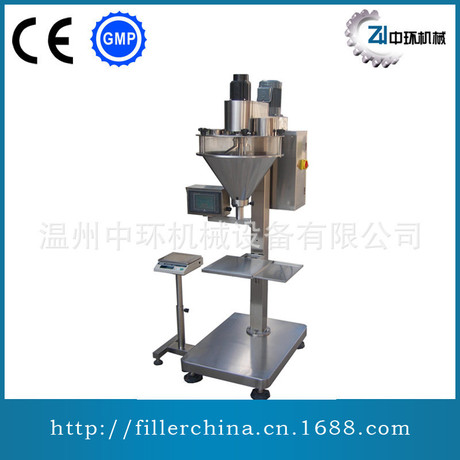

| 双头粉剂直线式灌装机 用途与简介： 该设备是我公司应国外客户要求研发的大剂量粉剂灌装机。能完成大瓶的单独灌装。双螺杆计量，具有结构紧凑，操作简单的特点，可选配旋盖机等设备组成生产联动线。本机完全符合新版GMP标准 特点： 整机设计合理，更换包装品种、清理都极为方便。 包装重量无级可调，故障报警提示。 控制采用PLC，抗干扰，工作稳定。 技术参数： 适用规格0.1-500g 包装速度40—80瓶/分 包装精度≤±1% 电源220V/50Hz 功率1.5kw 机器重量150 kg 外形尺寸1680*1000*1750mm Double powder linear filling machine BriefIntroduction: the machine is designed by ourselves according to the foreign customers' requirements. it is mainly used for a large number of powder filling. it can also complete the mission alone. it meter with double screw,because doing this will make the structure very terse and be aesy to operate. it can also work with capping machine and other machines. the machine fullliy meets with new GMP requirements. Characteristic： 1The whole machine is designed rationally,it is easy for changing packing kind and cleaning. 2 Packing weight can be adjusted,error alarm. 3 Control by PLC,anti-jamming,working steady. Main technique parameter： Packing Weight0.1-500g Packing Speed 40-80 bot / min Packing Precision ≤±1% Power Supply 220V/50Hz Power 1.5kw Dimension 1680*1000*1750mm
|
