液体称重灌装机 化工原料大容量定量灌装机 2L-10L灌装机定金

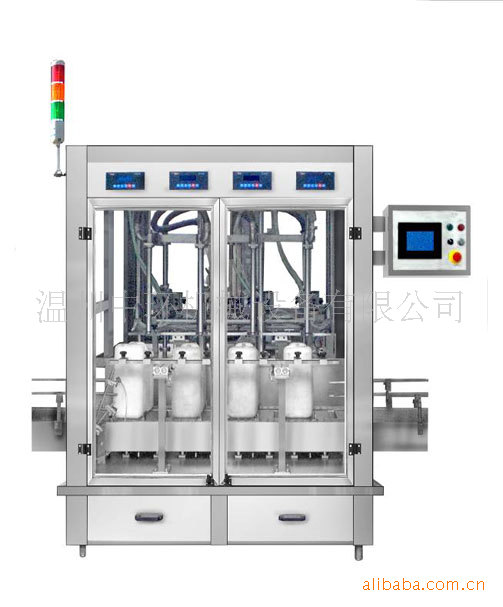

　　ZH-CZ-4液体称重灌装机

　　本机适用于对流体10kg~50kg的计重量灌装，自动完成计数进瓶、计重量灌装、输送出瓶等一系列操作。特别适用于水剂、食用油、润换油的定量灌装，是食品、医药、化妆品以及精细化工等行业的理想包装机。

　　主要特点

　　◆本机采用可编程控制器（PLC）、触摸屏进行操作控制、使用调节方便。

　　◆每个灌装头均有称重和反馈系统，能对每一个头的灌装量进行灌装量设置和单个微量调整。

　　◆光电传感器、接近开关等采用的都是先进的传感元件，做到无桶不灌装，堵桶主机会自动停机并报警。

　　◆灌装方式为下潜式，可有效减少泡沫的产生，可以满足不同特性物料的灌装。

　　◆整机按GMP标准要求制作，各管路连接采用快装方式，拆卸清理方便快捷，与无聊接触部位及外露部分均采用不锈钢材料制造。整机安全、环保、卫生、美观、能适应各种不同环境的工作。

　　◆此灌装机适用于10kg 到50kg 液体。

　　◆ 各灌装头都有反馈系统，可以分别调整。

　　◆ 采用PLC以及触屏控制。

　　◆ 采用潜入式灌装减少泡沫。

　　主要技术参数

　　外形尺寸：2500mm（长）×1700mm（宽）×2300mm（高）

　　灌装头数：4头

　　适用瓶型：长度：160mm~360mm

　　宽度：140mm~260mm

　　高度：250mm~500mm

　　桶口直径：≥φ40mm

　　包装规格：5L~50L

　　生产能力：≤400桶/小时

　　计量误差：±15ml

　　配备电源：220V；50Hz

　　主机功率：3KW

　　配备气源：0.55Mpa~0.65Mpa洁净稳定气源

　　ZH-CZ-4 Weight Filling Machine

　　This weighing filling machine is for filling 10kg to 50kg liquid. It automatically achieves counting inlet bottle, gravity filling, and bottle outlet. It is especially good for filling SL, edible oil and lubrication. It is a nice choice for foodstuff pharmacy, cosmetic and chemical industries.

　　Major Characteristics:

　　◆This weighing filling machine is for filling 10kg to 50kg liquid..

　　◆ Each filling head has the weigh and feedback system, each filling head can be regulated

　　◆This type filler adopts PLC to control, touch screen control panel

　　◆ It applies dive method to fill and it reduces foam.

　　◆ This machine adopts PLC and touch screen control panel, so it is convenient to set.

　　◆ Each filling head has the weigh and feedback system, each filling head can be regulated.

　　◆ Photoelectric sensor, approximate switch and other electric elements are of the international famous brands. It ensures no container miss filling. The host machine will alarm if there is any container blocked.

　　◆It applies dive method to fill and it reduces foam; it is suitable for various kinds of filling products.

　　◆ The whole machine meets GMP standard, it is easy to clean and maintain, and the parts which contact with the filling material are made of high quality stainless steel. The whole machine is safe, eco-friendly and sanitary. It adapts to various kinds of working places.

　　Main Performance parameter:

　　Outline Dimension (L×W×H):2500mm×1700mm×2300mm

　　Number of filling Head:4

　　Suitable bottle:Length:160mm~360mm

　　Width:140mm~260mm

　　Height:250mm~500mm

　　Diameter of bottle mouth:≥Φ40mm

　　Suitabe range:5L~50L

　　Production capacity:≤480bottles/hour(tested by water)

　　Filling Error:±15ml

　　Voltage:220V;50Hz

　　Power of host machine:3kw

　　Pneumatic (air-operated) source:0.5Mpa~0.65Mpa clean and Stably compressed air
