| 品牌 |
孚光精仪 |
型号 |
FPDEL-ZnTe |
| 批号 |
1 |
封装 |
防潮 |
| 包装 |
盒装 |
最小包装量 |
2 |
| 工作频率 |
1 |
货号 |
FPDEL-ZnTe |
| 材质 |
晶体 |
适用范围 |
太赫兹 |
| 厂家 |
www.felles.cn/taihezi.html |
加工定制 |
可以 |
| 是否进口 |
美国进口 |
|

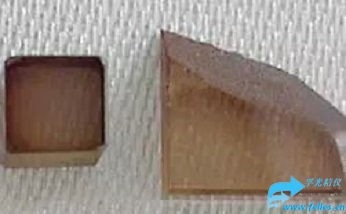

ZnTe晶体是一种优良的太赫兹晶体,<110>取向的ZnTe晶体中，通过自由空间电光检测来检测THz脉冲。
太赫兹脉冲和可见光脉冲通过ZnTe晶体共线传播。太赫兹脉冲在ZnTe晶体中产生双折射，由线偏振可见光脉冲读出。当可见光脉冲和太赫兹脉冲同时在晶体中时，可见光偏振将被太赫兹脉冲旋转。利用l/4波片和分束偏振器以及一组平衡光电二极管，我们通过监测ZnTe晶体在不同延迟时间后相对于THz脉冲的可见光脉冲偏振旋转来“映射”THz脉冲幅度。
网页上的价格是参考价格，未必准确，准确的价格信息请联系我们索取。
ZnTe晶体标准品规格参数
订购代码 晶体描述 CR-ZnTe-10-10-0.1 ZnTe crystal, 10x10x0.1 mm, 110-cut CR-ZnTe-10-10-0.1-1 ZnTe crystal, 110-cut, 10x10x0.1 mm mounted on 1 mm substrate CR-ZnTe-10-10-0.1-2 ZnTe crystal, 110-cut, 10x10x0.1 mm mounted on 2 mm substrate CR-ZnTe-10-10-0.1-H ZnTe crystal, 10x10x0.1 mm, 110-cut, mounted CR-ZnTe-10-10-0.2 ZnTe crystal, 10x10x0.2 mm, 110-cut CR-ZnTe-10-10-0.2-2 ZnTe crystal, 110-cut, 10x10x0.2 mm mounted on 2 mm substrate CR-ZnTe-10-10-0.2-H ZnTe crystal, 10x10x0.2 mm, 110-cut, mounted CR-ZnTe-10-10-0.3-1 ZnTe crystal, 110-cut, 10x10x0.3 mm mounted on 1 mm substrate CR-ZnTe-10-10-0.3-2 ZnTe crystal, 110-cut, 10x10x0.3 mm mounted on 2 mm substrate CR-ZnTe-10-10-0.5 ZnTe crystal, 10x10x0.5 mm, 110-cut CR-ZnTe-10-10-0.5 ZnTe crystal, 10x10x0.5 mm, 110-cut with <001> crystal axis oriented with respec CR-ZnTe-10-10-0.5-1 ZnTe crystal, 110-cut, 10x10x0.5 mm mounted on 1 mm substrate CR-ZnTe-10-10-0.5-2 ZnTe crystal, 110-cut, 10x10x0.5 mm mounted on 2 mm substrate CR-ZnTe-10-10-1 ZnTe crystal, 10x10x1 mm, 100-cut CR-ZnTe-10-10-1 ZnTe crystal, 10x10x1 mm, 110-cut CR-ZnTe-10-10-1 ZnTe crystal, 10x10x1 mm, 111-cut CR-ZnTe-10-10-1-H ZnTe crystal, 10x10x1 mm, 100-cut, mounted CR-ZnTe-10-10-2 ZnTe crystal, 10x10x2 mm, 100-cut CR-ZnTe-10-10-2 ZnTe crystal, 10x10x2 mm, 110-cut CR-ZnTe-10-10-3 ZnTe crystal, 10x10x3 mm, 110-cut CR-ZnTe-15-15-1.5 ZnTe crystal, 15x15x1.5 mm, 110-cut CR-ZnTe-20-20-0.2 ZnTe crystal, 20x20x0.2 mm, 110-cut CR-ZnTe-20-20-0.5 ZnTe crystal, 20x20x0.5 mm, 110-cut CR-ZnTe-20-20-0.5-AR ZnTe crystal, 20x20x0.5 mm, 110-cut, AR coated CR-ZnTe-20-20-1 ZnTe crystal, 20x20x1 mm, 110-cut CR-ZnTe-20-20-1.5 ZnTe crystal, 20x20x1.5 mm, 110-cut CR-ZnTe-20-20-2 ZnTe crystal, 20x20x2 mm, 110-cut CR-ZnTe-5-5-0.15 ZnTe crystal, 5x5x0.15 mm, 110-cut CR-ZnTe-5-5-0.2 ZnTe crystal, 5x5x0.2 mm, 110-cut
