Altechna-透镜套件
?
Altechna-透镜套件
材质 |
UVFS |
安装直径 |
25.4?mm?(+0/?-0.2?mm) |
厚度公差 |
±0.1?mm |
通光孔径 |
>18?mm |
焦距公差 |
±2?% |
表面质量 |
40-20?S-D |
表面图 |
<λ/4?@?632.8?nm |
中心错误 |
<3?arcmin |
设计波长 |
632.8?nm |
所有镜头均采用直径25.4mm的金属环进行黑色阳极氧化处理。?镜头内部无胶，固定有特殊形状的金属挡圈。

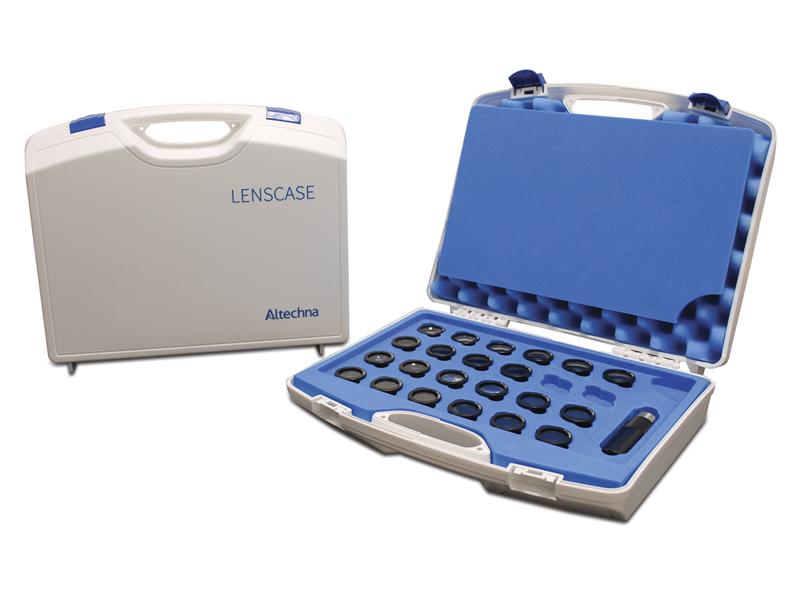

安装的镜头包装在小而方便的铝制安全箱中。
欲了解更多产品信息，请点击“功能”选项卡。
1）22个UVFS镜头
2）黑色25,4mm阳极氧化金属环
3）无铅配置（高LIDT）
4）AR涂层选项
5）现代安全箱包装
6）交货2周
LensCase包含22个UVFS镜头，具有以mm为单位的以下焦距：
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
+35 |
+50 |
+60 |
+75 |
+100 |
+125 |
+150 |
+200 |
+300 |
+500 |
+750 |
+1000 |
-30 |
-40 |
-50 |
-60 |
-80 |
-100 |
-150 |
-200 |
-300 |
-500 |
Altechna计量实验室应用以下产品检验：
目视检查?-?根据MIL?13830和ISO?10110标准进行表面质量评估
尺寸?-?测量几何尺寸，如直径，厚度等
曲率半径（Spherometer）*
有效焦距（Spherometer）
中心（中心单元）
不规则（干涉仪）
波前畸变（干涉仪）
*（...）使用的设备
涂层 |
剩余反射率，％ |
波长，nm |
产品编号 |
|---|---|---|---|
Uncoated |
1-LENSCASE |
||
Laser?Line?AR?Coated |
<0.5 |
266 |
1-LENSCASE-[6A00] |
Laser?Line?AR?Coated |
<0.25 |
343-355 |
1-LENSCASE-[6B00] |
Laser?Line?AR?Coated |
<0.2 |
400 |
1-LENSCASE-[6C00] |
Laser?Line?AR?Coated |
<0.2 |
473-488 |
1-LENSCASE-[6D00] |
Laser?Line?AR?Coated |
<0.2 |
515 |
1-LENSCASE-[6E00] |
Laser?Line?AR?Coated |
<0.2 |
527-532 |
1-LENSCASE-[6F00] |
Laser?Line?AR?Coated |
<0.2 |
589 |
1-LENSCASE-[6G00] |
Laser?Line?AR?Coated |
<0.2 |
633 |
1-LENSCASE-[6H00] |
Laser?Line?AR?Coated |
<0.2 |
780 |
1-LENSCASE-[6J00] |
Laser?Line?AR?Coated |
<0.2 |
800 |
1-LENSCASE-[6K00] |
Laser?Line?AR?Coated |
<0.2 |
852 |
1-LENSCASE-[6L00] |
Laser?Line?AR?Coated |
<0.2 |
946 |
1-LENSCASE-[6M00] |
Laser?Line?AR?Coated |
<0.2 |
980 |
1-LENSCASE-[6N00] |
Laser?Line?AR?Coated |
<0.2 |
1030 |
1-LENSCASE-[6P00] |
Laser?Line?AR?Coated |
<0.2 |
1047-1064 |
1-LENSCASE-[6R00] |
Laser?Line?AR?Coated |
<0.2 |
1122 |
1-LENSCASE-[6S00] |
Laser?Line?AR?Coated |
<0.2 |
1319 |
1-LENSCASE-[6T00] |
Laser?Line?AR?Coated |
<0.2 |
1550 |
1-LENSCASE-[6V00] |
Dual?AR?Coated |
<0.5 |
266+532 |
1-LENSCASE-[8A00] |
Dual?AR?Coated |
<0.3 |
343+1030 |
1-LENSCASE-[8B00] |
Dual?AR?Coated |
<0.3 |
355+532 |
1-LENSCASE-[8C00] |
Dual?AR?Coated |
<0.3 |
355+1064 |
1-LENSCASE-[8D00] |
Dual?AR?Coated |
<0.3 |
399+556 |
1-LENSCASE-[8E00] |
Dual?AR?Coated |
<0.3 |
400+800 |
1-LENSCASE-[8F00] |
Dual?AR?Coated |
<0.3 |
426+852 |
1-LENSCASE-[8G00] |
Dual?AR?Coated |
<0.25 |
515+1030 |
1-LENSCASE-[8H00] |
Dual?AR?Coated |
<0.25 |
532+1064 |
1-LENSCASE-[8J00] |
Dual?AR?Coated |
<0.3 |
1064+1319 |
1-LENSCASE-[8K00] |
Broad?Band?AR?Coated |
<0.5 |
266?-370 |
1-LENSCASE-[7J00] |
Broad?Band?AR?Coated |
<1.0 |
400-700 |
1-LENSCASE-[7A00] |
Broad?Band?AR?Coated |
<0.8 |
600-1050 |
1-LENSCASE-[7B00] |
Broad?Band?AR?Coated |
<0.4 |
700-950 |
1-LENSCASE-[7C00] |
Broad?Band?AR?Coated |
<0.3 |
750-850 |
1-LENSCASE-[7D00] |
Broad?Band?AR?Coated |
<0.5 |
750-1000 |
1-LENSCASE-[7E00] |
Broad?Band?AR?Coated |
<0.6 |
900-1200 |
1-LENSCASE-[7F00] |
Broad?Band?AR?Coated |
<0.6 |
1200-1500 |
1-LENSCASE-[7G00] |
Broad?Band?AR?Coated |
<0.7 |
1500-1900 |
1-LENSCASE-[7H00] |
定制
你可以根据您的需求定制这个产品。如果您没有找到适合您的应用，请与我们，以便定制解决方案。
