Andover陡峭边缘长通滤光片
我们的陡峭边缘长通滤光片采用磁控溅射硬氧化物涂层，以产生深刻的排斥和急剧过渡到非常高的透射。涂层沉积在精密抛光熔融石英基底上，不使用任何吸收滤光玻璃，使其适合高温应用。他们提供三个标准尺寸，定制尺寸可根据要求提供。对于要求较低的应用，请参阅我们的标准边缘滤光片。
Andover陡峭边缘长通滤光片
通用规格：
| 厚度： | 1.5 ± .025mm |
| 尺寸公差： | +0.0mm/-0.2mm |
| 小通光孔径： | 95% of outside dimension |
| 基底材质： | UV Grade Fused Silica |
| 平坦度： | ≤ 1/4 wave/inch TWF |
| 表面质量： | 60-40 per MIL-C-48497A |
| 湿度和磨损： | Per MIL-C-67 |
| 耐用性: | Per MIL-C-48497A |
| 工作温度： | -50°C to +200°C |
| 透射： | ≥ 91% average |
| 截止： | ≥ OD 4.0 |
| 斜面切割： | 1% (2% for 325nm filter) |
| 切割公差： | ± 1% |
| 有效折射率 | 1.76 |
| 机械： | Unmounted |
订购信息:
| DEION | PART NO. |
| 325nm Steep-Edge Long Pass Filter, 12.5mm dia. | 325SC01-12.5 |
| 325nm Steep-Edge Long Pass Filter, 25mm dia. | 325SC01-25 |
| 325nm Steep-Edge Long Pass Filter, 50mm dia. | 325SC01-50 |
| 325nm Steep-Edge Long Pass Filter, 50.0 x 50.0mm sq. | 325SC01-50S |
| 350nm Steep-Edge Long Pass Filter, 12.5mm dia. | 350SC01-12.5 |
| 350nm Steep-Edge Long Pass Filter, 25mm dia. | 350SC01-25 |
| 350nm Steep-Edge Long Pass Filter, 50mm dia. | 350SC01-50 |
| 350nm Steep-Edge Long Pass Filter, 50.0 x 50.0mm sq. | 350SC01-50S |
| 375nm Steep-Edge Long Pass Filter, 12.5mm dia. | 375SC01-12.5 |
| 375nm Steep-Edge Long Pass Filter, 25mm dia. | 375SC01-25 |
| 375nm Steep-Edge Long Pass Filter, 50mm dia. | 375SC01-50 |
| 375nm Steep-Edge Long Pass Filter, 50.0 x 50.0mm sq. | 375SC01-50S |
| 400nm Steep-Edge Long Pass Filter, 12.5mm dia. | 400SC01-12.5 |
| 400nm Steep-Edge Long Pass Filter, 25mm dia. | 400SC01-25 |
| 400nm Steep-Edge Long Pass Filter, 50mm dia. | 400SC01-50 |
| 400nm Steep-Edge Long Pass Filter, 50.0 x 50.0mm sq. | 400SC01-50S |
| 450nm Steep-Edge Long Pass Filter, 12.5mm dia. | 450SC01-12.5 |
| 450nm Steep-Edge Long Pass Filter, 25mm dia. | 450SC01-25 |
| 450nm Steep-Edge Long Pass Filter, 50mm dia. | 450SC01-50 |
| 450nm Steep-Edge Long Pass Filter, 50.0 x 50.0mm sq. | 450SC01-50S |
| 500nm Steep-Edge Long Pass Filter, 12.5mm dia. | 500SC01-12.5 |
| 500nm Steep-Edge Long Pass Filter, 25mm dia. | 500SC01-25 |
| 500nm Steep-Edge Long Pass Filter, 50mm dia. | 500SC01-50 |
| 500nm Steep-Edge Long Pass Filter, 50.0 x 50.0mm sq. | 500SC01-50S |
| 550nm Steep-Edge Long Pass Filter, 12.5mm dia. | 550SC01-12.5 |
| 550nm Steep-Edge Long Pass Filter, 25mm dia. | 550SC01-25 |
| 550nm Steep-Edge Long Pass Filter, 50mm dia. | 550SC01-50 |
| 550nm Steep-Edge Long Pass Filter, 50.0 x 50.0mm sq. | 550SC01-50S |
| 600nm Steep-Edge Long Pass Filter, 12.5mm dia. | 600SC01-12.5 |
| 600nm Steep-Edge Long Pass Filter, 25mm dia. | 600SC01-25 |

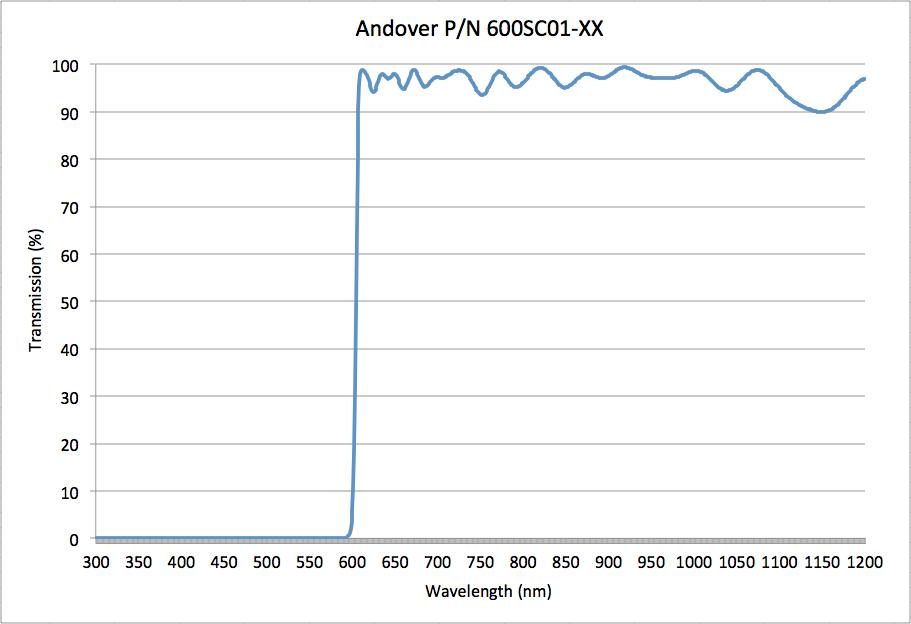

| 600nm Steep-Edge Long Pass Filter, 50mm dia. | 600SC01-50 |
| 600nm Steep-Edge Long Pass Filter, 50.0 x 50.0mm sq. | 600SC01-50S |
| 650nm Steep-Edge Long Pass Filter, 12.5mm dia. | 650SC01-12.5 |
| 650nm Steep-Edge Long Pass Filter, 25mm dia. | 650SC01-25 |
| 650nm Steep-Edge Long Pass Filter, 50mm dia. | 650SC01-50 |
| 650nm Steep-Edge Long Pass Filter, 50.0 x 50.0mm sq. | 650SC01-50S |
| 700nm Steep-Edge Long Pass Filter, 12.5mm dia. | 700SC01-12.5 |
| 700nm Steep-Edge Long Pass Filter, 25mm dia. | 700SC01-25 |
| 700nm Steep-Edge Long Pass Filter, 50mm dia. | 700SC01-50 |
| 700nm Steep-Edge Long Pass Filter, 50.0 x 50.0mm sq. | 700SC01-50S |
