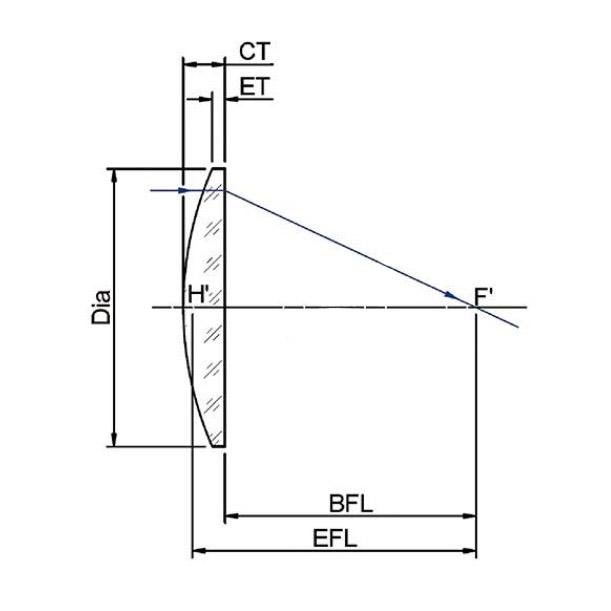

单片聚焦镜-1
单片聚焦镜-1
10.6um/9.4um系列
型号 |
波长 |
直径(mm) |
有效焦距(mm) |
中心厚度(mm) |
边缘厚度(mm) |
玻璃材质 |
产品编码 |
LZ M-9.3-20-50.8-ET 2.21 |
9.3 |
20 |
50.8 |
2.91 |
2.21 |
ZnSe |
1J960100698 |
LZ M-9.3-25.4-76.2-ET 2 |
9.3 |
25.4 |
76.2 |
2.75 |
2 |
ZnSe |
1J960100925 |
LZ M-9.3-25.4-203.2-ET 2 |
9.3 |
25.4 |
203.2 |
2.3 |
2 |
ZnSe |
1J960100924 |
LZ M-9.3-27.94-63.5-ET 3 |
9.3 |
27.94 |
63.5 |
4 |
3 |
ZnSe |
1J960100927 |
LZ M-9.3-27.94-95.25-ET 4.2 |
9.3 |
27.94 |
95.25 |
4.92 |
4.2 |
ZnSe |
1J960100929 |
LZ M-9.3-38.1-152.4-ET 3 |
9.3 |
38.1 |
152.4 |
3.85 |
3 |
ZnSe |
1J960100928 |
LZ M-9.4-19.05-38.1-ET 2 |
9.4 |
19.05 |
38.1 |
2.85 |
2 |
ZnSe |
1J960100895 |
LZ M-9.4-19.05-50.8-ET 2.17 |
9.4 |
19.05 |
50.8 |
2.8 |
2.17 |
ZnSe |
1J960100894 |
LZ-9.4-25-76.2-ET2 |
9.4 |
25 |
76.2 |
2.72 |
2 |
ZnSe |
1J960100595 |
LZ M-9.4-25.4-25.4-ET 2 |
9.4 |
25.4 |
25.4 |
4.35 |
2 |
ZnSe |
1J960100675 |
LZ-9.4-25.4-38.1-ET1.58 |
9.4 |
25.4 |
38.1 |
3.11 |
1.58 |
ZnSe |
1J960100013 |
LZ M-9.4-25.4-67-ET 3 |
9.4 |
25.4 |
67 |
6.36 |
3 |
ZnSe |
1J960100340 |
LZ M-9.4-25.4-50.8-ET 3 |
9.4 |
25.4 |
50.8 |
4.14 |
3 |
ZnSe |
1J960100099 |
LZ-9.4-25.4-50.8-ET2 |
9.4 |
25.4 |
50.8 |
3.14 |
2 |
ZnSe |
1J960100001 |
LZ-9.4-25.4-76.2-ET3 |
9.4 |
25.4 |
76.2 |
3.76 |
3 |
ZnSe |
1J960100861 |
LZ M-9.4-25.4-100-ET 3 |
9.4 |
25.4 |
100 |
3.55 |
3 |
ZnSe |
1J960100121 |
LZ-9.4-25.4-101.6-ET3 |
9.4 |
25.4 |
101.6 |
3.57 |
3 |
ZnSe |
1J960100837 |
LZ-9.4-25.4-135.1-ET3 |
9.4 |
25.4 |
135.1 |
6 |
3 |
ZnSe |
1J960100539 |
LZ-9.4-25.4-140.9-ET3 |
9.4 |
25.4 |
140.9 |
6 |
3 |
ZnSe |
1J960100540 |
LZ-9.4-25.4-145.4-ET3 |
9.4 |
25.4 |
145.4 |
6 |
3 |
ZnSe |
1J960100541 |
LZ-9.4-25.4-150-ET3 |
9.4 |
25.4 |
150 |
5.5 |
3 |
ZnSe |
1J960100542 |
LZ M-9.4-38.1-50.8-ET 3 |
9.4 |
38.1 |
50.8 |
5.6 |
3 |
ZnSe |
1J960100598 |
LZ-9.4-38.1-63.5-ET3 |
9.4 |
38.1 |
63.5 |
5.1 |
3 |
ZnSe |
1J960100699 |
LZ-9.4-38.1-127-ET3 |
9.4 |
38.1 |
127 |
4 |
3 |
ZnSe |
1J960100700 |
LZ M-9.4-38.1-127-ET 2.98 |
9.4 |
38.1 |
127 |
4 |
2.98 |
ZnSe |
1J960100806 |
LZ M-9.4-48-75-ET 3 |
9.4 |
48 |
75 |
5.8 |
3 |
ZnSe |
1J960100736 |
LZ M-9.4-38.1-63.5-ET 3 |
9.4 |
38.1 |
63.5 |
5.08 |
3 |
ZnSe |
1J960100766 |
LZ M-9.4-40-112-ET 4.24 |
9.4 |
40 |
112 |
5.5 |
4.24 |
ZnSe |
1J960100717 |
LZ M-9.4-38.1-76.2-ET 3 |
9.4 |
38.1 |
76.2 |
4.7 |
3 |
ZnSe |
1J960100781 |
LZ M-9.4-38.1-101.6-ET 3 |
9.4 |
38.1 |
101.6 |
4.3 |
3 |
ZnSe |
1J960100782 |
LZ-9.4-19.05-50.8-ET2 |
9.4 |
19.05 |
50.8 |
2.64 |
2 |
ZnSe |
1J960100662 |
LZ-9.4-25.4-76.2-ET2 |
9.4 |
25.4 |
76.2 |
2.76 |
2 |
ZnSe |
1J960100042 |
LZ-9.4-25.4-50.8-ET3 |
9.4 |
25.4 |
50.8 |
4.14 |
3 |
ZnSe |
1J960100177 |
LZ-10.6-8-50-ET2 |
10.6 |
8 |
50 |
3 |
2 |
ZnSe |
1J960100654 |
LZ-10.6-11-40-ET2 |
10.6 |
11 |
40 |
2.28 |
2 |
ZnSe |
1J960100709 |
LZ-10.6-12-13.31-ET2 |
10.6 |
12 |
13.31 |
3 |
2 |
ZnSe |
1J960100072 |
LZ M-10.6-12-18.6-ET 2-LP |
10.6 |
12 |
18.6 |
2.69 |
2 |
ZnSe |
1J960100086 |
LZ M-10.6-12-18.6-ET 2 |
10.6 |
12 |
18.6 |
2.69 |
2 |
ZnSe |
1J960100087 |
LZ M-10.6-12-18.8-ET 3.2 |
10.6 |
12 |
18.8 |
3.9 |
3.2 |
ZnSe |
1J960100085 |
LZ-10.6-12-32.35-ET2 |
10.6 |
12 |
32.35 |
2.4 |
2 |
ZnSe |
1J960100073 |
LZ-10.6-12-38.1-ET2 |
10.6 |
12 |
38.1 |
2.5 |
2 |
ZnSe |
1J960100136 |
LZ M-10.6-12-50.8-ET 2 |
10.6 |
12 |
50.8 |
2.25 |
2 |
ZnSe |
1J960100786 |
LZ-10.6-12-50.8-ET2-LP |
10.6 |
12 |
50.8 |
2.25 |
2 |
ZnSe |
1J960100129 |
LZ-10.6-12-50.8-ET2 |
10.6 |
12 |
50.8 |
2.25 |
2 |
ZnSe |
1J960100221 |
1064nm系列
型号 |
波长 |
直径(mm) |
有效焦距(mm) |
中心厚度(mm) |
边缘厚度(mm) |
玻璃材质 |
产品编码 |
LFS-1064-25-73.6-ET 2 |
1064 |
25 |
73.6 |
4.5 |
2 |
F_SILICA |
1J960200014 |
LFS-1064-25-100-ET 2.98 |
1064 |
25 |
100 |
4.75 |
2.98 |
F_SILICA |
1J960200052 |
LFS-1064-25-125-ET 2.6 |
1064 |
25 |
125 |
4 |
2.6 |
F_SILICA |
1J960200150 |
LFS-1064-25-150-ET 2.3 |
1064 |
25 |
150 |
3.5 |
2.3 |
F_SILICA |
1J960200136 |
LFS-1064-25-200-ET 2.6 |
1064 |
25 |
200 |
3.5 |
2.6 |
F_SILICA |
1J960200134 |
LFS-1064-25-230-ET 7.2 |
1064 |
25 |
230 |
8 |
7.2 |
F_SILICA |
1J960200118 |
LFS-1064-25-250-ET 2.3 |
1064 |
25 |
250 |
3 |
2.3 |
F_SILICA |
1J960200131 |
LFS-1064-25-300-ET 2.4 |
1064 |
25 |
300 |
3 |
2.4 |
F_SILICA |
1J960200133 |
LBK-1064-25.4-50-ET 2 |
1064 |
25.4 |
50 |
5.3 |
2 |
BK7 |
1J960200025 |
LFS-1064-25.4-50-ET 2 |
1064 |
25.4 |
50 |
5.95 |
2 |
F_SILICA |
1J960200221 |
LFS-1064-25.4-53-ET 1.3 |
1064 |
25.4 |
53 |
4.8 |
1.3 |
F_SILICA |
1J960200162 |
LFS-1064-25.4-65-ET 2.4 |
1064 |
25.4 |
65 |
4.8 |
2.4 |
F_SILICA |
1J960200164 |
LFS-1064-25.4-70-ET 2.36 |
1064 |
25.4 |
70 |
5 |
2.36 |
F_SILICA |
1J960200251 |
LFS-1064-25.4-80-ET 2.62 |
1064 |
25.4 |
80 |
5 |
2.62 |
F_SILICA |
1J960200010 |
LBK-1064-25.4-125-ET 2 |
1064 |
25.4 |
125 |
3.3 |
2 |
BK7 |
1J960200011 |
LBK-1064-25.4-150-ET 2 |
1064 |
25.4 |
150 |
3 |
2 |
BK7 |
1J960200012 |
LBK-1064-25.4-225-ET 2 |
1064 |
25.4 |
225 |
3 |
2 |
BK7 |
1J960200009 |
LFS-1064-25.4-(-50) -ET 5.8 |
1064 |
25.4 |
-50 |
2.3 |
5.8 |
F_SILICA |
1J960200220 |
LFS-1064-25.4-(-250) -ET 2.8 |
1064 |
25.4 |
-250 |
2.5 |
2.8 |
F_SILICA |
1J960200161 |
LFS-1064-25.4-(-310) -ET 2.4 |
1064 |
25.4 |
-310 |
2.5 |
2.4 |
F_SILICA |
1J960200163 |
LFS-1064-26-180-ET 7 |
1064 |
26 |
180 |
8 |
7 |
F_SILICA |
1J960200121 |
LFS-1064-26-200-ET 7 |
1064 |
26 |
200 |
8 |
7 |
F_SILICA |
1J960200120 |
LFS-1064-27.94-125-ET 3 |
1064 |
27.94 |
125 |
4.75 |
3 |
F_SILICA |
1J960200072 |
LFS-1064-30-40-ET 1.43 |
1064 |
30 |
40 |
8.6 |
1.43 |
F_SILICA |
1J960200057 |
LFS-1064-30-40-ET 3.82 |
1064 |
30 |
40 |
11 |
3.82 |
F_SILICA |
1J960200111 |
LFS-1064-30-55-ET 3.12 |
1064 |
30 |
55 |
8 |
3.12 |
F_SILICA |
1J960200246 |
LFS-1064-30-60-ET 4 |
1064 |
30 |
60 |
8.4 |
4 |
F_SILICA |
1J960200225 |
LFS-1064-30-63-ET 1.8 |
1064 |
30 |
63 |
6 |
1.8 |
F_SILICA |
1J960200157 |
LFS-1064-30-200-ET 2.5 |
1064 |
30 |
200 |
3.75 |
2.5 |
F_SILICA |
1J960200132 |
LFS-1064-30-250-ET 6 |
1064 |
30 |
250 |
7 |
6 |
F_SILICA |
1J960200181 |
LFS-1064-30-(-300) -ET 4 |
1064 |
30 |
-300 |
3.2 |
4 |
F_SILICA |
1J960200158 |
LBK-1064-36-56-ET 2 |
1064 |
36 |
56 |
8 |
2 |
BK7 |
1J960200215 |
LFS-1064-36-60-ET 2.48 |
1064 |
36 |
60 |
9 |
2.48 |
F_SILICA |
1J960200196 |
LBK-1064-36-70-ET 2 |
1064 |
36 |
70 |
6.8 |
2 |
BK7 |
1J960200216 |
LFS-1064-36-100-ET 4.28 |
1064 |
36 |
100 |
8 |
4.28 |
F_SILICA |
1J960200087 |
LFS-1064-36-100-ET 4.3 |
1064 |
36 |
100 |
8 |
4.3 |
F_SILICA |
1J960200192 |
LBK-1064-36-100-ET 1.7 |
1064 |
36 |
100 |
5 |
1.7 |
BK7 |
1J960200146 |
LFS-1064-36-190-ET 3.58 |
1064 |
36 |
190 |
5.7 |
3.58 |
F_SILICA |
1J960200201 |
LFS-1064-36-200-ET 6.11 |
1064 |
36 |
200 |
7.9 |
6.11 |
F_SILICA |
1J960200202 |
LFS-1064-36-250-ET 4.55 |
1064 |
36 |
250 |
6 |
4.55 |
F_SILICA |
1J960200194 |
LFS-1064-36-(-190) -ET 4.67 |
1064 |
36 |
-190 |
3 |
4.67 |
F_SILICA |
1J960200013 |
LFS-1064-36-(-192) -ET 4.63 |
1064 |
36 |
-192 |
3 |
4.63 |
F_SILICA |
1J960200008 |
LFS-1064-38-100-ET 3 |
1064 |
38 |
100 |
7.2 |
3 |
F_SILICA |
1J960200222 |
LFS-1064-38-150-ET 3 |
1064 |
38 |
150 |
5.7 |
3 |
F_SILICA |
1J960200219 |
LFS-1064-38.1-131-ET 7 |
1064 |
38.1 |
131 |
10.16 |
7 |
F_SILICA |
1J960200080 |
LFS-1064-40-100-ET 3.38 |
1064 |
40 |
100 |
8 |
3.38 |
F_SILICA |
1J960200088 |
LFS-1064-40-120-ET 4.2 |
1064 |
40 |
120 |
8 |
4.2 |
F_SILICA |
1J960200086 |
LFS-1064-40-155-ET 3.1 |
1064 |
40 |
155 |
6 |
3.1 |
F_SILICA |
1J960200085 |
LFS-1064-50-100-ET 2.64 |
1064 |
50 |
100 |
10 |
2.64 |
F_SILICA |
1J960200128 |
LFS-1064-55-280-ET 4 |
1064 |
55 |
280 |
7 |
4 |
F_SILICA |
1J960200159 |
10.6um/9.4um系列
型号 |
波长 |
直径(mm) |
有效焦距(mm) |
中心厚度(mm) |
边缘厚度(mm) |
玻璃材质 |
产品编码 |
LZ M-9.3-20-50.8-ET 2.21 |
9.3 |
20 |
50.8 |
2.91 |
2.21 |
ZnSe |
1J960100698 |
LZ M-9.3-25.4-76.2-ET 2 |
9.3 |
25.4 |
76.2 |
2.75 |
2 |
ZnSe |
1J960100925 |
LZ M-9.3-25.4-203.2-ET 2 |
9.3 |
25.4 |
203.2 |
2.3 |
2 |
ZnSe |
1J960100924 |
LZ M-9.3-27.94-63.5-ET 3 |
9.3 |
27.94 |
63.5 |
4 |
3 |
ZnSe |
1J960100927 |
LZ M-9.3-27.94-95.25-ET 4.2 |
9.3 |
27.94 |
95.25 |
4.92 |
4.2 |
ZnSe |
1J960100929 |
LZ M-9.3-38.1-152.4-ET 3 |
9.3 |
38.1 |
152.4 |
3.85 |
3 |
ZnSe |
1J960100928 |
LZ M-9.4-19.05-38.1-ET 2 |
9.4 |
19.05 |
38.1 |
2.85 |
2 |
ZnSe |
1J960100895 |
LZ M-9.4-19.05-50.8-ET 2.17 |
9.4 |
19.05 |
50.8 |
2.8 |
2.17 |
ZnSe |
1J960100894 |
LZ-9.4-25-76.2-ET2 |
9.4 |
25 |
76.2 |
2.72 |
2 |
ZnSe |
1J960100595 |
LZ M-9.4-25.4-25.4-ET 2 |
9.4 |
25.4 |
25.4 |
4.35 |
2 |
ZnSe |
1J960100675 |
LZ-9.4-25.4-38.1-ET1.58 |
9.4 |
25.4 |
38.1 |
3.11 |
1.58 |
ZnSe |
1J960100013 |
LZ M-9.4-25.4-67-ET 3 |
9.4 |
25.4 |
67 |
6.36 |
3 |
ZnSe |
1J960100340 |
LZ M-9.4-25.4-50.8-ET 3 |
9.4 |
25.4 |
50.8 |
4.14 |
3 |
ZnSe |
1J960100099 |
LZ-9.4-25.4-50.8-ET2 |
9.4 |
25.4 |
50.8 |
3.14 |
2 |
ZnSe |
1J960100001 |
LZ-9.4-25.4-76.2-ET3 |
9.4 |
25.4 |
76.2 |
3.76 |
3 |
ZnSe |
1J960100861 |
LZ M-9.4-25.4-100-ET 3 |
9.4 |
25.4 |
100 |
3.55 |
3 |
ZnSe |
1J960100121 |
LZ-9.4-25.4-101.6-ET3 |
9.4 |
25.4 |
101.6 |
3.57 |
3 |
ZnSe |
1J960100837 |
LZ-9.4-25.4-135.1-ET3 |
9.4 |
25.4 |
135.1 |
6 |
3 |
ZnSe |
1J960100539 |
LZ-9.4-25.4-140.9-ET3 |
9.4 |
25.4 |
140.9 |
6 |
3 |
ZnSe |
1J960100540 |
LZ-9.4-25.4-145.4-ET3 |
9.4 |
25.4 |
145.4 |
6 |
3 |
ZnSe |
1J960100541 |
LZ-9.4-25.4-150-ET3 |
9.4 |
25.4 |
150 |
5.5 |
3 |
ZnSe |
1J960100542 |
LZ M-9.4-38.1-50.8-ET 3 |
9.4 |
38.1 |
50.8 |
5.6 |
3 |
ZnSe |
1J960100598 |
LZ-9.4-38.1-63.5-ET3 |
9.4 |
38.1 |
63.5 |
5.1 |
3 |
ZnSe |
1J960100699 |
LZ-9.4-38.1-127-ET3 |
9.4 |
38.1 |
127 |
4 |
3 |
ZnSe |
1J960100700 |
LZ M-9.4-38.1-127-ET 2.98 |
9.4 |
38.1 |
127 |
4 |
2.98 |
ZnSe |
1J960100806 |
LZ M-9.4-48-75-ET 3 |
9.4 |
48 |
75 |
5.8 |
3 |
ZnSe |
1J960100736 |
LZ M-9.4-38.1-63.5-ET 3 |
9.4 |
38.1 |
63.5 |
5.08 |
3 |
ZnSe |
1J960100766 |
LZ M-9.4-40-112-ET 4.24 |
9.4 |
40 |
112 |
5.5 |
4.24 |
ZnSe |
1J960100717 |
LZ M-9.4-38.1-76.2-ET 3 |
9.4 |
38.1 |
76.2 |
4.7 |
3 |
ZnSe |
1J960100781 |
LZ M-9.4-38.1-101.6-ET 3 |
9.4 |
38.1 |
101.6 |
4.3 |
3 |
ZnSe |
1J960100782 |
LZ-9.4-19.05-50.8-ET2 |
9.4 |
19.05 |
50.8 |
2.64 |
2 |
ZnSe |
1J960100662 |
LZ-9.4-25.4-76.2-ET2 |
9.4 |
25.4 |
76.2 |
2.76 |
2 |
ZnSe |
1J960100042 |
LZ-9.4-25.4-50.8-ET3 |
9.4 |
25.4 |
50.8 |
4.14 |
3 |
ZnSe |
1J960100177 |
LZ-10.6-8-50-ET2 |
10.6 |
8 |
50 |
3 |
2 |
ZnSe |
1J960100654 |
LZ-10.6-11-40-ET2 |
10.6 |
11 |
40 |
2.28 |
2 |
ZnSe |
1J960100709 |
LZ-10.6-12-13.31-ET2 |
10.6 |
12 |
13.31 |
3 |
2 |
ZnSe |
1J960100072 |
LZ M-10.6-12-18.6-ET 2-LP |
10.6 |
12 |
18.6 |
2.69 |
2 |
ZnSe |
1J960100086 |
LZ M-10.6-12-18.6-ET 2 |
10.6 |
12 |
18.6 |
2.69 |
2 |
ZnSe |
1J960100087 |
LZ M-10.6-12-18.8-ET 3.2 |
10.6 |
12 |
18.8 |
3.9 |
3.2 |
ZnSe |
1J960100085 |
LZ-10.6-12-32.35-ET2 |
10.6 |
12 |
32.35 |
2.4 |
2 |
ZnSe |
1J960100073 |
LZ-10.6-12-38.1-ET2 |
10.6 |
12 |
38.1 |
2.5 |
2 |
ZnSe |
1J960100136 |
LZ M-10.6-12-50.8-ET 2 |
10.6 |
12 |
50.8 |
2.25 |
2 |
ZnSe |
1J960100786 |
LZ-10.6-12-50.8-ET2-LP |
10.6 |
12 |
50.8 |
2.25 |
2 |
ZnSe |
1J960100129 |
LZ-10.6-12-50.8-ET2 |
10.6 |
12 |
50.8 |
2.25 |
2 |
ZnSe |
1J960100221 |
LZ-10.6-18-38.1-ET2.18-LP |
10.6 |
18 |
38.1 |
2.94 |
2.18 |
ZnSe |
1J960100462 |
LZ-10.6-18-38.1-ET2.18 |
10.6 |
18 |
38.1 |
2.94 |
2.18 |
ZnSe |
1J960100283 |
LZ M-10.6-18-40-ET 1.78 |
10.6 |
18 |
40 |
2.5 |
1.78 |
ZnSe |
1J960100685 |
LZ M-10.6-18-47-ET 1.87-LP |
10.6 |
18 |
47 |
2.48 |
1.87 |
ZnSe |
1J960100118 |
LZ M-10.6-18-47-ET 2 |
10.6 |
18 |
47 |
2.54 |
2 |
ZnSe |
1J960100655 |
LZ M-10.6-18-50.8-ET 2-LP |
10.6 |
18 |
50.8 |
2.54 |
2 |
ZnSe |
1J960100107 |
LZ M-10.6-18-50.8-ET 2 |
10.6 |
18 |
50.8 |
2.54 |
2 |
ZnSe |
1J960100108 |
LZ M-10.6-18-50.8-ET 2.34 |
10.6 |
18 |
50.8 |
2.91 |
2.34 |
ZnSe |
1J960100596 |
LZ-10.6-18-50.8-ET2-LP |
10.6 |
18 |
50.8 |
2.57 |
2 |
ZnSe |
1J960100358 |
LZ-10.6-18-50.8-ET2 |
10.6 |
18 |
50.8 |
2.57 |
2 |
ZnSe |
1J960100029 |
LG-10.6-18-50.8-ET2 |
10.6 |
18 |
50.8 |
2.57 |
2 |
GaAs |
1J960100256 |
LZ M-10.6-18-63.5-ET 2.35 |
10.6 |
18 |
63.5 |
3.14 |
2.35 |
ZnSe |
1J960100093 |
LZ-10.6-18-63.5-ET2-LP |
10.6 |
18 |
63.5 |
2.46 |
2 |
ZnSe |
1J960100036 |
LZ-10.6-18-63.5-ET2 |
10.6 |
18 |
63.5 |
2.46 |
2 |
ZnSe |
1J960100035 |
LZ-10.6-18-63.5-ET2.5-LP |
10.6 |
18 |
63.5 |
3.4 |
2.5 |
ZnSe |
1J960100704 |
15933752505
