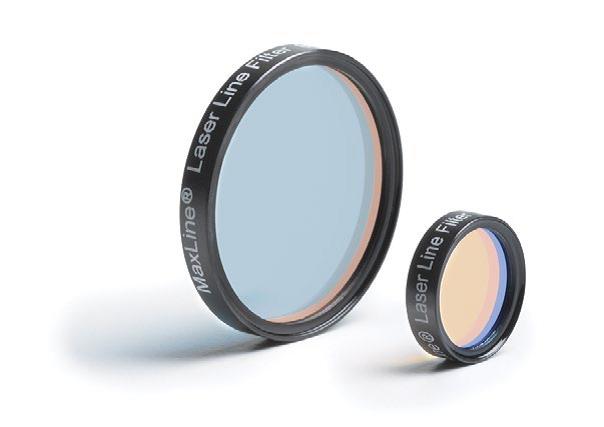

MaxLine?激光线滤光片
Semrock MaxLine激光线滤光片在激光线路上有超过90%的的高透射，同时在与激光波长相差仅1％的波长处快速滚降光密度（OD）> 5，并且在波长与激光波长仅相差1.5％时OD> 6。美国号7119960。
高激光线透射-停止浪费昂贵的激光灯
大的边缘——*匹配RazorEdge?U-grade滤光片(见86页)
SLine?陷波滤光片的荧光和其他应用的理想补充(见96页)
坚固耐用的硬绝缘镀膜
对于二极管激光器，使用我们的MaxDiodeTM激光纯化滤光片(见第94页)
MaxLine?激光线滤光片
波长 |
保证透射率 |
典型带宽 |
OD 5蓝色范围 |
OD6蓝色范围 |
OD6红色范围 |
OD5红色范围 |
12.5mm直径的型号 |
25mm直径的型号 |
248.6 nm |
> 40% |
1.7 nm |
228.2-246.1 |
228.7-244.9 |
252.3-273.5 |
251.1-279.9 |
LL01-248-12.5 |
LL01-248-25 |
266.0 nm |
> 55% |
1.9 nm |
242.8-263.3 |
244.7-262.0 |
270.0-292.6 |
268.7-302.2 |
LL01-266-12.5 |
LL01-266-25 |
325.0 nm |
> 80% |
1.2 nm |
291.0-321.8 |
299.0-320.1 |
329.9-357.5 |
328.3-380.7 |
LL01-325-12.5 |
LL01-325-25 |
355.0 nm |
> 80% |
1.3 nm |
314.8-351.5 |
326.6-349.7 |
360.3-390.5 |
358.6-422.5 |
LL01-355-12.5 |
LL01-355-25 |
363.8 nm |
> 85% |
1.4 nm |
321.7-360.2 |
334.7-358.3 |
369.3-400.2 |
367.4-435.0 |
LL01-364-12.5 |
LL01-364-25 |
405.0 nm |
> 90% |
1.5 nm |
353.5-401.0 |
372.6-398.9 |
411.1-445.5 |
409.1-495.3 |
LL01-405-12.5 |
LL01-405-25 |
407.0 nm |
> 90% |
1.5 nm |
355.0-402.9 |
374.4-400.9 |
413.1-447.7 |
411.1-498.3 |
LL01-407-12.5 |
LL01-407-25 |
441.6 nm |
> 90% |
1.7 nm |
381.0-437.2 |
406.3-435.0 |
448.2-485.8 |
446.0-551.1 |
LL01-442-12.5 |
LL01-442-25 |
457.9 nm |
> 90% |
1.7 nm |
393.1-453.3 |
421.3-451.0 |
464.8-503.7 |
462.5-576.7 |
LL01-458-12.5 |
LL01-458-25 |
488.0 nm |
> 90% |
1.9 nm |
415.1-483.1 |
449.0-480.7 |
495.3-536.8 |
492.9-625.3 |
LL01-488-12.5 |
LL01-488-25 |
514.5 nm |
> 90% |
2.0 nm |
434.1-509.4 |
473.3-506.8 |
522.2-566.0 |
519.6-669.5 |
LL01-514-12.5 |
LL01-514-25 |
532.0 nm |
> 90% |
2.0 nm |
446.5-526.7 |
489.4-524.0 |
540.0-585.2 |
537.3-699.4 |
LL01-532-12.5 |
LL01-532-25 |
543.5 nm |
> 90% |
2.1 nm |
454.6-538.1 |
500.0-535.3 |
551.7-597.9 |
548.9-719.5 |
LL01-543-12.5 |
LL01-543-25 |
561.4 nm |
> 90% |
2.1 nm |
467.0-555.8 |
516.5-553.0 |
569.8-617.5 |
567.0-751.2 |
LL02-561-12.5 |
LL02-561-25 |
568.2 nm |
> 90% |
2.2 nm |
471.7-562.5 |
522.7-559.7 |
576.7-625.0 |
573.9-763.4 |
LL01-568-12.5 |
LL01-568-25 |
632.8 nm |
> 90% |
2.4 nm |
515.4-626.5 |
582.2-623.3 |
642.3-696.1 |
639.1-884.7 |
LL01-633-12.5 |
LL01-633-25 |
638.0 nm |
> 90% |
2.4 nm |
518.8-631.6 |
587-628.4 |
647.6-701.8 |
644.4-894.9 |
LL01-638-12.5 |
LL01-638-25 |
647.1 nm |
> 90% |
2.5 nm |
524.8-640.6 |
595.3-637.4 |
656.8-711.8 |
653.6-912.9 |
LL01-647-12.5 |
LL01-647-25 |
671.0 nm |
> 90% |
2.6 nm |
540.4-664.3 |
617.3-660.9 |
681.1-738.1 |
677.7-961.2 |
LL01-671-12.5 |
LL01-671-25 |
780.0 nm |
> 90% |
3.0 nm |
609.0-772.2 |
717.6-768.3 |
791.7-858.0 |
787.8-1201.8 |
LL01-780-12.5 |
LL01-780-25 |
785.0 nm |
> 90% |
3.0 nm |
612.0-777.2 |
722.2-773.2 |
796.8-863.5 |
792.9-1213.8 |
LL01-785-12.5 |
LL01-785-25 |
808.0 nm |
> 90% |
3.1 nm |
625.9-799.9 |
743.4-795.9 |
820.1-888.8 |
816.1-1033.5 |
LL01-808-12.5 |
LL01-808-25 |
810.0 nm |
> 90% |
3.1 nm |
627.1-801.9 |
745.2-797.9 |
822.2-891.0 |
818.1-1143.4 |
LL01-810-12.5 |
LL01-810-25 |
830.0 nm |
> 90% |
3.2 nm |
639.1-821.7 |
763.6-817.6 |
842.5-913.0 |
838.3-1067.9 |
LL01-830-12.5 |
LL01-830-25 |
852.0 nm |
> 90% |
3.2 nm |
652-843.5 |
783.8-839.2 |
864.8-937.2 |
860.5-1106.6 |
LL01-852-12.5 |
LL01-852-25 |
976.0 nm |
> 90% |
3.7 nm |
722.2-966.2 |
897.9-961.4 |
990.6-1073.6 |
985.8-1325.2 |
LL01-976-12.5 |
LL01-976-25 |
980.0 nm |
> 90% |
3.7 nm |
724.4-970.2 |
901.6-965.3 |
994.7-1078.0 |
989.8-1332.6 |
LL01-980-12.5 |
LL01-980-25 |
1030.0 nm |
> 90% |
3.9 nm |
1014.6-1019.7 |
947.6-1014.6 |
1045.5-1133 |
1040.3-1368.2 |
LL01-1030-12.5 |
LL01-1030-25 |
1047.1 nm |
> 90% |
4.0 nm |
963.3-1036.6 |
963.3-1031.4 |
1062.8-1151.8 |
1057.6-1398.6 |
LL01-1047-12.5 |
LL01-1047-25 |
1064.0 nm |
> 90% |
4.0 nm |
978.9-1053.4 |
978.9-1048.0 |
1080.0-1170.4 |
1074.6-1428.9 |
LL01-1064-12.5 |
LL01-1064-25 |
这些展示了785纳米MaxLine激光线滤光片的出色性能，
在激光线上透射率保证超过90％，OD> 5截止激光线不到1％。注意与设计曲线的良好*性。
MaxLine Filter Blocking Performance (532 nmfilter shown)
MaxLine滤光片截止性能(532 nm滤波器显示)
常用规格
属性 |
Value |
Comment |
激光波长λL |
Standard laser wavelengths available |
See page 92 |
激光线透射 |
> 90% |
Except λL < 400 nm; Will typically be even higher |
典型带宽大值 ? ? ? |
0.38% of λL 0.7% of λL |
Full Width at Half Maximum (FWHM) Typical 0.7% and Maximum 0.9% for 248.6 & 266 nm |
Blocking[1] |
OD > 5 from λL ± 1% to 4500 cm–1 (red shift) and 3600 cm–1 (blue shift); OD > 6 from λL± 1.5% to 0.92 and 1.10 × λL |
OD = – log10 (Transmission) |
入射角 |
0.0° ± 2.0° |
See technical note on page 99 |
常用温度 |
< 5 ppm / °C |
< 0.003 nm / °C for 532 nm filter |
激光损伤阈值 |
0.1 J/cm2 @ 532 nm (10 ns pulse width) |
Tested for 532 nm filter only (see page 102) |
基底材料 |
Low autofluorescence NBK7 or better |
Fused silica for 248.6, 266, and 325 nm filters |
基底厚度 |
2.0 ± 0.1 mm |
|
整体厚度 |
3.5 ± 0.1 mm |
Black-anodized aluminum ring |
涂层类型 |
“Hard” ion-beam-sputtered |
|
外径 |
12.5 + 0.0 / – 0.1 mm (or 25.0 + 0.0 / – 0.1 mm) |
Black-anodized aluminum ring |
通光孔径 |
≥ 10 mm (or ≥ 22 mm) |
For all optical specifications |
透射波前误差 |
< λ / 4 RMS at λ = 633 nm |
Peak-to-valley error < 5 x RMS measured within clear aperture |
光束偏差 |
≤ 10 arcseconds |
|
表面质量 |
60-40 scratch-dig |
Measured within clear aperture |
可靠性和耐用性 |
Ion-beam-sputtered, hard-coating technology with epoxy-free, single-substrate construction for unrivaled filter life. MaxLine filters are rigorously tested and proven to MIL-STD-810F and MIL-C-48497A environmental standards. |
|
与这些红色和蓝色移位相关的波长分别由l = 1 /（1 /λL-红移×10-7）和l = 1 /（1 / lL +蓝移×10-7）给出，其中
l和λL的单位是nm，偏移量是cm-1。 请注意，808和830 nm滤光片的红移是3600 cm-1，980 nm滤光片的红移是2700 cm-1，
1047和1064纳米滤光片的红色和蓝色偏移分别为2400和800 cm-1。 请参阅第96页上的波数技术说明。
