高性能反射光栅
?
l??????????????????????λ/4反射波前
l??????????????????????出色的尺寸公差
l??????????????????????槽间距公差<0.05%
高性能反射光栅设计用于提供一致且可预测的性能。这种高度的可重复性简化了OEM系统的设计，并且降低了对枯燥的校准调整的需求。这些光栅具有λ/4的反射波前和高达90%的衍射效率，设计为可满足最严苛应用的需求。高性能反射光栅带有裸铝膜，适用于300至1850nm的选件。
注意: 裸铝膜很容易碎，因此在处理时必须非常小心。
通用规格
镀膜 |
Aluminium |
构造 |
Ruled Grating |
基底 |
Float Glass |
厚度?(mm) |
6.00 ±?0.5 |
槽间距公差?(%) |
< 0.05 |
Spectral Order (m) |
1 |
产品信息
槽/mm |
波长范围?(nm) |
闪耀波长?(nm) |
尺寸?(mm) |
CA (%) |
Master Reference |
Spectral Order (m) |
产品编码 |
75 |
7000 - 16000 |
10000 ±25 |
12.5 x 25.0 ±0.1 |
>90 |
1104 |
1 |
15-771 |
75 |
7000 - 16000 |
10000 ±25 |
12.7 x 12.7 ±0.1 |
>90 |
1104 |
1 |
15-769 |
75 |
7000 - 16000 |
10000 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
1104 |
1 |
15-770 |
150 |
200 - 900 |
300 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
1524 |
1 |
37-117 |
150 |
200 - 900 |
300 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
1524 |
1 |
37-128 |
300 |
450 - 1400 |
760 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
1451 |
1 |
37-118 |
300 |
1000 - 5000 |
3000 ±25 |
12.5 x 25.0 ±0.1 |
>90 |
1156 |
1 |
15-774 |
300 |
1000 - 5000 |
3000 ±25 |
12.7 x 12.7 ±0.1 |
>90 |
1156 |
1 |
15-772 |
300 |
750 - 2000 |
1200 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
0938 |
1 |
37-130 |
300 |
1000 - 5000 |
3000 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
1156 |
1 |
15-773 |
300 |
750 - 2000 |
1200 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
0938 |
1 |
37-119 |
300 |
700 - 1000 |
1700 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
0891 |
1 |
37-120 |
300 |
450 - 1400 |
760 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
1451 |
1 |
37-129 |
300 |
700 - 1000 |
1700 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
0891 |
1 |
37-131 |
400 |
800 - 1800 |
1300 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
0986 |
1 |
37-121 |
400 |
800 - 1800 |
1300 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
0986 |
1 |
37-132 |
500 |
350 - 1200 |
560 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
1350 |
1 |
37-122 |
500 |
350 - 1200 |
560 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
1350 |
1 |
37-133 |
600 |
1000 - 2400 |
1850 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
0951 |
1 |
37-123 |
600 |
350 - 800 |
500 ±25 |
12.5 x 25.0 ±0.1 |
>90 |
1670 |
1 |
15-765 |
600 |
350 - 800 |
500 ±25 |
12.7 x 12.7 ±0.1 |
>90 |
1267 |
1 |
15-763 |
600 |
350 - 800 |
500 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
1267 |
1 |
15-764 |
600 |
1000 - 2400 |
1850 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
0951 |
1 |
37-134 |
1200 |
250 - 1000 |
300 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
0990 |
1 |
37-124 |
1200 |
200 - 1600 |
400 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
1264 |
1 |
37-125 |
1200 |
450 - 1500 |
750 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
2917 |
1 |
37-126 |
1200 |
500 - 1500 |
900 ±25 |
12.5 x 12.5 ±0.1 |
>90 |
MR224 |
1 |
37-127 |
1200 |
175 - 400 |
250 ±25 |
12.7 x 12.7 ±0.1 |
>90 |
2840 |
1 |
15-760 |
600 |
700 - 1600 |
1000 ±25 |
12.7 x 12.7 ±0.1 |
>90 |
3017 |
1 |
15-766 |
1200 |
175 - 400 |
250 ±25 |
12.5 x 25.0 ±0.1 |
>90 |
2840 |
1 |
15-762 |
600 |
700 - 1600 |
1000 ±25 |
12.5 x 25.0 ±0.1 |
>90 |
3017 |
1 |
15-768 |
1200 |
175 - 400 |
250 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
2840 |
1 |
15-761 |
1200 |
200 - 1200 |
300 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
0990 |
1 |
37-135 |
1200 |
200 - 1600 |
400 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
1264 |
1 |
37-136 |
1200 |
450 - 1500 |
750 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
2917 |
1 |
37-137 |
1200 |
500 - 1500 |
900 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
MR224 |
1 |
37-138 |
600 |
700 - 1600 |
1000 ±25 |
25.0 x 25.0 ±0.1 |
>90 |
3017 |
1 |
15-767 |

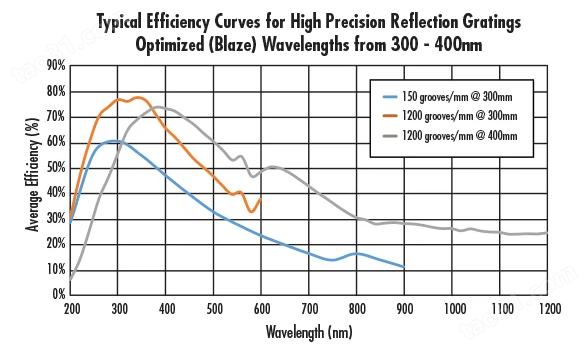

技术数据
?
?
?
?
