Resolv4K镜头系统?
作为生产高精度优质变焦镜头的制造商，Navitar?现隆重推出新一代变焦镜头技术。Resolv4K?镜头系列以一阶原则设计，尽可能利用具备更高像素密度的现代传感器。配备众多适配器选择，用户可利用?1/2”?APS?格式的一系列传感器。变焦镜头前端，精密设计的镜头附件提供佳显像效果；低倍率端提供更大视场，亦不牺牲?MTF?或损失照明性能，而高倍率端可实现超长工作距离，带来显微镜物镜的分辨率。
此外，Resolv4K?镜头不仅可实现的可见光波长轴向色彩校正，还大幅提高了可见光近红外?(Vis-NIR)?及?SWIR?的波长聚焦性能。系统配备全新?LED?同轴光模块，确保在大视场配置下亦提供均匀照明。
1.?? ? ?更宽成像通道。Resolv4K?提供更宽视野范围，现代高像素密度传感器带来的镜头分辨性能，可更快捕捉更大范围的影像；是高速检测及测量应用的理想之选。与传统变焦系统相比，视场放大?400-600%

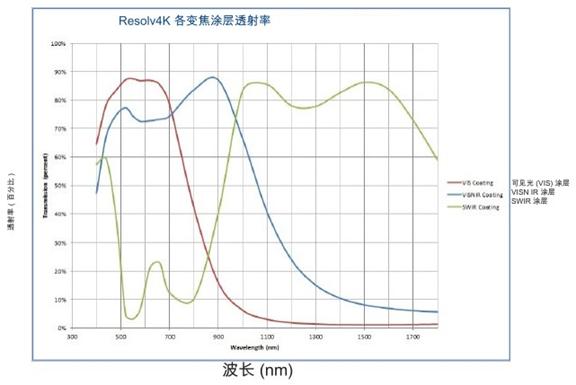

2.?? ? ?更长波长。Resolv4K?变焦镜头有可见光、Vis-NIR?及?SWIR?涂层可选。可见光涂层为现有变焦镜头带来的轴向色彩校正。Vis-NIR?涂层可在深蓝色中实现表面检测，还可在?1100nm?进行次表面检测，无需重新对焦，也不损失透射性能。SWIR?则可透过表面观测损伤和缺陷，可应用于食品、硅片检测及其他领域。

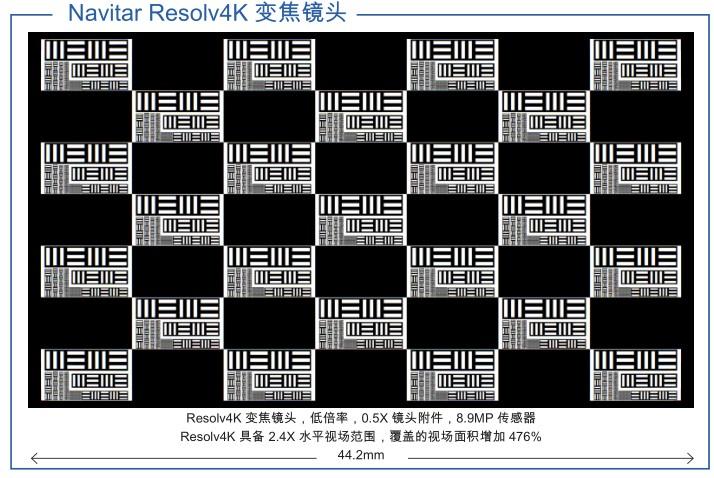

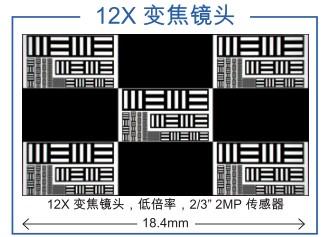

3.?? ? ?更大视场。Navitar Resolv4K?系列带来更高分辨性能，与传统变焦镜头成像相比，可呈现?400-600%?的更大视场，且细节毫发无损。无需拼接多次捕捉的多份影像。
4.?? ? ?更高分辨率。Resolv4K?数值孔径更高，且具备的像差校正功能，可实现测量性能。即使将4.5X?放大倍率与?7X?倍率系统相比，Resolv4K?设计的优异品质亦可实现表现，如下图边缘扩散函数中黑白过渡图像所示。直传感器边角的系统表现均属优良，不论你的兴趣区域处于视场中的哪些位置，均可聚焦。您的边缘检测软件会发现这一不同。

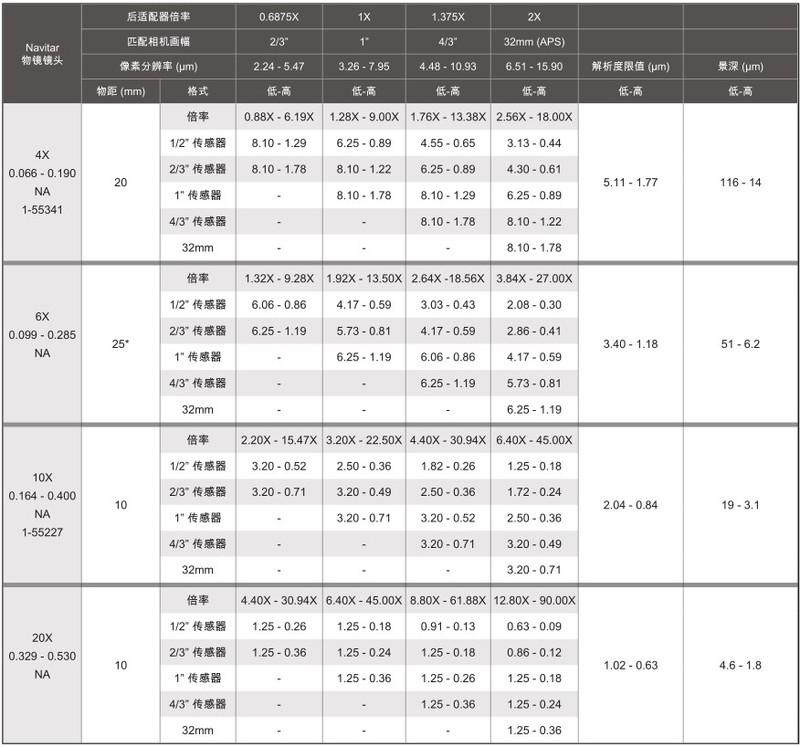

Navitar?高分辨率物镜
部件号 |
描述 |
1-81304 |
超变焦?M25x0.75?适配器 |
1-81305 |
超变焦?M26x36T?适配器 |
1-81306 ? |
超变焦?0.8x36T RMS?适配器 |
Resolv4K镜头系统?图
Camera Mounts
Part # |
Deion |
3-62923 |
Camera Mount, T-F |
3-63266 |
T-C Mount |
1-55281 |
M42 - T Mount Adapter |
Adapters
Part # |
Deion |
1-81101 |
0.6875X Rear Adapter (2/3" Sensor) |
1-81102 |
1X Rear Adapter (1" Sensor) |
1-81103 |
1.375X Rear Adapter (4/3" Sensor) |
1-81104 |
2X Rear Adapter (32mm Sensor) |
Clamps
Part # |
Deion |
1-80371 |
Resolv4K Flat Mount Assembly, Inch |
1-80370 |
Resolv4K Flat Mount Assembly, Metric |
1-80372 |
Split Clamp Assembly, 76mm OD |
Core Zooms
Part # |
Deion |
1-80100 |
7X Afocal Core Zoom, Manual |
1-80100D |
7X Afocal Core Zoom, Manual, Detent |
1-80300 |
7X Afocal Core Zoom, Mot. DC Servo |
1-80200 |
7X Afocal Core Zoom, Mot. 2-Phase Stepper |
1-80500 |
7X Afocal Core Zoom, Mot. 5-Phase Stepper |
Lens Attachments
Part # |
Deion |
1-81202 |
0.5X Lens Attachment |
1-81201 |
0.25X Lens Attachment |
1-81203 |
0.75X Lens Attachment |
1-81204 |
1.0X Lens Attachment |
1-81205 |
1.25X Lens Attachment |
1-81206 |
1.5X Lens Attachment |
1-81207 |
2.0X Lens Attachment |
1-81201M1 |
0.25X Lens Attachment, Fine Focus |
1-81202M1 |
0.5X Lens Attachment, Fine Focus |
1-81203M1 |
0.75X Lens Attachment, Fine Focus |
1-81204M1 |
1.0X Lens Attachment, Fine Focus |
1-81205M1 |
1.25X Lens Attachment, Fine Focus |
1-81206M1 |
1.5X Lens Attachment, Fine Focus |
1-81207M1 |
2.0X Lens Attachment, Fine Focus |
Motorized Fine Focus
Part # |
Deion |
1-81201M2 |
0.25X Lens Attachment, Mot. Fine Focus, 2 ?phase stepper |
1-81202M2 |
0.5X Lens Attachment, Mot. Fine Focus, 2 ?phase stepper |
1-81203M2 |
0.75X Lens Attachment, Mot. Fine Focus, 2 ?phase stepper |
1-81204M2 |
1.0X Lens Attachment, Mot. Fine Focus, 2 ?phase stepper |
1-81205M2 |
1.25X Lens Attachment, Mot. Fine Focus, 2 ?phase stepper |
1-81206M2 |
1.5X Lens Attachment, Mot. Fine Focus, 2 ?phase stepper |
1-81207M2 |
2.0X Lens Attachment, Mot. Fine Focus, 2 ?phase stepper |
1-81201M3 |
0.25X Lens Attachment, Mot. Fine Focus, ?encoded servo |
1-81202M3 |
0.5X Lens Attachment, Mot. Fine Focus, ?encoded servo |
1-81203M3 |
0.75X Lens Attachment, Mot. Fine Focus, ?encoded server |
1-81204M3 |
1.0X Lens Attachment, Mot. Fine Focus, ?encoded servo |
1-81205M3 |
1.25X Lens Attachment, Mot. Fine Focus, ?encoded servo |
1-81206M3 |
1.5X Lens Attachment, Mot. Fine Focus, ?encoded servo |
1-81207M3 |
2.0X Lens Attachment, Mot. Fine Focus, ?encoded servo |
1-81201M5 |
0.25X Lens Attachment, Mot. Fine Focus, 5 ?phase stepper |
1-81202M5 |
0.5X Lens Attachment, Mot. Fine Focus, 5 ?phase stepper |
1-81203M5 |
0.75X Lens Attachment, Mot. Fine Focus, 5 ?phase stepper |
1-81205M5 |
1.25X Lens Attachment, Mot. Fine Focus, 5 ?phase stepper |
1-81206M5 |
1.5X Lens Attachment, Mot. Fine Focus, 5 ?phase stepper |
1-81207M5 |
2.0X Lens Attachment, Mot. Fine Focus, 5 ?phase stepper |
Illumination
Part # |
Deion |
1-40297 |
LED Coupler for Resolv4K |
1-81301 |
Coax Port |
1-81408 |
Fiber Input 8mm |
1-81410 |
Fiber Input 10mm |
1-81412 |
Fiber Input 12mm |
Couplers
Part # |
Deion |
1-81302 |
90 degree fold |
1-81300 |
Fixed Lower Interface |
1-81305 |
Microscope objective couplers - M26-36T |
Cables for Motorized Zoom & FocusModules
Part # |
Deion |
1-40283 |
24" cable for 1-80200 (2 phase) |
1-40286 |
24" cable for 1-80300 (encoded) |
1-40290 |
24" cable for 1-80500 (5 phase) |
1-40282 |
48" cable for 1-80200 (2 phase) |
1-40285 |
48" cable for 1-80300 (encoded) |
1-40289 |
48" cable for 1-80500 (5 phase) |
1-40281 |
72" cable for 1-80200 (2 phase) |
1-40284 |
72" cable for 1-80300 (encoded) |
1-40170 |
72" cable for 1-80500 (5 phase) |
