90° 专业反射镜
?以180° 将输入图像分成两个不同的路径
?备有各种尺寸以及带宽镀膜产品
?另外也备有可选的额外?直角棱镜

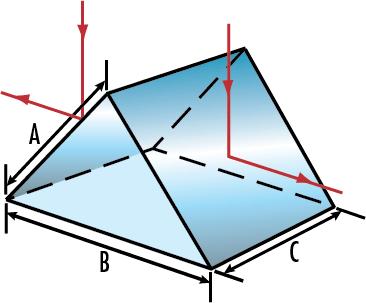

TECHSPEC? 90° 专业反射镜是由在两个直角边镀反射膜，而在斜面上不镀膜的直角棱镜形成的。两个反射表面形成一个的90° 角，可将单个成像镜头的图像分成两个，分别用在两个不同的相机上，或者将两个图像合成在一个相机中。
?
订购信息：
Stock No. |
A |
B |
C |
#49-412 |
5mm |
7mm |
5mm |
#65-847 |
|||
#47-004 |
10mm |
14.1mm |
10mm |
#47-237 |
|||
#49-413 |
15mm |
21.2mm |
15mm |
#65-848 |
|||
#49-414 |
20mm |
28.3mm |
20mm |
#65-849 |
|||
#47-005 |
25mm |
35.4mm |
25mm |
#47-238 |
|||
#47-006 |
50mm |
70.7mm |
50mm |
#47-239 |
|||
#47-309 |
75mm |
106.1mm |
75mm |
#47-310 |
标题 |
产品号 |
|---|---|
5mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror |
#49-412 |
10mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror |
#47-004 |
15mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror |
#49-413 |
20mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror |
#49-414 |
25mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror |
#47-005 |
50mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror |
#47-006 |
75mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror |
#47-309 |
5mm, Protected Gold Coated, N-BK7 90° Specialty Mirror |
#65-847 |
10mm, Protected Gold Coated, N-BK7 90° Specialty Mirror |
#47-237 |
15mm, Protected Gold Coated, N-BK7 90° Specialty Mirror |
#65-848 |
20mm, Protected Gold Coated, N-BK7 90° Specialty Mirror |
#65-849 |
25mm, Protected Gold Coated, N-BK7 90° Specialty Mirror |
#47-238 |
50mm, Protected Gold Coated, N-BK7 90° Specialty Mirror |
#47-239 |
75mm, Protected Gold Coated, N-BK7 90° Specialty Mirror |
#47-310 |
