受保护的银镜透镜

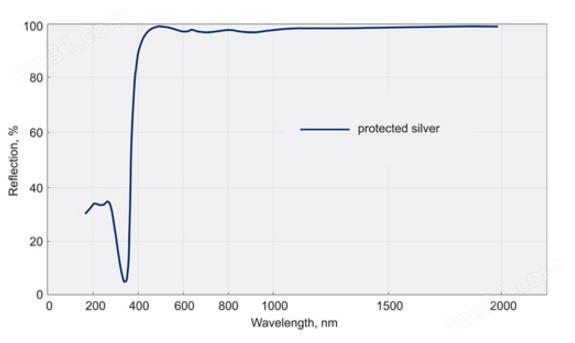

400nm-IR的平均反射率> 96％的受保护的银镜透镜。这些反射镜在整个可见光和近红外光谱区域都具有比铝更高的反射率。

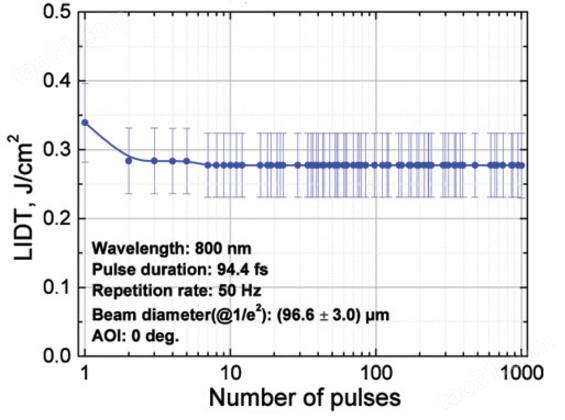

oLIDT - 在800nm，50Hz，94fsec脉冲下0.25J / cm 2 *

oLIDT - 在1064nm，50Hz，11nsec脉冲下1.8J / cm 2 *

o400nm-IR的平均反射> 97％

o BK7，UVFS，Zerodur?基材

o可提供圆形，方形和平面或球面镜

o OEM能力 - 请联系特殊定价

o可根据要求提供测试样品

受保护的银（Ag）镜子在整个可见光和近红外光谱区域都具有比铝更高的反射率。我们保护的银镜具有出色的耐用性。

?*激光诱导损伤阈值结果根据ISO 21254-2：1000-on-1测试程序进行测量。

材质	BK7, UVFS
S1 表面平整度	λ/10@633 nm
S1 表面质量	40-20 scratch & dig (MIL-PRF-13830B)
S2 表面质量	Commercial polish
通光孔径	>90% of the diameter
直径公差	0.00/-0.13 mm
厚度公差	±0.2 mm
激光诱导损伤阈值@ 1064 nm	1.8 J/cm2 at 1064 nm, 50 Hz, 11 nsec pulses**
激光诱导的损伤阈值@ 800 nm	0.25 J/cm2 at 800 nm, 50 Hz, 94 fsec pulses**

S1 *球面镜的曲面是弯曲的

**激光诱导损伤阈值结果由LIDARIS根据ISO 21254-2：1000-on-1测试程序测量。请点击此链接了解更多关于LIDARIS的信息。

Protected Silver Flat Round Mirrors

型号	材料	类型	尺寸	厚度	半径
091-0025	BK7	pl/pl	? 12,7 mm	3 mm	-
092-0025	BK7	pl/pl	? 25,4 mm	6 mm	-
095-0025	BK7	pl/pl	? 50,8 mm	8 mm	-
097-0025	BK7	pl/pl	? 76,2 mm	12.7 mm	-
091-3025	UVFS	pl/pl	? 12,7 mm	3 mm	-
092-3025	UVFS	pl/pl	? 25,4 mm	6 mm	-
095-3025	UVFS	pl/pl	? 50,8 mm	8 mm	-
097-3025	UVFS	pl/pl	? 76,2 mm	12.7 mm	-

Protected Silver Flat Rectangular Mirrors

Substrate type: plano-plano

型号	材料	类型	尺寸	厚度	半径
091-0325	BK7	pl/pl	15.0x20.0 mm	6 mm	-
092-0325	BK7	pl/pl	20.0x30.0 mm	6 mm	-
093-0325	BK7	pl/pl	25.4x25.4 mm	6 mm	-
094-0325	BK7	pl/pl	25.4x50.8 mm	10 mm	-
095-0325	BK7	pl/pl	50.8x50.8 mm	10 mm	-
091-3325	UVFS	pl/pl	15.0x20.0 mm	6 mm	-
092-3325	UVFS	pl/pl	20.0x30.0 mm	6 mm	-
093-3325	UVFS	pl/pl	25.4x25.4 mm	6 mm	-
094-3325	UVFS	pl/pl	25.4x50.8 mm	10 mm	-
095-3325	UVFS	pl/pl	50.8x50.8 mm	10 mm	-

Protected Silver Plano-concave Spherical Mirrors

Diameter: 25.4+0.00/-0.13 mm Edge thickness (ET): 6.0±0.2 mm

型号	材料	类型	尺寸	厚度	半径
092-0125R-50	BK7	pl/cv	? 25,4 mm	ET-6 mm	-50 mm
092-0125R-75	BK7	pl/cv	? 25,4 mm	ET-6 mm	-75 mm
092-0125R-100	BK7	pl/cv	? 25,4 mm	ET-6 mm	-100 mm
092-0125R-150	BK7	pl/cv	? 25,4 mm	ET-6 mm	-150 mm
092-0125R-200	BK7	pl/cv	? 25,4 mm	ET-6 mm	-200 mm
092-0125R-250	BK7	pl/cv	? 25,4 mm	ET-6 mm	-250 mm
092-0125R-300	BK7	pl/cv	? 25,4 mm	ET-6 mm	-300 mm
092-0125R-400	BK7	pl/cv	? 25,4 mm	ET-6 mm	-400 mm
092-0125R-500	BK7	pl/cv	? 25,4 mm	ET-6 mm	-500 mm
092-0125R-600	BK7	pl/cv	? 25,4 mm	ET-6 mm	-600 mm
092-0125R-700	BK7	pl/cv	? 25,4 mm	ET-6 mm	-700 mm
092-0125R-750	BK7	pl/cv	? 25,4 mm	ET-6 mm	-750 mm
092-0125R-800	BK7	pl/cv	? 25,4 mm	ET-6 mm	-800 mm
092-0125R-1000	BK7	pl/cv	? 25,4 mm	ET-6 mm	-1000 mm
092-0125R-1500	BK7	pl/cv	? 25,4 mm	ET-6 mm	-1500 mm
092-0125R-2000	BK7	pl/cv	? 25,4 mm	ET-6 mm	-2000 mm
092-0125R-2500	BK7	pl/cv	? 25,4 mm	ET-6 mm	-2500 mm
092-0125R-3000	BK7	pl/cv	? 25,4 mm	ET-6 mm	-3000 mm
092-0125R-4000	BK7	pl/cv	? 25,4 mm	ET-6 mm	-4000 mm
092-0125R-5000	BK7	pl/cv	? 25,4 mm	ET-6 mm	-5000 mm
092-3125R-50	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-50 mm
092-3125R-75	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-75 mm
092-3125R-100	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-100 mm
092-3125R-150	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-150 mm
092-3125R-200	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-200 mm
092-3125R-250	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-250 mm
092-3125R-300	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-300 mm
092-3125R-400	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-400 mm
092-3125R-500	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-500 mm
092-3125R-600	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-600 mm
092-3125R-750	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-750 mm
092-3125R-800	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-800 mm
092-3125R-1000	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-1000 mm
092-3125R-1500	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-1500 mm
092-3125R-2000	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-2000 mm
092-3125R-2500	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-2500 mm
092-3125R-3000	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-3000 mm
092-3125R-4000	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-4000 mm
092-3125R-5000	UVFS	pl/cv	? 25,4 mm	ET-6 mm	-5000 mm

Protected Silver Plano-concave Spherical Mirrors

Diameter: 50.8+0.00/-0.13 mm Edge thickness (ET): 10.0±0.2 mm

型号	材料	类型	尺寸	厚度	半径
095-0125R-100	BK7	pl/cv	? 50,8 mm	ET-10 mm	-100 mm
095-0125R-200	BK7	pl/cv	? 50,8 mm	ET-10 mm	-200 mm
095-0125R-300	BK7	pl/cv	? 50,8 mm	ET-10 mm	-300 mm
095-0125R-400	BK7	pl/cv	? 50,8 mm	ET-10 mm	-400 mm
095-0125R-500	BK7	pl/cv	? 50,8 mm	ET-10 mm	-500 mm
095-0125R-600	BK7	pl/cv	? 50,8 mm	ET-10 mm	-600 mm
095-0125R-800	BK7	pl/cv	? 50,8 mm	ET-10 mm	-800 mm
095-0125R-1000	BK7	pl/cv	? 50,8 mm	ET-10 mm	-1000 mm
095-0125R-1500	BK7	pl/cv	? 50,8 mm	ET-10 mm	-1500 mm
095-0125R-2000	BK7	pl/cv	? 50,8 mm	ET-10 mm	-2000 mm
095-0125R-3000	BK7	pl/cv	? 50,8 mm	ET-10 mm	-3000 mm
095-0125R-4000	BK7	pl/cv	? 50,8 mm	ET-10 mm	-4000 mm
095-0125R-5000	BK7	pl/cv	? 50,8 mm	ET-10 mm	-5000 mm
095-0125R-6000	BK7	pl/cv	? 50,8 mm	ET-10 mm	-6000 mm
095-0125R-10000	BK7	pl/cv	? 50,8 mm	ET-10 mm	-10000 mm
095-3125R-100	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-100 mm
095-3125R-200	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-200 mm
095-3125R-300	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-300 mm
095-3125R-400	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-400 mm
095-3125R-500	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-500 mm
095-3125R-600	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-600 mm
095-3125R-800	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-800 mm
095-3125R-1000	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-1000 mm
095-3125R-1500	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-1500 mm
095-3125R-2000	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-2000 mm
095-3125R-2500	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-2500 mm
095-3125R-3000	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-3000 mm
095-3125R-4000	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-4000 mm
095-3125R-5000	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-5000 mm
095-3125R-10000	UVFS	pl/cv	? 50,8 mm	ET-10 mm	-10000 mm

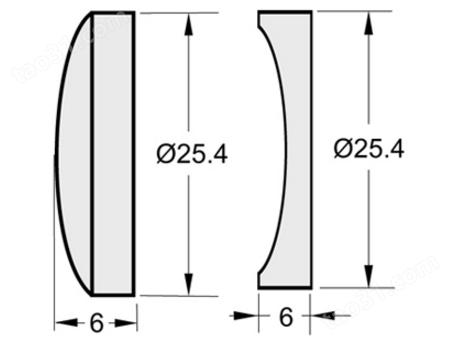

Protected Silver Plano-Convex Spherical Mirrors

Diameter: 25.4+0.00/-0.13 mm Center thickness (CT): 6.0±0.2 mm

型号	材料	类型	尺寸	厚度	半径
092-0225R+50	BK7	pl/cx	? 25,4 mm	CT-6 mm	50 mm
092-0225R+75	BK7	pl/cx	? 25,4 mm	CT-6 mm	75 mm
092-0225R+100	BK7	pl/cx	? 25,4 mm	CT-6 mm	100 mm
092-0225R+150	BK7	pl/cx	? 25,4 mm	CT-6 mm	150 mm
092-0225R+200	BK7	pl/cx	? 25,4 mm	CT-6 mm	200 mm
092-0225R+300	BK7	pl/cx	? 25,4 mm	CT-6 mm	300 mm
092-0225R+400	BK7	pl/cx	? 25,4 mm	CT-6 mm	400 mm
092-0225R+500	BK7	pl/cx	? 25,4 mm	CT-6 mm	500 mm
092-0225R+600	BK7	pl/cx	? 25,4 mm	CT-6 mm	600 mm
092-0225R+800	BK7	pl/cx	? 25,4 mm	CT-6 mm	800 mm
092-0225R+1000	BK7	pl/cx	? 25,4 mm	CT-6 mm	1000 mm
092-0225R+1500	BK7	pl/cx	? 25,4 mm	CT-6 mm	1500 mm
092-0225R+2000	BK7	pl/cx	? 25,4 mm	CT-6 mm	2000 mm
092-0225R+4000	BK7	pl/cx	? 25,4 mm	CT-6 mm	4000 mm
092-3225R+50	UVFS	pl/cx	? 25,4 mm	CT-6 mm	50 mm
092-3225R+75	UVFS	pl/cx	? 25,4 mm	CT-6 mm	75 mm
092-3225R+100	UVFS	pl/cx	? 25,4 mm	CT-6 mm	100 mm
092-3225R+150	UVFS	pl/cx	? 25,4 mm	CT-6 mm	150 mm
092-3225R+200	UVFS	pl/cx	? 25,4 mm	CT-6 mm	200 mm
092-3225R+300	UVFS	pl/cx	? 25,4 mm	CT-6 mm	300 mm
092-3225R+400	UVFS	pl/cx	? 25,4 mm	CT-6 mm	400 mm
092-3225R+500	UVFS	pl/cx	? 25,4 mm	CT-6 mm	500 mm
092-3225R+600	UVFS	pl/cx	? 25,4 mm	CT-6 mm	600 mm
092-3225R+800	UVFS	pl/cx	? 25,4 mm	CT-6 mm	800 mm
092-3225R+1000	UVFS	pl/cx	? 25,4 mm	CT-6 mm	1000 mm
092-3225R+1500	UVFS	pl/cx	? 25,4 mm	CT-6 mm	1500 mm
092-3225R+2000	UVFS	pl/cx	? 25,4 mm	CT-6 mm	2000 mm
092-3225R+4000	UVFS	pl/cx	? 25,4 mm	CT-6 mm	4000 mm

Protected Silver Plano-Convex Spherical Mirrors

Diameter: 50.8+0.00/-0.13 mm Center thickness (CT): 10.0±0.2 mm

型号	材料	类型	尺寸	厚度	半径
095-0225R+100	BK7	pl/cx	? 50,8 mm	CT-10 mm	100 mm
095-0225R+200	BK7	pl/cx	? 50,8 mm	CT-10 mm	200 mm
095-0225R+300	BK7	pl/cx	? 50,8 mm	CT-10 mm	300 mm
095-0225R+400	BK7	pl/cx	? 50,8 mm	CT-10 mm	400 mm
095-0225R+500	BK7	pl/cx	? 50,8 mm	CT-10 mm	500 mm
095-3225R+100	UVFS	pl/cx	? 50,8 mm	CT-10 mm	100 mm
095-3225R+200	UVFS	pl/cx	? 50,8 mm	CT-10 mm	200 mm
095-3225R+300	UVFS	pl/cx	? 50,8 mm	CT-10 mm	300 mm
095-3225R+400	UVFS	pl/cx	? 50,8 mm	CT-10 mm	400 mm
095-3225R+500	UVFS	pl/cx	? 50,8 mm	CT-10 mm	500 mm
