SilverTL?远心镜头
（1）SilverTL? ecentric Lenses
（2）远心度<0.1°
（3）双面远心设计
（4）高光通量，f/6设计
（5）适用于?”和2/3”传感器
TECHSPEC?SilverTL?远心镜头非常适用于需要测量的在线和离线机器视觉生产应用。这款镜头集高品质光学元件，简化的非对焦机械设计以及带固定螺丝的可调节光圈于一身。 TECHSPEC? SilverTL?远心镜头适用于计量和测量应用，可选内置照明，用途广泛。每个镜头都配有标准的前置滤光片螺纹，可连接彩色滤光片，偏振片，保护窗口片以及用于LED或光纤灯的照明适配器。
注意: 安装支架适用于直径为30mm的安装表面。

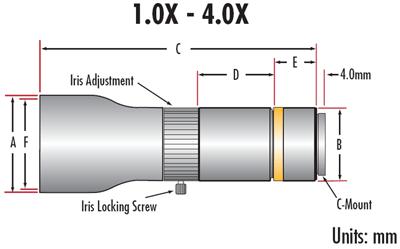

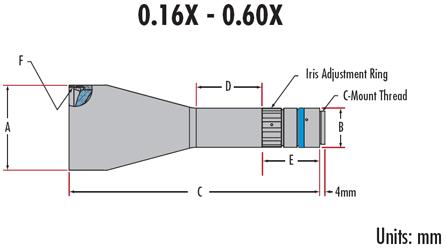

Stock Number |
Primary Mag. |
Max. Diameter A |
Mounting Diameter B |
Length C |
Mounting Length D |
Mounting Offset E |
Filter Thread F |
#56-675 |
0.16X |
65mm |
30mm |
191mm |
50mm |
43mm |
M62 x 0.75 |
#63-073 |
0.20X |
60mm |
30mm |
188mm |
42mm |
45mm |
M58 x 0.75 |
#56-676 |
0.25X |
48mm |
30mm |
158mm |
49mm |
44mm |
M46 x 0.75 |
#58-428 |
0.30X |
46mm |
30mm |
158mm |
60mm |
43mm |
M43 x 0.75 |
#56-677 |
0.40X |
45mm |
30mm |
159mm |
67mm |
33mm |
M43 x 0.75 |
#63-074 |
0.50X |
40mm |
30mm |
153mm |
42mm |
68mm |
M37 x 0.75 |
#88-344?(In-Line) |
156.2mm |
45.1mm |
73.4mm |
||||
#56-678 |
0.60X |
42mm |
30mm |
156mm |
57mm |
46mm |
M40.5 x 0.5 |
#67-731 |
0.75X |
36mm |
30mm |
151.2mm |
34mm* |
82.2mm |
M30.5 x 0.5 |
#88-346?(In-Line) |
155.2mm |
46.2mm |
16.9mm |
||||
#58-430 |
1.0X |
40mm |
30mm |
114mm |
32mm* |
17mm |
M37 x 0.75 |
#58-431 |
2.0X |
45mm |
30mm |
141mm |
45mm |
17mm |
M43 x 0.75 |
#88-348?(In-Line) |
144.6mm |
42.2mm |
18.8mm |
||||
#58-432 |
4.0X |
61mm |
30mm |
249mm |
99mm |
17mm |
M58 x 0.75 |
?
?
主要放大倍率 PMAG |
大摄像机传感器格式 |
FOV @ Max Sensor Format, H x V (mm) |
方式 |
工作距离 (mm) |
产品号 |
0.16X |
1/2" |
40.0 x 30.0 |
- |
177 |
#56-675 |
0.2X |
1/1.8" |
36.0 x 27.0 |
- |
164 |
#63-073 |
0.25X |
1/1.8" |
28.8 x 21.6 |
- |
160 |
#56-676 |
0.3X |
1/2" |
21.3 x 16.0 |
- |
139 |
#58-428 |
0.4X |
1/1.8" |
18.0 x 13.5 |
- |
103 |
#56-677 |
0.5X |
1/1.8" |
14.4 x 10.8 |
- |
120 |
#63-074 |
0.5X |
1/1.8" |
14.4 x 10.8 |
In-Line Illumination |
120 |
#88-344 |
0.6X |
1/1.8" |
12.0 x 9.0 |
- |
103 |
#56-678 |
0.75X |
2/3" |
11.7 x 8.8 |
- |
100 |
#67-731 |
0.75X |
2/3" |
11.7 x 8.8 |
In-Line Illumination |
100 |
#88-346 |
1X |
2/3" |
8.8 x 6.6 |
- |
83 |
#58-430 |
2X |
2/3" |
4.4 x 3.3 |
- |
75 |
#58-431 |
2X |
2/3" |
4.4 x 3.3 |
In-Line Illumination |
75 |
#88-348 |
4X |
2/3" |
2.2 x 1.6 |
- |
44 |
#58-432 |
?
