未镀膜平凸透镜
平凸透镜有一个正焦距，它们比较适合应用在成像系统中用来收集和聚光，它们在发射器，探测器，激光和光纤等产品领域中有广泛的应用。已镀膜的产品有很好的透过率，可以获得长焦距和大直径的产品。
本款镜片可选各种减反射膜，包括VIS-NIR，MgF2，VIS 0°，NIR-I,?NIR II,?VIS-EXT和?YAG-BBAR。
也可选直径为1-3mm的镜片，这些镜片可镀光通讯用NIR减反射膜。
更详细的参数请参考减反射膜介绍。
未镀膜平凸透镜
Common Specifications
涂层: |

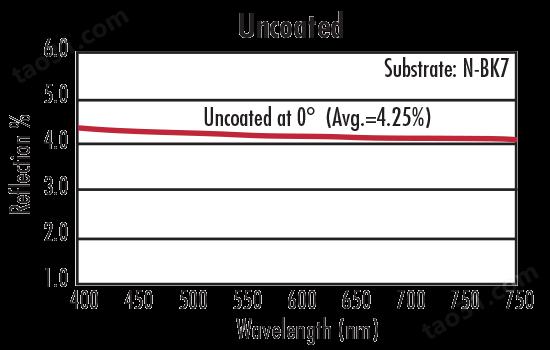

Uncoated |
表面质量: |
40-20 |
Power (P-V) @ 632.8nm: |
1.5λ |
Irregularity (P-V) @ 632.8nm: |
λ/4 |
焦距容差 (%): |
±1 |
技术数据
订购信息
| Dia.(mm) | EFL(mm) | BFL(mm) | 涂层 | 基底 | 产品编码 |
| 1.00 | 0.60 | 0.17 | Uncoated | N-LASF9 | #45-588 |
| 1.00 | 1.00 | 0.57 | Uncoated | N-LASF9 | #45-589 |
| 1.00 | 1.50 | 1.07 | Uncoated | N-LASF9 | #65-252 |
| 1.00 | 2.00 | 1.57 | Uncoated | N-LASF9 | #65-253 |
| 1.50 | 1.00 | 0.57 | Uncoated | N-LASF9 | #43-394 |
| 1.50 | 1.50 | 1.07 | Uncoated | N-LASF9 | #43-395 |
| 1.50 | 2.00 | 1.57 | Uncoated | N-LASF9 | #65-254 |
| 2.00 | 1.50 | 1.07 | Uncoated | N-LASF9 | #43-396 |
| 2.00 | 2.00 | 1.57 | Uncoated | N-LASF9 | #43-397 |
| 2.00 | 3.00 | 2.57 | Uncoated | N-LASF9 | #65-255 |
| 2.00 | 4.00 | 3.57 | Uncoated | N-LASF9 | #65-256 |
| 2.50 | 2.00 | 1.57 | Uncoated | N-LASF9 | #43-398 |
| 2.50 | 2.50 | 2.07 | Uncoated | N-LASF9 | #43-399 |
| 2.50 | 3.00 | 2.57 | Uncoated | N-LASF9 | #45-590 |
| 2.50 | 4.00 | 3.57 | Uncoated | N-LASF9 | #48-643 |
| 2.50 | 5.00 | 4.57 | Uncoated | N-LASF9 | #48-644 |
| 3.00 | 3.00 | 1.88 | Uncoated | N-SF11 | #45-117 |
| 3.00 | 4.50 | 3.50 | Uncoated | N-LASF44 | #45-141 |
| 3.00 | 6.00 | 4.81 | Uncoated | N-BK7 | #32-952 |
| 3.00 | 7.50 | 6.51 | Uncoated | N-BK7 | #48-645 |
| 3.00 | 9.00 | 8.01 | Uncoated | N-BK7 | #32-954 |
| 3.00 | 12.00 | 11.29 | Uncoated | N-BK7 | #45-272 |
| 3.00 | 15.00 | 14.22 | Uncoated | N-BK7 | #45-425 |
| 4.00 | 4.00 | 3.06 | Uncoated | N-LASF44 | #45-223 |
| 4.00 | 6.00 | 4.51 | Uncoated | N-BK7 | #45-427 |
| 4.00 | 8.00 | 7.17 | Uncoated | N-BAF10 | #45-225 |
| 4.00 | 10.00 | 8.92 | Uncoated | N-BK7 | #45-429 |
| 4.00 | 12.00 | 11.00 | Uncoated | N-BK7 | #45-431 |
| 4.50 | 4.50 | 3.05 | Uncoated | N-LASF44 | #45-143 |
| 4.50 | 9.00 | 7.41 | Uncoated | N-BK7 | #45-147 |
| 5.00 | 5.00 | 3.96 | Uncoated | N-LASF44 | #45-227 |
| 5.00 | 7.50 | 6.43 | Uncoated | N-SF11 | #48-652 |
| 5.00 | 10.00 | 8.91 | Uncoated | N-BK7 | #45-229 |
| 5.00 | 12.00 | 10.83 | Uncoated | N-BK7 | #45-433 |
| 5.00 | 15.00 | 13.94 | Uncoated | N-BK7 | #45-356 |
| 5.00 | 20.00 | 19.02 | Uncoated | N-BK7 | #49-873 |
| 5.00 | 25.00 | 23.95 | Uncoated | N-BK7 | #87-911 |
| 5.00 | 30.00 | 28.95 | Uncoated | N-BK7 | #87-912 |
| 6.00 | 6.00 | 4.60 | Uncoated | N-SF11 | #45-077 |
| 6.00 | 7.50 | 6.10 | Uncoated | N-SF11 | #49-874 |
| 6.00 | 9.00 | 7.95 | Uncoated | N-SF5 | #32-469 |
| 6.00 | 10.00 | 8.82 | Uncoated | N-BK7 | #37-775 |
| 6.00 | 12.00 | 10.94 | Uncoated | N-BK7 | #32-471 |
| 6.00 | 15.00 | 13.68 | Uncoated | N-BK7 | #45-079 |
| 6.00 | 18.00 | 17.07 | Uncoated | N-BK7 | #32-473 |
| 6.00 | 20.00 | 19.04 | Uncoated | N-BK7 | #37-776 |
| 6.00 | 21.00 | 20.06 | Uncoated | N-BK7 | #45-231 |
| 6.00 | 24.00 | 23.01 | Uncoated | N-BK7 | #32-956 |
| 6.00 | 25.00 | 24.04 | Uncoated | N-BK7 | #37-777 |
| 6.00 | 30.00 | 29.14 | Uncoated | N-BK7 | #45-119 |
| 6.00 | 36.00 | 34.95 | Uncoated | N-BK7 | #32-848 |
| 6.00 | 48.00 | 46.95 | Uncoated | N-BK7 | #45-233 |
| 6.00 | 60.00 | 58.95 | Uncoated | N-BK7 | #67-146 |
| 6.00 | 72.00 | 70.97 | Uncoated | N-BK7 | #32-850 |
| 9.00 | 9.00 | 7.32 | Uncoated | N-SF11 | #45-081 |
| 9.00 | 10.00 | 8.49 | Uncoated | N-SF11 | #37-778 |
| 9.00 | 12.00 | 10.60 | Uncoated | N-SF11 | #49-875 |
| 9.00 | 13.50 | 11.94 | Uncoated | N-SF5 | #32-009 |
| 9.00 | 15.00 | 13.02 | Uncoated | N-BK7 | #49-876 |
| 9.00 | 18.00 | 16.41 | Uncoated | N-BK7 | #32-008 |
| 9.00 | 20.00 | 18.55 | Uncoated | N-BK7 | #37-779 |
| 9.00 | 22.00 | 20.73 | Uncoated | N-BK7 | #45-235 |
| 9.00 | 25.00 | 23.68 | Uncoated | N-BK7 | #37-780 |
| 9.00 | 27.00 | 25.34 | Uncoated | N-BK7 | #32-958 |
| 9.00 | 36.00 | 34.48 | Uncoated | N-BK7 | #45-121 |
| 9.00 | 45.00 | 43.98 | Uncoated | N-BK7 | #45-358 |
| 9.00 | 54.00 | 52.69 | Uncoated | N-BK7 | #67-147 |
| 9.00 | 72.00 | 70.68 | Uncoated | N-BK7 | #67-148 |
| 9.00 | 90.00 | 88.68 | Uncoated | N-BK7 | #67-149 |
| 10.00 | 10.00 | 8.18 | Uncoated | N-SF11 | #63-471 |
| 10.00 | 12.50 | 10.99 | Uncoated | N-SF11 | #37-781 |
| 10.00 | 15.00 | 13.32 | Uncoated | N-SF11 | #63-472 |
| 10.00 | 17.50 | 15.66 | Uncoated | N-BK7 | #37-782 |
| 10.00 | 20.00 | 18.03 | Uncoated | N-BK7 | #63-473 |
| 10.00 | 25.00 | 23.02 | Uncoated | N-BK7 | #63-474 |
| 10.00 | 30.00 | 28.01 | Uncoated | N-BK7 | #63-475 |
| 10.00 | 40.00 | 38.02 | Uncoated | N-BK7 | #63-476 |
| 10.00 | 50.00 | 48.02 | Uncoated | N-BK7 | #63-477 |
| 10.00 | 75.00 | 73.02 | Uncoated | N-BK7 | #63-478 |
| 10.00 | 100.00 | 98.02 | Uncoated | N-BK7 | #63-479 |
| 12.00 | 12.00 | 9.76 | Uncoated | N-SF11 | #45-083 |
| 12.00 | 15.00 | 12.03 | Uncoated | N-BK7 | #45-302 |
| 12.00 | 18.00 | 16.22 | Uncoated | N-SF5 | #32-006 |
| 12.00 | 20.00 | 17.69 | Uncoated | N-BK7 | #49-877 |
| 12.00 | 24.00 | 22.15 | Uncoated | N-BK7 | #32-011 |
| 12.00 | 25.00 | 23.22 | Uncoated | N-BK7 | #37-783 |
| 12.00 | 30.00 | 28.02 | Uncoated | N-BK7 | #45-085 |
| 12.00 | 36.00 | 34.02 | Uncoated | N-BK7 | #33-352 |
| 12.00 | 42.00 | 40.22 | Uncoated | N-BK7 | #45-123 |
| 12.00 | 48.00 | 46.36 | Uncoated | N-BK7 | #32-852 |
| 12.00 | 50.00 | 48.75 | Uncoated | N-BK7 | #37-784 |
| 12.00 | 54.00 | 52.02 | Uncoated | N-BK7 | #45-304 |
| 12.00 | 60.00 | 58.37 | Uncoated | N-BK7 | #32-854 |
| 12.00 | 72.00 | 70.42 | Uncoated | N-BK7 | #45-125 |
| 12.00 | 84.00 | 82.39 | Uncoated | N-BK7 | #32-856 |
| 12.00 | 100.00 | 98.35 | Uncoated | N-BK7 | #45-274 |
| 12.50 | 12.50 | 10.40 | Uncoated | N-SF11 | #37-785 |
| 12.50 | 15.00 | 13.26 | Uncoated | N-SF11 | #37-786 |
| 12.50 | 17.50 | 15.00 | Uncoated | N-BK7 | #37-787 |
| 12.50 | 20.00 | 17.69 | Uncoated | N-BK7 | #37-788 |
| 12.50 | 25.00 | 22.96 | Uncoated | N-BK7 | #37-789 |
| 12.50 | 30.00 | 28.22 | Uncoated | N-BK7 | #37-790 |
| 12.50 | 35.00 | 33.42 | Uncoated | N-BK7 | #37-791 |
| 12.50 | 40.00 | 38.55 | Uncoated | N-BK7 | #37-792 |
| 12.50 | 45.00 | 43.68 | Uncoated | N-BK7 | #37-793 |
| 12.50 | 50.00 | 48.68 | Uncoated | N-BK7 | #37-796 |
| 12.50 | 75.00 | 73.88 | Uncoated | N-BK7 | #37-798 |
| 12.50 | 100.00 | 98.95 | Uncoated | N-BK7 | #37-800 |
| 12.70 | 12.70 | 10.46 | Uncoated | N-SF11 | #49-839 |
| 12.70 | 15.00 | 11.53 | Uncoated | N-BK7 | #49-840 |
| 12.70 | 19.10 | 16.46 | Uncoated | N-BK7 | #49-841 |
| 12.70 | 20.00 | 17.49 | Uncoated | N-BK7 | #37-801 |
| 12.70 | 25.40 | 23.43 | Uncoated | N-BK7 | #49-842 |
| 12.70 | 30.00 | 28.22 | Uncoated | N-BK7 | #37-802 |
| 12.70 | 31.80 | 29.81 | Uncoated | N-BK7 | #49-843 |
| 12.70 | 38.10 | 36.12 | Uncoated | N-BK7 | #49-844 |
| 12.70 | 40.00 | 38.48 | Uncoated | N-BK7 | #37-803 |
| 12.70 | 44.50 | 42.69 | Uncoated | N-BK7 | #49-845 |
| 12.70 | 50.80 | 49.15 | Uncoated | N-BK7 | #49-846 |
| 12.70 | 100.00 | 98.88 | Uncoated | N-BK7 | #37-804 |
| 15.00 | 15.00 | 11.71 | Uncoated | N-SF5 | #45-093 |
| 15.00 | 18.00 | 15.61 | Uncoated | N-SF5 | #49-878 |
| 15.00 | 20.00 | 17.74 | Uncoated | N-SF5 | #63-480 |
| 15.00 | 22.50 | 20.50 | Uncoated | N-SF5 | #32-004 |
| 15.00 | 25.00 | 22.50 | Uncoated | N-BK7 | #37-806 |
| 15.00 | 30.00 | 27.90 | Uncoated | N-BK7 | #32-003 |
| 15.00 | 40.00 | 38.02 | Uncoated | N-BK7 | #45-095 |
| 15.00 | 45.00 | 43.35 | Uncoated | N-BK7 | #49-879 |
| 15.00 | 50.00 | 48.35 | Uncoated | N-BK7 | #37-808 |
| 15.00 | 60.00 | 58.65 | Uncoated | N-BK7 | #45-435 |
| 15.00 | 75.00 | 73.79 | Uncoated | N-BK7 | #45-360 |
| 15.00 | 100.00 | 98.02 | Uncoated | N-BK7 | #45-259 |
| 15.00 | 200.00 | 197.89 | Uncoated | N-BK7 | #14-374 |
| 15.00 | 250.00 | 248.02 | Uncoated | N-BK7 | #14-382 |
| 18.00 | 18.00 | 15.20 | Uncoated | N-SF11 | #48-423 |
| 18.00 | 22.50 | 20.26 | Uncoated | N-SF11 | #49-880 |
| 18.00 | 27.00 | 24.73 | Uncoated | N-SF5 | #32-001 |
| 18.00 | 36.00 | 33.65 | Uncoated | N-BK7 | #32-000 |
| 18.00 | 54.00 | 52.02 | Uncoated | N-BK7 | #45-306 |
| 18.00 | 72.00 | 70.05 | Uncoated | N-BK7 | #32-859 |
| 18.00 | 20.00 | 17.59 | Uncoated | N-SF11 | #37-810 |
| 18.00 | 25.00 | 21.51 | Uncoated | N-BK7 | #37-811 |
| 18.00 | 30.00 | 27.10 | Uncoated | N-BK7 | #37-812 |
| 18.00 | 50.00 | 48.09 | Uncoated | N-BK7 | #37-813 |
| 20.00 | 20.00 | 17.42 | Uncoated | N-SF11 | #45-237 |
| 20.00 | 25.00 | 22.76 | Uncoated | N-SF11 | #49-881 |
| 20.00 | 30.00 | 27.30 | Uncoated | N-BAF10 | #45-239 |
| 20.00 | 35.00 | 32.04 | Uncoated | N-BK7 | #49-882 |
| 20.00 | 40.00 | 36.77 | Uncoated | N-BK7 | #32-960 |
| 20.00 | 50.00 | 47.87 | Uncoated | N-BK7 | #45-362 |
| 20.00 | 60.00 | 57.03 | Uncoated | N-BK7 | #32-962 |
| 20.00 | 70.00 | 68.03 | Uncoated | N-BK7 | #32-936 |
| 20.00 | 80.00 | 78.45 | Uncoated | N-BK7 | #45-439 |
| 20.00 | 100.00 | 97.13 | Uncoated | N-BK7 | #32-475 |
| 20.00 | 150.00 | 148.02 | Uncoated | N-BK7 | #45-276 |
| 25.00 | 25.00 | 20.22 | Uncoated | N-SF5 | #45-097 |
| 25.00 | 30.00 | 24.69 | Uncoated | N-BK7 | #45-364 |
| 25.00 | 35.00 | 30.42 | Uncoated | N-BK7 | #45-145 |
| 25.00 | 40.00 | 36.31 | Uncoated | N-BK7 | #45-278 |
| 25.00 | 50.00 | 46.75 | Uncoated | N-BK7 | #32-477 |
| 25.00 | 60.00 | 56.90 | Uncoated | N-BK7 | #45-127 |
| 25.00 | 75.00 | 72.00 | Uncoated | N-BK7 | #32-479 |
| 25.00 | 85.00 | 82.17 | Uncoated | N-BK7 | #45-366 |
| 25.00 | 100.00 | 97.17 | Uncoated | N-BK7 | #32-481 |
| 25.00 | 125.00 | 122.70 | Uncoated | N-BK7 | #32-861 |
| 25.00 | 150.00 | 147.81 | Uncoated | N-BK7 | #32-863 |
| 25.00 | 175.00 | 172.85 | Uncoated | N-BK7 | #32-865 |
| 25.00 | 200.00 | 197.89 | Uncoated | N-BK7 | #33-358 |
| 25.00 | 250.00 | 248.02 | Uncoated | N-BK7 | #67-150 |
| 25.00 | 300.00 | 298.02 | Uncoated | N-BK7 | #67-151 |
| 25.00 | 400.00 | 397.89 | Uncoated | N-BK7 | #33-364 |
| 25.00 | 500.00 | 497.89 | Uncoated | N-BK7 | #45-280 |
| 25.00 | 750.00 | 747.89 | Uncoated | N-BK7 | #45-282 |
| 25.40 | 25.40 | 21.48 | Uncoated | N-SF11 | #49-847 |
| 25.40 | 38.10 | 33.48 | Uncoated | N-BK7 | #49-848 |
| 25.40 | 50.80 | 47.50 | Uncoated | N-BK7 | #49-849 |
| 25.40 | 63.50 | 60.37 | Uncoated | N-BK7 | #49-850 |
| 25.40 | 76.20 | 73.56 | Uncoated | N-BK7 | #49-851 |
| 25.40 | 88.90 | 86.26 | Uncoated | N-BK7 | #49-852 |
| 25.40 | 101.60 | 98.97 | Uncoated | N-BK7 | #49-853 |
| 25.40 | 35.00 | 30.46 | Uncoated | N-BK7 | #37-814 |
| 25.40 | 40.00 | 36.11 | Uncoated | N-BK7 | #37-815 |
| 25.40 | 75.00 | 72.69 | Uncoated | N-BK7 | #37-816 |
| 25.40 | 100.00 | 98.02 | Uncoated | N-BK7 | #37-817 |
| 25.40 | 125.00 | 123.02 | Uncoated | N-BK7 | #37-818 |
| 25.40 | 150.00 | 148.02 | Uncoated | N-BK7 | #37-821 |
| 30.00 | 30.00 | 26.13 | Uncoated | N-SF11 | #48-653 |
| 30.00 | 40.00 | 37.20 | Uncoated | N-SF11 | #67-152 |
| 30.00 | 50.00 | 46.17 | Uncoated | N-SF5 | #32-483 |
| 30.00 | 60.00 | 56.03 | Uncoated | N-BK7 | #45-241 |
| 30.00 | 75.00 | 70.95 | Uncoated | N-BK7 | #32-485 |
| 30.00 | 100.00 | 96.01 | Uncoated | N-BK7 | #32-487 |
| 30.00 | 120.00 | 116.04 | Uncoated | N-BK7 | #45-243 |
| 35.00 | 35.00 | 30.52 | Uncoated | N-SF11 | #37-824 |
| 35.00 | 50.00 | 44.40 | Uncoated | N-BK7 | #37-825 |
| 35.00 | 100.00 | 97.03 | Uncoated | N-BK7 | #37-828 |
| 35.00 | 70.00 | 66.04 | Uncoated | N-BK7 | #37-827 |
| 40.00 | 40.00 | 35.13 | Uncoated | N-SF11 | #48-654 |
| 40.00 | 60.00 | 53.90 | Uncoated | N-BK7 | #45-149 |
| 40.00 | 80.00 | 74.73 | Uncoated | N-BK7 | #33-382 |
| 40.00 | 100.00 | 95.39 | Uncoated | N-BK7 | #33-370 |
| 40.00 | 200.00 | 196.7 | Uncoated | N-BK7 | #33-376 |
| 40.00 | 300.00 | 296.70 | Uncoated | N-BK7 | #45-284 |
| 40.00 | 400.00 | 396.70 | Uncoated | N-BK7 | #45-286 |
| 50.00 | 50.00 | 43.28 | Uncoated | N-SF11 | #32-970 |
| 50.00 | 75.00 | 67.75 | Uncoated | N-BK7 | #45-245 |
| 50.00 | 100.00 | 93.41 | Uncoated | N-BK7 | #32-972 |
| 50.00 | 125.00 | 118.39 | Uncoated | N-BK7 | #45-247 |
| 50.00 | 150.00 | 144.07 | Uncoated | N-BK7 | #32-974 |
| 50.00 | 175.00 | 169.05 | Uncoated | N-BK7 | #45-249 |
| 50.00 | 200.00 | 196.66 | Uncoated | N-BK7 | #45-151 |
| 50.00 | 250.00 | 246.74 | Uncoated | N-BK7 | #45-153 |
| 50.00 | 500.00 | 496.70 | Uncoated | N-BK7 | #45-288 |
| 75.00 | 75.00 | 53.49 | Uncoated | N-BK7 | #45-367 |
| 75.00 | 150.00 | 142.45 | Uncoated | N-BK7 | #45-369 |
| 75.00 | 200.00 | 194.24 | Uncoated | N-BK7 | #45-371 |
| 75.00 | 250.00 | 244.73 | Uncoated | N-BK7 | #63-482 |
| 75.00 | 500.00 | 494.73 | Uncoated | N-BK7 | #63-483 |
| 100.00 | 200.00 | 190.77 | Uncoated | N-BK7 | #17-899 |
| 150.00 | 300.00 | 285.50 | Uncoated | N-BK7 | #17-915 |
| 200.00 | 400.00 | 381.54 | Uncoated | N-BK7 | #17-931 |
15933752505
