刻线式衍射光栅
衍射光栅可将复色光（白光）分离成各种组分（通过衍射效应）。各种光栅是由高精度的母光栅进行多次复制而成。光栅复制过程见如下描述。

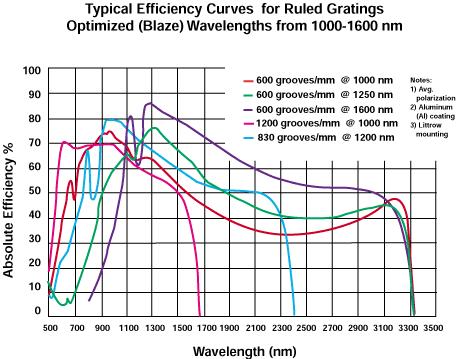

高品质仪器的光栅可近乎满足所有的衍射需求，特别是在效率要求比较高的时候。可以根据尺寸，纹槽间距以及闪耀波长来选择光栅。理论分辨率与母光栅的每毫米槽纹数成比例，闪耀角和光栅间距决定了特种波长和光谱区域的大效率。
槽/mm |
闪耀角 |
尺寸 (mm) |
产品号 |
600 |
6° 53' |
12.5 x 25.0 |
#41-021 |
600 |
8° 37' |
12.5 x 25.0 |
#48-461 |
600 |
13° |
12.5 x 25.0 |
#41-020 |
1200 |
8° 37' |
12.5 x 25.0 |
#41-039 |
1200 |
13° 53' |
12.5 x 25.0 |
#41-048 |
1200 |
17° 27' |
12.5 x 25.0 |
#43-004 |
1200 |
26° 44' |
12.5 x 25.0 |
#43-209 |
150 |
2° 08' |
12.7 x 12.7 |
#64-397 |
300 |
2° 34' |
12.7 x 12.7 |
#43-737 |
300 |
4° 18' |
12.7 x 12.7 |
#64-398 |
600 |
4° 18' |
12.7 x 12.7 |
#43-739 |
600 |
5° 09' |
12.7 x 12.7 |
#43-741 |
600 |
8° 37' |
12.7 x 12.7 |
#43-742 |
600 |
13° 00' |
12.7 x 12.7 |
#43-744 |
600 |
22° 01' |
12.7 x 12.7 |
#43-746 |
600 |
28° 41' |
12.7 x 12.7 |
#43-748 |
600 |
6° 53' |
12.7 x 12.7 |
#43-771 |
600 |
17° 27' |
12.7 x 12.7 |
#43-745 |
900 |
13° 00' |
12.7 x 12.7 |
#64-399 |
1200 |
8° 37' |
12.7 x 12.7 |
#43-750 |
1200 |
13° 53' |
12.7 x 12.7 |
#48-464 |
1200 |
17° 27' |
12.7 x 12.7 |
#43-751 |
1200 |
26° 44' |
12.7 x 12.7 |
#43-752 |
1200 |
36° 52' |
12.7 x 12.7 |
#43-753 |
1800 |
12° 29' |
12.7 x 12.7 |
#64-400 |
1800 |
26° 44' |
12.7 x 12.7 |
#64-401 |
150 |
2° 08' |
25.0 x 25.0 |
#64-402 |
300 |
2° 34' |
25.0 x 25.0 |
#43-738 |
300 |
4° 18' |
25.0 x 25.0 |
#64-403 |
600 |
4° 18' |
25.0 x 25.0 |
#43-740 |
600 |
5° 09' |
25.0 x 25.0 |
#43-001 |
600 |
6° 53' |
25.0 x 25.0 |
#41-019 |
600 |
8° 37' |
25.0 x 25.0 |
#43-743 |
600 |
13° 00' |
25.0 x 25.0 |
#41-028 |
600 |
17° 27' |
25.0 x 25.0 |
#43-207 |
600 |
22° 01' |
25.0 x 25.0 |
#43-747 |
600 |
28° 41' |
25.0 x 25.0 |
#43-749 |
900 |
13° 00' |
25.0 x 25.0 |
#64-404 |
1200 |
8° 37' |
25.0 x 25.0 |
#41-037 |
1200 |
13° 53' |
25.0 x 25.0 |
#41-046 |
1200 |
17° 27' |
25.0 x 25.0 |
#43-005 |
1200 |
26° 44' |
25.0 x 25.0 |
#43-210 |
1200 |
36° 52' |
25.0 x 25.0 |
#43-754 |
1800 |
12° 29' |
25.0 x 25.0 |
#64-405 |
1800 |
26° 44' |
25.0 x 25.0 |
#64-406 |
600 |
6° 53' |
30.0 x 30.0 |
#48-460 |
600 |
8° 37' |
30.0 x 30.0 |
#46-075 |
600 |
13° 00' |
30.0 x 30.0 |
#55-258 |
600 |
22° 01' |
30.0 x 30.0 |
#46-076 |
600 |
28° 41' |
30.0 x 30.0 |
#55-259 |
1200 |
8° 37' |
30.0 x 30.0 |
#55-260 |
1200 |
17° 27' |
30.0 x 30.0 |
#46-077 |
1200 |
26° 44' |
30.0 x 30.0 |
#46-078 |
300 |
2° 34' |
50.0 x 50.0 |
#48-459 |
600 |
5° 09' |
50.0 x 50.0 |
#43-002 |
600 |
6° 53' |
50.0 x 50.0 |
#41-016 |
600 |
8° 37' |
50.0 x 50.0 |
#48-462 |
600 |
13° 00' |
50.0 x 50.0 |
#41-025 |
600 |
17° 27' |
50.0 x 50.0 |
#43-208 |
600 |
22° 01' |
50.0 x 50.0 |
#48-463 |
1200 |
8° 37' |
50.0 x 50.0 |
#41-034 |
1200 |
13° 53' |
50.0 x 50.0 |
#41-043 |
1200 |
17° 27' |
50.0 x 50.0 |
#43-006 |
1200 |
26° 44' |
50.0 x 50.0 |
#43-211 |
刻线式衍射光栅订购信息：
600 Grooves, 12.5 x 25mm, 400nm Ruled Diffraction Grating
库存 #41-021技术参数与相关资料
尺寸 (mm) |
12.5 x 25.0 |
尺寸容差 (mm) |
±0.5 |
有效孔径 (%) |
90 |
厚度 (mm) |
9.5 |
基底 |
Float Glass |
闪耀角 |
6° 53' |
衍射效率 (%) |
60-80 @ Blaze Wavelength |
设计波长 DWL (nm) |
400 |
涂层 |
Bare Aluminum |
槽方向 |
Parallel to Short Dimension |
槽/mm |
600 |
类型 |
Reflective Diffraction Grating |
构造 |
Ruled Grating |
RoHS |
符合标准 |
150 Grooves, 12.7mm Square, 500nm Ruled Diffraction Grating
库存 #64-397技术参数与相关资料
尺寸 (mm) |
12.7 x 12.7 |
尺寸容差 (mm) |
±0.5 |
有效孔径 (%) |
90 |
厚度 (mm) |
6.0 |
基底 |
Float Glass |
闪耀角 |
2° 08' |
衍射效率 (%) |
60-80 @ Blaze Wavelength |
设计波长 DWL (nm) |
500 |
涂层 |
Bare Aluminum |
槽方向 |
Parallel to Short Dimension |
槽/mm |
150 |
类型 |
Reflective Diffraction Grating |
构造 |
Ruled Grating |
RoHS |
符合标准 |
600 Grooves, 12.7mm Square, 250nm Ruled Diffraction Grating
库存 #43-739技术参数与相关资料
尺寸 (mm) |
12.7 x 12.7 |
尺寸容差 (mm) |
±0.5 |
有效孔径 (%) |
90 |
厚度 (mm) |
6.0 |
基底 |
Float Glass |
闪耀角 |
4° 18' |
衍射效率 (%) |
60-80 @ Blaze Wavelength |
设计波长 DWL (nm) |
250 |
涂层 |
Bare Aluminum |
槽方向 |
Parallel to Short Dimension |
槽/mm |
600 |
类型 |
Reflective Diffraction Grating |
构造 |
Ruled Grating |
RoHS |
符合标准 |
900 Grooves, 12.7mm Square, 500nm Ruled Diffraction Grating
库存 #64-399技术参数与相关资料
尺寸 (mm) |
12.7 x 12.7 |
尺寸容差 (mm) |
±0.5 |
有效孔径 (%) |
90 |
厚度 (mm) |
6.0 |
基底 |
Float Glass |
闪耀角 |
13° 00' |
衍射效率 (%) |
60-80 @ Blaze Wavelength |
设计波长 DWL (nm) |
500 |
涂层 |
Bare Aluminum |
槽方向 |
Parallel to Short Dimension |
槽/mm |
900 |
类型 |
Reflective Diffraction Grating |
构造 |
Ruled Grating |
RoHS |
符合标准 |
1800 Grooves, 12.7mm Square, 240nm Ruled Diffraction Grating
库存 #64-400技术参数与相关资料
尺寸 (mm) |
12.7 x 12.7 |
尺寸容差 (mm) |
±0.5 |
有效孔径 (%) |
90 |
厚度 (mm) |
6.0 |
基底 |
Float Glass |
闪耀角 |
12° 29' |
衍射效率 (%) |
60-80 @ Blaze Wavelength |
设计波长 DWL (nm) |
240 |
涂层 |
Bare Aluminum |
槽方向 |
Parallel to Short Dimension |
槽/mm |
1800 |
类型 |
Reflective Diffraction Grating |
构造 |
Ruled Grating |
RoHS |
符合标准 |
300 Grooves, 50mm Square, 300nm Ruled Diffraction Grating
库存 #48-459技术参数与相关资料
尺寸 (mm) |
50.0 x 50.0 |
尺寸容差 (mm) |
±0.5 |
有效孔径 (%) |
90 |
厚度 (mm) |
9.5 |
基底 |
Float Glass |
闪耀角 |
2° 34' |
衍射效率 (%) |
60-80 @ Blaze Wavelength |
设计波长 DWL (nm) |
300 |
涂层 |
Bare Aluminum |
槽方向 |
Parallel to Short Dimension |
槽/mm |
300 |
类型 |
Reflective Diffraction Grating |
构造 |
Ruled Grating |
RoHS |
符合标准 |
600 Grooves, 50mm Square, 1250nm Ruled Diffraction Grating
库存 #48-463技术参数与相关资料
尺寸 (mm) |
50.0 x 50.0 |
尺寸容差 (mm) |
±0.5 |
有效孔径 (%) |
90 |
厚度 (mm) |
9.5 |
基底 |
Float Glass |
闪耀角 |
22° 01' |
衍射效率 (%) |
60-80 @ Blaze Wavelength |
设计波长 DWL (nm) |
1250 |
涂层 |
Bare Aluminum |
槽方向 |
Parallel to Short Dimension |
槽/mm |
600 |
类型 |
Reflective Diffraction Grating |
构造 |
Ruled Grating |
RoHS |
符合标准 |
