精密圆形窗口片
精密的圆窗口片由UVFS或BK7制成，并在两面进行抛光（20-10刮和挖）。 平行性可达3弧秒。
精密圆形窗口片
o由高质量的UV FS和BK7制造
o抛光两面，并保持平行3弧秒
精密矩形窗口片被设计用于精密光学系统。 Windows具有很高的光传输，传输信号失真很小。 我们还为Nd：YAG激光器应用提供防反射涂层的精密窗口片。
?
如果您想订购带有您选择的涂层的窗口片，请在您的要求中注明窗户代码和涂层代码。 有关所需的涂层，请参阅涂层部分。
?
材质 |
BK7, UV FS |
表面质量 |
20-10 scratch & dig (MIL-PRF-13830B) |
通光孔径 |
>90% of the diameter |
直径公差 |
+0.00, -0.12 mm |
厚度公差 |
±0.2 mm |
平整度 |
λ/10 or λ/4 @633 nm |
平行性 |
<30 arcsec; or <3 arcsec; or <1arcmin |
?

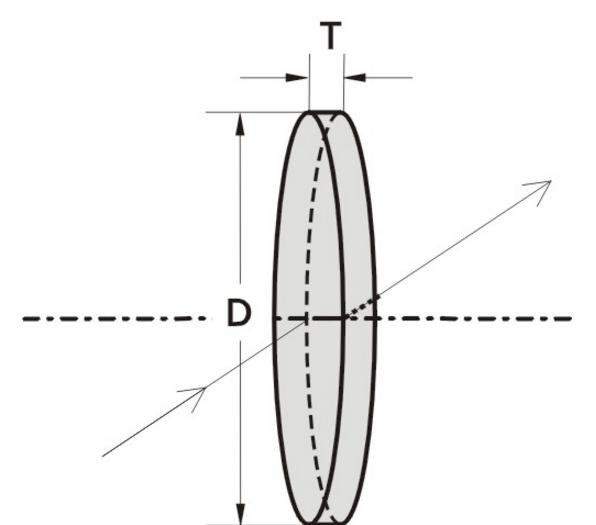

BK7, 30 arcsec
型号 |
材质 |
直径 |
厚度T |
平坦度 |
平行性 |
|---|---|---|---|---|---|
220-0101E |
BK7 |
12.7 mm |
3 mm |
λ/10 |
30 arcsec |
220-0101M |
BK7 |
12.5 mm |
3 mm |
λ/10 |
30 arcsec |
220-0161E |
BK7 |
12.7 mm |
6 mm |
λ/10 |
30 arcsec |
220-0161M |
BK7 |
12.5 mm |
6 mm |
λ/10 |
30 arcsec |
220-0191 |
BK7 |
20.0 mm |
3 mm |
λ/10 |
30 arcsec |
220-0201E |
BK7 |
25.4 mm |
6 mm |
λ/10 |
30 arcsec |
220-0201M |
BK7 |
25.0 mm |
6 mm |
λ/10 |
30 arcsec |
220-0211 |
BK7 |
20.0 mm |
5 mm |
λ/10 |
30 arcsec |
220-0231E |
BK7 |
25.4 mm |
3 mm |
λ/10 |
30 arcsec |
220-0231M |
BK7 |
25.0 mm |
3 mm |
λ/10 |
30 arcsec |
220-0462E |
BK7 |
38.1 mm |
6 mm |
λ/10 |
30 arcsec |
220-0462M |
BK7 |
40.0 mm |
6 mm |
λ/10 |
30 arcsec |
220-0402E |
BK7 |
38.1 mm |
8 mm |
λ/10 |
30 arcsec |
220-0402M |
BK7 |
40.0 mm |
8 mm |
λ/10 |
30 arcsec |
220-0562E |
BK7 |
50.8 mm |
6 mm |
λ/10 |
30 arcsec |
220-0562M |
BK7 |
50.0 mm |
6 mm |
λ/10 |
30 arcsec |
220-0582E |
BK7 |
50.8 mm |
8 mm |
λ/10 |
30 arcsec |
220-0582M |
BK7 |
50.0 mm |
8 mm |
λ/10 |
30 arcsec |
220-0502E |
BK7 |
50.8 mm |
10 mm |
λ/10 |
30 arcsec |
220-0502M |
BK7 |
50.0 mm |
10 mm |
λ/10 |
30 arcsec |
220-0722E |
BK7 |
76.2 mm |
12,7 mm |
λ/10 |
30 arcsec |
220-0722M |
BK7 |
75.0 mm |
12,7 mm |
λ/10 |
30 arcsec |
220-0752E |
BK7 |
76.2 mm |
15 mm |
λ/10 |
30 arcsec |
220-0752M |
BK7 |
75.0 mm |
15 mm |
λ/10 |
30 arcsec |
?
BK7, 3 arcsec
型号 |
材质 |
直径 |
厚度T |
平坦度 |
平行性 |
|---|---|---|---|---|---|
220-0103E |
BK7 |
12.7 mm |
3 mm |
λ/10 |
3 arcsec |
220-0103M |
BK7 |
12.5 mm |
3 mm |
λ/10 |
3 arcsec |
220-0163E |
BK7 |
12.7 mm |
6 mm |
λ/10 |
3 arcsec |
220-0163M |
BK7 |
12.5 mm |
6 mm |
λ/10 |
3 arcsec |
220-0193E |
BK7 |
12.7 mm |
10 mm |
λ/10 |
3 arcsec |
220-0193M |
BK7 |
12.5 mm |
10 mm |
λ/10 |
3 arcsec |
220-0203E |
BK7 |
25.4 mm |
6 mm |
λ/10 |
3 arcsec |
220-0203M |
BK7 |
25.0 mm |
6 mm |
λ/10 |
3 arcsec |
220-0293E |
BK7 |
25.4 mm |
10 mm |
λ/10 |
3 arcsec |
220-0293M |
BK7 |
25.0 mm |
10 mm |
λ/10 |
3 arcsec |
220-0403E |
BK7 |
38.1 mm |
10 mm |
λ/10 |
3 arcsec |
220-0403M |
BK7 |
40.0 mm |
10 mm |
λ/10 |
3 arcsec |
220-0503E |
BK7 |
50.8 mm |
12 mm |
λ/10 |
3 arcsec |
220-0503M |
BK7 |
50.0 mm |
12 mm |
λ/10 |
3 arcsec |
?
BK7, 3 arcmin
型号 |
材质 |
直径 |
厚度T |
平坦度 |
平行性 |
|---|---|---|---|---|---|
220-0106E |
BK7 |
12.7 mm |
3 mm |
λ/4 |
1 arcmin |
220-0106M |
BK7 |
12.5 mm |
3 mm |
λ/4 |
1 arcmin |
220-0166E |
BK7 |
12.7 mm |
6 mm |
λ/4 |
1 arcmin |
220-0166M |
BK7 |
12.5 mm |
6 mm |
λ/4 |
1 arcmin |
220-0236E |
BK7 |
25.4 mm |
3 mm |
λ/4 |
1 arcmin |
220-0236M |
BK7 |
25.0 mm |
3 mm |
λ/4 |
1 arcmin |
220-0206E |
BK7 |
25.4 mm |
6 mm |
λ/4 |
1 arcmin |
220-0466E |
BK7 |
38.1 mm |
6 mm |
λ/4 |
1 arcmin |
220-0466M |
BK7 |
40.0 mm |
6 mm |
λ/4 |
1 arcmin |
220-0406E |
BK7 |
38.1 mm |
8 mm |
λ/4 |
1 arcmin |
220-0406M |
BK7 |
40.0 mm |
8 mm |
λ/4 |
1 arcmin |
220-0566E |
BK7 |
50.8 mm |
6 mm |
λ/4 |
1 arcmin |
220-0566M |
BK7 |
50.0 mm |
6 mm |
λ/4 |
1 arcmin |
220-0586E |
BK7 |
50.8 mm |
8 mm |
λ/4 |
1 arcmin |
220-0586M |
BK7 |
50.0 mm |
8 mm |
λ/4 |
1 arcmin |
220-0786E |
BK7 |
76.2 mm |
8 mm |
λ/4 |
1 arcmin |
220-0786M |
BK7 |
75.0 mm |
8 mm |
λ/4 |
1 arcmin |
220-0726E |
BK7 |
76.2 mm |
12,7 mm |
λ/4 |
1 arcmin |
220-0726M |
BK7 |
75.0 mm |
12,7 mm |
λ/4 |
1 arcmin |
?
UVFS, 30 arcsec
型号 |
材质 |
直径 |
厚度T |
平坦度 |
平行性 |
|---|---|---|---|---|---|
220-1101E |
UV FS |
12.7 mm |
3 mm |
λ/10 |
30 arcsec |
220-1101M |
UV FS |
12.5 mm |
3 mm |
λ/10 |
30 arcsec |
220-1161E |
UV FS |
12.7 mm |
6 mm |
λ/10 |
30 arcsec |
220-1161M |
UV FS |
12.5 mm |
6 mm |
λ/10 |
30 arcsec |
220-1191 |
UV FS |
20.0 mm |
3 mm |
λ/10 |
30 arcsec |
220-1211 |
UV FS |
20.0 mm |
5 mm |
λ/10 |
30 arcsec |
220-1231E |
UV FS |
25.4 mm |
3 mm |
λ/10 |
30 arcsec |
220-1231M |
UV FS |
25.0 mm |
3 mm |
λ/10 |
30 arcsec |
220-1201E |
UV FS |
25.4 mm |
6 mm |
λ/10 |
30 arcsec |
220-1201M |
UV FS |
25.0 mm |
6 mm |
λ/10 |
30 arcsec |
220-1462E |
UV FS |
38.1 mm |
6 mm |
λ/10 |
30 arcsec |
220-1462M |
UV FS |
40.0 mm |
6 mm |
λ/10 |
30 arcsec |
220-1402E |
UV FS |
38.1 mm |
8 mm |
λ/10 |
30 arcsec |
220-1402M |
UV FS |
40.0 mm |
8 mm |
λ/10 |
30 arcsec |
220-1562E |
UV FS |
50.8 mm |
6 mm |
λ/10 |
30 arcsec |
220-1562M |
UV FS |
50.0 mm |
6 mm |
λ/10 |
30 arcsec |
220-1582E |
UV FS |
50.8 mm |
8 mm |
λ/10 |
30 arcsec |
220-1582M |
UV FS |
50.0 mm |
8 mm |
λ/10 |
30 arcsec |
220-1502E |
UV FS |
50,8 mm |
10 mm |
λ/10 |
30 arcsec |
220-1502M |
UV FS |
50.0 mm |
10 mm |
λ/10 |
30 arcsec |
220-1722E |
UV FS |
76.2 mm |
12,7 mm |
λ/10 |
30 arcsec |
220-1722M |
UV FS |
75.0 mm |
12,5 mm |
λ/10 |
30 arcsec |
220-1752E |
UV FS |
76.2 mm |
15 mm |
λ/10 |
30 arcsec |
220-1752M |
UV FS |
75.0 mm |
15 mm |
λ/10 |
30 arcsec |
?
UVFS, 3 arcsec
型号 |
材质 |
直径 |
厚度T |
平坦度 |
平行性 |
|---|---|---|---|---|---|
220-1103E |
UV FS |
12.7 mm |
3 mm |
λ/10 |
3 arcsec |
220-1103M |
UV FS |
12.5 mm |
3 mm |
λ/10 |
3 arcsec |
220-1163E |
UV FS |
12.7 mm |
6 mm |
λ/10 |
3 arcsec |
220-1163M |
UV FS |
12.5 mm |
6 mm |
λ/10 |
3 arcsec |
220-1193E |
UV FS |
12.7 mm |
10 mm |
λ/10 |
3 arcsec |
220-1193M |
UV FS |
12.5 mm |
10 mm |
λ/10 |
3 arcsec |
220-1203E |
UV FS |
25.4 mm |
6 mm |
λ/10 |
3 arcsec |
220-1203M |
UV FS |
25.0 mm |
6 mm |
λ/10 |
3 arcsec |
220-1293E |
UV FS |
25.4 mm |
10 mm |
λ/10 |
3 arcsec |
220-1293M |
UV FS |
25.0 mm |
10 mm |
λ/10 |
3 arcsec |
220-1403E |
UV FS |
38.1 mm |
10 mm |
λ/10 |
3 arcsec |
220-1403M |
UV FS |
40.0 mm |
10 mm |
λ/10 |
3 arcsec |
220-1503E |
UV FS |
50.8 mm |
12 mm |
λ/10 |
3 arcsec |
220-1503M |
UV FS |
50.0 mm |
12 mm |
λ/10 |
3 arcsec |
?
UVFS, 3 arcmin
型号 |
材质 |
直径 |
厚度T |
平坦度 |
平行性 |
|---|---|---|---|---|---|
220-1106E |
UV FS |
12.7 mm |
3 mm |
λ/4 |
1 arcmin |
220-1106M |
UV FS |
12.5 mm |
3 mm |
λ/4 |
1 arcmin |
220-1166E |
UV FS |
12.7 mm |
6 mm |
λ/4 |
1 arcmin |
220-1166M |
UV FS |
12.5 mm |
6 mm |
λ/4 |
1 arcmin |
220-1236E |
UV FS |
25.4 mm |
3 mm |
λ/4 |
1 arcmin |
220-1236M |
UV FS |
25.0 mm |
3 mm |
λ/4 |
1 arcmin |
220-1206E |
UV FS |
25.4 mm |
6 mm |
λ/4 |
1 arcmin |
220-1206M |
UV FS |
25.0 mm |
6 mm |
λ/4 |
1 arcmin |
220-1466E |
UV FS |
38.1 mm |
6 mm |
λ/4 |
1 arcmin |
220-1466M |
UV FS |
40.0 mm |
6 mm |
λ/4 |
1 arcmin |
220-1406E |
UV FS |
38.1 mm |
8 mm |
λ/4 |
1 arcmin |
220-1406M |
UV FS |
40.0 mm |
8 mm |
λ/4 |
1 arcmin |
220-1566E |
UV FS |
50.8 mm |
6 mm |
λ/4 |
1 arcmin |
220-1566M |
UV FS |
50.0 mm |
6 mm |
λ/4 |
1 arcmin |
220-1586E |
UV FS |
50.8 mm |
8 mm |
λ/4 |
1 arcmin |
220-1586M |
UV FS |
50.0 mm |
8 mm |
λ/4 |
1 arcmin |
220-1786E |
UV FS |
76.2 mm |
8 mm |
λ/4 |
1 arcmin |
220-1786M |
UV FS |
75.0 mm |
8 mm |
λ/4 |
1 arcmin |
220-1726E |
UV FS |
76.2 mm |
12,7 mm |
λ/4 |
1 arcmin |
220-1726M |
UV FS |
75.0 mm |
12,7 mm |
λ/4 |
1 arcmin |
