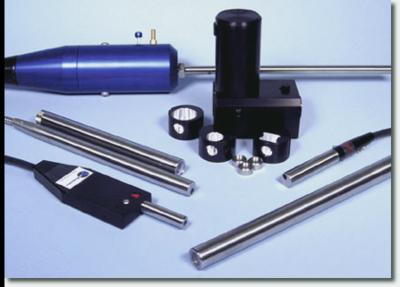

拉曼光纤探头
InPhotonics是RamanProbeTM拉曼光纤探头的，可提供高效的信号采集和激发激光线的*衰减。 同轴双光纤设计（美国5,122,127）使用微光学器件进行的光束控制，光学滤光和信号采集。 我们的探头都提供滤光功能，可将激光信号降低到远低于典型拉曼频带的强度。 这样获得清晰的光谱，避免瑞利“残余”进入低频区域以及探测器在不需要的激光线上饱和。 只有我们的拉曼探头才能在紧凑，灵活的探头中提供这种滤光，该探头已发展成为研究，分析和工业应用的完整产品线。
我们所有的探头都可用于六种不同的激发波长：514（Ar +），532（DPSS），633（He-Ne），670（二极管），785（二极管）和830（二极管）nm。 由于我们提供带有集成光纤的完整产品，我们的探头可提供50μm500μm的光纤尺寸，以匹配您的激光输出和光谱仪输入。 还提供其他功能，如成像和偏振检测。 我们的基本产品比较见附表。 可根据要求提供定制探头配置。 请咨询我们的专家，为您的仪器和应用找到适合的探头。
注意：用于FT-拉曼光谱的1064nm探头类似于拉曼探头和反应拉曼探头模型。 请查阅我们的1064 nm产品的各个规格表。
产品比较---实验室探头
| ? | RamanProbe |
RamanProbe II |
Low-cost RamanProbe |
一般说明 |
The original patented probe: focussed, non-immersible, compact size, 108?filtering at laser line |
Focussed probe with liquid-tight immersion sleeve (sleeve can be removed for non-immersion use). 108filtering at laser line |
Low cost probe for laboratory applications (non-immersible), 106?filtering at laser line (adequate when laser is not on detector) |
尺寸 |
Cylindrical probe, 0.5" (13 mm) diameter, 4" (101 mm) length |
Cylindrical probe, 5/8" (16 mm) diameter with immersion sleeve, 8" (203 mm) length |
Rectangular-shaped probe, 4.2" x 1.5" x 0.5" (107 x 38 x 12.7 mm ), with 1.5" long (38 mm) stainless-steel probe tip |
浸入长度 |
N/A (not immersible) |
6" |
N/A (not immersible) |
制造，窗片材料和密封方法 |
Stainless-steel body, no window |
Stainless-steel probe body and immersion sleeve with sapphire window with PTFE o-ring |
Anodized aluminum probe body with stainless-steel probe tip, no window |
工作距离 |
5 mm (standard); 7.5, or 10 mm (optional) |
User-adjustable between 4 and 1 mm |
7.5 mm (standard); 5 or 10 mm (optional) |
激发光纤（来自激光光源）和收集光纤（到光谱仪），光缆类型和长度 |
Standard fiber configuration: 100 μm, low-OH fiber (excitation) and 200 μm, low-OH fiber (collection), polymer-encased, 5 m length (std.) Optional fiber sizes: 50 to 500 μm Optional cable lengths: up to 200 m |
Standard fiber configuration: 100 μm, low-OH fiber (excitation) and 200 μm, low-OH fiber (collection), steel-encased, 5 m length (std.) Optional fiber sizes: 50 to 500 μm Optional cable lengths: up to 200 m |
100μm, low-OH fiber (excitation) and 200 μm, low-OH fiber (collection), polymer-encased, 1.5 m length (std.) |
光纤连接器 |
FC connectors (standard), SMA connectors (optional) |
FC connectors (standard), SMA connectors (optional) |
FC connectors (standard), SMA connectors (optional) |
高温度 |
80oC |
200oC |
80oC |
大压力 |
N/A (not sealed) |
Standard immersion sleeve is sealed but not designed for high pressure use (See our industrial probe models for high-pressure applications) |
N/A (not sealed) |
兼容常规取样配件 |
Yes |
Yes, with immersion sleeve removed |
Yes |
激发波长 |
514, 532, 633, 670, 785, or 830 nm |
514, 532, 633, 670, 785, or 830 nm |
514, 532, 633, 785, or 830 nm |
其他选择 |
Side-viewing, longer probe length, high temperature versions |
Other immersion sleeve materials available, quartz window (recommended for 633 and 670 nm excitation) |
? |
产品比较---工业探头
| ? | Reaction RamanProbe (stainless) |
Reaction RamanProbe (Hastelloy C) |
Process RamanProbe |
一般说明 |
Industrial probe with pressure-resistant sleeve for process monitoring applications. |
Industrial probe with pressure-resistant sleeve for process monitoring applications. |
Industrial probe with safety-shutter??and temperature/pressure-resistant extension tube. Probe optics can be used with multiple extension tubes, or for routine applications with lens insert. |
外径 |
5/8" (16 mm) with immersion sleeve |
5/8" (16 mm) with immersion sleeve |
3/8" (9.5 mm) extension tube |
整体探针长度 |
13.75" (350 mm) standard or 17.75" (450 mm) optional, longer lengths upon request |
13.75" (350 mm) standard or 17.75" (450 mm) optional, longer lengths upon request |
approx. 17" (430 mm) |
探头总长 |
13" (330 mm) standard, 17" (430 mm) optional |
13" (330 mm) standard, 17" (430 mm) optional |
approx. 9" (230 mm) |
制造，窗片材料与密封方式 |
316 Stainless-steel probe body and immersion sleeve with AR-coated sapphire window (welded seal with Kalrez o-ring). |
316 Stainless-steel probe body and Hastelloy C immersion sleeve with AR-coated sapphire window (welded seal with gold gasket). |
316 Stainless-steel with sapphire window (gold seal, compression weld). Flat window with lens or integrated window/lens available. |
工作距离 |
User-adjustable between 4 and 0 mm |
User-adjustable between 4 and 0 mm |
Factory set, select from 4 and <1 mm |
激发光纤（来自激光光源）和收集光纤（到光谱仪），光缆类型和长度 |
Standard fiber configuration: 100 μm, low-OH fiber (excitation) and 200 μm, low-OH fiber (collection), steel-encased, 5 m length (std.) Optional fiber sizes: 50 to 500 μm Optional cable lengths: up to 200 m |
Standard fiber configuration: 100 μm, low-OH fiber (excitation) and 200 μm, low-OH fiber (collection), steel-encased, 5 m length (std.) Optional fiber sizes: 50 to 500 μm Optional cable lengths: up to 200 m |
100 μm, low-OH fiber (excitation) and 200 μm, low-OH fiber (collection), steel-encased, 5 m (std.), 50 m as option (extension cable available if longer length required) OR 50 μm, low-OH fiber (excitation) and 100 μm, low-OH fiber (collection), steel-encased, 5 m length (std.), 50 m as option (extension cable available if longer length required) |
光纤连接器 |
Choice of FC or SMA connectors on both fibers |
Choice of FC or SMA connectors on both fibers |
Choice of FC or SMA connectors on both fibers |
高温度 |
200oC |
200oC |
500oC (external optics must be maintained below 200oC |
大压力 |
1500 psi |
1500 psi |
3000 psi |
兼容常规取样配件 |
Yes, with immersion sleeve removed |
Yes, with immersion sleeve removed |
No, but lens insert provided for routine probe use |
激发波长 |
514, 532, 633, 670, 785, or 830 nm |
514, 532, 633, 670, 785, or 830 nm |
514, 532, 633, 670, 785, or 830 nm |
其他选择 |
Quartz window (recommended for 633 and 670 nm excitation) with lower pressure rating PVC overlay on steel cable |
? | Extruder probe tip with Dynisco? fitting. Purgeable housing to seal external optics and enable cooling for very high temperature monitoring. AR-coating on window (for use below 200oC) PVC overlay on steel cable |
产品比较?- 专业探针
| ? | Imaging RamanProbe |
Polarization RamanProbe |
一般说明 |
Imaging probe with a video camera to facilitate alignment of the sampling location |
An additional polarization channel for each probe head to enable polarization Raman spectra |
