外表面镀膜反射镜
?备有各种形状和尺寸
?备有增强性铝膜和保护性铝膜
?有关定制尺寸，请

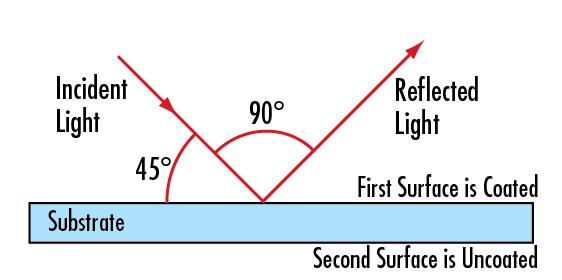

使用我们的TECHSPEC?外表面镀膜反射镜，镀膜表面必须朝向入射光，以通过阻止光线透过玻璃基片，大程度减低能源损失。本反射镜备有圆形、方形和矩形的反射镜等形状。矩形的适用于需要在45°安装反射镜的应用，以达到90°光线路径弯曲。
?
通用规格
表面平整度: |
4 - 6λ |
基底: |
Float Glass |
表面质量: |
60-40 |
?

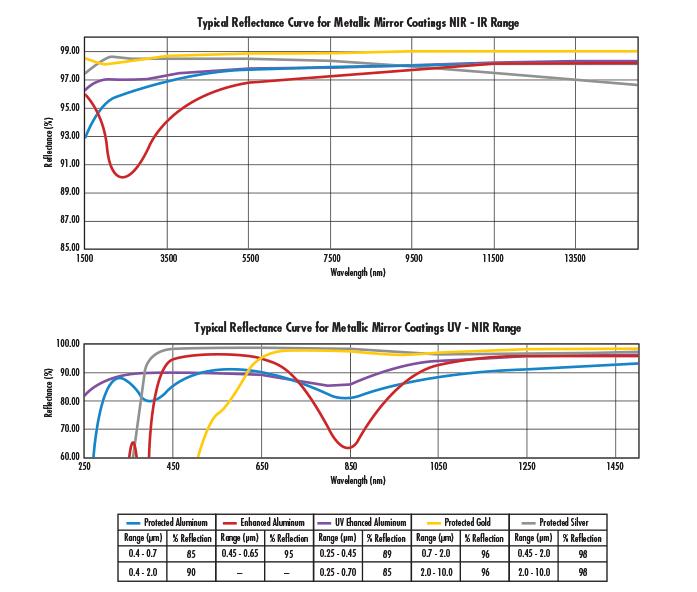

技术数据
?
订购信息
表面平整度 |
尺寸 (mm) |
直径 (mm) |
涂层规格 |
涂层 |
产品号 |
|---|---|---|---|---|---|
4 - 6λ |
- |
5 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#32-940 |
4 - 6λ |
6.0 x 6.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-866 |
4 - 6λ |
6.0 x 8.5 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-867 |
4 - 6λ |
- |
6.35 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#45-610 |
4 - 6λ |
- |
10 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#32-941 |
4 - 6λ |
10.0 x 10.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#45-517 |
4 - 6λ |
10.0 x 14.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#48-449 |
4 - 6λ |
- |
12.5 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#32-942 |
4 - 6λ |
12.5 x 12.5 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-790 |
4 - 6λ |
12.5 x 17.5 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-869 |
4 - 6λ |
- |
12.7 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#83-483 |
4 - 6λ |
12.7 x 12.7 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#83-484 |
4 - 6λ |
- |
15 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#32-943 |
4 - 6λ |
15.0 x 15.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-870 |
4 - 6λ |
15.0 x 21.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-871 |
4 - 6λ |
- |
18 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#45-521 |
4 - 6λ |
- |
20 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#32-944 |
4 - 6λ |
20.0 x 20.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-872 |
4 - 6λ |
20.0 x 28.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-873 |
4 - 6λ |
- |
25 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#32-945 |
4 - 6λ |
25.0 x 25.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-792 |
4 - 6λ |
25.0 x 35.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-875 |
4 - 6λ |
- |
25.4 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#83-485 |
4 - 6λ |
25.4 x 25.4 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#83-486 |
4 - 6λ |
- |
30 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#46-025 |
4 - 6λ |
- |
35 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#46-027 |
4 - 6λ |
35.0 x 35.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#45-519 |
4 - 6λ |
35.0 x 50.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#48-450 |
4 - 6λ |
- |
38.1 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#83-487 |
4 - 6λ |
38.1 x 38.1 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#83-488 |
4 - 6λ |
- |
40 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#45-612 |
4 - 6λ |
- |
50 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#45-614 |
4 - 6λ |
50.0 x 50.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-876 |
4 - 6λ |
50.0 x 75.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#48-451 |
4 - 6λ |
- |
50.8 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#83-489 |
4 - 6λ |
50.8 x 50.8 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#83-490 |
4 - 6λ |
60.0 x 85.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#64-410 |
4 - 6λ |
- |
75 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#45-616 |
4 - 6λ |
75.0 x 75.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#48-452 |
4 - 6λ |
75.0 x 100.0 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#48-453 |
4 - 6λ |
- |
76.2 |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#83-491 |
4 - 6λ |
76.2 x 76.2 |
? |
Ravg >94% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#83-492 |
4 - 6λ |
- |
5 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-728 |
4 - 6λ |
6.0 x 6.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-877 |
4 - 6λ |
6.0 x 8.5 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-878 |
4 - 6λ |
- |
6.35 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#45-611 |
4 - 6λ |
- |
10 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-729 |
4 - 6λ |
10.0 x 10.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#45-518 |
4 - 6λ |
10.0 x 14.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#48-454 |
4 - 6λ |
- |
12.5 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-730 |
4 - 6λ |
12.5 x 12.5 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-791 |
4 - 6λ |
12.5 x 17.5 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-880 |
4 - 6λ |
- |
12.7 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#83-493 |
4 - 6λ |
12.7 x 12.7 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#83-494 |
4 - 6λ |
- |
15 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-731 |
4 - 6λ |
15.0 x 15.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-881 |
4 - 6λ |
15.0 x 21.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-882 |
4 - 6λ |
- |
18 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#45-522 |
4 - 6λ |
- |
20 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-732 |
4 - 6λ |
20.0 x 20.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-883 |
4 - 6λ |
20.0 x 28.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-884 |
4 - 6λ |
- |
25 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-733 |
4 - 6λ |
25.0 x 25.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-793 |
4 - 6λ |
25.0 x 35.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-886 |
4 - 6λ |
- |
25.4 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#83-495 |
4 - 6λ |
25.4 x 25.4 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#83-496 |
4 - 6λ |
- |
30 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#46-026 |
4 - 6λ |
- |
35 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#46-028 |
4 - 6λ |
35.0 x 35.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#45-520 |
4 - 6λ |
35.0 x 50.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#48-455 |
4 - 6λ |
- |
38.1 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#83-497 |
4 - 6λ |
38.1 x 38.1 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#83-498 |
4 - 6λ |
- |
40 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#45-613 |
4 - 6λ |
- |
50 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#45-615 |
4 - 6λ |
50.0 x 50.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-887 |
4 - 6λ |
50.0 x 75.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#48-456 |
4 - 6λ |
- |
50.8 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#83-499 |
4 - 6λ |
50.8 x 50.8 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#83-500 |
4 - 6λ |
60.0 x 85.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#64-411 |
4 - 6λ |
- |
75 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#45-617 |
4 - 6λ |
75.0 x 75.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#48-457 |
4 - 6λ |
75.0 x 100.0 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#48-458 |
4 - 6λ |
- |
76.2 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#83-501 |
4 - 6λ |
76.2 x 76.2 |
? |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#83-502 |
4 - 6λ |
50.0 x 75.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-496 |
4 - 6λ |
50.0 x 50.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-495 |
4 - 6λ |
- |
50 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-494 |
4 - 6λ |
35.0 x 50.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-490 |
4 - 6λ |
35.0 x 35.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-489 |
4 - 6λ |
- |
35 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-488 |
4 - 6λ |
- |
30 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-487 |
4 - 6λ |
25.0 x 35.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-484 |
4 - 6λ |
25.0 x 25.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-483 |
4 - 6λ |
- |
25 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-482 |
4 - 6λ |
20.0 x 28.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-481 |
4 - 6λ |
20.0 x 20.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-480 |
4 - 6λ |
- |
20 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-479 |
4 - 6λ |
15.0 x 21.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-477 |
4 - 6λ |
15.0 x 15.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-476 |
4 - 6λ |
- |
15 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-475 |
4 - 6λ |
12.5 x 17.5 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-472 |
4 - 6λ |
12.5 x 12.5 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-471 |
4 - 6λ |
- |
12.5 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-470 |
4 - 6λ |
10.0 x 14.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-469 |
4 - 6λ |
10.0 x 10.0 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-468 |
4 - 6λ |
- |
10 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-467 |
4 - 6λ |
6.0 x 8.5 |
? |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#89-465 |
