Unice Mitutoyo超精细进料型测微头
SERIES 110
110-102
110-502
尺寸和质量
*双轴差动机构。
*旋转主轴。
*固定厚度:9.5毫米
Specifications – Metric
Model No. |
Range |
Graduation |
Accuracy** |
Stem Dia. |
Stem |
Spindle Face |
Graduation Features |
||
110-101 |
0 - 2.5mm |
0.001mm |
±5μm/±1.5μm |
12mm |
w/ clamp nut |
Flat (carbide ?tip) |
Standard |
||
110-102 |
0.0001mm |
Fine |
|||||||
110-105 |
0 - 1mm |
0.001mm |
±3μm/±1.5μm |
Standard |
|||||
110-106 |
0.0001mm |
Fine |
|||||||
110-107 |
0.001mm |
Spherical (SR10) (carbide tip) |
Standard |
||||||
110-108 |
0.0001mm |
Fine |
|||||||
110-502 |
Thimble (fine) |
0 - 0.2mm |
Thimble (fine) |
0.0005mm |
±3μm/±1.5μm |
9.5mm |
Spherical (SR3) |
Dual scales; 0.2mm fine-feed range |
? |
Thimble (coarse) |
0 - 13mm |
Thimble (coarse) |
0.01mm |
? | |||||
**Wide range / Narrow range
Unice Mitutoyo超精细进料型测微头
Mitutoyo Digimatic Micrometer Heads
SERIES 350
350-251-30
350-281-30
Specifications – Metric
Model No. |
Range |
Resolution |
Accuracy |
Stem Dia. |
Stem |
Spindle Face |
Remark |
350-251-30 |
0 - 25mm |
0.001mm |
±2μm |
10mm |
Plain |
Flat (carbide tip) |
Standard |
350-252-30 |
10mm |
W/ clamp nut |
|||||
350-253-30 |
10mm |
Plain |
Spherical (SR4)(carbide tip) |
||||
350-254-30 |
10mm |
W/ clamp nut |
|||||
350-281-30 |
0 - 25mm |
0.001mm |
±2μm |
12mm |
Plain |
Flat (carbide tip) |
IP65 Dust / water Protection |
350-282-30 |
12mm |
W/ clamp nut |
|||||
350-283-30 |
12mm |
Plain |
Spherical (SR4)(carbide tip) |
||||
350-284-30 |
12mm |
W/ clamp nut |
**Excluding quantizing error

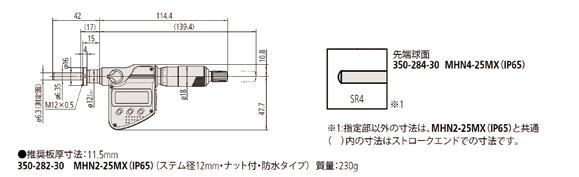

Dimensions And Mass
