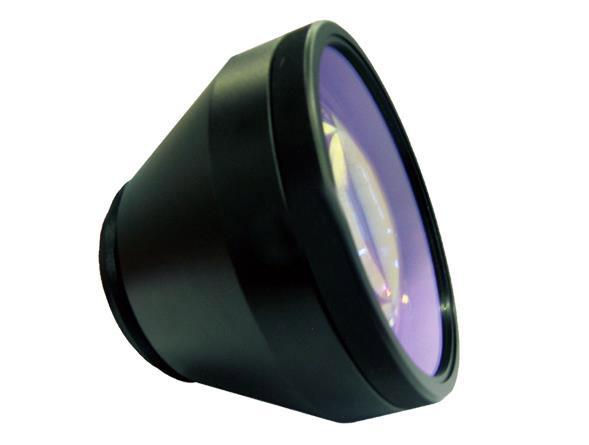

消色差F-Theta镜头
消色差F-Theta镜头
型号 |
波长 |
有效焦距(mm) |
扫描帽面(nm) |
入射光睡(mm) |
扫描角(°) |
螺纹接口 |
法兰距(nm) |
工作距(nm) |

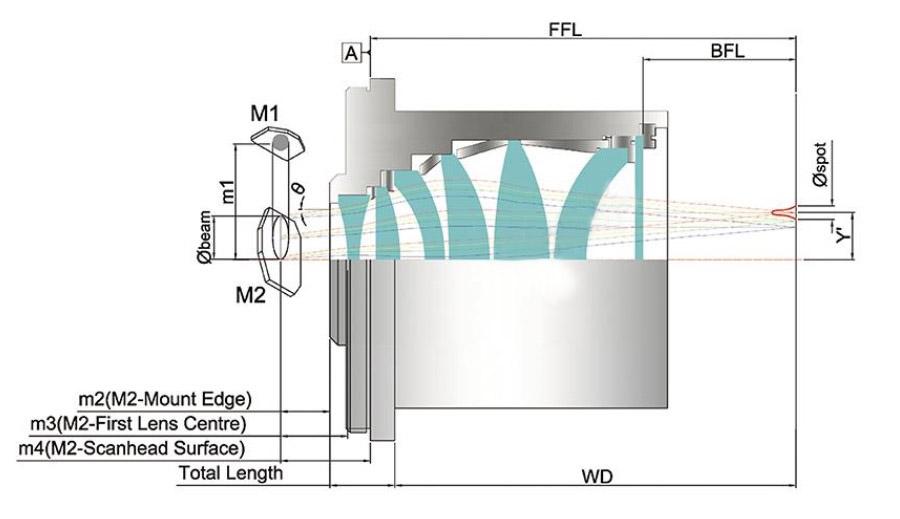

M1-M2 |
M2-镜片中心 |
M2-螺纹底端 |
聚焦光斑直径(um)(中心/边缘) |
备注 |
产品编码 |
SL-355-635-90-170 |
355/635 |
170 |
90×90 |
6 |
±21.5 |
M85*1 |
203.71 |
106.71 |
13 |
28.55 |
36.3 |
14.2-14.6 |
- |
1J990400028 |
SL-355-635-110-220-2 |
355/635 |
220 |
110X110 |
10 |
±20.2 |
M85*1 |
234.3 |
165.4 |
13 |
27.99 |
68.5 |
14.2-15.4 |
- |
1J990400062 |
SL-1064-532-25-60 |
1064/532 |
60 |
25×25 |
6 |
±17.2 |
M79*1 |
88.38 |
42.18 |
13 |
18.5 |
26 |
19-20 |
带转接圈 |
1J990200274 |
SL-1064-532-60-100 |
1064/532 |
100 |
60X60 |
10 |
±24.4 |
M55*1 |
147.06 |
70.46 |
13 |
23.5 |
18.3 |
20-23 |
- |
1J990200273 |
FTL-1064-630-110-170 |
1064/630 |
110 |
110X110 |
30 |
±25 |
M112*1 |
V255.4 |
198.5 |
43 |
55 |
47.96 |
25-30 |
- |
1J990200088 |
SL-1064-80-170(AC) |
1064/630 |
170 |
80×80 |
30 |
±25 |
M112*1 |
273.38 |
217.5 |
43 |
53.5 |
48 |
50-60 |
- |
1J990200101 |
SL-1064-110-185-20 |
1064/650 |
185 |
110X110 |
20 |
±25 |
M85*1 |
370.7 |
219.2 |
30 |
50 |
20.95 |
30-50 |
- |
1J990200141 |
SL-1064-630-130-210A |
1064/630 |
210 |
130X130 |
30 |
±20 |
M112*1 |
314.73 |
225.23 |
43 |
51.6 |
47.51 |
50 |
- |
1J990200115 |
SL-1064-635-130-210AC-D30 |
1064/635 |
210 |
130X130 |
30 |
±25 |
M102*1 |
314.4 |
243.4 |
43 |
50 |
43.74 |
20-43 |
- |
1J990200122 |
SL-1064-635-130-210AC-D30 |
1064/635 |
210 |
130X130 |
30 |
±25 |
M112*1 |
314.4 |
243.4 |
43 |
50 |
43.74 |
20-43 |
- |
1J990200123 |
SL-1064-630-130-210ACN |
1064/630 |
210 |
130X130 |
30 |
±25 |
M112*1 |
303 |
226.1 |
43 |
53.2 |
47.71 |
50-60 |
- |
1J990200132 |
SL-1064-630-150-254B |
1064/630 |
254 |
150X150 |
30 |
±25 |
M102*1 |
369.9 |
306.9 |
43 |
53 |
44 |
100-120 |
- |
1J990200156 |
SL-1064-635-200-360 |
1064/635 |
360 |
200×200 |
30 |
±22.37 |
M85*1 |
489.9 |
358.4 |
36 |
45 |
34.8 |
27.2-64.2 |
- |
1J990200275 |
TSLA-532-650-50-100-D 30 |
532/650 |
100 |
50X50 |
30 |
±20 |
M112*1 |
221.84 |
119.84 |
43 |
51.64 |
47 |
10.0-20.0 |
远心 |
1J990300076 |
TSL-1064-532-60-110 |
1064/532 |
110 |
110X110 |
10 |
±23 |
M85*1 |
124.29 |
56.79 |
13 |
23.33 |
17.5 |
22-23 |
远心 |
1J990200299 |
TSL-1064-660-70-163(0501-1207-0147) |
1064/660 |
163 |
70X70 |
15 |
±18 |
M85*1 |
188.88 |
83.4 |
18 |
33 |
87.16 |
21-22 |
远心 |
1J990200106 |
TFT L-1064-630-50-100 |
1064/630 |
100 |
50X50 |
30 |
±25 |
M112*1 |
216.9 |
117.1 |
43 |
51.6 |
45.7 |
30-50 |
远心 |
1J990200094 |
