高品质OD4.0 长波通滤光片
High Performance OD 4.0?Longpass?Filters
截止斜度<1%
截止带OD≥ 4.0
通带透射率≥91%
高品质OD4.0 长波通滤光片?通用规格厚度容差 (mm): |
±0.1 |
入射角 (°): |
0 |
光密度OD: |
≥4.0 |
涂层: |
Hard Coated |
基底: |
UV Grade Fused Silica |
表面质量: |
60-40 |
耐用性: |
MIL-C-48497A, Section 3.4.1 |
传输波前，RMS: |
≤λ/4 @ 633nm |
起始公差 (%) : |
±1 |
高品质短波通滤光片截止带的截止率非常深，光密度>4.0;而在透射带的透射率又相当的高，透射率>91%,用途非常广泛,可与我们的滤光片来搭配出一个精密带通滤光片。
我们的滤光片组旋转调整轮可用于需要多种滤光片的应用。
产品信息
| Dia.(mm) | 起始响应波长(nm) | 厚度(mm) | 截止波长(nm) | 传输波长(nm) | 波长范围(nm) | 产品编码 |
| 12.50 | 325.00 | 1.50 | 200 - 315 | 333 - 1600 | 200 - 1600 | #34-295 |
| 25.00 | 325.00 | 1.50 | 200 - 315 | 333 - 1600 | 200 - 1600 | #34-296 |
| 50.00 | 325.00 | 1.50 | 200 - 315 | 333 - 1600 | 200 - 1600 | #34-297 |
| 12.50 | 350.00 | 1.50 | 200 - 340 | 358 - 1600 | 200 - 1600 | #34-298 |
| 25.00 | 350.00 | 1.50 | 200 - 340 | 358 - 1600 | 200 - 1600 | #34-299 |
| 50.00 | 350.00 | 1.50 | 200 - 340 | 358 - 1600 | 200 - 1600 | #34-300 |
| 12.50 | 375.00 | 1.50 | 200 - 365 | 383 - 1600 | 200 - 1600 | #34-301 |
| 25.00 | 375.00 | 1.50 | 200 - 365 | 383 - 1600 | 200 - 1600 | #34-302 |
| 50.00 | 375.00 | 1.50 | 200 - 365 | 383 - 1600 | 200 - 1600 | #34-303 |
| 12.50 | 400.00 | 2.00 | 200 - 390 | 408 - 1650 | 200 - 1650 | #62-974 |
| 25.00 | 400.00 | 3.00 | 200 - 390 | 408 - 1650 | 200 - 1650 | #62-981 |
| 50.00 | 400.00 | 5.00 | 200 - 390 | 408 - 1650 | 200 - 1650 | #84-754 |
| 12.50 | 425.00 | 2.00 | 200 - 415 | 433 - 1650 | 200 - 1650 | #84-736 |
| 25.00 | 425.00 | 3.00 | 200 - 415 | 433 - 1650 | 200 - 1650 | #84-742 |
| 50.00 | 425.00 | 5.00 | 200 - 415 | 433 - 1650 | 200 - 1650 | #84-748 |
| 12.50 | 450.00 | 2.00 | 200 - 440 | 458 - 1650 | 200 - 1650 | #62-975 |
| 25.00 | 450.00 | 3.00 | 200 - 440 | 458 - 1650 | 200 - 1650 | #62-982 |
| 50.00 | 450.00 | 5.00 | 200 - 440 | 458 - 1650 | 200 - 1650 | #84-755 |
| 12.50 | 475.00 | 2.00 | 200 - 465 | 483 - 1650 | 200 - 1650 | #84-737 |
| 25.00 | 475.00 | 3.00 | 200 - 465 | 483 - 1650 | 200 - 1650 | #84-743 |
| 50.00 | 475.00 | 5.00 | 200 - 465 | 483 - 1650 | 200 - 1650 | #84-749 |
| 12.50 | 500.00 | 2.00 | 200 - 490 | 508 - 1650 | 200 - 1650 | #62-976 |
| 25.00 | 500.00 | 3.00 | 200 - 490 | 508 - 1650 | 200 - 1650 | #62-983 |
| 50.00 | 500.00 | 5.00 | 200 - 490 | 508 - 1650 | 200 - 1650 | #84-756 |
| 12.50 | 525.00 | 2.00 | 200 - 515 | 534 - 1650 | 200 - 1650 | #84-738 |
| 25.00 | 525.00 | 3.00 | 200 - 515 | 534 - 1650 | 200 - 1650 | #84-744 |
| 50.00 | 525.00 | 5.00 | 200 - 515 | 534 - 1650 | 200 - 1650 | #84-750 |
| 12.50 | 550.00 | 2.00 | 200 - 539 | 560 - 1650 | 200 - 1650 | #62-977 |
| 25.00 | 550.00 | 3.00 | 200 - 539 | 560 - 1650 | 200 - 1650 | #62-984 |
| 50.00 | 550.00 | 5.00 | 200 - 539 | 560 - 1650 | 200 - 1650 | #84-757 |
| 12.50 | 575.00 | 2.00 | 200 - 564 | 585 - 1650 | 200 - 1650 | #84-739 |
| 25.00 | 575.00 | 3.00 | 200 - 564 | 585 - 1650 | 200 - 1650 | #84-745 |
| 50.00 | 575.00 | 5.00 | 200 - 564 | 585 - 1650 | 200 - 1650 | #84-751 |
| 12.50 | 600.00 | 2.00 | 200 - 588 | 610 - 1650 | 200 - 1650 | #62-978 |
| 25.00 | 600.00 | 3.00 | 200 - 588 | 610 - 1650 | 200 - 1650 | #62-985 |
| 50.00 | 600.00 | 5.00 | 200 - 588 | 610 - 1650 | 200 - 1650 | #84-758 |
| 12.50 | 625.00 | 2.00 | 200 - 613 | 635 - 1650 | 200 - 1650 | #84-740 |
| 25.00 | 625.00 | 3.00 | 200 - 613 | 635 - 1650 | 200 - 1650 | #84-746 |
| 50.00 | 625.00 | 5.00 | 200 - 613 | 635 - 1650 | 200 - 1650 | #84-752 |
| 12.50 | 650.00 | 2.00 | 200 - 637 | 660 - 1650 | 200 - 1650 | #62-979 |
| 25.00 | 650.00 | 3.00 | 200 - 637 | 660 - 1650 | 200 - 1650 | #62-986 |
| 50.00 | 650.00 | 5.00 | 200 - 637 | 660 - 1650 | 200 - 1650 | #84-759 |
| 12.50 | 675.00 | 2.00 | 200 - 662 | 685 - 1650 | 200 - 1650 | #84-741 |
| 25.00 | 675.00 | 3.00 | 200 - 662 | 685 - 1650 | 200 - 1650 | #84-747 |
| 50.00 | 675.00 | 5.00 | 200 - 662 | 685 - 1650 | 200 - 1650 | #84-753 |
| 12.50 | 700.00 | 2.00 | 200 - 686 | 710 - 1650 | 200 - 1650 | #62-980 |
| 25.00 | 700.00 | 3.00 | 200 - 686 | 710 - 1650 | 200 - 1650 | #62-987 |
| 50.00 | 700.00 | 5.00 | 200 - 686 | 710 - 1650 | 200 - 1650 | #84-760 |
| 12.50 | 725.00 | 2.00 | 200 - 705 | 735 - 1650 | 200 - 1650 | #86-060 |
| 25.00 | 725.00 | 3.00 | 200 - 705 | 735 - 1650 | 200 - 1650 | #86-068 |
| 50.00 | 725.00 | 5.00 | 200 - 705 | 735 - 1650 | 200 - 1650 | #86-076 |
| 12.50 | 750.00 | 2.00 | 200 - 735 | 765 - 1650 | 200 - 1650 | #66-226 |
| 25.00 | 750.00 | 3.00 | 200 - 735 | 765 - 1650 | 200 - 1650 | #66-234 |
| 50.00 | 750.00 | 5.00 | 200 - 735 | 765 - 1650 | 200 - 1650 | #84-761 |
| 12.50 | 775.00 | 2.00 | 200 - 760 | 790 - 1650 | 200 - 1650 | #86-061 |
| 25.00 | 775.00 | 3.00 | 200 - 760 | 790 - 1650 | 200 - 1650 | #86-069 |
| 50.00 | 775.00 | 5.00 | 200 - 760 | 790 - 1650 | 200 - 1650 | #86-077 |
| 12.50 | 800.00 | 2.00 | 200 - 785 | 815 - 1650 | 200 - 1650 | #66-227 |
| 25.00 | 800.00 | 3.00 | 200 - 785 | 815 - 1650 | 200 - 1650 | #66-235 |
| 50.00 | 800.00 | 5.00 | 200 - 785 | 815 - 1650 | 200 - 1650 | #84-762 |
| 12.50 | 825.00 | 2.00 | 200 - 805 | 840 - 1650 | 200 - 1650 | #86-062 |
| 25.00 | 825.00 | 3.00 | 200 - 805 | 840 - 1650 | 200 - 1650 | #86-070 |
| 50.00 | 825.00 | 5.00 | 200 - 805 | 840 - 1650 | 200 - 1650 | #86-078 |
| 12.50 | 850.00 | 2.00 | 200 - 835 | 865 - 1650 | 200 - 1650 | #66-228 |
| 25.00 | 850.00 | 3.00 | 200 - 835 | 865 - 1650 | 200 - 1650 | #66-236 |
| 50.00 | 850.00 | 5.00 | 200 - 835 | 865 - 1650 | 200 - 1650 | #84-763 |
| 12.50 | 875.00 | 2.00 | 200 - 860 | 890 - 1650 | 200 - 1650 | #86-063 |
| 25.00 | 875.00 | 3.00 | 200 - 860 | 890 - 1650 | 200 - 1650 | #86-071 |
| 50.00 | 875.00 | 5.00 | 200 - 860 | 890 - 1650 | 200 - 1650 | #86-079 |
| 12.50 | 900.00 | 2.00 | 200 - 880 | 915 - 1650 | 200 - 1650 | #66-229 |
| 25.00 | 900.00 | 3.00 | 200 - 880 | 915 - 1650 | 200 - 1650 | #66-237 |
| 50.00 | 900.00 | 5.00 | 200 - 880 | 915 - 1650 | 200 - 1650 | #84-764 |
| 12.50 | 925.00 | 2.00 | 200 - 905 | 940 - 1650 | 200 - 1650 | #86-064 |
| 25.00 | 925.00 | 3.00 | 200 - 905 | 940 - 1650 | 200 - 1650 | #86-072 |
| 50.00 | 925.00 | 5.00 | 200 - 905 | 940 - 1650 | 200 - 1650 | #86-080 |
| 12.50 | 950.00 | 2.00 | 200 - 930 | 965 - 1650 | 200 - 1650 | #66-230 |
| 25.00 | 950.00 | 3.00 | 200 - 930 | 965 - 1650 | 200 - 1650 | #66-238 |
| 50.00 | 950.00 | 5.00 | 200 - 930 | 965 - 1650 | 200 - 1650 | #84-765 |
| 12.50 | 975.00 | 2.00 | 200 - 955 | 990 - 1650 | 200 - 1650 | #86-065 |
| 25.00 | 975.00 | 3.00 | 200 - 955 | 990 - 1650 | 200 - 1650 | #86-073 |
| 50.00 | 975.00 | 5.00 | 200 - 955 | 990 - 1650 | 200 - 1650 | #86-081 |
| 12.50 | 1000.00 | 2.00 | 200 - 980 | 1020 - 1650 | 200 - 1650 | #66-231 |
| 25.00 | 1000.00 | 3.00 | 200 - 980 | 1020 - 1650 | 200 - 1650 | #66-239 |
| 50.00 | 1000.00 | 5.00 | 200 - 980 | 1020 - 1650 | 200 - 1650 | #84-766 |
| 12.50 | 1025.00 | 2.00 | 200 - 1005 | 1045 - 1650 | 200 - 1650 | #86-066 |
| 25.00 | 1025.00 | 3.00 | 200 - 1005 | 1045 - 1650 | 200 - 1650 | #86-074 |
| 50.00 | 1025.00 | 5.00 | 200 - 1005 | 1045 - 1650 | 200 - 1650 | #86-082 |
| 12.50 | 1050.00 | 2.00 | 200 - 1030 | 1070 - 1650 | 200 - 1650 | #66-232 |
| 25.00 | 1050.00 | 3.00 | 200 - 1030 | 1070 - 1650 | 200 - 1650 | #66-240 |
| 50.00 | 1050.00 | 5.00 | 200 - 1030 | 1070 - 1650 | 200 - 1650 | #84-767 |
| 12.50 | 1075.00 | 2.00 | 200 - 1055 | 1095 - 1650 | 200 - 1650 | #86-067 |
| 25.00 | 1075.00 | 3.00 | 200 - 1055 | 1095 - 1650 | 200 - 1650 | #86-075 |
| 50.00 | 1075.00 | 5.00 | 200 - 1055 | 1095 - 1650 | 200 - 1650 | #86-083 |
| 12.50 | 1100.00 | 2.00 | 200 - 1080 | 1120 - 1650 | 200 - 1650 | #66-233 |
| 25.00 | 1100.00 | 3.00 | 200 - 1080 | 1120 - 1650 | 200 - 1650 | #66-241 |
| 50.00 | 1100.00 | 5.00 | 200 - 1080 | 1120 - 1650 | 200 - 1650 | #84-768 |
| 12.50 | 1150.00 | 3.00 | 200 - 1130 | 1170 - 1650 | 200 - 1650 | #89-657 |
| 25.00 | 1150.00 | 3.00 | 200 - 1130 | 1170 - 1650 | 200 - 1650 | #89-661 |
| 50.00 | 1150.00 | 3.00 | 200 - 1130 | 1170 - 1650 | 200 - 1650 | #89-665 |
| 12.50 | 1200.00 | 3.00 | 200 - 1180 | 1220 - 1650 | 200 - 1650 | #89-658 |
| 25.00 | 1200.00 | 3.00 | 200 - 1180 | 1220 - 1650 | 200 - 1650 | #89-662 |
| 50.00 | 1200.00 | 3.00 | 200 - 1180 | 1220 - 1650 | 200 - 1650 | #89-666 |
| 12.50 | 1250.00 | 3.00 | 200 - 1230 | 1270 - 1650 | 200 - 1650 | #89-659 |
| 25.00 | 1250.00 | 3.00 | 200 - 1230 | 1270 - 1650 | 200 - 1650 | #89-663 |
| 50.00 | 1250.00 | 3.00 | 200 - 1230 | 1270 - 1650 | 200 - 1650 | #89-667 |
| 12.50 | 1300.00 | 3.00 | 200 - 1280 | 200 - 1650 | #89-660 | |
| 25.00 | 1300.00 | 3.00 | 200 - 1280 | 200 - 1650 | #89-664 | |
| 50.00 | 1300.00 | 3.00 | 200 - 1280 | 200 - 1650 | #89-668 |

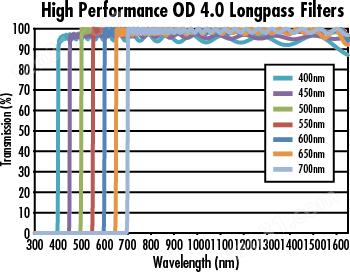

技术数据
