Mitutoyo 远场校正长工作距离物镜
（1）工作距离长，100倍时6mm
（2）复消色差光学设计
（3）整个像场平场结构
（4）明视场下检测
（5）色彩还原性优良
Mitutoyo 远场校正长工作距离物镜
Mitutoyo?的物镜世界，它制订了长工作距离的显微镜光学的行业标准。其使用了一种新的方法解决了工作距离和光学参数的矛盾，而这种方法是其他同行所想不出来的。设计一个更大更长的显微物镜（95mm共扼距）可以使得设计简单，为了尽可能保持较高的NA值和对比度，镜片全部设计成平场复消色差结构。复消色差物镜是要对红光、蓝光和黄光进行矫正，而普通的消色差镜头只对红光和蓝光进行矫正，平场复消色差镜头的价格不菲，但是如果大批量生产的话，成本会降的几乎比消色差物镜的价格还低。而且所有的镜片都是去过应力的。优化过的亮场（平行照明到同轴光照明），这些镜头是线形照明的理想选择。对于一个无限远矫正系统，需要有第二个镜头。所有状态的放大倍率是基于一个焦距为200mm的接口，安装螺纹：M26 x 0.706 pitch (36 TPI)。

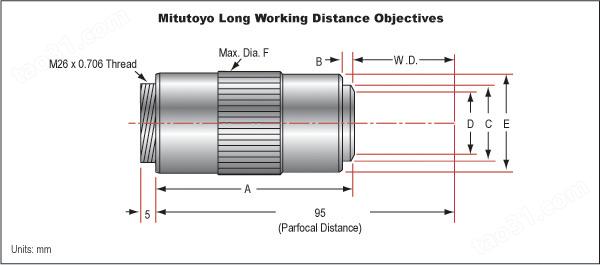

| Objective Dimensions | ? | ? | ? | ? | ? | ? | ? |
| M Plan Apo | A | B | C | D | E | F | Stock No. |
| 1X | 84.0mm | 0.0mm | 38.0mm | 38.0mm | 41.0mm | 34.0mm | #58-235 |
| 2X | 61.0mm | 1.4mm | 27.5mm | 24.7mm | 32.2mm | 34.0mm | #46-142 |
| 5X | 61.0mm | 1.6mm | 25.0mm | 23.0mm | 32.2mm | 34.0mm | #46-143 |
| 7.5X | 60.0mm | 0.0mm | 25.0mm | 24.0mm | 32.2mm | 34.0mm | #66-383 |
| 10X | 61.0mm | 0.0mm | 28.2mm | 28.2mm | 32.2mm | 34.0mm | #46-144 |
| 20X | 75.0mm | 0.0mm | 29.2mm | 29.2mm | 32.2mm | 34.0mm | #46-145 |
| 50X | 82.0mm | 0.0mm | 29.2mm | 29.2mm | 32.2mm | 34.0mm | #46-146 |
| 100X | 89.0mm | 4.7mm | 29.2mm | 17.8mm | 32.2mm | 34.0mm | #46-147 |
| M Plan Apo HR | A | B | C | D | E | F | Stock No. |
| 10X | 80.0mm | 0.2mm | 29.0mm | 26.0mm | 37.0mm | 39.0mm | #58-236 |
| 50X | 89.8mm | 0.0mm | 28.2mm | 28.2mm | 32.2mm | 34.0mm | #58-237 |
| 100X | 93.7mm | 0.0mm | 28.2mm | 28.2mm | 32.2mm | 34.0mm | #58-238 |
| M Plan APO SL | A | B | C | D | E | F | Stock No. |
| 20X | 64.5mm | 1.2mm | 25.2mm | 23.5mm | 32.2mm | 34.0mm | #46-398 |
| 50X | 74.5mm | 3.9mm | 25.2mm | 24.2mm | 32.2mm | 34.0mm | #46-399 |
| 80X | 80.0mm | 2.5mm | 25.2mm | 21.6mm | 32.2mm | 34.0mm | #46-400 |
| 100X | 82.0mm | 4.4mm | 25.2mm | 22.0mm | 32.2mm | 34.0mm | #46-401 |
| 200X | 82.0mm | 0.5mm | 29.4mm | 27.0mm | 37.0mm | 39.0mm | #56-072 |
放大率 |
数字孔径 NA |
焦距 FL (mm) |
工作距离 (mm) |
波长范围 (nm)??? |
产品号 |
1X |
0.025 |
200 |
11 |
435 - 655 |
#58-235 |
2X |
0.055 |
100 |
34 |
435 - 655 |
#46-142 |
5X |
0.14 |
40 |
34 |
435 - 655 |
#46-143 |
5X |
0.21 |
40 |
25.5 |
435 - 655 |
#34-247 |
7.5X |
0.21 |
26.67 |
35 |
435 - 655 |
#66-383 |
10X |
0.28 |
20 |
33.5 |
435 - 655 |
#46-144 |
10X |
0.42 |
20 |
15 |
435 - 655 |
#58-236 |
20X |
0.28 |
10 |
30.5 |
435 - 655 |
#46-398 |
20X |
0.42 |
10 |
20 |
435 - 655 |
#46-145 |
50X |
0.42 |
4 |
20.5 |
435 - 655 |
#46-399 |
50X |
0.55 |
4 |
13 |
435 - 655 |
#46-146 |
50X |
0.75 |
4 |
5.2 |
435 - 655 |
#58-237 |
80X |
0.5 |
2.5 |
15 |
435 - 655 |
#46-400 |
100X |
0.55 |
2 |
13 |
435 - 655 |
#46-401 |
100X |
0.7 |
2 |
6 |
435 - 655 |
#46-147 |
100X |
0.9 |
2 |
1.3 |
435 - 655 |
#58-238 |
200X |
0.62 |
1 |
13 |
435 - 655 |
#56-072 |
?
订购信息：
1X?Mitutoyo?Plan Apo Infinity?Corrected Long WD Objective
库存#58-235技术参数与相关资料
| 类型 | Microscope Objective |
| 放大率 | 1X |
| 数字孔径?NA | 0.025 |
| 工作距离?(mm) | 11 |
| 焦距?FL (mm) | 200.0 |
| 分辨能力?(μm) | 11.0 |
| 焦深(μm) | 440 |
| 视场, 24?直径视场镜头(mm) | 24 |
| 视场, 18?直径视场镜头(mm) | 18 |
| 视场, 2/3"?传感器 | 8.80 x 6.60mm |
| 视场, 1/2"?传感器 | 6.40 x 4.80mm |
| 兼容的管透镜 | Focal Length: 200mm |
| 大直径?(mm) | 34.0 |
| 突出螺纹的长度?(mm) | 84.0 |
| 安装螺纹 | M26 x 36 TPI |
| 重量?(g) | 300 |
| 方式 | Infinity Corrected |
| 波长范围?(nm) | 435 - 655 |
| 生产商 | Mitutoyo |
| RoHS | 不符合标准 |
2X?Mitutoyo?Plan Apo Infinity?Corrected Long WD Objective
库存#46-142技术参数与相关资料
| #46-142 | #46-143 | #46-144 | |
| 类型 | Microscope Objective | Microscope Objective | Microscope Objective |
| 放大率 | 2X | 5X | 10X |
| 数字孔径NA | 0.055 | 0.14 | 0.28 |
| 工作距离(mm) | 34 | 34 | 33.5 |
| 焦距?FL (mm) | 100.0 | 40.0 | 20.0 |
| 分辨能力(μm) | 5.0 | 2.0 | 1.0 |
| 焦深(μm) | 91.0 | 14.0 | 3.5 |
| 视场, 24直径视场镜头?(mm) | 12 | 4.8 | 2.4 |
| 视场, 18直径视场镜头?(mm) | 9 | 3.6 | 1.8 |
| 视场, 2/3"传感器 | 4.40 x 3.30mm | 1.80 x 1.32mm | 0.88 x 0.66mm |
| 视场, 1/2"传感器 | 3.20 x 2.40mm | 1.28 x 0.96mm | 0.64 x 0.48mm |
| 兼容的管透镜 | Focal Length: 200mm | Focal Length: 200mm | Focal Length: 200mm |
| 大直径(mm) | 34.0 | 34.0 | 34.0 |
| 突出螺纹的长度?(mm) | 61.0 | 61.0 | 61.0 |
| 安装螺纹 | M26 x 36 TPI | M26 x 36 TPI | M26 x 36 TPI |
| 重量?(g) | 220 | 230 | 240 |
| 方式 | Infinity Corrected | Infinity Corrected | Infinity Corrected |
| 波长范围(nm) | 435 - 655 | 435 - 655 | 435 - 655 |
| 生产商 | Mitutoyo | Mitutoyo | Mitutoyo |
| RoHS | 豁免 | 豁免 | 豁免 |
7.5X?Mitutoyo?Plan Apo Infinity Corrected Long WD Objective
库存#66-383技术参数与相关资料
| 类型 | Microscope Objective |
| 放大率 | 7.5X |
| 数字孔径?NA | 0.21 |
| 工作距离?(mm) | 35 |
| 焦距?FL (mm) | 26.67 |
| 分辨能力?(μm) | 1.3 |
| 焦深(μm) | 6.2 |
| 视场, 24?直径视场镜头(mm) | 3.2 |
| 视场, 18?直径视场镜头(mm) | 2.4 |
| 视场, 2/3"?传感器 | 1.17 x 0.88mm |
| 视场, 1/2"?传感器 | 0.85 x 0.64mm |
| 兼容的管透镜 | Focal Length: 200mm |
| 大直径?(mm) | 34.0 |
| 突出螺纹的长度?(mm) | 60.0 |
| 安装螺纹 | M26 x 36 TPI |
| 重量?(g) | 240 |
| 方式 | Infinity Corrected |
| 波长范围?(nm) | 435 - 655 |
| 生产商 | Mitutoyo |
| RoHS | 豁免 |
20X?Mitutoyo?Plan Apo Infinity?Corrected Long WD Objective
库存?#46-145技术参数与相关资料
| #46-145 | #46-146 | #46-147 | |
| 类型 | Microscope Objective | Microscope Objective | Microscope Objective |
| 放大率 | 20X | 50X | 100X |
| 数字孔径NA | 0.42 | 0.55 | 0.70 |
| 工作距离(mm) | 20 | 13 | 6 |
| 焦距?FL (mm) | 10.0 | 4.0 | 2.0 |
| 分辨能力(μm) | 0.7 | 0.5 | 0.4 |
| 焦深(μm) | 1.6 | 0.9 | 0.6 |
| 视场, 24直径视场镜头?(mm) | 1.2 | 0.48 | 0.24 |
| 视场, 18直径视场镜头?(mm) | 0.9 | 0.36 | 0.18 |
| 视场, 2/3"传感器 | 0.44 x 0.33mm | 0.18 x 0.13mm | 0.09 x 0.07mm |
| 视场, 1/2"传感器 | 0.32 x 0.24mm | 0.13 x 0.10mm | 0.06 x 0.05mm |
| 兼容的管透镜 | Focal Length: 200mm | Focal Length: 200mm | Focal Length: 200mm |
| 大直径(mm) | 34.0 | 34.0 | 34.0 |
| 突出螺纹的长度?(mm) | 75.0 | 82.0 | 89.0 |
| 安装螺纹 | M26 x 36 TPI | M26 x 36 TPI | M26 x 36 TPI |
| 重量?(g) | 270 | 290 | 320 |
| 方式 | Infinity Corrected | Infinity Corrected | Infinity Corrected |
| 波长范围(nm) | 435 - 655 | 435 - 655 | 435 - 655 |
| 生产商 | Mitutoyo | Mitutoyo | Mitutoyo |
| RoHS | 豁免 | 符合标准 | 豁免 |
| #46-398 | #46-399 | #46-400 | #46-401 | |
| 类型 | Microscope Objective | Microscope Objective | Microscope Objective | Microscope Objective |
| 放大率 | 20X | 50X | 80X | 100X |
| 数字孔径?NA | 0.28 | 0.42 | 0.50 | 0.55 |
| 工作距离?(mm) | 30.5 | 20.5 | 15 | 13 |
| 焦距?FL (mm) | 10.0 | 4.0 | 2.5 | 2.0 |
| 分辨能力?(μm) | 1.0 | 0.7 | 0.6 | 0.5 |
| 焦深(μm) | 3.5 | 1.6 | 1.1 | 0.9 |
| 视场, 24直径视场镜头(mm) | 1.2 | 0.48 | 0.30 | 0.24 |
| 视场, 18直径视场镜头(mm) | 0.9 | 0.36 | 0.22 | 0.18 |
| 视场, 2/3"?传感器 | 0.44 x 0.33mm | 0.18 x 0.13mm | 0.11 x 0.08mm | 0.09 x 0.07mm |
| 视场, 1/2"?传感器 | 0.32 x 0.24mm | 0.13 x 0.10mm | 0.08 x 0.06mm | 0.06 x 0.05mm |
| 兼容的管透镜 | Focal Length: 200mm | Focal Length: 200mm | Focal Length: 200mm | Focal Length: 200mm |
| 大直径?(mm) | 34.0 | 34.0 | 34.0 | 34.0 |
| 突出螺纹的长度?(mm) | 64.5 | 74.5 | 80.0 | 82.0 |
| 安装螺纹 | M26 x 36 TPI | M26 x 36 TPI | M26 x 36 TPI | M26 x 36 TPI |
| 重量?(g) | 240 | 280 | 280 | 290 |
| 方式 | Infinity Corrected | Infinity Corrected | Infinity Corrected | Infinity Corrected |
| 波长范围?(nm) | 435 - 655 | 435 - 655 | 435 - 655 | 435 - 655 |
| 生产商 | Mitutoyo | Mitutoyo | Mitutoyo | Mitutoyo |
| RoHS | 豁免 | 豁免 | 豁免 | 豁免 |
200X?Mitutoyo?Plan Apo SL Infinity Corrected Objective
库存#56-072技术参数与相关资料
| 类型 | Microscope Objective |
| 放大率 | 200X |
| 数字孔径?NA | 0.62 |
| 工作距离?(mm) | 13 |
| 焦距?FL (mm) | 1.0 |
| 分辨能力?(μm) | 0.4 |
| 焦深(μm) | 0.7 |
| 视场, 24?直径视场镜头(mm) | 0.12 |
| 视场, 18?直径视场镜头(mm) | 0.09 |
| 视场, 2/3"?传感器 | 0.04 x 0.034mm |
| 视场, 1/2"?传感器 | 0.03 x 0.025mm |
| 兼容的管透镜 | Focal Length: 200mm |
| 大直径?(mm) | 34.0 |
| 突出螺纹的长度?(mm) | 82.0 |
| 安装螺纹 | M26 x 36 TPI |
| 重量?(g) | 490 |
| 方式 | Infinity Corrected |
| 波长范围?(nm) | 435 - 655 |
| 生产商 | Mitutoyo |
| RoHS | 豁免 |
5X?Mitutoyo?Plan Apo HR Infinity Corrected Objective
新信息库存?#34-247技术参数与相关资料
| 类型 | Microscope Objective |
| 放大率 | 5X |
| 数字孔径?NA | 0.21 |
| 工作距离?(mm) | 25.5 |
| 焦距?FL (mm) | 40 |
| 分辨能力?(μm) | 1.3 |
| 焦深(μm) | 6.2 |
| 视场, 24?直径视场镜头(mm) | 4.8 |
| 视场, 18?直径视场镜头(mm) | 3.6 |
| 视场, 2/3"?传感器 | 1.80 x 1.32 |
| 视场, 1/2"?传感器 | 0.96 x 1.28mm |
| 兼容的管透镜 | Focal Length: 200mm |
| 大直径?(mm) | 37.0 |
| 突出螺纹的长度?(mm) | 75.0 |
| 安装螺纹 | M26 x 36 TPI |
| 重量?(g) | 285 |
| 方式 | Infinity Corrected |
| 波长范围?(nm) | 435 - 655 |
| 生产商 | Mitutoyo |
| RoHS | 符合标准 |
| #58-236 | #58-237 | #58-238 | |
| 类型 | Microscope Objective | Microscope Objective | Microscope Objective |
| 放大率 | 10X | 50X | 100X |
| 数字孔径NA | 0.42 | 0.75 | 0.90 |
| 工作距离(mm) | 15 | 5.2 | 1.3 |
| 焦距?FL (mm) | 20.0 | 4.0 | 2.0 |
| 分辨能力(μm) | 0.6 | 0.3 | 0.3 |
| 焦深(μm) | 1.55 | 0.5 | 0.3 |
| 视场, 24直径视场镜头?(mm) | 2.4 | 0.48 | 0.24 |
| 视场, 18直径视场镜头?(mm) | 1.8 | 0.36 | 0.18 |
| 视场, 2/3"传感器 | 0.88 x 0.66mm | 0.18 x 0.13mm | 0.09 x 0.07mm |
| 视场, 1/2"传感器 | 0.64 x 0.48mm | 0.13 x 0.10mm | 0.06 x 0.05mm |
| 兼容的管透镜 | Focal Length: 200mm | Focal Length: 200mm | Focal Length: 200mm |
| 大直径(mm) | 39.0 | 34.0 | 34.0 |
| 突出螺纹的长度?(mm) | 80.0 | 89.8 | 93.7 |
| 安装螺纹 | M26 x 36 TPI | M26 x 36 TPI | M26 x 36 TPI |
| 重量?(g) | 460 | 400 | 410 |
| 方式 | Infinity Corrected | Infinity Corrected | Infinity Corrected |
| 波长范围(nm) | 435 - 655 | 435 - 655 | 435 - 655 |
| 生产商 | Mitutoyo | Mitutoyo | Mitutoyo |
| RoHS | 豁免 | 豁免 | 豁免 |
