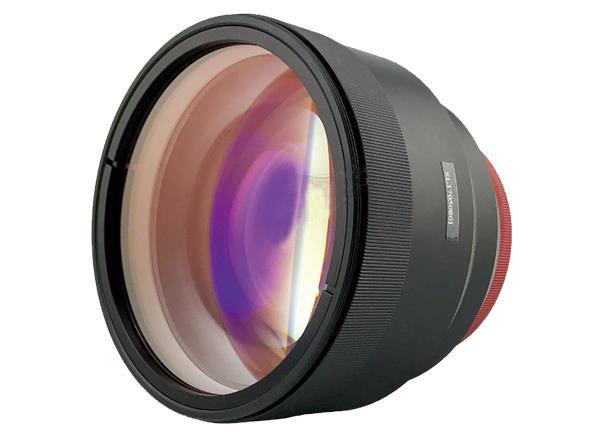

远心F-Theta镜头
远心F-Theta镜头
355n系列
型号 |
波长 |
有效焦距(nm) |
扫描帽面(an) |
入射光瞳(nn) |
扫描角(°) |
远心角(°) |
螺纹接口 |
法兰距(mm) |
工作距(mm) |
M1-M2 |
M2-镜片中心 |
M2-螺纹端面 |
聚焦光斑直径(Hn)(中心/边缘) |
产品编码 |
TSL-343-200-330Q-D 14 |
343nm |
330 |
200*200 |
14 |
±24.7 |
4 |
M85*1 |
712.04 |
441.54 |
16.42 |
24.88 |
51.5 |
14.6-15 |
1J990500037 |
TSL-343-200-370-D 14-V 527 |
343nm |
370 |
200*200 |
14 |
±22.5 |
7 |
M85*1 |
687.38 |
527.34 |
17 |
33 |
41 |
16.0-18.0 |
1J990500034 |
TSL-355-70-100-D 12 |
355 |
100 |
70*70 |
12 |
±28.8 |
4 |
M85*1 |
186.91 |
123.41 |
13 |
23.95 |
37.51 |
20-58 |
1J990400055 |
TSL-355-6-32 |
355rm |
32 |
6*6 |
10 |
±7.6 |
4 |
M85*1 |
32.21 |
28.2 |
13 |
14.3 |
47.99 |
2.10-2.14 |
1J990400096 |
TSL-355-8-32-D 10 |
355rm |
32 |
8*8 |
10 |
±10.2 |
4 |
M39*1 |
60.3 |
19.3 |
13 |
13.5 |
22.22 |
2.2-2.5 |
1J990400084 |
TSL-355-20-50 |
355rm |
50 |
20*20 |
5 |
±16.5 |
3 |
M55*1 |
81.29 |
28.19 |
18.6 |
19.1 |
41.9 |
6.4-6.9 |
1J990400069 |
TSL-355-18-56 |
355rm |
56 |
18*18 |
6 |
±15 |
4 |
M85*1 |
88.84 |
73.84 |
18 |
19.5 |
34.4 |
4.0-6.0 |
1J990400085 |
TSL-355-18-60 |
355nm |
60 |
18*18 |
6 |
±12.3 |
4 |
M55*1 |
84.51 |
62.61 |
13 |
18.5 |
21.92 |
4.5-5.0 |
1J990400109 |
TSL-355-35-80 |
355nm |
80 |
35*35 |
6 |
±19 |
3 |
M55*1 |
155.56 |
104.46 |
13 |
17 |
32.13 |
8.5-9.0 |
1J990400098 |
TSL-355-35-100 |
355rm |
100 |
35*35 |
10 |
±14.4 |
4 |
M55*1 |
203.47 |
131.95 |
16 |
33.27 |
32.6 |
6.56-7.18 |
1J990400110 |
TSL-355-60-100WQ |
355mm |
100 |
60*60 |
6 |
±25 |
4 |
M85*1 |
192.9 |
143.3 |
20 |
19 |
55.1 |
14-30 |
1J990400088 |
TSL-355-50-103-V 1 |
355rm |
103 |
50*50 |
9 |
±20.2 |
2.5 |
M85*1 |
179 |
135.8 |
14 |
23.55 |
47 |
7.0-8.0 |
1J990400105 |
TSL-355-63-109-V 1 |
355rm |
109 |
63*63 |
6 |
±24.2 |
16 |
M85*1 |
228.4 |
146.3 |
13 |
31.59 |
41.57 |
11.0-17.0 |
1J990400056 |
TSL-355-90-163-D 10-V 1 |
355rm |
163 |
90*90 |
10 |
±25 |
4.3 |
M85*1 |
301.56 |
221.7 |
16 |
33 |
45.7 |
9.72-15.6 |
1J990400103 |
TSL-355-90-163-D 10-V 2 |
355nm |
163 |
90*90 |
10 |
±25 |
4 |
M85*1 |
313.81 |
217.81 |
16 |
33 |
39.7 |
10.0-13.5 |
1J990400102 |
TSL-355-100-170-D 10 |
355rm |
170 |
100*100 |
10 |
±25 |
5 |
M85*1 |
318.9 |
238.1 |
13 |
17.5 |
42.5 |
11.0-13.0 |
1J990400106 |
532rm系列
型号 |
波长 |
有效焦距(nm) |
扫描帽面(nm) |
入射光瞳(nn) |
扫描角(°) |
远心角(°) |
螺纹接口 |
法兰距(mm) |
工作距(mm) |
M1-M2 |
M2-镜片中心 |
M2-螺纹端面 |
聚焦光斑直径(um) (中心/边缘) |
产品编码 |
TSL-515-30-80-D 12 |
515rm |
80 |
30*30 |
12 |
±15.6 |
1.7 |
M55*1 |
169.32 |
80.6 |
16 |
22.87 |
24 |
6.4-7.0 |
1J990500030 |
TSL-515-140-200N |
515nm |
200 |
140*140 |
10 |
±28.9 |
1 |
M85*1 |
427.4 |
263.9 |
16 |
26 |
70.37 |
19.6-20.6 |
1J990500031 |
TSL-532-15-58 |
532rm |
58 |
15*15 |
10 |
±10.4 |
4 |
M55*1 |
87.19 |
52.64 |
20 |
18 |
44.45 |
4.0-5.0 |
1J990300058 |
TSL-532-36-100 |
532rm |
100 |
36*36 |
16 |
±14.6 |
1.2 |
M55*1/M85*1 |
160.09 |
114.66 |
13.69 |
24 |
60.07 |
6.0-6.2 |
1J990300065 |
TSL-532-40-100Q |
532rm |
100 |
40*40 |
10 |
±25 |
1 |
M85*1 |
190.8 |
135.76 |
13.69 |
23.16 |
40 |
8.7-8.8 |
1J990300038 |
TSL-532-53-100 |
532rm |
100 |
53*53 |
15 |
±25 |
3.2 |
M85*1 |
175.6 |
127.43 |
18 |
25 |
35.9 |
7.0-10.0 |
1J990300034 |
TSL-532-70-100 |
532nm |
100 |
70*70 |
10 |
±29.2 |
3 |
M85*1 |
205.18 |
125.18 |
13 |
37.4 |
29.53 |
10.0-14.0 |
1J990300070 |
TSL-532-70-100-D 14 |
532rm |
100 |
70*70 |
14 |
±25 |
3 |
M85*1 |
189.03 |
93.03 |
16.42 |
40 |
32.55 |
7.0-11.6 |
1J990300036 |
TSL-532-60-105W |
532rm |
105 |
60*60 |
10 |
±23.5 |
3 |
M85*1 |
198.76 |
129.1 |
24 |
20 |
40.14 |
8.0-11.0 |
1J990300064 |
TSL-532-70-125 |
532rm |
125 |
70*70 |
15 |
±25 |
2 |
M85*1 |
234.24 |
161.78 |
19.4 |
26 |
45.8 |
7.0-7.0 |
1J990300075 |
TSL-532-60-150A |
532rm |
150 |
60*60 |
15 |
±17 |
3 |
- |
204.54 |
79.5 |
22.11 |
33.44 |
90 |
9.6-10.0 |
1J990300071 |
TSL-532-75-163A |
532nm |
163 |
75*75 |
10 |
±18.9 |
1.3 |
M85*1 |
302.3 |
167.2 |
30 |
28 |
47.18 |
16.0-17.0 |
1J990300080 |
TSL-532-90-163Q |
532rm |
163 |
90*90 |
10 |
±25 |
4.8 |
M85*1 |
297.2 |
219.5 |
16 |
19.5 |
37.8 |
16.0-20.0 |
1J990300039 |
TSL-532-140-200N |
532rm |
200 |
140*140 |
10 |
±28.9 |
1 |
M85*1/M143*2 |
427.4 |
263.9 |
16 |
26 |
70.37 |
19.6-20.6 |
1J990300074 |
TSL-633-75-160 |
633rm |
160 |
75*75 |
10 |
±19.1 |
3 |
M85*1 |
298.5 |
212 |
13 |
35.5 |
40.47 |
19.0-19.0 |
1J990200163 |
10.6um/9.4un系列
型号 |
波长 |
有效焦距 |
扫描帽面(mn) |
入射光睡(nn) |
扫描角(°) |
远心角(°) |
螺纹接口 |
法兰距(mm) |
工作距(mm) |
M1-M2 |
M2-镜片中心 |
M2-螺纹端面 |
聚焦光斑直径(um)(中心/边缘) |
产品编码 |
TSL-9.4-82-150 |
9.4um |
150 |
82*82 |
20 |
±22 |
3 |
4-M5 |
- |
135.84 |
26.4 |
32.5 |
29.76 |
145-148 |
1J990100238 |
TSL-9.4-9-40-D 14 |
9.4um |
40 |
9*9 |
14 |
±9 |
3 |
M80*1 |
121.92 |
36.18 |
17 |
29.79 |
15.67 |
48.0-50.0 |
1J990100251 |
TSL-9.4-82-150V 3 |
9.4um |
150 |
82*82 |
20 |
±22 |
3 |
4-M5 |
91 |
146.04 |
26.4 |
29 |
45.5 |
145-148 |
1J990100242 |
TSL-9.4-50-75Z-D 14 |
9.4um |
75 |
50*50 |
14 |
±27.8 |
2.8 |
M85*1 |
131.95 |
68.95 |
28 |
24.1 |
31.6 |
92.0-96.0 |
1J990100248 |
TSL-9.4-71-115 |
9.4um |
115 |
71*71 |
20 |
±26 |
3 |
- |
85.3 |
114.5 |
29.3 |
27.5 |
43.2 |
99-101 |
1J990100253 |
TSL-9.4-70-120SPH |
9.4um |
120 |
70*70 |
20 |
±24 |
3 |
M85*1 |
200.36 |
111 |
25.6 |
33.91 |
31.8 |
106-120 |
1J990100250 |
TSL-9.4-65-100 |
9.4um |
100 |
65*65 |
20 |
±27.1 |
3 |
M85*1 |
191.2 |
100.9 |
28 |
44.07 |
25 |
86.0-90.0 |
1J990100236 |
TSL-9.4-50-75 |
9.4um |
75 |
50*50 |
20 |
±28 |
2.8 |
M85*1 |
133.29 |
70.23 |
28 |
26 |
31.61 |
64.0-85.0 |
1J990100244 |
TSL-9.4-50-100G |
9.4um |
100 |
50*50 |
20 |
±20.5 |
3 |
M85*1 |
174.53 |
106.03 |
26.4 |
22.46 |
43 |
87.0-88.0 |
1J990100237 |
TSL-9.4-70-140ZA |
9.4um |
140 |
70*70 |
15 |
±20.5 |
1.6 |
M85*1 |
217.83 |
88.33 |
20 |
25 |
49.19 |
165-169 |
1J990100245 |
TSL-9.4-50-100Z-D 20 |
9.4um |
100 |
50*50 |
20 |
±20.8 |
2.7 |
M85*1 |
187.84 |
118.84 |
25.6 |
36.465 |
30.6 |
85.0-87.0 |
1J990100243 |
TSL-9.4-120-160-D 20 |
9.4um |
160 |
120*120 |
17.5 |
±31.4 |
1.6 |
M85*1 |
314.35 |
130.35 |
25.6 |
41.5 |
30.4 |
156-165 |
1J990100247 |
TSL-9.6-50-100G |
9.4um |
100 |
50*50 |
15 |
±25 |
3 |
M85*1 |
174.6 |
106.1 |
20 |
25 |
40.54 |
129-131 |
1J990100239 |
TSL-9.6-70-140Z |
9.6um |
140 |
70*70 |
15 |
±20.5 |
1.6 |
M85*1 |
129.5 |
88.33 |
20 |
25 |
49.19 |
165-169 |
1J990100229 |
TSL-10.6-50-100G |
10.6un |
100 |
50*50 |
25 |
±20.5 |
3 |
- |
- |
106.1 |
20 |
20 |
33.04 |
54.2-60.5 |
1J990100230 |
TSL-9.4-37-100G |
9.4um |
100 |
37*37 |
25 |
±15 |
3 |
M60*1 |
195.28 |
104.18 |
30.3 |
23.96 |
29 |
69.0-70.0 |
1J990100233 |
TSL-10.6-50-100Z |
10.6un |
100 |
50*50 |
15 |
±21 |
2 |
M85*1 |
188.81 |
108.72 |
18.5 |
43.55 |
41 |
126-131 |
1J990100235 |
TSL 2-10.6-50-100z |
10.6un |
100 |
50*50 |
15 |
±20.6 |
3 |
M85*1 |
186.7 |
127.8 |
18.5 |
43.4 |
41 |
128.2-129.6 |
1J990500028 |
TSL-9.4-30-52 |
9.4um |
52 |
30*30 |
20 |
±21.8 |
4.5 |
M85*1 |
75.87 |
32.26 |
25.52 |
32.11 |
28.49 |
45.0-52.0 |
1J990100241 |
1064mm系列
型号 |
波长 |
有效焦距(mm) |
扫描帽面(mm) |
入射光睡(mm) |
扫描角(") |
远心角(°) |
螺纹接口 |
法兰距(mm) |
工作距(mm) |
MI-H2 |
M2-镜片中心 |
M2-螺纹端面 |
聚焦光斑直径(um)(中心/边缘) |
产品编码 |
TSL-1064-10-56Q-D 20 |
1064nn |
56 |
10*10 |
20 |
±7.2 |
1 |
M55*1 |
88.87 |
23.87 |
26 |
28.74 |
40.99 |
5-11 |
1J990200019 |
TSL-1064-50-100Q |
1064mn |
100 |
50*50 |
10 |
±21 |
3 |
M85*1 |
202.11 |
126.11 |
20 |
18 |
44.27 |
17-19 |
1J990500036 |
TSL-980-120-210-D 20 |
980rm |
210 |
120*120 |
20 |
-4 |
3 |
M148*0.75 |
435 |
- |
16.4 |
20 |
22.41 |
- |
1J990500033 |
TSL-1064-18-56 |
1064n |
56 |
18*18 |
10 |
±13.3 |
1 |
M55*1/M39*1 |
85.64 |
59.35 |
20 |
19 |
37.21 |
7.6-9 |
1J990200227 |
TSL-1064-20-56 |
1064nn |
56 |
20*20 |
10 |
±13 |
2.6 |
M85*1 |
79.85 |
59.85 |
20 |
19 |
36.87 |
8.5-11.5 |
1J990200276 |
TSL-1064-20-82Q |
1064nn |
82 |
20*20 |
15 |
±10 |
3 |
M85*1 |
176.03 |
85.03 |
26 |
26 |
31.67 |
10.0-11.0 |
1J990200196 |
TSL-1064-50-100Q-D 10 |
1064mn |
100 |
50*50 |
10 |
±21 |
1.9 |
M85*1 |
202.11 |
126.11 |
20 |
18 |
44.27 |
19.0-21.0 |
1J990200186 |
TSL-1064-50-100Q-D 15 |
1064n |
100 |
50*50 |
15 |
±21.3 |
3 |
M85*1 |
251 |
131 |
25.6 |
23.64 |
30.6 |
13-20 |
1J990200296 |
TSL-1064-55-100Q |
1064mm |
100 |
55*55 |
15 |
±25 |
3 |
M85*1 |
189.51 |
120.79 |
20 |
32 |
39.74 |
13-20 |
1J990200289 |
TSL-1064-60-107-D 10 |
1064n |
107 |
60*60 |
10 |
±23.6 |
1.7 |
M79*1 |
229 |
135.68 |
12.54 |
35.73 |
22.41 |
20.0-21.0 |
1J990200228 |
TSL-1064-69-108 |
1064mn |
108 |
69*69 |
12 |
±27 |
1.7 |
M85*1 |
207.46 |
131.19 |
16 |
38.81 |
42.63 |
17.4-19.0 |
1J990200286 |
TSL-1064-50-109Q-D 14 |
1064nn |
109 |
50*50 |
14 |
±19.3 |
2.6 |
M85*1 |
236.35 |
147.35 |
17 |
28 |
51 |
25.0-30.0 |
1J990200297 |
TSL-1064-50-115Q-D 14 |
1064mm |
115 |
50*50 |
14 |
±18.11 |
2.6 |
M85*1 |
205.76 |
81.26 |
19.24 |
37 |
45 |
15.4-16.8 |
1J990200246 |
TSL-1064-50-115Q-D 14 |
1064nm |
115 |
50*50 |
14 |
±18.11 |
2.6 |
M85*1 |
205.76 |
81.26 |
19.24 |
37 |
45 |
15.4-16.8 |
1J990200254 |
TSL-1064-70-125 |
1064nm |
125 |
70*70 |
15 |
±25 |
2 |
M85*1 |
234.37 |
162.11 |
19.4 |
26 |
45.8 |
12-15 |
1J990200291 |
TSL-1064-73-163B |
1064nm |
163 |
73*73 |
10 |
±19 |
0.95 |
M85*1 |
324.71 |
193.4 |
16 |
50.3 |
47.84 |
22-23.5 |
1J990200290 |
TSL-1064-90-163Q-D 15 |
1064nn |
163 |
90*90 |
15 |
±25 |
5.6 |
M85*1 |
282.3 |
209.6 |
16 |
30 |
39.4 |
25.0-40.0 |
1J990200176 |
TSL-1064-90-163Q-D 15-V 2 |
1064mm |
163 |
90*90 |
15 |
±23 |
4.5 |
M85*1 |
299.86 |
211.06 |
16 |
22.3 |
40.9 |
21.0-25.0 |
1J990200294 |
TSL-1064-80-180Q-D 10 |
1064n |
180 |
80*80 |
10 |
±25 |
2.6 |
M85*1 |
335.03 |
259.43 |
14 |
33 |
58 |
35.0-40.0 |
1J990200295 |
TSL-1064-90-190 |
1064nn |
190 |
90*90 |
18 |
±14 |
1 |
M85*1 |
337.38 |
166.38 |
20 |
20 |
41.04 |
22.0-31.0 |
1J990200277 |
TSL-1064-40-100-D 25 |
1064mm |
100 |
37*37 |
25 |
±15.3 |
1.4 |
M85*1 |
205.39 |
70.16 |
36 |
29 |
34.8 |
7.0-9.0 |
1J990200249 |
TSL-1064-126-216A |
1064n |
216 |
126*126 |
15 |
±23.6 |
1 |
- |
97.79 |
298 |
21 |
33 |
127.81 |
30.0-31.0 |
1J990200282 |
TSL-1064-140-220-V 1 |
1064mm |
220 |
140*140 |
15 |
±25 |
1 |
M100*1 |
479.7 |
289.9 |
16 |
29.02 |
59.25 |
28-29 |
1J990200244 |
TSL-1064-150-420Q-D 14 |
1064m |
420 |
150*150 |
14 |
±20 |
5 |
M85*1 |
794.44 |
636.44 |
16.5 |
35 |
40 |
50.0-52.0 |
1J990200192 |
TSL-1064-50-210BB |
1064nm |
210 |
50*50 |
25 |
±8.8 |
1 |
M85*1 |
- |
- |
40 |
25 |
48 |
16.4-18.1 |
1J990200288 |
15933752505
