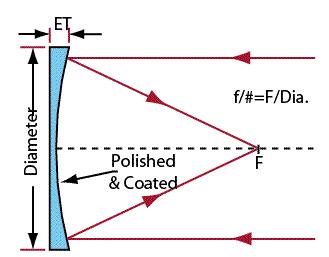

高精度抛物反射镜
?λ/8 表面精度
?BOROFLOAT? 基片，以达到热稳定性
?可选各种镀膜
TECHSPEC? 高精度抛物反射镜备有各种尺寸可选，尺寸范围介于3" (76.2mm) 到 16.25" (412.8mm)，适用于各种应用。这些产品采用保护性铝膜、增强性铝膜和保护性金膜。用户也可选择未镀膜基片。
Common Specifications
表面质量: |
60-40 |
表面精度: |
λ/8 |
订购信息：
直径 (mm) |
有效焦距 EFL (mm) |
孔径 (f/#) |
涂层 |
涂层规格 |
产品号 |
|---|---|---|---|---|---|
254 |
1524 |
f/6 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-274-533 |
254 |
2032 |
f/8 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-275-533 |
317.5 |
1905 |
f/6 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-276-533 |
317.5 |
2540 |
f/8 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-277-533 |
412.8 |
2032 |
f/4.9 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-725-533 |
76.2 |
444.5 |
f/5.8 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-064-533 |
108 |
444.5 |
f/4.1 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-065-533 |
108 |
647.7 |
f/6 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-066-533 |
108 |
863.6 |
f/8 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-067-533 |
152.4 |
609.6 |
f/4 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-069-533 |
152.4 |
762 |
f/5 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-070-533 |
152.4 |
914.4 |
f/6 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-071-533 |
152.4 |
1219.2 |
f/8 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-072-533 |
203.2 |
1016 |
f/5 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-073-533 |
203.2 |
1219.2 |
f/6 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-074-533 |
203.2 |
1625.6 |
f/8 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-075-533 |
203.2 |
2032 |
f/10 |
Enhanced Aluminum |
Ravg>95% @ 450 - 650nm |
#32-076-533 |
254 |
1524 |
f/6 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-274-566 |
254 |
2032 |
f/8 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-275-566 |
317.5 |
1905 |
f/6 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-276-566 |
317.5 |
2540 |
f/8 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-277-566 |
412.8 |
2032 |
f/4.9 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-725-566 |
76.2 |
444.5 |
f/5.8 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-064-566 |
108 |
444.5 |
f/4.1 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-065-566 |
108 |
647.7 |
f/6 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-066-566 |
108 |
863.6 |
f/8 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-067-566 |
152.4 |
609.6 |
f/4 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-069-566 |
152.4 |
762 |
f/5 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-070-566 |
152.4 |
914.4 |
f/6 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-071-566 |
152.4 |
1219.2 |
f/8 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-072-566 |
203.2 |
1016 |
f/5 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-073-566 |
203.2 |
1219.2 |
f/6 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-074-566 |
203.2 |
1625.6 |
f/8 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-075-566 |
203.2 |
2032 |
f/10 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#32-076-566 |
254 |
1524 |
f/6 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-274-522 |
254 |
2032 |
f/8 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-275-522 |
317.5 |
1905 |
f/6 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-276-522 |
317.5 |
2540 |
f/8 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-277-522 |
412.8 |
2032 |
f/4.9 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-725-522 |
76.2 |
444.5 |
f/5.8 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-064-522 |
108 |
444.5 |
f/4.1 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-065-522 |
108 |
647.7 |
f/6 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-066-522 |
108 |
863.6 |
f/8 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-067-522 |
152.4 |
609.6 |
f/4 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-069-522 |
152.4 |
762 |
f/5 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-070-522 |
152.4 |
762 |
f/5 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-071-522 |
152.4 |
1219.2 |
f/8 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-072-522 |
203.2 |
1016 |
f/5 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-073-522 |
203.2 |
1219.2 |
f/6 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-074-522 |
203.2 |
1625.6 |
f/8 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-075-522 |
203.2 |
2032 |
f/10 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#32-076-522 |
254 |
1524 |
f/6 |
Uncoated |
- |
#32-274-000 |
254 |
2032 |
f/8 |
Uncoated |
- |
#32-275-000 |
317.5 |
1905 |
f/6 |
Uncoated |
- |
#32-276-000 |
317.5 |
2540 |
f/8 |
Uncoated |
- |
#32-277-000 |
412.8 |
2032 |
f/4.9 |
Uncoated |
- |
#32-725-000 |
76.2 |
444.5 |
f/5.8 |
Uncoated |
- |
#32-064-000 |
108 |
444.5 |
f/4.1 |
Uncoated |
- |
#32-065-000 |
108 |
647.7 |
f/6 |
Uncoated |
- |
#32-066-000 |
108 |
863.6 |
f/8 |
Uncoated |
- |
#32-067-000 |
152.4 |
609.6 |
f/4 |
Uncoated |
- |
#32-069-000 |
152.4 |
762 |
f/5 |
Uncoated |
- |
#32-070-000 |
152.4 |
914.4 |
f/6 |
Uncoated |
- |
#32-071-000 |
152.4 |
1219.2 |
f/8 |
Uncoated |
- |
#32-072-000 |
203.2 |
1016 |
f/5 |
Uncoated |
- |
#32-073-000 |
203.2 |
1219.2 |
f/6 |
Uncoated |
- |
#32-074-000 |
203.2 |
1625.6 |
f/8 |
Uncoated |
- |
#32-075-000 |
203.2 |
2032 |
f/10 |
Uncoated |
- |
#32-076-000 |
