MgF2涂层双凹（DCV）透镜
?AR涂层可提供400 - 700nm的每个表面的1.75％反射率
?设计为0°发生角度

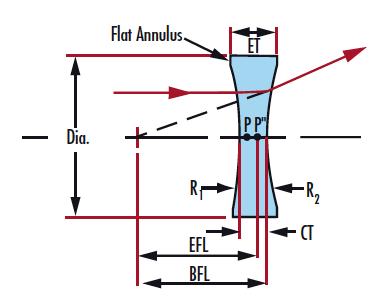

双凹透镜有两个向内的，相同的曲面构成并且有一个负焦距，它们被用作成缩小的像或是光线发散，所有直径都是以毫米为单位。
MgF2涂层双凹（DCV）透镜
技术数据
?
?
订购信息：
标题 |
产品号 |
|---|---|
6mm Dia. x -6mm FL, MgF2 Coated, Double-Concave Lens |
#32-987 |
6mm Dia. x -9mm FL, MgF2 Coated, Double-Concave Lens |
#48-935 |
6mm Dia. x -12mm FL, MgF2 Coated, Double-Concave Lens |
#48-687 |
9mm Dia. x -9mm FL, MgF2 Coated, Double-Concave Lens |
#48-340 |
9mm Dia. x -12mm FL, MgF2 Coated, Double-Concave Lens |
#48-936 |
9mm Dia. x -18mm FL, MgF2 Coated, Double-Concave Lens |
#48-688 |
12mm Dia. x -12mm FL, MgF2 Coated, Double-Concave Lens |
#32-989 |
12mm Dia. x -18mm FL, MgF2 Coated, Double-Concave Lens |
#48-937 |
12mm Dia. x -24mm FL, MgF2 Coated, Double-Concave Lens |
#48-689 |
20mm Dia. x -20mm FL, MgF2 Coated, Double-Concave Lens |
#32-991 |
25mm Dia. x -25mm FL, MgF2 Coated, Double-Concave Lens |
#32-993 |
25mm Dia. x -50mm FL, MgF2 Coated, Double-Concave Lens |
#32-997 |
25mm Dia. x -100mm FL, MgF2 Coated, Double-Concave Lens |
#32-995 |
