精密吸收性中性密度(ND)滤光片
?传输波前畸变为λ/4
?针对450-700nm范围采用增透膜
?提供的光学密度介于0.1至4.0之间
?另外提供吸收性中性密度(ND)滤光片

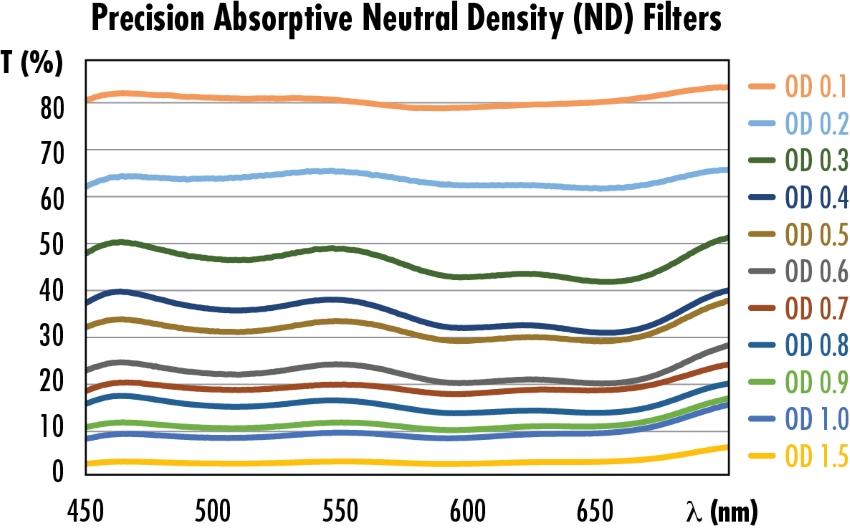

精密吸收性中性密度(ND)滤光片采用 SCHOTT NG 彩色玻璃基片，经过抛光可实现 λ/4 的传输波前畸变 (TWFD)。这些滤光片的两个表面都镀有 450 - 700nm 的增透 (AR) 膜，从而减少了背向反射，并降低了滤光片堆叠的损耗和伪影。精密吸收性中性密度 (ND) 滤光片能提供从 0.1 到 4.0 的光学密度，可以进行堆叠以实现定制的光学密度，从而满足应用要求。这些中性密度滤光片具有 25mm 直径或 50mm 的方形尺寸，非常适用于机器视觉、成像或低功率激光应用。
通用规格
涂层: |
BBAR(450-700nm) |
表面质量: |
80-50 |
阻断波长范围(nm): |
400-700 |
基底: |
NDFilterGlass |
有效孔径(%): |
90 |
传输波前，P-V(λ): |
λ/4 |
平行度（弧秒）: |
<30 |

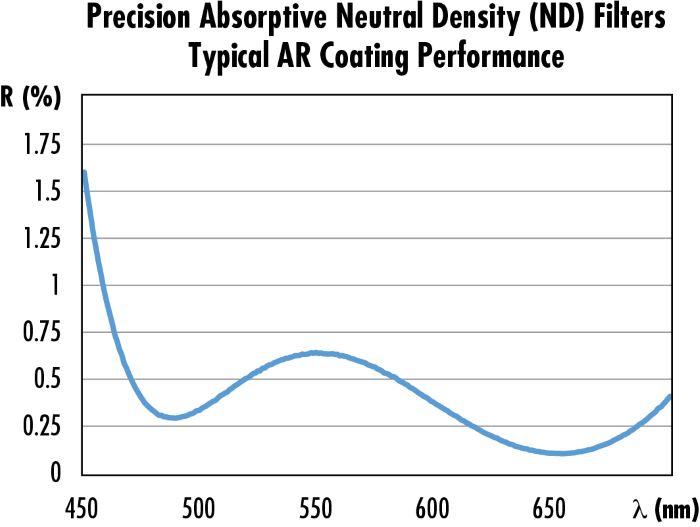

涂层规格: |
Ravg≤1.0%@450-700nm@0° |
Dia.(mm) |
尺寸(mm) |
玻璃/滤波器编号 |
光密度OD |
厚度(mm) |
透射率(%) |
产品编码 |
25.00 |
- |
SCHOTTNG12 |
0.1 |
4.95 |
79.43 |
#16-047 |
50.00x50.00 |
SCHOTTNG12 |
0.1 |
4.95 |
79.43 |
#16-048 |
|
25.00 |
- |
SCHOTTNG11 |
0.2 |
1.52 |
63.10 |
#16-049 |
50.00x50.00 |
SCHOTTNG11 |
0.2 |
1.52 |
63.10 |
#16-050 |
|
25.00 |
- |
SCHOTTNG11 |
0.3 |
2.84 |
50.12 |
#16-051 |
50.00x50.00 |
SCHOTTNG11 |
0.3 |
2.84 |
50.12 |
#16-052 |
|
25.00 |
- |
SCHOTTNG11 |
0.4 |
3.78 |
39.81 |
#16-053 |
50.00x50.00 |
SCHOTTNG11 |
0.4 |
3.78 |
39.81 |
#16-054 |
|
25.00 |
- |
SCHOTTNG5 |
0.5 |
2.11 |
31.62 |
#16-055 |
50.00x50.00 |
SCHOTTNG5 |
0.5 |
2.11 |
31.62 |
#16-056 |
|
25.00 |
- |
SCHOTTNG5 |
0.6 |
2.54 |
25.12 |
#16-057 |
50.00x50.00 |
SCHOTTNG5 |
0.6 |
2.54 |
25.12 |
#16-058 |
|
25.00 |
- |
SCHOTTNG5 |
0.7 |
2.95 |
19.95 |
#16-059 |
50.00x50.00 |
SCHOTTNG5 |
0.7 |
2.95 |
19.95 |
#16-060 |
|
25.00 |
- |
SCHOTTNG5 |
0.8 |
3.38 |
15.85 |
#16-061 |
50.00x50.00 |
SCHOTTNG5 |
0.8 |
3.38 |
15.85 |
#16-062 |
|
25.00 |
- |
SCHOTTNG4 |
0.9 |
1.75 |
12.59 |
#16-063 |
50.00x50.00 |
SCHOTTNG4 |
0.9 |
1.75 |
12.59 |
#16-064 |
|
25.00 |
- |
SCHOTTNG4 |
1.0 |
1.96 |
10.00 |
#16-065 |
50.00x50.00 |
SCHOTTNG4 |
1.0 |
1.96 |
10.00 |
#16-066 |
|
25.00 |
- |
SCHOTTNG4 |
1.5 |
2.90 |
3.16 |
#16-067 |
50.00x50.00 |
SCHOTTNG4 |
1.5 |
2.90 |
3.16 |
#16-068 |
|
25.00 |
- |
SCHOTTNG3 |
2.0 |
2.06 |
1.00 |
#16-069 |
50.00x50.00 |
SCHOTTNG3 |
2.0 |
2.06 |
1.00 |
#16-070 |
|
25.00 |
- |
SCHOTTNG3 |
2.5 |
2.44 |
0.32 |
#16-071 |
50.00x50.00 |
SCHOTTNG3 |
2.5 |
2.44 |
0.32 |
#16-072 |
|
25.00 |
- |
SCHOTTNG3 |
3.0 |
2.92 |
0.10 |
#16-073 |
50.00x50.00 |
SCHOTTNG3 |
3.0 |
2.92 |
0.10 |
#16-074 |
|
25.00 |
- |
SCHOTTNG9 |
4.0 |
2.82 |
0.01 |
#16-075 |
50.00x50.00 |
SCHOTTNG9 |
4.0 |
2.82 |
0.01 |
#16-076 |
采用增透 (AR) 膜的 HOYA 吸收性中性密度 (ND) 滤光片

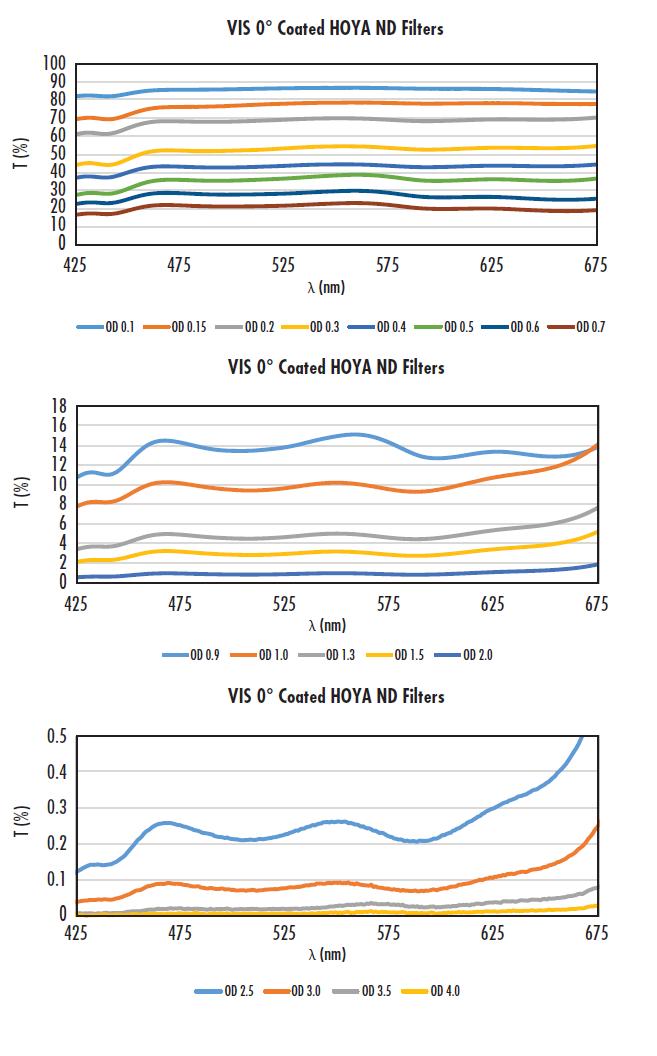

采用增透 (AR) 膜的 HOYA 吸收性中性密度 (ND) 滤光片使用 HOYA 彩色玻璃基片，其两面都具有增透膜，以减少可见光或近红外 (NIR) 范围内的背反射。VIS 0°、NIR I 和 NIR II 宽带增透膜分别涵盖 425-675nm、600-1050nm 和 750-1550nm 的光谱范围。这些中性密度滤光片能通过吸收来衰减光，可以堆叠在一起以实现定制的光学密度，从而满足应用需求。采用增透 (AR) 膜的 HOYA 吸收性中性密度 (ND) 滤光片非常适合在成像和检测应用中用于减少杂散光，以及在一般滤光片堆叠应用中用于控制强度。12.5、25 和 50mm 标准公制直径与我们台式应用的
TECHSPEC? C、S 及 T 接口圆形光学元件安装座兼容。
通用规格
| 尺寸容差 (mm): | ±0.1 | 表面质量: | 80-50 |
| 厚度容差 (mm): | ±0.5 | 基底: | ND Filter Glass |
| Parallelism (mm): | <0.02 |
产品型号
| Dia. (mm) | 涂层 | Nominal OD @ Center of Coating | 波长范围 (nm) | 产品编码 |
| 12.50 | VIS 0° (425-675nm) | 0.08 | 425 - 675 | #13-078 |
| 25.00 | VIS 0° (425-675nm) | 0.08 | 425 - 675 | #13-095 |
| 50.00 | VIS 0° (425-675nm) | 0.08 | 425 - 675 | #13-112 |
| 12.50 | VIS 0° (425-675nm) | 0.13 | 425 - 675 | #13-079 |
| 25.00 | VIS 0° (425-675nm) | 0.13 | 425 - 675 | #13-096 |
| 50.00 | VIS 0° (425-675nm) | 0.13 | 425 - 675 | #13-113 |
| 12.50 | VIS 0° (425-675nm) | 0.18 | 425 - 675 | #13-080 |
| 25.00 | VIS 0° (425-675nm) | 0.18 | 425 - 675 | #13-097 |
| 50.00 | VIS 0° (425-675nm) | 0.18 | 425 - 675 | #13-114 |
| 12.50 | VIS 0° (425-675nm) | 0.28 | 425 - 675 | #13-081 |
| 25.00 | VIS 0° (425-675nm) | 0.28 | 425 - 675 | #13-098 |
| 50.00 | VIS 0° (425-675nm) | 0.28 | 425 - 675 | #13-115 |
| 12.50 | VIS 0° (425-675nm) | 0.35 | 425 - 675 | #13-082 |
| 25.00 | VIS 0° (425-675nm) | 0.35 | 425 - 675 | #13-099 |
| 50.00 | VIS 0° (425-675nm) | 0.35 | 425 - 675 | #13-116 |
| 12.50 | VIS 0° (425-675nm) | 0.43 | 425 - 675 | #13-083 |
| 25.00 | VIS 0° (425-675nm) | 0.43 | 425 - 675 | #13-100 |
| 50.00 | VIS 0° (425-675nm) | 0.43 | 425 - 675 | #13-117 |
| 12.50 | VIS 0° (425-675nm) | 0.53 | 425 - 675 | #13-084 |
| 25.00 | VIS 0° (425-675nm) | 0.53 | 425 - 675 | #13-101 |
| 50.00 | VIS 0° (425-675nm) | 0.53 | 425 - 675 | #13-118 |
| 12.50 | VIS 0° (425-675nm) | 0.63 | 425 - 675 | #13-085 |
| 25.00 | VIS 0° (425-675nm) | 0.63 | 425 - 675 | #13-102 |
| 50.00 | VIS 0° (425-675nm) | 0.63 | 425 - 675 | #13-119 |
| 12.50 | VIS 0° (425-675nm) | 0.86 | 425 - 675 | #13-086 |
| 25.00 | VIS 0° (425-675nm) | 0.86 | 425 - 675 | #13-103 |
| 50.00 | VIS 0° (425-675nm) | 0.86 | 425 - 675 | #13-120 |
| 12.50 | VIS 0° (425-675nm) | 0.94 | 425 - 675 | #13-087 |
| 25.00 | VIS 0° (425-675nm) | 0.94 | 425 - 675 | #13-104 |
| 50.00 | VIS 0° (425-675nm) | 0.94 | 425 - 675 | #13-121 |
| 12.50 | VIS 0° (425-675nm) | 1.35 | 425 - 675 | #13-088 |
| 25.00 | VIS 0° (425-675nm) | 1.35 | 425 - 675 | #13-105 |
| 50.00 | VIS 0° (425-675nm) | 1.35 | 425 - 675 | #13-122 |
| 12.50 | VIS 0° (425-675nm) | 1.40 | 425 - 675 | #13-089 |
| 25.00 | VIS 0° (425-675nm) | 1.40 | 425 - 675 | #13-106 |
| 50.00 | VIS 0° (425-675nm) | 1.40 | 425 - 675 | #13-123 |
| 12.50 | VIS 0° (425-675nm) | 1.85 | 425 - 675 | #13-090 |
| 25.00 | VIS 0° (425-675nm) | 1.85 | 425 - 675 | #13-107 |
| 50.00 | VIS 0° (425-675nm) | 1.85 | 425 - 675 | #13-124 |
| 12.50 | VIS 0° (425-675nm) | 2.30 | 425 - 675 | #13-091 |
| 25.00 | VIS 0° (425-675nm) | 2.30 | 425 - 675 | #13-108 |
| 50.00 | VIS 0° (425-675nm) | 2.30 | 425 - 675 | #13-125 |
| 12.50 | VIS 0° (425-675nm) | 2.77 | 425 - 675 | #13-092 |
| 25.00 | VIS 0° (425-675nm) | 2.77 | 425 - 675 | #13-109 |
| 50.00 | VIS 0° (425-675nm) | 2.77 | 425 - 675 | #13-126 |
| 12.50 | VIS 0° (425-675nm) | 3.40 | 425 - 675 | #13-093 |
| 25.00 | VIS 0° (425-675nm) | 3.40 | 425 - 675 | #13-110 |
| 50.00 | VIS 0° (425-675nm) | 3.40 | 425 - 675 | #13-127 |
| 12.50 | VIS 0° (425-675nm) | 3.60 | 425 - 675 | #13-094 |
| 25.00 | VIS 0° (425-675nm) | 3.60 | 425 - 675 | #13-111 |
| 50.00 | VIS 0° (425-675nm) | 3.60 | 425 - 675 | #13-128 |
| 12.50 | NIR I (600-1050nm) | 0.14 | 600 - 1050 | #13-146 |
| 25.00 | NIR I (600-1050nm) | 0.14 | 600 - 1050 | #13-163 |
| 50.00 | NIR I (600-1050nm) | 0.14 | 600 - 1050 | #13-180 |
| 12.50 | NIR I (600-1050nm) | 0.25 | 600 - 1050 | #13-147 |
| 25.00 | NIR I (600-1050nm) | 0.25 | 600 - 1050 | #13-164 |
| 50.00 | NIR I (600-1050nm) | 0.25 | 600 - 1050 | #13-181 |
| 12.50 | NIR I (600-1050nm) | 0.26 | 600 - 1050 | #13-148 |
| 25.00 | NIR I (600-1050nm) | 0.26 | 600 - 1050 | #13-165 |
| 50.00 | NIR I (600-1050nm) | 0.26 | 600 - 1050 | #13-182 |
| 12.50 | NIR I (600-1050nm) | 0.40 | 600 - 1050 | #13-149 |
| 25.00 | NIR I (600-1050nm) | 0.40 | 600 - 1050 | #13-166 |
| 50.00 | NIR I (600-1050nm) | 0.40 | 600 - 1050 | #13-183 |
| 12.50 | NIR I (600-1050nm) | 0.48 | 600 - 1050 | #13-150 |
| 25.00 | NIR I (600-1050nm) | 0.48 | 600 - 1050 | #13-167 |
| 50.00 | NIR I (600-1050nm) | 0.48 | 600 - 1050 | #13-184 |
| 12.50 | NIR I (600-1050nm) | 0.68 | 600 - 1050 | #13-151 |
| 25.00 | NIR I (600-1050nm) | 0.68 | 600 - 1050 | #13-168 |
| 50.00 | NIR I (600-1050nm) | 0.68 | 600 - 1050 | #13-185 |
| 12.50 | NIR I (600-1050nm) | 0.84 | 600 - 1050 | #13-152 |
| 25.00 | NIR I (600-1050nm) | 0.84 | 600 - 1050 | #13-169 |
| 50.00 | NIR I (600-1050nm) | 0.84 | 600 - 1050 | #13-186 |
| 12.50 | NIR I (600-1050nm) | 1.03 | 600 - 1050 | #13-153 |
| 25.00 | NIR I (600-1050nm) | 1.03 | 600 - 1050 | #13-170 |
| 50.00 | NIR I (600-1050nm) | 1.03 | 600 - 1050 | #13-187 |
| 12.50 | NIR I (600-1050nm) | 1.02 | 600 - 1050 | #13-154 |
| 25.00 | NIR I (600-1050nm) | 1.02 | 600 - 1050 | #13-171 |
| 50.00 | NIR I (600-1050nm) | 1.02 | 600 - 1050 | #13-188 |
| 12.50 | NIR I (600-1050nm) | 0.53 | 600 - 1050 | #13-155 |
| 25.00 | NIR I (600-1050nm) | 0.53 | 600 - 1050 | #13-172 |
| 50.00 | NIR I (600-1050nm) | 0.53 | 600 - 1050 | #13-189 |
| 12.50 | NIR I (600-1050nm) | 0.76 | 600 - 1050 | #13-156 |
| 25.00 | NIR I (600-1050nm) | 0.76 | 600 - 1050 | #13-173 |
| 50.00 | NIR I (600-1050nm) | 0.76 | 600 - 1050 | #13-190 |
| 12.50 | NIR I (600-1050nm) | 0.78 | 600 - 1050 | #13-157 |
| 25.00 | NIR I (600-1050nm) | 0.78 | 600 - 1050 | #13-174 |
| 50.00 | NIR I (600-1050nm) | 0.78 | 600 - 1050 | #13-191 |
| 12.50 | NIR I (600-1050nm) | 1.03 | 600 - 1050 | #13-158 |
| 25.00 | NIR I (600-1050nm) | 1.03 | 600 - 1050 | #13-175 |
| 50.00 | NIR I (600-1050nm) | 1.03 | 600 - 1050 | #13-192 |
| 12.50 | NIR I (600-1050nm) | 1.28 | 600 - 1050 | #13-159 |
| 25.00 | NIR I (600-1050nm) | 1.28 | 600 - 1050 | #13-176 |
| 50.00 | NIR I (600-1050nm) | 1.28 | 600 - 1050 | #13-193 |
| 12.50 | NIR I (600-1050nm) | 1.53 | 600 - 1050 | #13-160 |
| 25.00 | NIR I (600-1050nm) | 1.53 | 600 - 1050 | #13-177 |
| 50.00 | NIR I (600-1050nm) | 1.53 | 600 - 1050 | #13-194 |
| 12.50 | NIR I (600-1050nm) | 2.51 | 600 - 1050 | #13-161 |
| 25.00 | NIR I (600-1050nm) | 2.51 | 600 - 1050 | #13-178 |
| 50.00 | NIR I (600-1050nm) | 2.51 | 600 - 1050 | #13-195 |
| 12.50 | NIR I (600-1050nm) | 2.58 | 600 - 1050 | #13-162 |
| 25.00 | NIR I (600-1050nm) | 2.58 | 600 - 1050 | #13-179 |
| 50.00 | NIR I (600-1050nm) | 2.58 | 600 - 1050 | #13-196 |

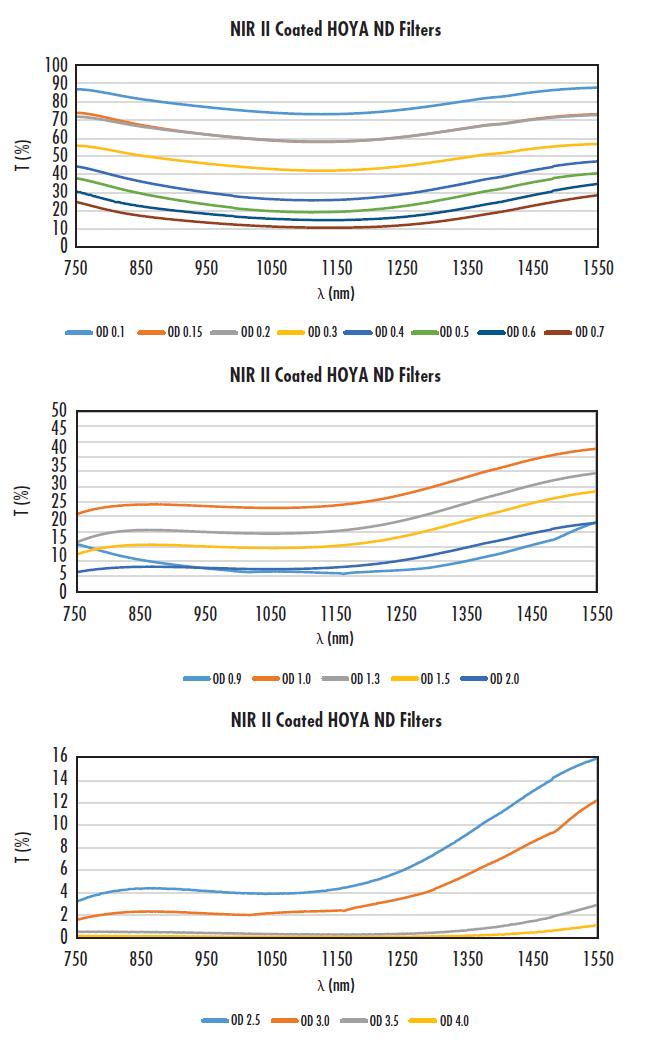

| 12.50 | NIR II (750-1550nm) | 0.16 | 750 - 1550 | #13-217 |
| 25.00 | NIR II (750-1550nm) | 0.16 | 750 - 1550 | #13-235 |
| 50.00 | NIR II (750-1550nm) | 0.16 | 750 - 1550 | #13-252 |
| 12.50 | NIR II (750-1550nm) | 0.29 | 750 - 1550 | #13-218 |
| 25.00 | NIR II (750-1550nm) | 0.29 | 750 - 1550 | #13-236 |
| 50.00 | NIR II (750-1550nm) | 0.29 | 750 - 1550 | #13-253 |
| 12.50 | NIR II (750-1550nm) | 0.30 | 750 - 1550 | #13-219 |
| 25.00 | NIR II (750-1550nm) | 0.30 | 750 - 1550 | #13-237 |
| 50.00 | NIR II (750-1550nm) | 0.30 | 750 - 1550 | #13-254 |
| 12.50 | NIR II (750-1550nm) | 0.47 | 750 - 1550 | #13-220 |
| 25.00 | NIR II (750-1550nm) | 0.47 | 750 - 1550 | #13-238 |
| 50.00 | NIR II (750-1550nm) | 0.47 | 750 - 1550 | #13-255 |
| 12.50 | NIR II (750-1550nm) | 0.55 | 750 - 1550 | #13-221 |
| 25.00 | NIR II (750-1550nm) | 0.55 | 750 - 1550 | #13-239 |
| 50.00 | NIR II (750-1550nm) | 0.55 | 750 - 1550 | #13-256 |
| 12.50 | NIR II (750-1550nm) | 0.79 | 750 - 1550 | #13-223 |
| 25.00 | NIR II (750-1550nm) | 0.79 | 750 - 1550 | #13-240 |
| 50.00 | NIR II (750-1550nm) | 0.79 | 750 - 1550 | #13-257 |
| 12.50 | NIR II (750-1550nm) | 0.98 | 750 - 1550 | #13-224 |
| 25.00 | NIR II (750-1550nm) | 0.98 | 750 - 1550 | #13-241 |
| 50.00 | NIR II (750-1550nm) | 0.98 | 750 - 1550 | #13-258 |
| 12.50 | NIR II (750-1550nm) | 1.21 | 750 - 1550 | #13-225 |
| 25.00 | NIR II (750-1550nm) | 1.21 | 750 - 1550 | #13-242 |
| 50.00 | NIR II (750-1550nm) | 1.21 | 750 - 1550 | #13-259 |
| 12.50 | NIR II (750-1550nm) | 1.18 | 750 - 1550 | #13-226 |
| 25.00 | NIR II (750-1550nm) | 1.18 | 750 - 1550 | #13-243 |
| 50.00 | NIR II (750-1550nm) | 1.18 | 750 - 1550 | #13-260 |
| 12.50 | NIR II (750-1550nm) | 0.53 | 750 - 1550 | #13-227 |
| 25.00 | NIR II (750-1550nm) | 0.53 | 750 - 1550 | #13-244 |
| 50.00 | NIR II (750-1550nm) | 0.53 | 750 - 1550 | #13-261 |
| 12.50 | NIR II (750-1550nm) | 0.75 | 750 - 1550 | #13-228 |
| 25.00 | NIR II (750-1550nm) | 0.75 | 750 - 1550 | #13-245 |
| 50.00 | NIR II (750-1550nm) | 0.75 | 750 - 1550 | #13-262 |
| 12.50 | NIR II (750-1550nm) | 0.78 | 750 - 1550 | #13-229 |
| 25.00 | NIR II (750-1550nm) | 0.78 | 750 - 1550 | #13-246 |
| 50.00 | NIR II (750-1550nm) | 0.78 | 750 - 1550 | #13-263 |
| 12.50 | NIR II (750-1550nm) | 1.02 | 750 - 1550 | #13-230 |
| 25.00 | NIR II (750-1550nm) | 1.02 | 750 - 1550 | #13-247 |
| 50.00 | NIR II (750-1550nm) | 1.02 | 750 - 1550 | #13-264 |
| 12.50 | NIR II (750-1550nm) | 1.27 | 750 - 1550 | #13-231 |
| 25.00 | NIR II (750-1550nm) | 1.27 | 750 - 1550 | #13-248 |
| 50.00 | NIR II (750-1550nm) | 1.27 | 750 - 1550 | #13-265 |
| 12.50 | NIR II (750-1550nm) | 1.52 | 750 - 1550 | #13-232 |
| 25.00 | NIR II (750-1550nm) | 1.52 | 750 - 1550 | #13-249 |
| 50.00 | NIR II (750-1550nm) | 1.52 | 750 - 1550 | #13-266 |
| 12.50 | NIR II (750-1550nm) | 2.77 | 750 - 1550 | #13-233 |
| 25.00 | NIR II (750-1550nm) | 2.77 | 750 - 1550 | #13-250 |
| 50.00 | NIR II (750-1550nm) | 2.77 | 750 - 1550 | #13-267 |
| 12.50 | NIR II (750-1550nm) | 2.88 | 750 - 1550 | #13-234 |
| 25.00 | NIR II (750-1550nm) | 2.88 | 750 - 1550 | #13-251 |
| 50.00 | NIR II (750-1550nm) | 2.88 | 750 - 1550 | #13-268 |
技术数据
15933752505
