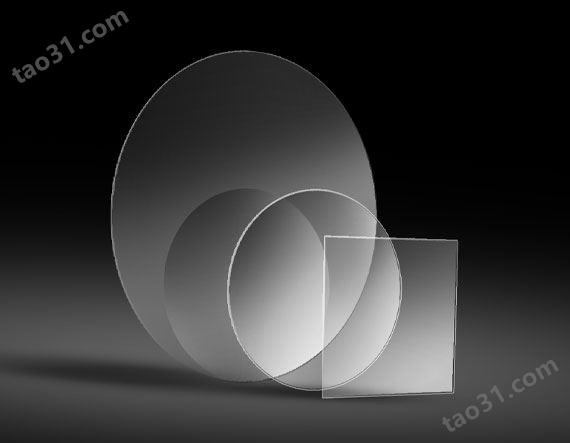

超薄纳米粒子偏振片
l ? ? ? ? ? ? ? ? ? ? ?90 微米厚的轻质基底
l ? ? ? ? ? ? ? ? ? ? ?消光比 >10,000:1
l ? ? ? ? ? ? ? ? ? ? ?出色的耐温性、耐化学性和耐恶劣环境性
l ? ? ? ? ? ? ? ? ? ? ?提供一系列标准尺寸、镀膜以及定制选项
通用规格
消光比: |
>10,000:1 |
基底: |
Sodium Silicate Glass Doped with Silver Nanoparticles |
工作温度 (°C): |
-50 to +400 |
表面质量: |
40-20 |
厚度 (mm): |
0.09 ± 0.025 |
Damage Threshold, By Design: |
10 W/cm2 |
接收角（°）: |
± 20° |
透射波前误差 RMS: |
<3 λ |
产品介绍
超薄纳米粒子偏振片厚度仅为 90 微米，重量轻，可替代传统偏振片，同时具有高透过率和大于 10,000:1 的消光比。这些偏振片由掺杂了扁长银纳米粒子的硅酸钠玻璃基底制成，具有高达 +400°C 的高温稳定性、耐化学性以及抗紫外线辐射和漂白性。这些偏振片有无镀膜、单面增透镀膜（AR）或双面增透镀膜（AR）三种选项，波长范围为 1260-1600nm。超薄纳米粒子偏振片设计是电信、医疗和航空航天应用以及光隔离器、偏振干涉测量和提高信噪比的理想选择。
产品信息
标题 |
涂层 |
Dia. (mm) |
产品编码 |
Ultra-Thin Polarizer, 1310nm, 10 x 10mm, Uncoated |
Uncoated |
|
26-641 |
Ultra-Thin Polarizer, 1310nm, 10 x 10mm, Single-Side AR Coated |
Single-Side AR |
|
26-638 |
Ultra-Thin Polarizer, 1310nm, 10 x 10mm, Double-Side AR Coated |
Double-Side AR |
|
26-644 |
Ultra-Thin Polarizer, 1310nm, 12.5mm Dia, Uncoated |
Uncoated |
12.50 +0/-0.2 |
26-642 |
Ultra-Thin Polarizer, 1310nm, 12.5mm Dia, Single-Side AR Coated |
Single-Side AR |
12.50 +0/-0.2 |
26-639 |
Ultra-Thin Polarizer, 1310nm, 12.5mm Dia, Double-Side AR Coated |
Double-Side AR |
12.50 +0/-0.2 |
26-645 |
Ultra-Thin Polarizer, 1310nm, 25mm Dia, Uncoated |
Uncoated |
25.00 +0/-0.2 |
26-643 |
Ultra-Thin Polarizer, 1310nm, 25mm Dia, Single-Side AR Coated |
Single-Side AR |
25.00 +0/-0.2 |
26-640 |
Ultra-Thin Polarizer, 1310nm, 25mm Dia, Double-Side AR Coated |
Double-Side AR |
25.00 +0/-0.2 |
26-646 |
Ultra-Thin Polarizer, 1550nm, 10 x 10mm, Uncoated |
Uncoated |
|
26-650 |
Ultra-Thin Polarizer, 1550nm, 10 x 10mm, Single-Side AR Coated ? |
Single-Side AR |
|
26-647 |
Ultra-Thin Polarizer, 1550nm, 10 x 10mm, Double-Side AR Coated |
Double-Side AR |
|
26-653 |
Ultra-Thin Polarizer, 1550nm, 12.5mm Dia, Uncoated |
Uncoated |
12.50 +0/-0.2 |
26-651 |
Ultra-Thin Polarizer, 1550nm, 12.5mm Dia, Single-Side AR Coated |
Single-Side AR |
12.50 +0/-0.2 |
26-648 |
Ultra-Thin Polarizer, 1550nm, 12.5mm Dia, Double-Side AR Coated |
Double-Side AR |
12.50 +0/-0.2 |
26-654 |
Ultra-Thin Polarizer, 1550nm, 25mm Dia, Uncoated |
Uncoated |
25.00 +0/-0.2 |
26-652 |
Ultra-Thin Polarizer, 1550nm, 25mm Dia, Single-Side AR Coated |
Single-Side AR |
25.00 +0/-0.2 |
26-649 |
Ultra-Thin Polarizer, 1550nm, 25mm Dia, Double-Side AR Coated |
Double-Side AR |
25.00 +0/-0.2 |
26-655 |
