7X与12.5X高精度微距镜头
?可实现多种放大倍率
?标准可切换组件提供大灵活性
?备有电动与内置选项
7X与12.5X高精度微距镜头为模块化镜头系统，内含相机接口、摄像管、核心模块、底部功能模块与底部镜头。可通过切换模块以改变放大倍率、视场或光学通道，从而增加其多功能性。与M26 x 36 TPI Mitutoyo型物镜相兼容，同时也与适用于C接口F接口35mm DSLR相机的相机传感器覆盖与固定座相兼容。备有50/50与 90° 棱镜以引进直角转动或支持多个成像路径。同时也备有适用于多轴微距和聚焦功能的电动控制器，并可连接USB、以太网或RS-232/422/285端口。
完整的微距镜头需要一款相机接口、摄像管、微距模块、底部功能模块与底部镜头。可在规格选项卡中查看项目选择指南。
技术数据
订购信息
标题 |
产品号 |
|---|---|
C-Mount Camera Adapter |
#89-860 |
F-Mount Camera Adapter |
#89-861 |
EOS Camera Adapter |
#89-862 |
K-Mount Camera Adapter |
#89-863 |
4/3" Mount Camera Adapter |
#89-864 |
Micro 4/3" Mount Camera Adapter |
#89-865 |
Sony Alpha Camera Adapter |
#89-866 |
0.4X Camera Tube |
#89-867 |
0.5X Camera Tube |
#89-868 |
0.6X Camera Tube |
#89-869 |
0.8X Camera Tube |
#89-870 |
1.0X Camera Tube |
#89-871 |
0.8X Mini-Camera Tube |
#89-872 |
1.0X Mini-Camera Tube |
#89-873 |
1.5X Mini-Camera Tube |
#89-874 |
2.0X Mini-Camera Tube |
#89-875 |
2.5X Mini-Camera Tube |
#89-876 |
3.0X Mini-Camera Tube |
#89-877 |
7X Zoom Module, Manual |
#89-878 |
7X Zoom Module, Manual w/Detents |
#89-879 |
7X Zoom Module, Stepper Motorized |
#89-880 |
12.5X Zoom Module, Manual |
#89-881 |
12.5X Zoom Module, Manual w/Detents |
#89-882 |
12.5X Zoom Module, Stepper Motorized |
#89-883 |
Fixed Aperture Set (Required if no Zoom Module) |
#89-884 |
Basic Lower Module, No Focus |
#89-885 |
Lower Module w/15mm Manual Focus |
#89-886 |
Lower Module w/15mm Stepper Motorized Focus |
#89-887 |
Lower Module w/In-Line Illumination |
#89-888 |
Lower Module w/In-Line Illumination & Analyzer |
#89-889 |
Lower Module w/In-Line Illumination & 5mm Manual Focus |
#89-890 |
Lower Module w/In-Line Illumination, Analyzer & 5mm Manual Focus |
#89-891 |
Lower Module w/In-Line Illumination & 5mm Stepper Motorized Focus |
#89-892 |
Lower Module w/In-Line, Analyzer & 5mm Stepper Motorized Focus |
#89-893 |
0.4X Lower Lens |
#89-894 |
0.5X Lower Lens |
#89-895 |
0.67X Lower Lens |
#89-896 |
1.0X Lower Lens |
#89-897 |
1.25X Lower Lens |
#89-898 |
1.43X Lower Lens |
#89-899 |
1.67X Lower Lens |
#89-900 |
2.0X Lower Lens |
#89-901 |
3.0X Lower Lens |
#89-902 |
4.0X Lower Lens |
#89-903 |
Mitutoyo Objective Adapter (M26 x 36TPI) |
#89-904 |
附件

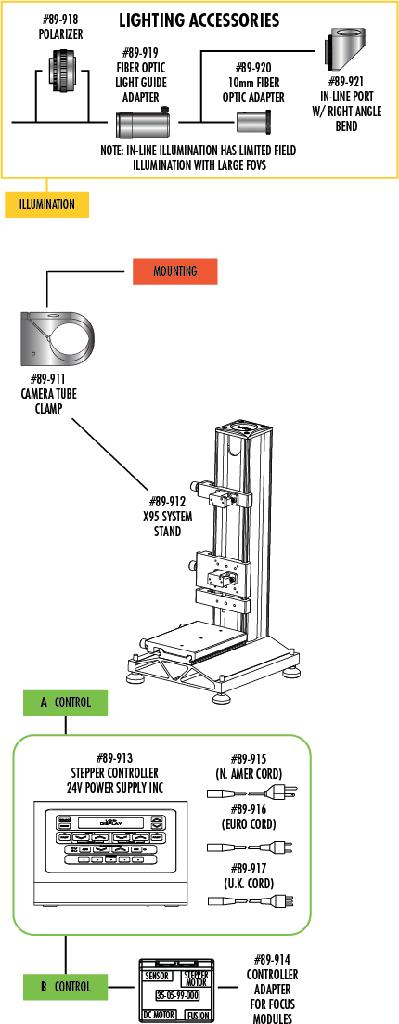

标题 |
产品号 |
|---|---|
50/50 Beamsplitter Cube |
#89-905 |
Mirror Cube for Right Angle Turn |
#89-906 |
Mirror Cube Adapter for Use with Lower Lenses |
#89-907 |
25.4mm Fillter Holder |
#89-908 |
Adjustable Iris |
#89-909 |
Auxillary Mounting Point |
#89-910 |
Camera Tube Mounting Clamp |
#89-911 |
Adjustable Rail Mounting Stand |
#89-912 |
Mounting Clamp 76mm Diameter Microscope Stand |
#89-924 |
Mounting Clamp 82mm Diameter Microscope Stand |
#89-925 |
Mounting Clamp 83mm Diameter Microscope Stand |
#89-926 |
Mounting Clamp 84mm Diameter Microscope Stand |
#89-927 |
Stepper Motor Controller |
#89-913 |
Controller Adapter for Lower Focus Modules |
#89-914 |
North American Style Cord |
#89-915 |
Euro Style Cord |
#89-916 |
UK Style Cord |
#89-917 |
Polarizer Illumination Accessory |
#89-918 |
Fiber Optic Light Guide Adapter |
#89-919 |
Fiber Optic Light Guide Adapter to 10mm |
#89-920 |
In-line Port Right Angle Bend |
#89-921 |
Fiber Optic Ringlight Adapter |
#89-922 |
LED Ringlight Adapter |
#89-923 |
