凹球面反射镜
?适合用于汇聚光线
?可选铝膜和金膜
?尺寸介于9 - 50mm之间

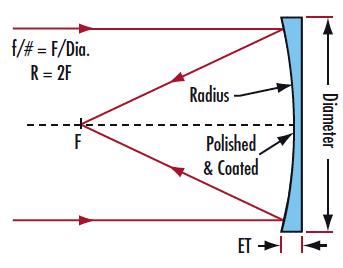

这些凹球面反射镜的镀金属的球面经过抛光，而背面则是曲面。每个反射镜具有正焦距，可聚集入射光。的所有外表面均采用玻璃基片。
Common Specifications
基底: |
N-BK7 |
焦距容差 (%): |
±2 |
表面质量: |
80-50 |
订购信息
直径 (mm) |
有效焦距 EFL (mm) |
孔径 (f/#) |
涂层 |
涂层规格 |
产品号 |
|---|---|---|---|---|---|
9 |
4.5 |
f/0.5 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-674 |
12 |
6 |
f/0.5 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-462 |
25 |
10 |
f/0.4 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-464 |
12 |
12 |
f/1 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-463 |
25 |
25 |
f/1 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-465 |
25 |
50 |
f/2 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-466 |
35 |
15 |
f/0.43 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-467 |
35 |
35 |
f/1 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-468 |
50 |
100 |
f/2 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-471 |
50 |
25 |
f/0.5 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-469 |
50 |
50 |
f/1 |
Protected Aluminum |
Ravg>85% @ 400 - 700nm |
#43-470 |
9 |
4.5 |
f/0.5 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-825 |
12 |
12 |
f/1 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-833 |
12 |
6 |
f/0.5 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-826 |
25 |
10 |
f/0.4 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-834 |
25 |
25 |
f/1 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-835 |
25 |
50 |
f/2 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-836 |
35 |
15 |
f/0.43 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-837 |
35 |
35 |
f/1 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-838 |
50 |
100 |
f/2 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-841 |
50 |
25 |
f/0.5 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-839 |
50 |
50 |
f/1 |
Protected Gold |
Ravg>96% @ 700 - 2000 |
#43-840 |
