机器视觉滤光片
TECHSPEC? Machine Vision Filters
经优化以适于热门的LED应用
备有多种接口尺寸和螺纹，以便于系统兼容
*且平坦的透射轮廓可实现均匀照明
机器视觉滤光片通用规格
| 涂层: | Hard Coated |
| 构造 : | Mounted in Black Anodized Ring |
| 光密度 OD: | ≥3.0 |
| 基片厚度（mm）: | 1.75 ±0.10 |
TECHSPEC? 机器视觉滤光片经过精心设计与制造以满足要求严格的机器视觉和成像应用。TECHSPEC机器视觉滤光片可通过或截止特定的UV、可见光或IR波长，提供极广的入射角范围。相较于传统滤光片，这几款硬镀膜滤光片可提供高截止能力以截止多余的光线，同时也提供较高的耐久性以实现较长的工作寿命。此外，这些滤光片可用于改善图像对比度，同时也可隔离光谱区域和颜色。
产品信息
| 滤光片螺纹 | 颜色 | CWL (nm) | FWHM(nm) | 透射率(%) | 产品编码 |
| M25.5 x 0.50 | Light Red | 634.00 | 70.00 | 93 avg | #89-814 |
| M25.5 x 0.50 | Dark Red | 660.00 | 66.00 | 94 avg | #89-824 |
| M25.5 x 0.50 | Green | 524.00 | 92.00 | 94 avg | #89-784 |
| M25.5 x 0.50 | Blue | 470.00 | 85.00 | 95 avg | #89-764 |
| M25.5 x 0.50 | UV/VIS Cut | 880.00 | 135.00 | 96 avg | #89-834 |
| M25.5 x 0.50 | UV/IR Cut | 548.00 | 290.00 | 95 avg | #89-794 |
| M30.5 x 0.50 | Light Red | 634.00 | 70.00 | 93 avg | #89-815 |
| M30.5 x 0.50 | Dark Red | 660.00 | 66.00 | 94 avg | #89-825 |
| M30.5 x 0.50 | Green | 524.00 | 92.00 | 94 avg | #89-785 |
| M30.5 x 0.50 | Blue | 470.00 | 85.00 | 95 avg | #89-765 |
| M30.5 x 0.50 | UV/VIS Cut | 880.00 | 135.00 | 96 avg | #89-835 |
| M30.5 x 0.50 | UV/IR Cut | 548.00 | 290.00 | 95 avg | #89-795 |
| M40.5 x 0.50 | Light Red | 634.00 | 70.00 | 93 avg | #89-818 |
| M40.5 x 0.50 | Dark Red | 660.00 | 66.00 | 94 avg | #89-828 |
| M40.5 x 0.50 | Green | 524.00 | 92.00 | 94 avg | #89-788 |
| M40.5 x 0.50 | Blue | 470.00 | 85.00 | 95 avg | #89-768 |
| M40.5 x 0.50 | UV/VIS Cut | 880.00 | 135.00 | 96 avg | #89-838 |
| M40.5 x 0.50 | UV/IR Cut | 548.00 | 290.00 | 95 avg | #89-798 |
| M43.0 x 0.75 | Light Red | 634.00 | 70.00 | 93 avg | #89-819 |
| M43.0 x 0.75 | Dark Red | 660.00 | 66.00 | 94 avg | #89-829 |
| M43.0 x 0.75 | Green | 524.00 | 92.00 | 94 avg | #89-789 |
| M43.0 x 0.75 | Blue | 470.00 | 85.00 | 95 avg | #89-769 |
| M43.0 x 0.75 | UV/VIS Cut | 880.00 | 135.00 | 96 avg | #89-839 |
| M43.0 x 0.75 | UV/IR Cut | 548.00 | 290.00 | 95 avg | #89-799 |
| M62.0 x 0.75 | Light Red | 634.00 | 70.00 | 93 avg | #89-822 |
| M62.0 x 0.75 | Dark Red | 660.00 | 66.00 | 94 avg | #89-832 |
| M62.0 x 0.75 | Green | 524.00 | 92.00 | 94 avg | #89-792 |
| M62.0 x 0.75 | Blue | 470.00 | 85.00 | 95 avg | #89-772 |
| M62.0 x 0.75 | UV/VIS Cut | 880.00 | 135.00 | 96 avg | #89-842 |
| M62.0 x 0.75 | UV/IR Cut | 548.00 | 290.00 | 95 avg | #89-802 |
| M22.5 x 0.50 | NUV | 330.00 | 95.00 | 74 avg | #89-753 |
| M34.0 x 0.50 | NUV | 330.00 | 95.00 | 74 avg | #89-756 |
| M35.5 x 0.50 | NUV | 330.00 | 95.00 | 74 avg | #89-757 |
| M46.0 x 0.75 | NUV | 330.00 | 95.00 | 74 avg | #89-760 |
| M55.0 x 0.75 | NUV | 330.00 | 95.00 | 74 avg | #89-761 |
| M22.5 x 0.50 | Cyan | 518.00 | 95.00 | 89 avg | #89-773 |
| M34.0 x 0.50 | Cyan | 518.00 | 95.00 | 89 avg | #89-776 |
| M35.5 x 0.50 | Cyan | 518.00 | 95.00 | 89 avg | #89-777 |
| M46.0 x 0.75 | Cyan | 518.00 | 95.00 | 89 avg | #89-780 |
| M55.0 x 0.75 | Cyan | 518.00 | 95.00 | 89 avg | #89-781 |
| M22.5 x 0.50 | Orange | 590.00 | 79.00 | 89 avg | #89-803 |
| M34.0 x 0.50 | Orange | 590.00 | 79.00 | 89 avg | #89-806 |
| M35.5 x 0.50 | Orange | 590.00 | 79.00 | 89 avg | #89-807 |
| M46.0 x 0.75 | Orange | 590.00 | 79.00 | 89 avg | #89-810 |
| M55.0 x 0.75 | Orange | 590.00 | 79.00 | 89 avg | #89-811 |
| M25.5 x 0.50 | NUV | 330.00 | 95.00 | 74 avg | #89-754 |
| M30.5 x 0.50 | NUV | 330.00 | 95.00 | 74 avg | #89-755 |
| M40.5 x 0.50 | NUV | 330.00 | 95.00 | 74 avg | #89-758 |
| M43.0 x 0.75 | NUV | 330.00 | 95.00 | 74 avg | #89-759 |
| M62.0 x 0.75 | NUV | 330.00 | 95.00 | 74 avg | #89-762 |
| M22.5 x 0.50 | Blue | 470.00 | 85.00 | 95 avg | #89-763 |
| M34.0 x 0.50 | Blue | 470.00 | 85.00 | 95 avg | #89-766 |
| M35.5 x 0.50 | Blue | 470.00 | 85.00 | 95 avg | #89-767 |
| M46.0 x 0.75 | Blue | 470.00 | 85.00 | 95 avg | #89-770 |
| M55.0 x 0.75 | Blue | 470.00 | 85.00 | 95 avg | #89-771 |
| M25.5 x 0.50 | Cyan | 518.00 | 95.00 | 89 avg | #89-774 |
| M30.5 x 0.50 | Cyan | 518.00 | 95.00 | 89 avg | #89-775 |
| M40.5 x 0.50 | Cyan | 518.00 | 95.00 | 89 avg | #89-778 |
| M43.0 x 0.75 | Cyan | 518.00 | 95.00 | 89 avg | #89-779 |
| M62.0 x 0.75 | Cyan | 518.00 | 95.00 | 89 avg | #89-782 |
| M22.5 x 0.50 | Green | 524.00 | 92.00 | 94 avg | #89-783 |
| M34.0 x 0.50 | Green | 524.00 | 92.00 | 94 avg | #89-786 |
| M35.5 x 0.50 | Green | 524.00 | 92.00 | 94 avg | #89-787 |
| M46.0 x 0.75 | Green | 524.00 | 92.00 | 94 avg | #89-790 |
| M55.0 x 0.75 | Green | 524.00 | 92.00 | 94 avg | #89-791 |
| M22.5 x 0.50 | UV/IR Cut | 548.00 | 290.00 | 95 avg | #89-793 |
| M34.0 x 0.50 | UV/IR Cut | 548.00 | 290.00 | 95 avg | #89-796 |
| M35.5 x 0.50 | UV/IR Cut | 548.00 | 290.00 | 95 avg | #89-797 |
| M46.0 x 0.75 | UV/IR Cut | 548.00 | 290.00 | 95 avg | #89-800 |
| M55.0 x 0.75 | UV/IR Cut | 548.00 | 290.00 | 95 avg | #89-801 |
| M25.5 x 0.50 | Orange | 590.00 | 79.00 | 89 avg | #89-804 |
| M30.5 x 0.50 | Orange | 590.00 | 79.00 | 89 avg | #89-805 |
| M40.5 x 0.50 | Orange | 590.00 | 79.00 | 89 avg | #89-808 |
| M43.0 x 0.75 | Orange | 590.00 | 79.00 | 89 avg | #89-809 |
| M62.0 x 0.75 | Orange | 590.00 | 79.00 | 89 avg | #89-812 |
| M22.5 x 0.50 | Light Red | 634.00 | 70.00 | 93 avg | #89-813 |
| M34.0 x 0.50 | Light Red | 634.00 | 70.00 | 93 avg | #89-816 |
| M35.5 x 0.50 | Light Red | 634.00 | 70.00 | 93 avg | #89-817 |
| M46.0 x 0.75 | Light Red | 634.00 | 70.00 | 93 avg | #89-820 |
| M55.0 x 0.75 | Light Red | 634.00 | 70.00 | 93 avg | #89-821 |
| M22.5 x 0.50 | Dark Red | 660.00 | 66.00 | 94 avg | #89-823 |
| M34.0 x 0.50 | Dark Red | 660.00 | 66.00 | 94 avg | #89-826 |
| M35.5 x 0.50 | Dark Red | 660.00 | 66.00 | 94 avg | #89-827 |
| M46.0 x 0.75 | Dark Red | 660.00 | 66.00 | 94 avg | #89-830 |
| M55.0 x 0.75 | Dark Red | 660.00 | 66.00 | 94 avg | #89-831 |
| M22.5 x 0.50 | UV/VIS Cut | 880.00 | 135.00 | 96 avg | #89-833 |
| M34.0 x 0.50 | UV/VIS Cut | 880.00 | 135.00 | 96 avg | #89-836 |
| M35.5 x 0.50 | UV/VIS Cut | 880.00 | 135.00 | 96 avg | #89-837 |
| M46.0 x 0.75 | UV/VIS Cut | 880.00 | 135.00 | 96 avg | #89-840 |
| M55.0 x 0.75 | UV/VIS Cut | 880.00 | 135.00 | 96 avg | #89-841 |

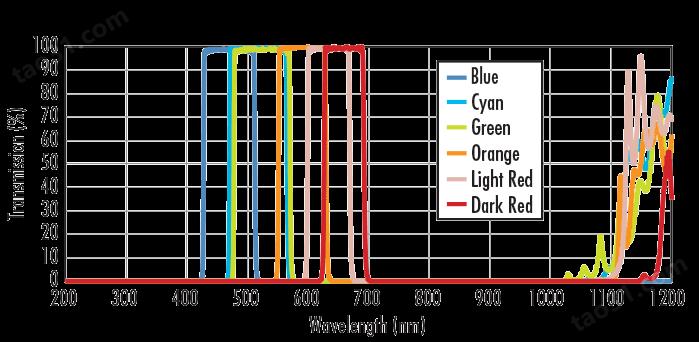

技术数据
?
