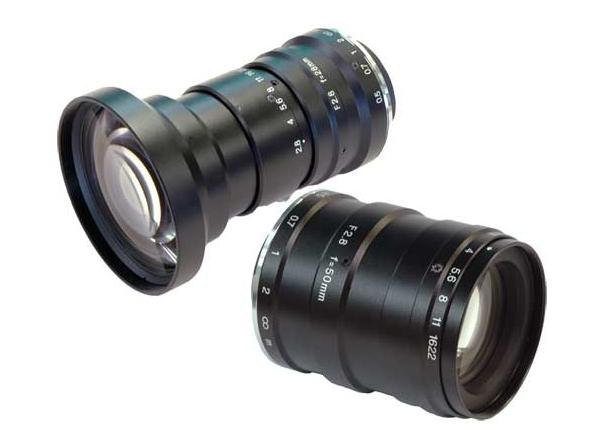

线性传感器镜头
线性传感镜头
Line sensor Lenses Specifications |
|||||||
Item No. |
Focal Length |
Iris Range |
Sensor Size |
MOD |
Frange Back |
Filter Size |
Mount |
GLSW2528F |
25mm |
F2.8 -22 |
?44mm |
150mm |
- |
M77xP0.75 |
F,M58 |
GLS2828F |
28.5mm |
F2.8 -16 |
?30mm(3CCD) |
0.5m |
46.5mm in air |
M58 x 0.75 |
F-Mount |
GLSW3528F |
35mm |
F2.8 - 22 |
?44mm |
150mm |
- |
M52 x 0.75 |
F,M58 |
GLS3528F |
35mm |
F2.8 - 22 |
?30mm(3CCD) |
0.5m |
46.5mm in air |
M62 x 0.75 |
F-Mount |
GLS5014F |
51.55mm |
F1.4 - 16 |
?29mm |
0.358m |
46.5mm in air |
M58 x 0.75 |
F-Mount |
GLSW5028F |
50mm |
F2.8 - 22 |
?44mm |
300mm |
- |
M67 x 0.75 |
F,M58 |
GLS5028F |
52.0mm |
F2.8 -16 |
?30mm(3CCD) |
0.5m |
46.5mm in air |
M46 x 0.75 |
F-Mount |
GLS5526F |
54.6mm |
F2.6 - 16 |
?44mm |
146mm(x0.067)-163.6mm(x0.35) only |
46.5mm in air |
M67 x 0.75 |
F-Mount |
GLS8556M+ADP |
85mm |
F5.6-32 |
?58mm |
0.8m |
- |
possible,if enough Quantity |
550g |
GLS10028F |
100mm |
F2.8-32 |
?43mm |
0.3m |
46.5mm in air |
M55 x 0.75 |
F-Mount |
?
大尺寸传感器目侧远心镜头
Large Format Sensor Objekt Side Telecentric Lenses |
|||||||
Item No. |
Magnification |
Focal Length |
Image Size |
Object Space MTF |
Distortion |
Mount |
Weight |
LX2.35 |
X2.35 |
166.5mm |
?64mm |
235Line/mm |
0.03% |
M72x0.75 |
2.2kgs |
LX2.5 |
X2.5 |
143.65mm |
?84mm |
250Line/mm |
0.01% |
M95x1 |
2.2kgs |
LX3.5 |
X3.5 |
143.65mm |
?84mm |
350Line/mm |
0.01% |
M95x1 |
2.2kgs |
LX5 |
X5 |
143.65mm |
?84mm |
350Line/mm |
0% |
M95x1 |
2.2kgs |
