平凹镜片镀NIR增透膜

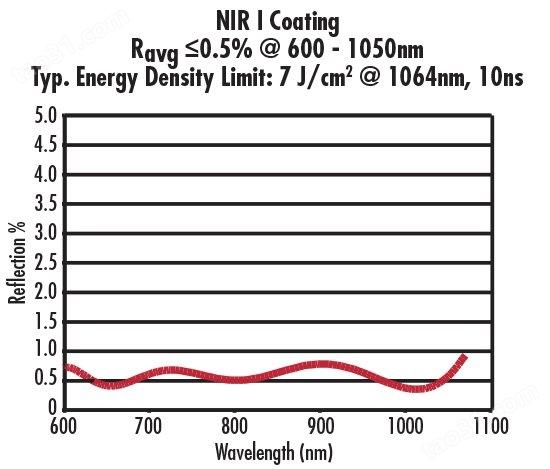

1）在880nm每个面的反射率小于0.25%
2）在 600-1050波段反射率小于0.5%
3）设计入射角为0度
平凹透镜(PCV)一面为平面，另一面为向内弯曲的面，焦距为负，可用于缩小成像或发散光线，所有尺寸都是毫米为单位。
平凹镜片镀NIR增透膜
技术数据
订购信息：
| Dia. (mm) |
EFL (mm) |
BFL (mm) |
涂层 |
基底 |
产品编码 |
| 3.00 | -6.00 | -6.56 | NIR I (600-1050nm) | N-SF11 | #84-383 |
| 3.00 | -9.00 | -9.56 | NIR I (600-1050nm) | N-SF11 | #84-384 |
| 6.00 | -6.00 | -6.84 | NIR I (600-1050nm) | N-SF11 | #49-516 |
| 6.00 | -9.00 | -9.84 | NIR I (600-1050nm) | N-SF11 | #49-517 |
| 6.00 | -12.00 | -12.99 | NIR I (600-1050nm) | N-BK7 | #49-518 |
| 6.00 | -15.00 | -16.32 | NIR I (600-1050nm) | N-BK7 | #49-519 |
| 6.00 | -18.00 | -19.32 | NIR I (600-1050nm) | N-BK7 | #49-520 |
| 9.00 | -9.00 | -10.21 | NIR I (600-1050nm) | N-SF11 | #49-521 |
| 9.00 | -12.00 | -13.26 | NIR I (600-1050nm) | N-SF11 | #49-522 |
| 9.00 | -18.00 | -19.26 | NIR I (600-1050nm) | N-SF11 | #49-523 |
| 9.00 | -27.00 | -28.68 | NIR I (600-1050nm) | N-SF11 | #49-524 |
| 12.00 | -12.00 | -13.23 | NIR I (600-1050nm) | N-SF11 | #49-525 |
| 12.00 | -15.00 | -16.68 | NIR I (600-1050nm) | N-SF11 | #49-526 |
| 12.00 | -18.00 | -19.95 | NIR I (600-1050nm) | N-SF11 | #49-527 |
| 12.00 | -24.00 | -26.32 | NIR I (600-1050nm) | N-BK7 | #49-528 |
| 12.00 | -48.00 | -50.31 | NIR I (600-1050nm) | N-BK7 | #49-530 |
| 20.00 | -30.00 | -31.96 | NIR I (600-1050nm) | N-SF11 | #49-531 |
| 20.00 | -40.00 | -42.31 | NIR I (600-1050nm) | N-BK7 | #49-532 |
| 20.00 | -50.00 | -52.31 | NIR I (600-1050nm) | N-BK7 | #49-533 |
| 20.00 | -100.00 | -102.88 | NIR I (600-1050nm) | N-BK7 | #22-247 |
| 25.00 | -25.00 | -26.96 | NIR I (600-1050nm) | N-SF11 | #49-534 |
| 25.00 | -35.00 | -36.96 | NIR I (600-1050nm) | N-SF11 | #49-535 |
| 25.00 | -50.00 | -52.31 | NIR I (600-1050nm) | N-BK7 | #49-536 |
| 25.00 | -100.00 | -102.31 | NIR I (600-1050nm) | N-BK7 | #49-537 |
| 50.00 | -100.00 | -103.30 | NIR I (600-1050nm) | N-BK7 | #49-538 |
| 50.00 | -125.00 | -128.30 | NIR I (600-1050nm) | N-BK7 | #49-539 |
