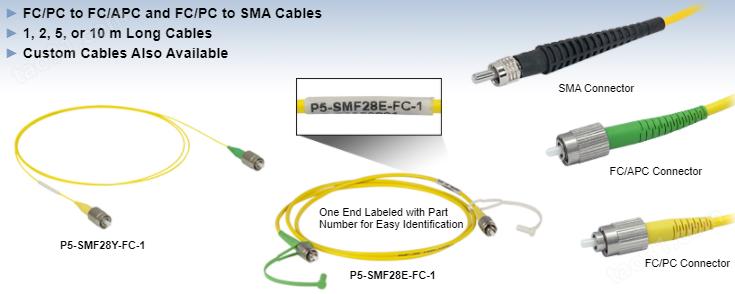

单模光纤跳线，混合接头
特性
Thorlabs的混合接头单模光纤跳线具有FC/PC转FC/APC接头或FC/PC转SMA接头。这些跳线简化了光纤应用中的接头连接。FC/PC和FC/APC接头经过高质量的机械抛光，具有50 dB或更高的回波损耗，而SMA接头则为手工抛光，以确保最/佳的插芯高度公差(0.3860英寸到0.3863英寸)。
所有跳线都带有一个?3 mm黄色PVC或?900 μm黄色Hytrel?*分叉管，以及两个保护帽，可防止插芯端受灰尘和其它污染物的污染。我们也单独出售防尘帽(用于FC/PC和FC/APC接头的CAPF塑料光纤帽和CAPFM金属螺纹防尘帽；用于SMA接头的CAPM橡胶光纤帽和CAPSM金属螺纹防尘帽)。我们还提供匹配套管，可连接FC转FC，SMA转SMA，和FC转SMA接头。这些匹配套管能将背向反射降到最少，并保证光纤纤芯正确对准。
对于更短波长，Thorlabs还提供低插入损耗的光纤跳线，它们为人工挑选的单模光纤，具有严格的纤芯同心度规格，以提供低插入损耗和高透射率。我们还提供镀增透膜的单模跳线，此跳线一端镀有增透膜，在光纤到自由空间的应用中可提供更好的性能。
单模光纤跳线，混合接头，320 - 430 nm| Item # | Connectors | FiberType | Operatin gWavelength |
Cutoff Wavelength |
Mode FieldDiameter | Claddin gDiameter |
Max Attenuationa |
NA | Furcatio nTubing |
| P5-305A-PCAPC-1 | FC/PC to FC/APC |
SM300 | 320 - 430 nm | ≤310 nm | 2.0 - 2.4 μm @ 350 nm |
125 ± 1.0 μm | ≤70 dB/km @ 350 nm | 0.12 - 0.14 |
?3 mm Yellow PVC |
| P5-305A-PCAPC-1 | 单模光纤跳线，320 - 430 nm，FC/PC转FC/APC，?3 mm护套，长1 m |
| Item # | Connectors | Fiber Type |
Operating Wavelength |
Cutoff Wavelength |
Mode Field Diameter |
Cladding? Diameter |
Max Attenuationa |
NA | Furcation Tubing |
| P5-405B-PCAPC-1 | FC/PC to FC/APC |
SM400 | 405 - 532 nm | 305 - 400 nm | 2.5 - 3.4 μm @ 480 nm | 125 ± 1.0 μm | ≤50 dB/km @ 430 nm? ≤30 dB/km @ 532 nm |
0.12 - 0.14 | ?3 mm ? Yellow PVC |
| P2-405B-PCSMA-1 | FC/PC to SMA |
| P5-405B-PCAPC-1 | 单模光纤跳线，405 - 532 nm，FC/PC转APC，?3 mm护套，长1 m |
| P2-405B-PCSMA-1 | 单模光纤跳线，405 - 532 nm，FC/PC转SMA，?3 mm护套，长1 m |
| Item # | Connectors | FiberType | Operatin gWavelengtha |
Cutoff Wavelengtha |
Mode Field Diameter |
Cladding Diameter |
Max Attenuationb |
NA | Furcatio nTubing |
| P5-460B-PCAPC-1 | FC/PC to FC/APC |
SM450 | 488 - 633 nm | 350 - 470 nm |
2.8 - 4.1 μm @ 488 nm |
125 ± 1.0 μm | ≤50 dB/km @ 488 nm | 0.10 - 0.14 | ?3 mm Yellow PVC |
| P2-460B-PCSMA-1 | FC/PC to SMA |
| P5-460B-PCAPC-1 | 单模光纤跳线，488 - 633 nm，FC/PC转FC/APC，?3 mm护套，长1 m |
| P2-460B-PCSMA-1 | 单模光纤跳线，488 - 633 nm，FC/PC转SMA，?3 mm护套，长1 m |
| Item # | Connectors | FiberType | Operatin gWavelength |
Cutoff Wavelength |
Mode Field Diameter |
Cladding Diameter |
Max Attenuationb |
NA | Furcatio nTubing |
| P5-630Y-FC-1 | FC/PC to FC/APC |
SM600 | 633 - 780?nma | 500 - 600 nm | 3.6 - 5.3 μm @ 633 nm |
125 ± 1.0 μm | ≤15 dB/km | 0.10 - 0.14 | ?900 μm Yellow?Hytrel? |
| P5-630A-PCAPC-1 | FC/PC to FC/APC |
?3 mm Yellow PVC | |||||||
| P2-630A-PCSMA-1 | FC/PC to SMA |
| P5-630Y-FC-1 | 单模光纤跳线，633 - 780 nm，FC/PC转FC/APC，?900 μm护套，长1 m |
| P5-630A-PCAPC-1 | 单模光纤跳线，633 - 780 nm，FC/PC转FC/APC，?3 mm护套，长1 m |
| P2-630A-PCSMA-1 | 单模光纤跳线，633 - 780 nm，FC/PC转SMA，?3 mm护套，长1 m |
| Item # | Connectors | Fiber? Type |
Operating Wavelength |
Cutoff Wavelength |
Mode Field Diameter |
Cladding Diameter |
Max? Attenuationa |
NA | Furcation Tubing |
| P5-780A-PCAPC-1 | FC/PC to FC/APC |
780HP | 780 - 970 nm | 730 ± 30 nm | 5.0 ± 0.5 μm @ 850 nm |
125 ± 1 μm | ≤4.0 dB/km @ 780 nm ≤3.5 dB/km @ 850 nm |
0.13 | ?3 mm Yellow PVC |
| P5-780A-FC-2 | |||||||||
| P5-780A-FC-5 | |||||||||
| P5-780A-FC-10 | |||||||||
| P2-780A-PCSMA-1 | FC/PC to SMA |
| P5-780Y-FC-1 | 单模光纤跳线，780 - 970 nm，FC/PC转FC/APC，?900 μm护套，长1 m |
| P5-780Y-FC-2 | 单模光纤跳线，780 - 970 nm，FC/PC转FC/APC，?900 μm护套，长2 m |
| P5-780A-PCAPC-1 | 单模光纤跳线，780 - 970 nm，FC/PC转FC/APC，长1 m |
| P5-780A-FC-2 | 单模光纤跳线，780 - 970 nm，FC/PC转FC/APC，长2 m |
| P5-780A-FC-5 | 单模光纤跳线，780 - 970 nm，FC/PC转FC/APC，长5 m |
| P5-780A-FC-10 | 单模光纤跳线，780 - 970 nm，FC/PC转FC/APC，长10 m |
| P2-780A-PCSMA-1 | 单模光纤跳线，780 - 970 nm，FC/PC转SMA，长1 m |
| Item # | Connectors | Fiber Type | Operatin gWavelength |
Cutoff Wavelength |
Mode Field Diameter |
Cladding Diameter |
Max Attenuationa |
NA | Furcatio nTubing |
| P5-830A-PCAPC-1 | FC/PC to FC/APC |
SM800-5.6-125 | 830 - 980?nmb | 660 - 800 nm |
4.7 - 6.9 μm@ 830 nm |
125 ± 1.0 μm | < 5 dB/km | 0.10 - 0.14 | ?3 mm Yellow PVC |
| P2-830A-PCSMA-1 | FC/PC to SMA |
| P5-830A-PCAPC-1 | 单模光纤跳线，830 - 980 nm，FC/PC转FC/APC，?3 mm护套，长1 m |
| P2-830A-PCSMA-1 | 单模光纤跳线，830 - 980 nm，FC/PC转SMA，?3 mm护套，长1 m |
| Item # | Connectors | Fibe rType |
Operatin gWavelength |
Cutoff Wavelength |
Mode FieldDiameter | Claddin gDiameter |
Max Attenuationa |
NA | Furcatio nTubing |
| P5-980A-PCAPC-1 | FC/PC to FC/APC |
SM980-5.8-125 | 980 - 1550 nm | 870 - 970 nm | 5.3 - 6.4 μm @ 980 nm | 125 ± 1.0 μm | ≤2.0 dB/km | 0.13 - 0.15 | ?3 mm Yellow PVC |
| P2-980A-PCSMA-1 | FC/PC to SMA |
| P5-980A-PCAPC-1 | 单模光纤跳线，980 - 1550 nm，FC/PC转FC/APC，?3 mm护套，长1 m |
| P2-980A-PCSMA-1 | 单模光纤跳线，980 - 1550 nm，FC/PC转SMA，?3 mm护套，长1 m |
| Item # | Connectors | Fibe rType |
Operatin gWavelength |
Cutoff Wavelength |
Mode Field Diameter |
Claddin gDiameter |
Max Attenuationa |
NA | Furcatio nTubing |
| P5-1064Y-FC-1 | FC/PC to FC/APC |
HI1060-J9 | 980 - 1650 nm | 920 ± 50 nm | 5.9 ± 9.3 μm @ 980 nm6.2 ± 0.3 μm @ 1060 nm | 125 ± 0.5 μm | 2.1 dB/km @ 980 nm1.5 dB/km @1060 nm | 0.14 | ?900 μm?Hytrel? |
| P5-1064Y-FC-2 | |||||||||
| P5-1064Y-FC-5 |
| P5-1064Y-FC-1 | 单模光纤跳线，980 - 1650 nm，FC/PC转FC/APC，?900 μm护套，长1 m |
| P5-1064Y-FC-2 | 单模光纤跳线，980 - 1650 nm，FC/PC转FC/APC，?900 μm护套，长2 m |
| P5-1064Y-FC-5 | 单模光纤跳线，980 - 1650 nm，FC/PC转FC/APC，?900 μm护套，长5 m |
| Item # | Connectors | FiberType | Operatin gWavelength |
Cutoff Wavelength |
Mode FieldDiameter | Claddin gDiameter |
Max Attenuationa |
NA | Furcatio nTubing |
| P5-SMF28Y-FC-1 | FC/PC to FC/APC |
SMF-28 Ultra | 1260 - 1625 nm | <1260 nm | 9.2 ± 0.4 μm @ 1310 nm10.4 ± 0.5?μm?@ 1550 nm |
125 ± 0.7 μm | ≤0.32 dB/km @ 1310 nm≤0.18 dB/km @ 1550 nm | 0.14 | ?900 μm?Hytrel? |
| P5-SMF28Y-FC-2 | |||||||||
| P5-SMF28Y-FC-5 | |||||||||
| P5-SMF28E-FC-1 | FC/PC to FC/APC |
?3 mm Yellow PVC | |||||||
| P5-SMF28E-FC-2 | |||||||||
| P5-SMF28E-FC-5 | |||||||||
| P2-SMF28-PCSMA-1 | FC/PC to SMA |
| P5-SMF28Y-FC-1 | 单模光纤跳线, 1260 - 1625 nm，FC/PC转FC/APC，?900 μm护套，长1米 |
| P5-SMF28Y-FC-2 | 单模光纤跳线，1260 - 1625 nm，FC/PC转FC/APC，?900 μm护套，长2 m |
| P5-SMF28Y-FC-5 | 单模光纤跳线，1260 - 1625 nm，FC/PC转FC/APC，?900 μm护套，长5 m |
| P5-SMF28E-FC-1 | 单模光纤跳线, 1260 - 1625 nm，FC/PC转FC/APC，?3 mm护套，长1 m |
| P5-SMF28E-FC-2 | 单模光纤跳线，1260 - 1625 nm，FC/PC转FC/APC，?3 mm护套，长2 m |
| P5-SMF28E-FC-5 | 单模光纤跳线，1260 - 1625 nm，FC/PC转FC/APC，?3 mm护套，长5 m |
| P2-SMF28-PCSMA-1 | 单模光纤跳线，1260 - 1625 nm，FC/PC转SMA，?3 mm护套，长1 m |
| Item # | Connectors | FiberType | Operatin gWavelength |
Cutoff Wavelength |
Mode Field Diameter |
Claddin gDiameter |
Typical Attenuationa |
NA | Furcatio nTubing |
| P5-2000-PCAPC-1 | FC/PC to FC/APC |
SM2000 | nm |
1750 ± 50 nm | 13 ± 1 μm@ 1996 nm |
125 ± 1 μm |
20 dB/km (0.02 dB/m) @ 1.9 μmb 250 dB/km (0.25 dB/m) @ 2.3 μmb |
0.12 ± 0.01 | ?3 mm Yellow PVC |
| P2-2000-PCSMA-1 | FC/PC to SMA |
| P5-2000-PCAPC-1 | 单模光纤跳线，nm，FC/PC转FC/APC，?3 mm护套，长1 m |
| P2-2000-PCSMA-1 | 单模光纤跳线，nm，FC/PC转SMA，?3 mm护套，长1 m |
