Andover硬涂层窄带滤光片
Andover硬涂层窄带滤光片
我们的*个表面，硬涂层窄带滤光片采用磁控溅射，沉积在硼硅酸盐玻璃上的硬氧化物涂层，不使用任何吸收滤光玻璃，使其适合高温应用。它们提供了从高峰值透射到OD4阻塞的陡峭过渡。波长334～1550nm，包括所有主要的激光线和原子吸收线。所有滤光片安装在黑色阳极氧化铝环，以提供保护和易于识别。
通用规格：
| 厚度： | 5.0 ±0.1mm |
| 尺寸公差： | +0.0 / -0.1mm |
| 小通光孔径： | 21mm dia. |
| 基底材质： | Borosilicate Glass |
| 平坦度： | 3-5 waves |
| 表面质量： | 60-40 per MIL-C-48497A |
| 湿度和磨损： | Per MIL-C-67 |
| 耐久性： | Per MIL-C-48497A |
| 工作温度： | -50°C to +200°C |
| 机械： | Mounted in black anodized aluminum ring |

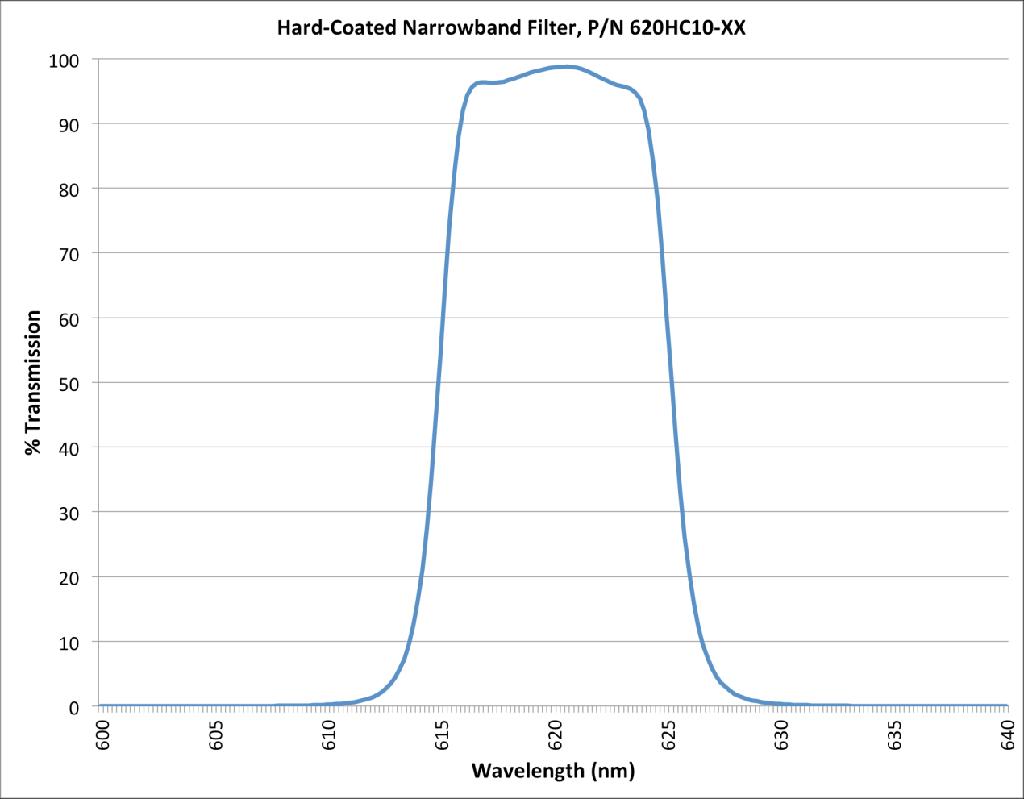

典型的光谱曲线:
订购信息：
| 描述 | 型号 |
| 334nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 334HC10-25 |
| 337nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 337HC10-25 |
| 340nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 340HC10-25 |
| 365nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 365HC10-25 |
| 375nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 375HC10-25 |
| 394nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 394HC10-25 |
| 400nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 400HC10-25 |
| 405nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 405HC10-25 |
| 420nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 420HC10-25 |
| 430nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 430HC10-25 |
| 436nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 436HC10-25 |
| 440nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 440HC10-25 |
| 442nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 442HC10-25 |
| 455nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 455HC10-25 |
| 458nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 458HC10-25 |
| 460nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 460HC10-25 |
| 470nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 470HC10-25 |
| 480nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 480HC10-25 |
| 486nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 486HC10-25 |
| 488nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 488HC10-25 |
| 492nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 492HC10-25 |
| 500nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 500HC10-25 |
| 508nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 508HC10-25 |
| 510nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 510HC10-25 |
| 515nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 515HC10-25 |
| 520nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 520HC10-25 |
| 532nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 532HC10-25 |
| 535nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 535HC10-25 |
| 540nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 540HC10-25 |
| 546nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 546HC10-25 |
| 550nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 550HC10-25 |
| 560nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 560HC10-25 |
| 568nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 568HC10-25 |
| 580nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 580HC10-25 |
| 589nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 589HC10-25 |
| 594nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 594HC10-25 |
| 600nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 600HC10-25 |
| 610nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 610HC10-25 |
| 620nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 620HC10-25 |
| 632nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 632HC10-25 |
| 636nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 636HC10-25 |
| 640nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 640HC10-25 |
| 647nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 647HC10-25 |
| 650nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 650HC10-25 |
| 656nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 656HC10-25 |
| 660nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 660HC10-25 |
| 671nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 671HC10-25 |
| 676nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 676HC10-25 |
| 680nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 680HC10-25 |
| 685nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 685HC10-25 |
| 690nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 690HC10-25 |
| 700nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 700HC10-25 |
| 730nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 730HC10-25 |
| 750nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 750HC10-25 |
| 766nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 766HC10-25 |
| 770nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 770HC10-25 |
| 780nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 780HC10-25 |
| 785nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 785HC10-25 |
| 800nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 800HC10-25 |
| 810nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 810HC10-25 |
| 830nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 830HC10-25 |
| 850nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 850HC10-25 |
| 852nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 852HC10-25 |
| 880nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 880HC10-25 |
| 905nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 905HC10-25 |
| 940nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 940HC10-25 |
| 950nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 950HC10-25 |
| 980nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 980HC10-25 |
| 1064nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 1064HC10-25 |
| 1550nm CWL, 10.0nm Bandwidth, 25.0 mm Diameter, Hard-Coated Narrowband Filter | 1550HC10-25 |
