Battery Biased Fiber-Optic Detectors

Battery Biased Fiber-Optic Detectors

Our battery biased fiber-optic detectors are coupled to a 1 m length singlemode fiberwith an FC connector. We have already done the alignment for you with these fiber models as the PIN diodes used for these particular models are quite small (<40 μm).

Battery Biased Fiber-Optic Detectors

对比	型号
	818-BB-35F偏压光电探测器，1000-1650nm，InGaAs，12.5 GHz，FC/UPC
	818-BB-45F偏压光电探测器，400-900nm，GaAs，12.5 GHz，FC/UPC
	818-BB-51F偏压光电探测器，1475-2100 nm，扩展型 InGaAs，12.5 GHz，FC/UPC

产品规格

型号	818-BB-35F	818-BB-45F	818-BB-51F
探测器材料	InGaAs	GaAs	Extended InGaAs
探测器直径	0.032 mm	0.040 mm	0.040 mm
探测器类型	PIN	PIN	PIN
波长范围	1000-1650 nm	500-890 nm	830-2150 nm
偏置电压/偏压	6 V	6 V	3 V
3 dB 带宽	DC to 15 GHz	DC to 12.5 GHz	DC to 10 GHz
上升时间	25 ps	30 ps	28 ps
响应度	0.88 A/W @ 1550 nm	0.45 A/W @ 850 nm	0.95 A/W @ 2000 nm
光纤接头	FC/UPC	FC/UPC	FC/UPC
光纤类型	Singlemode	Singlemode	Singlemode
NEP	<0.04 pW/√Hz	<0.02 pW/√Hz	<0.6 pW/√Hz @ 2000 nm
暗电流	< 3 nA	< 200 pA	<1 μA
饱和电流	10 mA	10 mA	?
反向击穿电压	25 V	30 V	?
结电容	<0.12 pF	<0.3 pF	?
输出接头	SMA	SMA	SMA
螺纹类型	8-32 and M4	8-32 and M4	8-32 and M4

特征

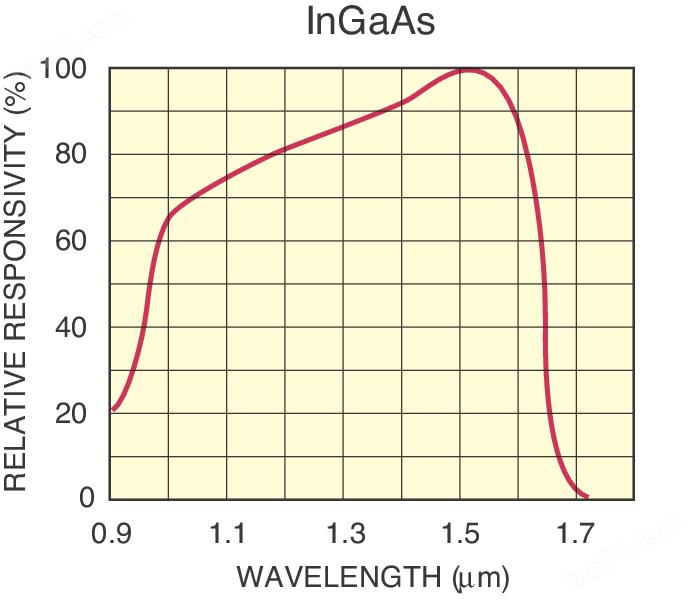

Biased InGaAs Fiber-Optic Detector

The 818-BB-35F
features a 0.032
mm diameter battery biased InGaAs
photodetector with a wavelength range of 1000 to 1650
nm.?
The detector is coupled to a 1 meter singlemode SMF 28e fiber with a FC/UPC connector. The
PIN Photodetector
utilizes the photovoltaic effect to convert optical power into an electrical current.

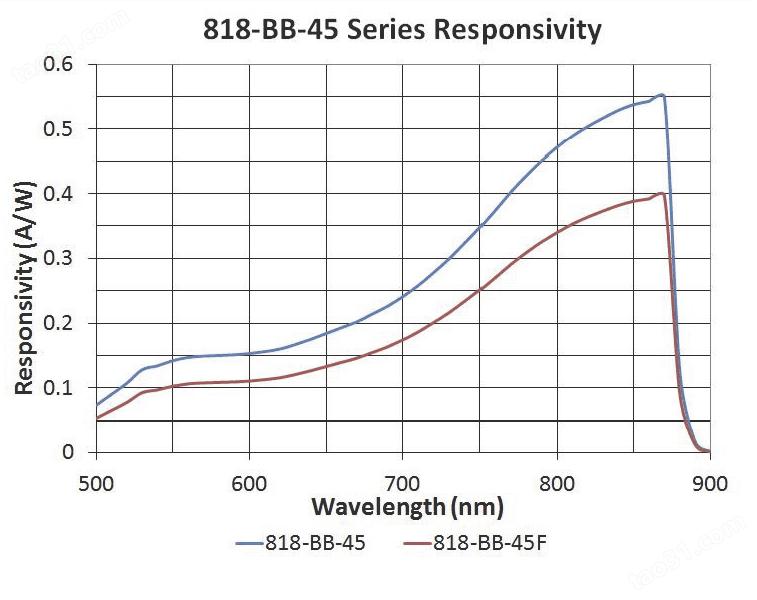

Battery Biased GaAs Fiber-Optic Detector

The 818-BB-45F
features a high speed 0.04
mm diameter battery biased GaAs
photodetector with a wavelength range of 400 to 900 nm.
The detector is coupled to a 1 meter singlemode SMF 28e fiber with a FC/UPC connector.

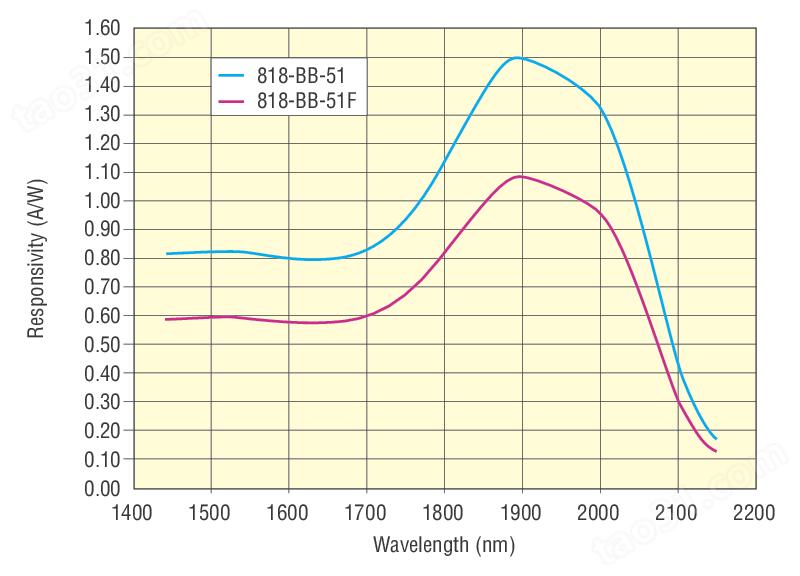

Extended InGaAs Fiber-Optic Detectors

The 818-BB-51F
features a high speed 0.04
mm diameter battery biased Extended InGaAs
photodetector with an extended wavelength range of 1475
to 2100 nm allowing monitoring of Thulium (Tm) and Holmium (Ho) doped lasers and other NIR lasers. The detector is coupled to a 1 meter singlemode SMF 28e fiber with a FC/UPC connector.

DC to 12.5 GHz Bandwidth

All of these high speed battery biased fiber-optic detectors offer a 3 dB bandwidth from DC to 12.5 GHz.?
The Frequency response of the 818-BB-51F is shown below.

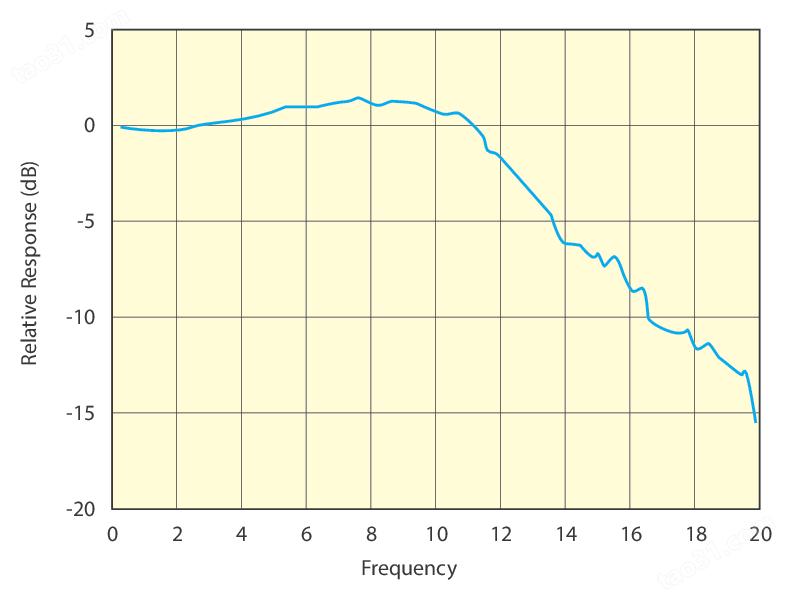

Frequency response of the 818-BB-51F

Measure Pulsewidth or Frequency Response

These high speed detectors make a great fiber-optic front end for?an?scope or spectrum analyzer.?
When terminated into 50??into an oscilloscope, the pulsewidth of a laser can be measured. When terminated into a spectrum analyzer, the frequency response of a laser can be measured.

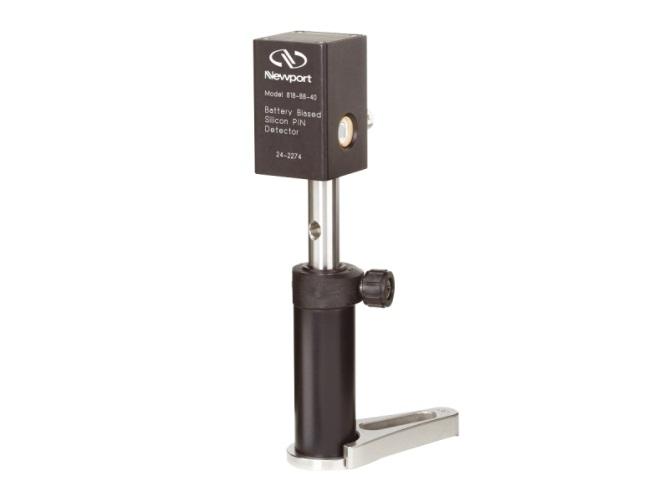

Optical Post Mounting

An 8-32 threaded hole at the bottom of 818-BB biased photoreceivers allows for optical post mounting.

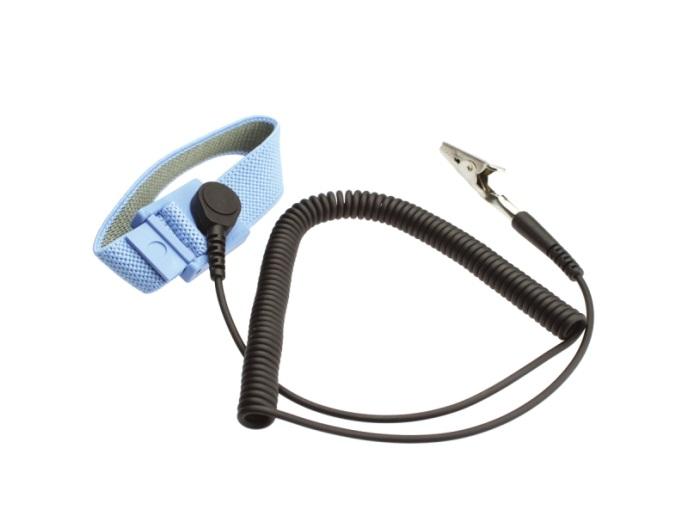

Handle With ESD Care

These detectors are very susceptible to damage by electrostatic discharge (ESD). Please use ESD protective measures, like the FK-STRAP ,?when unpacking and handling these devices.
