Andover彩色带通滤光玻璃
Andover彩色带通滤光玻璃对提高照明系统的信噪比非常有用，它能透射宽波段的能量，同时阻挡较短和较长的波长。与所有Andover的滤光片一样，定制的尺寸可以根据要求提供，也可以安装在螺纹环上。

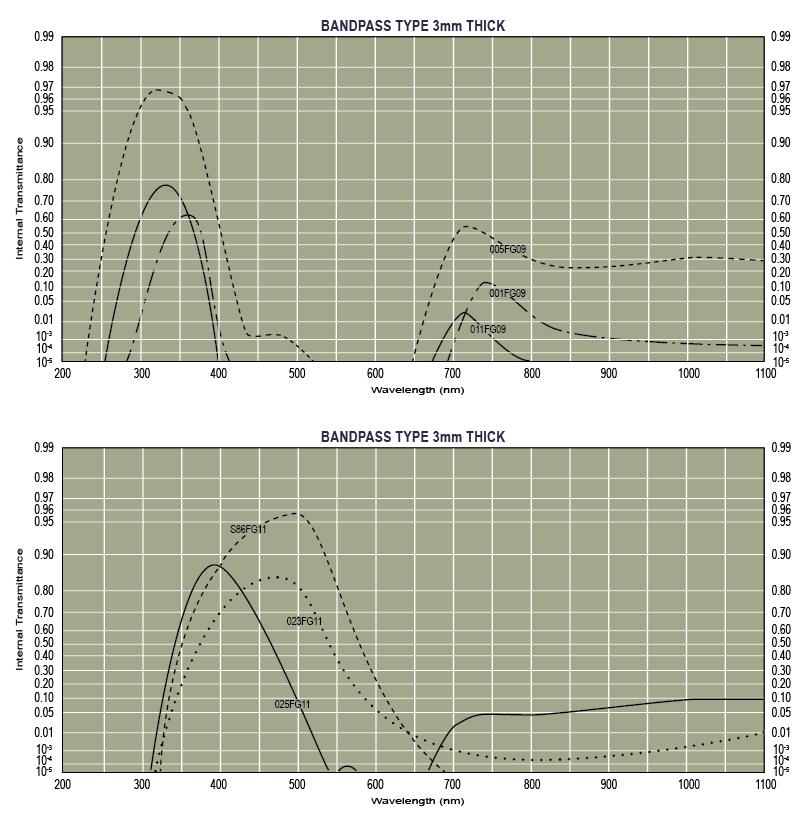

所有的图都显示了标准3mm厚度的内部透光率。我们可以根据要求对其他厚度进行抛光。我们的内部制造和抛光能力使我们能够提供一个快速周转的定制零件。
通用规格：
| 光学厚度： | 3mm ±0.5mm |
| 机械厚度： | Add 0.8mm for ring mount |
| 尺寸公差： | +0.00/-0.25mm |
| 表面质量： | 80/50 per MIL-M-13508 |
| 大工作温度： | +100°C |
| 透射波前(TWF): | 1/4 wave per inch |
| 平行度： | 30 arc seconds or better |
| 光谱数据： | Stated as internal transmittance |
| 机械： | Mounted, except for squares |
注意：除非另有要求，所有的165mm零件都要裁角。
订购信息：
| 描述 | 型号 |
| UG-1 Filter Glass, 165mm x 165mm x 3mm | 001FG09-165S |
| UG-1 Filter Glass, 25mm diameter | 001FG09-25 |
| UG-1 Filter Glass, 50mm diameter | 001FG09-50 |
| UG-1 Filter Glass, 50mm x 50mm x 3mm | 001FG09-50S |
| UV Filter Glass, 165mm x 165mm x 3mm | 005FG09-165S |
| UG-5 Filter Glass, 25mm diameter | 005FG09-25 |
| UV Filter Glass, 50mm diameter | 005FG09-50 |
| UV Filter Glass, 50mm x 50mm x 3mm | 005FG09-50S |
| UV Filter Glass, 165mm x 165mm x 3mm | 011FG09-165S |
| UG-11 Filter Glass, 25mm diameter | 011FG09-25 |
| UV Filter Glass, 50mm diameter | 011FG09-50 |
| UV Filter Glass, 50mm x 50mm x 3mm | 011FG09-50S |
| Blue Filter Glass, 165mm x 165mm x 3mm (BG-23 or equivalent) | 023FG11-165S |
| BG-23 Filter Glass, 25mm diameter (BG-23 or equivalent) | 023FG11-25 |
| BG-23 Filter Glass, 50mm diameter (BG-23 or equivalent) | 023FG11-50 |
| BG-23 Filter Glass, 50mm x 50mm x 3mm (BG-23 or equivalent) | 023FG11-50S |
| BG-25 Filter Glass, 165mm x 165mm x 3mm | 025FG11-165S |
| BG-25 Filter Glass, 25mm diameter | 025FG11-25 |
| BG-25 Filter Glass, 50mm diameter | 025FG11-50 |
| BG-25 Filter Glass, 50mm x 50mm x 3mm | 025FG11-50S |
| BG-40 Filter Glass, 165mm x 165mm x 3mm | 040FG11-165S |
| BG-40 Filter Glass, 25mm diameter | 040FG11-25 |
| BG-40 Filter Glass, 50mm diameter | 040FG11-50 |
| BG-40 Filter Glass, 50mm x 50mm x 3mm | 040FG11-50S |
| S-8612 Filter Glass, 165mm square | S86FG11-165S |
| S-8612 Filter Glass, 25mm diameter | S86FG11-25 |
| S-8612 Filter Glass, 50mm diameter | S86FG11-50 |
| S-8612 Filter Glass, 50mm square | S86FG11-50S |
