Andover彩色长通滤光玻璃
Andover彩色长通滤光玻璃对于顺序分拣应用是有用的。它们在透射较长的波长的同时，透射短的波长。与所有Andover的滤光片一样，定制尺寸可以根据要求提供，也可以安装在螺纹环中。

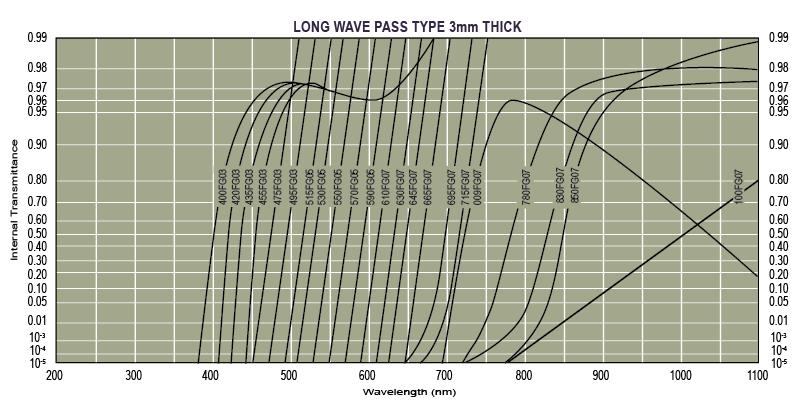

所有图表显示在标准3mm厚度的内部透射率。我们可以根据要求抛光其他厚度。我们的内部制造和抛光能力使我们能够提供快速定制零件的周转。
通用规格：
| 光学厚度： | 3mm ±0.5mm |
| 机械厚度： | Add 0.8mm for ring mount |
| 尺寸公差： | +0.00/-0.25mm |
| 表面质量： | 80/50 per MIL-M-13508 |
| 大工作温度： | +100°C |
| 透射波前(TWF): | 1/4 wave per inch |
| 平行度： | 30 arc seconds or better |
| 光谱数据： | Stated as internal transmittance |
| 机械： | Mounted, except for squares |
注意：除非另有要求，所有的165mm零件都要裁角。
订购信息：
| 描述 | 型号 |
| RG-9 Filter Glass, 165mm x 165mm x 3mm | 009FG07-165S |
| RG-9 Filter Glass, 25mm diameter | 009FG07-25 |
| RG-9 Filter Glass, 50mm diameter | 009FG07-50 |
| RG-9 Filter Glass, 50mm x 50mm x 3mm | 009FG07-50S |
| RG-1000 Filter Glass, 165mm x 165mm x 3mm | 100FG07-165S |
| RG-1000 Filter Glass, 25mm diameter | 100FG07-25 |
| RG-1000 Filter Glass, 50mm diameter | 100FG07-50 |
| RG-1000 Filter Glass, 50mm x 50mm x 3mm | 100FG07-50S |
| WG-280 Filter Glass, 25mm diameter | 280FG01-25 |
| WG-280 Filter Glass, 50mm diameter | 280FG01-50 |
| WG-280 Filter Glass, 50mm x 50mm x 3mm | 280FG01-50S |
| WG-295 Filter Glass, 25mm diameter | 295FG01-25 |
| WG-295 Filter Glass, 50mm diameter | 295FG01-50 |
| WG-295 Filter Glass, 50mm x 50mm x 3mm | 295FG01-50S |
| WG-305 Filter Glass, 25mm diameter | 305FG01-25 |
| WG-305 Filter Glass, 50mm diameter | 305FG01-50 |
| WG-305 Filter Glass, 50mm x 50mm x 3mm | 305FG01-50S |
| WG-320 Filter Glass, 25mm diameter | 320FG01-25 |
| WG-320 Filter Glass, 50mm diameter | 320FG01-50 |
| WG-320 Filter Glass, 50mm x 50mm x 3mm | 320FG01-50S |
| GG-395 Filter Glass, 165mm x 165mm x 3mm | 395FG03-165S |
| GG-395 Filter Glass, 25mm diameter | 395FG03-25 |
| GG-395 Filter Glass, 50mm diameter | 395FG03-50 |
| GG-395 Filter Glass, 50mm x 50mm x 3mm | 395FG03-50S |
| GG-400 Filter Glass, 165mm x 165mm x 3mm | 400FG03-165S |
| GG-400 Filter Glass, 25mm diameter | 400FG03-25 |
| GG-400 Filter Glass, 50mm diameter | 400FG03-50 |
| GG-400 Filter Glass, 50mm x 50mm x 3mm | 400FG03-50S |
| GG-420 Filter Glass, 165mm x 165mm x 3mm | 420FG03-165S |
| GG-420 Filter Glass, 25mm diameter | 420FG03-25 |
| GG-420 Filter Glass, 50mm diameter | 420FG03-50 |
| GG-420 Filter Glass, 50mm x 50mm x 3mm | 420FG03-50S |
| GG-435 Filter Glass, 165mm x 165mm x 3mm | 435FG03-165S |
| GG-435 Filter Glass, 25mm diameter | 435FG03-25 |
| GG-435 Filter Glass, 50mm diameter | 435FG03-50 |
| GG-435 Filter Glass, 50mm x 50mm x 3mm | 435FG03-50S |
| GG-455 Filter Glass, 165mm x 165mm x 3mm | 455FG03-165S |
| GG-455 Filter Glass, 25mm diameter | 455FG03-25 |
| GG-455 Filter Glass, 50mm diameter | 455FG03-50 |
| GG-455 Filter Glass, 50mm x 50mm x 3mm | 455FG03-50S |
| GG-475 Filter Glass, 165mm x 165mm x 3mm | 475FG03-165S |
| GG-475 Filter Glass, 25mm diameter | 475FG03-25 |
| GG-475 Filter Glass, 50mm diameter | 475FG03-50 |
| GG-475 Filter Glass, 50mm x 50mm x 3mm | 475FG03-50S |
| GG-495 Filter Glass, 165mm x 165mm x 3mm | 495FG03-165S |
| GG-495 Filter Glass, 25mm diameter | 495FG03-25 |
| GG-495 Filter Glass, 50mm diameter | 495FG03-50 |
| GG-495 Filter Glass, 50mm x 50mm x 3mm | 495FG03-50S |
| OG-515 Filter Glass, 165mm x 165mm x 3mm | 515FG05-165S |
| OG-515 Filter Glass, 25mm diameter | 515FG05-25 |
| OG-515 Filter Glass, 50mm diameter | 515FG05-50 |
| OG-515 Filter Glass, 50mm x 50mm x 3mm | 515FG05-50S |
| OG-530 Filter Glass, 165mm x 165mm x 3mm | 530FG05-165S |
| OG-530 Filter Glass, 25mm diameter | 530FG05-25 |
| OG-530 Filter Glass, 50mm diameter | 530FG05-50 |
| OG-530 Filter Glass, 50mm x 50mm x 3mm | 530FG05-50S |
| OG-550 Filter Glass, 165mm x 165mm x 3mm | 550FG05-165S |
| OG-550 Filter Glass, 25mm diameter | 550FG05-25 |
| OG-550 Filter Glass, 50mm diameter | 550FG05-50 |
| OG-550 Filter Glass, 50mm x 50mm x 3mm | 550FG05-50S |
| OG-570 Filter Glass, 165mm x 165mm x 3mm | 570FG05-165S |
| OG-570 Filter Glass, 25mm diameter | 570FG05-25 |
| OG-570 Filter Glass, 50mm diameter | 570FG05-50 |
| OG-570 Filter Glass, 50mm x 50mm x 3mm | 570FG05-50S |
| OG-590 Filter Glass, 165mm x 165mm x 3mm | 590FG05-165S |
| OG-590 Filter Glass, 25mm diameter | 590FG05-25 |
| OG-590 Filter Glass, 50mm diameter | 590FG05-50 |
| OG-590 Filter Glass, 50mm x 50mm x 3mm | 590FG05-50S |
| RG-610 Filter Glass, 165mm x 165mm x 3mm | 610FG07-165S |
| RG-610 Filter Glass, 25mm diameter | 610FG07-25 |
| RG-610 Filter Glass, 50mm diameter | 610FG07-50 |
| RG-610 Filter Glass, 50mm x 50mm x 3mm | 610FG07-50S |
| RG-630 Filter Glass, 165mm x 165mm x 3mm | 630FG07-165S |
| RG-630 Filter Glass, 25mm diameter | 630FG07-25 |
| RG-630 Filter Glass, 50mm diameter | 630FG07-50 |
| RG-630 Filter Glass, 50mm x 50mm x 3mm | 630FG07-50S |
| RG-645 Filter Glass, 165mm x 165mm x 3mm | 645FG07-165S |
| RG-645 Filter Glass, 25mm diameter | 645FG07-25 |
| RG-645 Filter Glass, 50mm diameter | 645FG07-50 |
| RG-645 Filter Glass, 50mm x 50mm x 3mm | 645FG07-50S |
| RG-665 Filter Glass, 165mm x 165mm x 3mm | 665FG07-165S |
| RG-665 Filter Glass, 25mm diameter | 665FG07-25 |
| RG-665 Filter Glass, 50mm diameter | 665FG07-50 |
| RG-665 Filter Glass, 50mm x 50mm x 3mm | 665FG07-50S |
| RG-695 Filter Glass, 165mm x 165mm x 3mm | 695FG07-165S |
| RG-695 Filter Glass, 25mm diameter | 695FG07-25 |
| RG-695 Filter Glass, 50mm diameter | 695FG07-50 |
| RG-695 Filter Glass, 50mm x 50mm x 3mm | 695FG07-50S |
| RG-715 Filter Glass, 165mm x 165mm x 3mm | 715FG07-165S |
| RG-715 Filter Glass, 25mm diameter | 715FG07-25 |
| RG-715 Filter Glass, 50mm diameter | 715FG07-50 |
| RG-715 Filter Glass, 50mm x 50mm x 3mm | 715FG07-50S |
| RG-780 Filter Glass, 165mm x 165mm x 3mm | 780FG07-165S |
| RG-780 Filter Glass, 25mm diameter | 780FG07-25 |
| RG-780 Filter Glass, 50mm diameter | 780FG07-50 |
| RG-780 Filter Glass, 50mm x 50mm x 3mm | 780FG07-50S |
| RG-830 Filter Glass, 165mm x 165mm x 3mm | 830FG07-165S |
| RG-830 Filter Glass, 25mm diameter | 830FG07-25 |
| RG-830 Filter Glass, 50mm diameter | 830FG07-50 |
| RG-830 Filter Glass, 50mm x 50mm x 3mm | 830FG07-50S |
| RG-850 Filter Glass, 165mm x 165mm x 3mm | 850FG07-165S |
| RG-850 Filter Glass, 25mm diameter | 850FG07-25 |
| RG-850 Filter Glass, 50mm diameter | 850FG07-50 |
| RG-850 Filter Glass, 50mm x 50mm x 3mm | 850FG07-50S |
