N-BK7高精度直角棱镜
N-BK7高精度直角棱镜
?光线偏转90°
?左旋性的图像
?角度公差达弧秒级
?另外也备有可选的额外直角棱镜

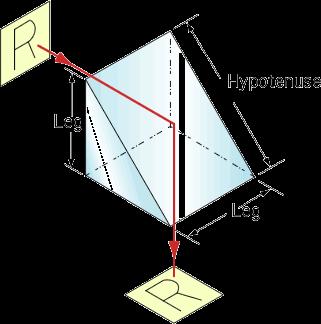

直角棱镜一般用于弯曲图像路径或将光路转折90°。本产品可产生左旋性的图像，这取决于棱镜的方向、是否翻转或回转图像。直角棱镜也可用于合成图像/光束偏移等应用。TECHSPEC? N-BK7高精度直角透镜具有低弧秒公差，并采用精密的N-BK7制作而成，适用于各种可见光应用。
Common Specifications
表面平整度: |
λ/8 |
射线偏差 (°): |
90 |
图像定位: |
Left-Handed |
尺寸容差 (mm): |
+0/-0.1 |
表面质量: |
40-20 |
基底: |
N-BK7 |
技术数据
订购信息
涂层 |
斜边长度 (mm) |
支脚长度 (mm) |
产品号 |
|---|---|---|---|
Protected Aluminum |
4.5 |
3.2 |
#32-538 |
Uncoated |
4.5 |
3.2 |
#32-537 |
VIS 0° & Aluminized |
4.5 |
3.2 |
#65-981 |
Protected Aluminum |
7.1 |
5 |
#32-540 |
Uncoated |
7.1 |
5 |
#32-539 |
VIS 0° & Aluminized |
7.1 |
5 |
#47-929 |
Protected Aluminum |
9.9 |
7 |
#32-542 |
Uncoated |
9.9 |
7 |
#32-541 |
VIS 0° & Aluminized |
9.9 |
7 |
#47-930 |
Protected Aluminum |
14.1 |
10 |
#32-544 |
Uncoated |
14.1 |
10 |
#32-543 |
VIS 0° & Aluminized |
14.1 |
10 |
#47-594 |
Protected Aluminum |
17.7 |
12.5 |
#65-929 |
Uncoated |
17.7 |
12.5 |
#47-933 |
VIS 0° & Aluminized |
17.7 |
12.5 |
#65-930 |
Protected Aluminum |
21.2 |
15 |
#32-546 |
Uncoated |
21.2 |
15 |
#32-545 |
VIS 0° & Aluminized |
21.2 |
15 |
#47-931 |
Protected Aluminum |
28.3 |
20 |
#32-548 |
Uncoated |
28.3 |
20 |
#32-547 |
VIS 0° & Aluminized |
28.3 |
20 |
#47-595 |
Protected Aluminum |
35.4 |
25 |
#32-550 |
Uncoated |
35.4 |
25 |
#32-549 |
VIS 0° & Aluminized |
35.4 |
25 |
#47-596 |
Protected Aluminum |
42.4 |
30 |
#32-552 |
Uncoated |
42.4 |
30 |
#32-551 |
VIS 0° & Aluminized |
42.4 |
30 |
#47-932 |
Protected Aluminum |
70.7 |
50 |
#65-931 |
Uncoated |
70.7 |
50 |
#49-007 |
VIS 0° & Aluminized |
70.7 |
50 |
#65-932 |
