中空回射器
1）入射光将会反射回去
2）采用空心结构，重量轻
3）不会引起材料吸收或色差
中空回射器是由三个外表面镀膜的反射面组成角锥棱镜。本产品采用空心结构，并减轻了重量，因此对位置和震动不敏感，因此入射平行光将会以*的精度反射回去，而不用担心其入射角度。由于光路在空气中，因此本配置可避免材料吸收和色差出现在实心玻璃棱镜型的回射器中。更大面积的外壳的后面板上有各种安装孔。
在回射器的*照明下，各个的光束偏差值为从任何6个子孔径中出来的任何一个反射光束的大平行差。在*照明下，出射波前为波前变形峰谷值，以 λ 表达式列出（λ = 633nm）。采用*的软垫封装设计，从而提高其抗震性能。

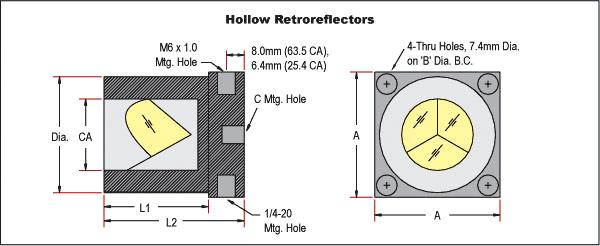

技术资料
Clear Aperture (CA) |
Diameter |
L1 |
L2 |
A |
B |
C |
6.4mm |
8.1mm |
8.1mm * |
— |
— |
— |
— |
12.7mm |
14.6mm |
19.1mm * |
— |
— |
— |
M3 x 0.5 |
25.4mm |
41.3mm |
36.5mm |
49.2mm |
44.5mm |
50.8mm |
?-20 |
50.8mm |
76.2mm |
62.0mm |
79.5mm |
78.7mm |
94.2mm |
?-20 ** |
63.5mm |
89.4mm |
61.5mm |
79.0mm |
92.3mm |
101.6mm |
?-20 ** |
127.0mm |
166.7mm |
125.5mm |
150.8mm |
171.5mm |
221.9mm |
?-20 ** |
|
||||||
*Does not have back plate
**Additional 8 mounting holes on 50.8mm and larger Dia: (4) M6 x 1.0 at 90° and (4) ?-20 at 90° on 2" Bolt Circle
标题 |
产品号 |
6.4mm Clear Aperture, 20 Arcsec, Aluminum Retroreflector |
#46-169 |
6.4mm Clear Aperture, 20 Arcsec, Gold Retroreflector |
#46-180 |
12.7mm Clear Aperture, 5 Arcsec, Aluminum Retroreflector |
#46-170 |
12.7mm Clear Aperture, 5 Arcsec, Gold Retroreflector |
#46-181 |
25.4mm Clear Aperture, 1 Arcsec, Aluminum Retroreflector |
#46-172 |
25.4mm Clear Aperture, 1 Arcsec, Gold Retroreflector |
#46-183 |
25.4mm Clear Aperture, 2 Arcsec, Aluminum Retroreflector |
#46-173 |
25.4mm Clear Aperture, 2 Arcsec, Gold Retroreflector |
#46-184 |
25.4mm Clear Aperture, 5 Arcsec, Aluminum Retroreflector |
#46-174 |
25.4mm Clear Aperture, 5 Arcsec, Gold Retroreflector |
#46-185 |
25.4mm Clear Aperture, 30 Arcsec, Aluminum Retroreflector |
#46-175 |
25.4mm Clear Aperture, 30 Arcsec, Gold Retroreflector |
#46-186 |
50.8mm Clear Aperture, 1 Arcsec, Aluminum Retroreflector |
#49-666 |
50.8mm Clear Aperture, 1 Arcsec, Gold Retroreflector |
#49-674 |
50.8mm Clear Aperture, 2 Arcsec, Aluminum Retroreflector |
#49-667 |
50.8mm Clear Aperture, 2 Arcsec, Gold Retroreflector |
#49-675 |
50.8mm Clear Aperture, 5 Arcsec, Aluminum Retroreflector |
#49-668 |
50.8mm Clear Aperture, 5 Arcsec, Gold Retroreflector |
#49-676 |
50.8mm Clear Aperture, 30 Arcsec, Aluminum Retroreflector |
#49-669 |
50.8mm Clear Aperture, 30 Arcsec, Gold Retroreflector |
#49-677 |
63.5mm Clear Aperture, 1 Arcsec, Aluminum Retroreflector |
#46-176 |
63.5mm Clear Aperture, 1 Arcsec, Gold Retroreflector |
#46-187 |
63.5mm Clear Aperture, 2 Arcsec, Aluminum Retroreflector |
#46-177 |
63.5mm Clear Aperture, 2 Arcsec, Gold Retroreflector |
#46-188 |
63.5mm Clear Aperture, 5 Arcsec, Aluminum Retroreflector |
#46-178 |
63.5mm Clear Aperture, 5 Arcsec, Gold Retroreflector |
#46-189 |
63.5mm Clear Aperture, 30 Arcsec, Aluminum Retroreflector |
#46-179 |
63.5mm Clear Aperture, 30 Arcsec, Gold Retroreflector |
#46-190 |
127mm Clear Aperture, 1 Arcsec, Aluminum Retroreflector |
#49-670 |
127mm Clear Aperture, 1 Arcsec, Gold Retroreflector |
#49-678 |
127mm Clear Aperture, 2 Arcsec, Aluminum Retroreflector |
#49-671 |
127mm Clear Aperture, 2 Arcsec, Gold Retroreflector |
#49-679 |
127mm Clear Aperture, 5 Arcsec, Aluminum Retroreflector |
#49-672 |
127mm Clear Aperture, 5 Arcsec, Gold Retroreflector |
#49-680 |
127mm Clear Aperture, 30 Arcsec, Aluminum Retroreflector |
#49-673 |
127mm Clear Aperture, 30 Arcsec, Gold Retroreflector |
#49-681 |
订购信息：
6.4mm Clear Aperture, 20 Arcsec, Aluminum Retroreflector
库存 #46-169
12.7mm Clear Aperture, 5 Arcsec, Aluminum Retroreflector
库存 #46-170
25.4mm Clear Aperture, 1 Arcsec, Aluminum Retroreflector
库存 #46-172
25.4mm Clear Aperture, 2 Arcsec, Gold Retroreflector
库存 #46-184
25.4mm Clear Aperture, 5 Arcsec, Aluminum Retroreflector
库存 #46-174
25.4mm Clear Aperture, 30 Arcsec, Aluminum Retroreflector
库存 #46-175
50.8mm Clear Aperture, 1 Arcsec, Aluminum Retroreflector
库存 #49-666
63.5mm Clear Aperture, 1 Arcsec, Gold Retroreflector
库存 #46-187
127mm Clear Aperture, 2 Arcsec, Aluminum Retroreflector
库存 #49-671
