UV级熔融石英平凹透镜
具有适用于光束扩束或投影应用的负焦距
200 - 2200nm 的波长范围
提供受欢迎的紫外线抗反射镀膜选件
本品性能优良，采用先进的CNC设备加工，Zygo?GPI-XP干涉仪检测，确保了表面精度和性能。UV级镜片采用研究级熔融石英材料，透射率高，受环境温度影响小，合成的熔融石英有着非常du特的性能以及化学纯度。可用于许多激光和成像方面，特别是紫外波段，在这个波段也可选镀有宽带增透膜的版本。
UV级熔融石英平凹透镜 通用规格| 基底: | Fused Silica |
| 表面质量: | 40-20 |
| Power (P-V) @ 632.8nm: | 1.5λ |
| Irregularity (P-V) @ 632.8nm: | λ/4 |
| 焦距z定波长 (nm): | 587.6 |
| 中心偏（弧分）: | <1 |
产品信息

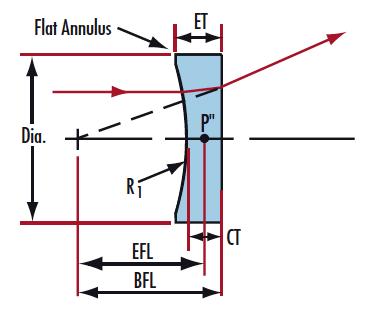

| Dia. (mm) |
EFL (mm) |
BFL (mm) |
涂层 |
产品编码 |
| 6.00 | -9.00 | -10.38 | Uncoated | #45-697 |
| 6.00 | -12.00 | -13.38 | Uncoated | #45-698 |
| 6.00 | -18.00 | -19.37 | Uncoated | #45-699 |
| 6.00 | -9.00 | -10.38 | UV-AR (250-425nm) | #46-308 |
| 6.00 | -12.00 | -13.38 | UV-AR (250-425nm) | #46-309 |
| 6.00 | -18.00 | -19.37 | UV-AR (250-425nm) | #46-310 |
| 6.00 | -9.00 | -10.38 | VIS-NIR (400-1000nm) | #21-043 |
| 6.00 | -12.00 | -13.38 | VIS-NIR (400-1000nm) | #21-044 |
| 6.00 | -18.00 | -19.37 | VIS-NIR (400-1000nm) | #21-045 |
| 9.00 | -13.50 | -14.89 | Uncoated | #45-700 |
| 9.00 | -18.00 | -19.37 | Uncoated | #45-701 |
| 9.00 | -27.00 | -28.42 | Uncoated | #45-702 |
| 9.00 | -13.50 | -14.89 | UV-AR (250-425nm) | #46-311 |
| 9.00 | -18.00 | -19.37 | UV-AR (250-425nm) | #46-312 |
| 9.00 | -27.00 | -28.42 | UV-AR (250-425nm) | #46-313 |
| 9.00 | -13.50 | -14.89 | VIS-NIR (400-1000nm) | #21-046 |
| 9.00 | -18.00 | -19.37 | VIS-NIR (400-1000nm) | #21-047 |
| 9.00 | -27.00 | -28.42 | VIS-NIR (400-1000nm) | #21-048 |
| 12.00 | -25.00 | -26.37 | Uncoated | #48-046 |
| 12.00 | -30.00 | -31.37 | Uncoated | #48-047 |
| 12.00 | -40.00 | -41.37 | Uncoated | #48-048 |
| 12.00 | -50.00 | -51.37 | Uncoated | #48-049 |
| 12.00 | -100.00 | -101.37 | Uncoated | #85-879 |
| 12.00 | -25.00 | -26.37 | UV-AR (250-425nm) | #48-050 |
| 12.00 | -30.00 | -31.37 | UV-AR (250-425nm) | #48-051 |
| 12.00 | -40.00 | -41.37 | UV-AR (250-425nm) | #48-052 |
| 12.00 | -50.00 | -51.37 | UV-AR (250-425nm) | #48-053 |
| 12.00 | -100.00 | -101.37 | UV-AR (250-425nm) | #88-037 |
| 12.00 | -25.00 | -26.37 | VIS-NIR (400-1000nm) | #21-049 |
| 12.00 | -30.00 | -31.37 | VIS-NIR (400-1000nm) | #21-050 |
| 12.00 | -40.00 | -41.37 | VIS-NIR (400-1000nm) | #21-051 |
| 12.00 | -50.00 | -51.37 | VIS-NIR (400-1000nm) | #21-052 |
| 12.00 | -100.00 | -101.37 | VIS-NIR (400-1000nm) | #21-053 |
| 25.00 | -50.00 | -51.37 | Uncoated | #48-315 |
| 25.00 | -75.00 | -76.71 | Uncoated | #48-316 |
| 25.00 | -100.00 | -101.71 | Uncoated | #48-317 |
| 25.00 | -150.00 | -151.71 | Uncoated | #48-318 |
| 25.00 | -200.00 | -201.71 | Uncoated | #48-319 |
| 25.00 | -250.00 | -251.71 | Uncoated | #48-320 |
| 25.00 | -50.00 | -51.37 | UV-AR (250-425nm) | #48-321 |
| 25.00 | -75.00 | -76.71 | UV-AR (250-425nm) | #48-322 |
| 25.00 | -100.00 | -101.71 | UV-AR (250-425nm) | #48-323 |
| 25.00 | -150.00 | -151.71 | UV-AR (250-425nm) | #48-324 |
| 25.00 | -200.00 | -201.71 | UV-AR (250-425nm) | #48-325 |
| 25.00 | -250.00 | -251.71 | UV-AR (250-425nm) | #48-326 |
| 25.00 | -50.00 | -51.37 | VIS-NIR (400-1000nm) | #21-054 |
| 25.00 | -75.00 | -76.71 | VIS-NIR (400-1000nm) | #21-055 |
| 25.00 | -100.00 | -101.71 | VIS-NIR (400-1000nm) | #21-056 |
| 25.00 | -150.00 | -151.71 | VIS-NIR (400-1000nm) | #21-057 |
| 25.00 | -200.00 | -201.71 | VIS-NIR (400-1000nm) | #21-058 |
| 25.00 | -250.00 | -251.71 | VIS-NIR (400-1000nm) | #21-059 |

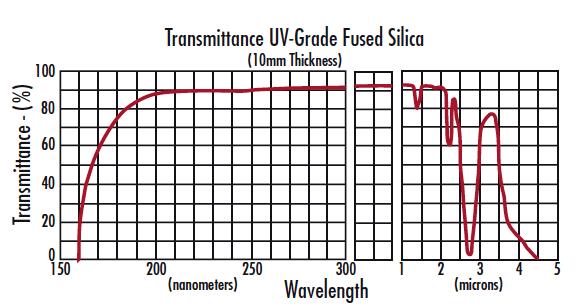

技术数据
