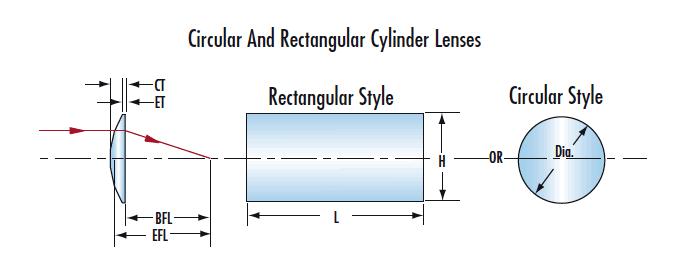

高品质成像柱面透镜
只在一个方向聚光，外形和平凸透镜相似，它是圆柱的一部份且可代替球面，柱面透镜能把点光成线光，且可用作产生激光的线性激光发生器。这种透镜以同一尺寸放大所以它能拉伸成像，因此它能把光调焦成一个细缝或是聚光成一个线性扫描探测器。由于在倾斜和楔形方面有严格公差，和标准柱面透镜相比，高品质成像透镜将产生直线或是更好成像。
?高品质成像柱面透镜
常用规格
基底: |
N-BK7 |
尺寸容差 (mm): |
+0.0/-0.2 |
焦距容差 (%): |
±3 |
表面质量: |
60-40 |
?
技术数据
?
订购信息
直径 (mm) |
尺寸 (mm) |
有效焦距 EFL (mm) |
涂层 |
产品号 |
|---|---|---|---|---|
5 |
- |
8 |
Uncoated |
#45-981 |
5 |
- |
8 |
MgF2 (400-700nm) |
#47-760 |
5 |
- |
30 |
Uncoated |
#45-982 |
5 |
- |
30 |
MgF2 (400-700nm) |
#47-761 |
5 |
- |
30 |
VIS-NIR (400-1000nm) |
#47-955 |
5 |
- |
30 |
VIS 0 (425-675nm) |
#69-691 |
5 |
- |
30 |
NIR I (600-1050nm) |
#69-702 |
5 |
- |
50 |
Uncoated |
#45-983 |
5 |
- |
50 |
MgF2 (400-700nm) |
#47-762 |
5 |
- |
50 |
VIS-NIR (400-1000nm) |
#47-956 |
5 |
- |
50 |
VIS 0 (425-675nm) |
#69-692 |
5 |
- |
50 |
NIR I (600-1050nm) |
#69-703 |
? |
5.0 x 10.0 |
8 |
Uncoated |
#43-856 |
? |
5.0 x 10.0 |
8 |
MgF2 (400-700nm) |
#47-763 |
? |
5.0 x 10.0 |
20 |
Uncoated |
#43-857 |
? |
5.0 x 10.0 |
20 |
MgF2 (400-700nm) |
#47-764 |
? |
5.0 x 10.0 |
20 |
VIS-NIR (400-1000nm) |
#47-958 |
? |
5.0 x 10.0 |
20 |
VIS 0 (425-675nm) |
#69-693 |
? |
5.0 x 10.0 |
20 |
NIR I (600-1050nm) |
#69-704 |
? |
5.0 x 10.0 |
30 |
Uncoated |
#43-858 |
? |
5.0 x 10.0 |
30 |
MgF2 (400-700nm) |
#47-765 |
? |
5.0 x 10.0 |
30 |
VIS-NIR (400-1000nm) |
#47-959 |
? |
5.0 x 10.0 |
30 |
VIS 0 (425-675nm) |
#69-694 |
? |
5.0 x 10.0 |
30 |
NIR I (600-1050nm) |
#69-705 |
? |
5.0 x 10.0 |
50 |
Uncoated |
#43-859 |
? |
5.0 x 10.0 |
50 |
VIS-NIR (400-1000nm) |
#47-960 |
? |
5.0 x 10.0 |
50 |
MgF2 (400-700nm) |
#47-766 |
? |
5.0 x 10.0 |
50 |
VIS 0 (425-675nm) |
#69-695 |
? |
5.0 x 10.0 |
50 |
NIR I (600-1050nm) |
#69-706 |
10 |
- |
15 |
Uncoated |
#47-754 |
10 |
- |
15 |
MgF2 (400-700nm) |
#47-767 |
10 |
- |
20 |
Uncoated |
#47-755 |
10 |
- |
20 |
MgF2 (400-700nm) |
#47-768 |
10 |
- |
20 |
VIS-NIR (400-1000nm) |
#47-962 |
10 |
- |
20 |
VIS 0 (425-675nm) |
#69-696 |
10 |
- |
20 |
NIR I (600-1050nm) |
#69-707 |
10 |
- |
30 |
Uncoated |
#47-756 |
10 |
- |
30 |
MgF2 (400-700nm) |
#47-769 |
10 |
- |
30 |
VIS-NIR (400-1000nm) |
#47-963 |
10 |
- |
30 |
VIS 0 (425-675nm) |
#69-697 |
10 |
- |
30 |
NIR I (600-1050nm) |
#69-708 |
10 |
- |
50 |
Uncoated |
#47-757 |
10 |
- |
50 |
MgF2 (400-700nm) |
#47-770 |
10 |
- |
50 |
VIS-NIR (400-1000nm) |
#47-964 |
10 |
- |
50 |
VIS 0 (425-675nm) |
#69-698 |
10 |
- |
50 |
NIR I (600-1050nm) |
#69-709 |
10 |
- |
75 |
Uncoated |
#47-758 |
10 |
- |
75 |
MgF2 (400-700nm) |
#47-771 |
10 |
- |
75 |
VIS-NIR (400-1000nm) |
#47-965 |
10 |
- |
75 |
VIS 0 (425-675nm) |
#69-699 |
10 |
- |
75 |
NIR I (600-1050nm) |
#69-710 |
? |
10.0 x 20.0 |
15 |
Uncoated |
#43-860 |
? |
10.0 x 20.0 |
15 |
MgF2 (400-700nm) |
#47-773 |
? |
10.0 x 20.0 |
75 |
Uncoated |
#43-861 |
? |
10.0 x 20.0 |
75 |
MgF2 (400-700nm) |
#47-774 |
? |
10.0 x 20.0 |
75 |
VIS-NIR (400-1000nm) |
#47-968 |
? |
10.0 x 20.0 |
75 |
VIS 0 (425-675nm) |
#69-700 |
? |
10.0 x 20.0 |
75 |
NIR I (600-1050nm) |
#69-711 |
? |
10.0 x 20.0 |
100 |
Uncoated |
#43-862 |
? |
10.0 x 20.0 |
100 |
MgF2 (400-700nm) |
#47-775 |
? |
10.0 x 20.0 |
100 |
VIS-NIR (400-1000nm) |
#47-969 |
? |
10.0 x 20.0 |
100 |
VIS 0 (425-675nm) |
#69-701 |
? |
10.0 x 20.0 |
100 |
NIR I (600-1050nm) |
#69-712 |
